BUK7E11-55B

CategoryDiscrete semiconductor    The transistor
File Size186KB,15 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Environmental Compliance
Download Datasheet Parametric View All

BUK7E11-55B Online Shopping

Suppliers Part Number Price MOQ In stock
BUK7E11-55B - - View Buy Now

BUK7E11-55B Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNXP
Parts packaging codeTO-262AA
package instructionPLASTIC, TO-262, I2PAK-3
Contacts3
Reach Compliance Codenot_compliant
ECCN codeEAR99
Avalanche Energy Efficiency Rating (Eas)173 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage55 V
Maximum drain current (Abs) (ID)75 A
Maximum drain current (ID)75 A
Maximum drain-source on-resistance0.011 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-262AA
JESD-30 codeR-PSIP-T3
JESD-609 codee3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)157 W
Maximum pulsed drain current (IDM)338 A
Certification statusNot Qualified
surface mountNO
Terminal surfaceTin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
I2P
AK
BUK7E11-55B
N-channel TrenchMOS standard level FET
Rev. 3 — 31 January 2011
Product data sheet
1. Product profile
1.1 General description
Standard level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic
package using TrenchMOS technology. This product has been designed and qualified to
the appropriate AEC standard for use in automotive critical applications.
1.2 Features and benefits
AEC Q101 compliant
Low conduction losses due to low
on-state resistance
Suitable for standard level gate drive
sources
Suitable for thermally demanding
environments due to 175 °C rating
1.3 Applications
12 V and 24 V loads
Automotive systems
General purpose power switching
Motors, lamps and solenoids
1.4 Quick reference data
Table 1.
Symbol
V
DS
I
D
P
tot
Quick reference data
Parameter
drain-source
voltage
drain current
total power
dissipation
drain-source
on-state
resistance
Conditions
T
j
25 °C; T
j
175 °C
V
GS
= 10 V; T
mb
= 25 °C;

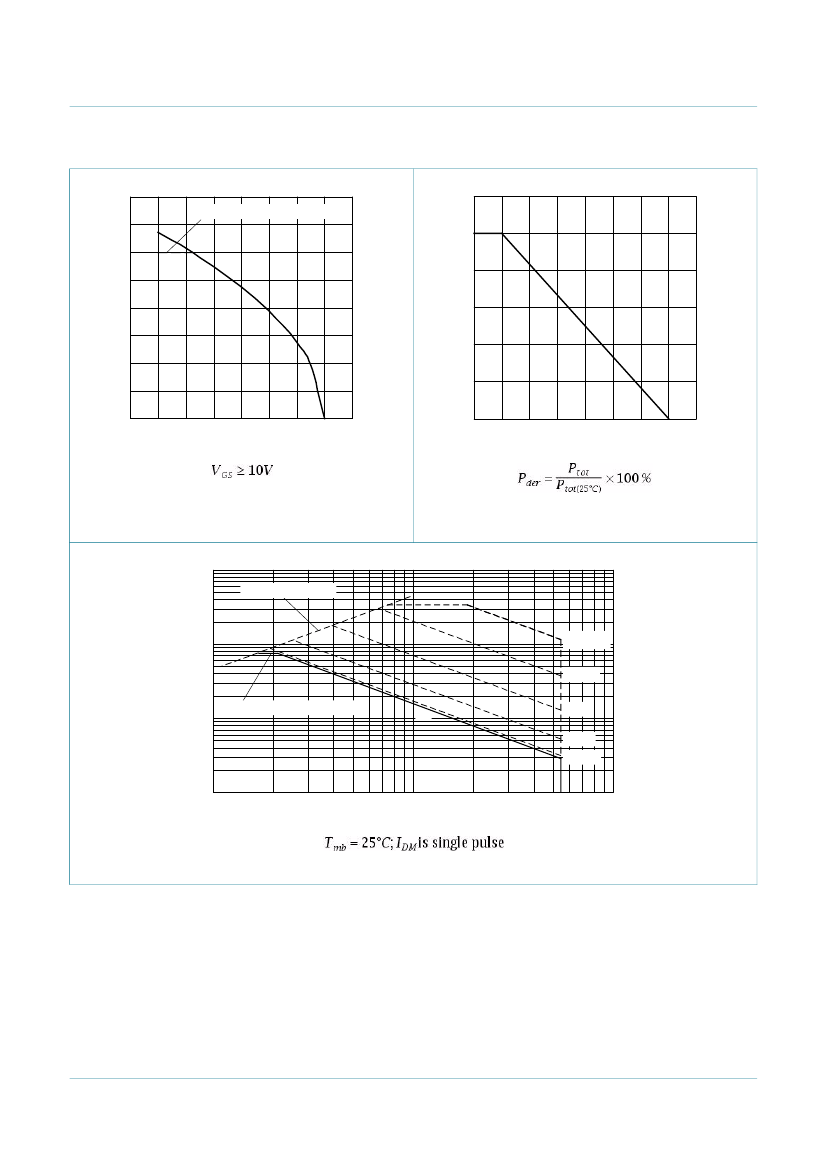

see
Figure 1;
see
Figure 3
T
mb
= 25 °C; see
Figure 2
[1]
Min
-
-
-
Typ
-
-
-
Max Unit
55
75
157
V
A
W
Static characteristics
R
DSon
V
GS
= 10 V; I
D
= 25 A;
T
j
= 25 °C; see
Figure 11;
see
Figure 12
-
9.9
11
mΩ
