XC6222D401MR-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> XC6222D401MR-G

XC6222D401MR-G: DescriptionLDO Voltage Regulators; CategoryPower/power management The power supply circuit; File Size702KB，27 Pages; ManufacturerTOREX; Websitehttp://www.torex.co.jp/chinese/; Environmental Compliance

Download Datasheet Parametric View All

XC6222D401MR-G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XC6222D401MR-G	-	-	View	Buy Now

XC6222D401MR-G Overview

LDO Voltage Regulators

XC6222D401MR-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TOREX
Parts packaging code	SOT
package instruction	ANTIMONY AND HALOGEN FREE, ROHS COMPLIANT, SOT-25, 5 PIN
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum drop-back voltage 1	0.2 V
Maximum input voltage	6 V
Minimum input voltage	1.7 V
JESD-30 code	R-PDSO-G5
JESD-609 code	e3
length	2.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	5
Maximum output current 1	0.7 A
Maximum output voltage 1	4.04 V
Minimum output voltage 1	3.96 V
Nominal output voltage 1	4 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.3 mm
surface mount	YES
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	1.6 mm

Preview

Download Datasheet

View All

XC6222

Series

700mA High Speed LDO Regulator

ETR0344-008

■GENERAL

DESCRIPTION

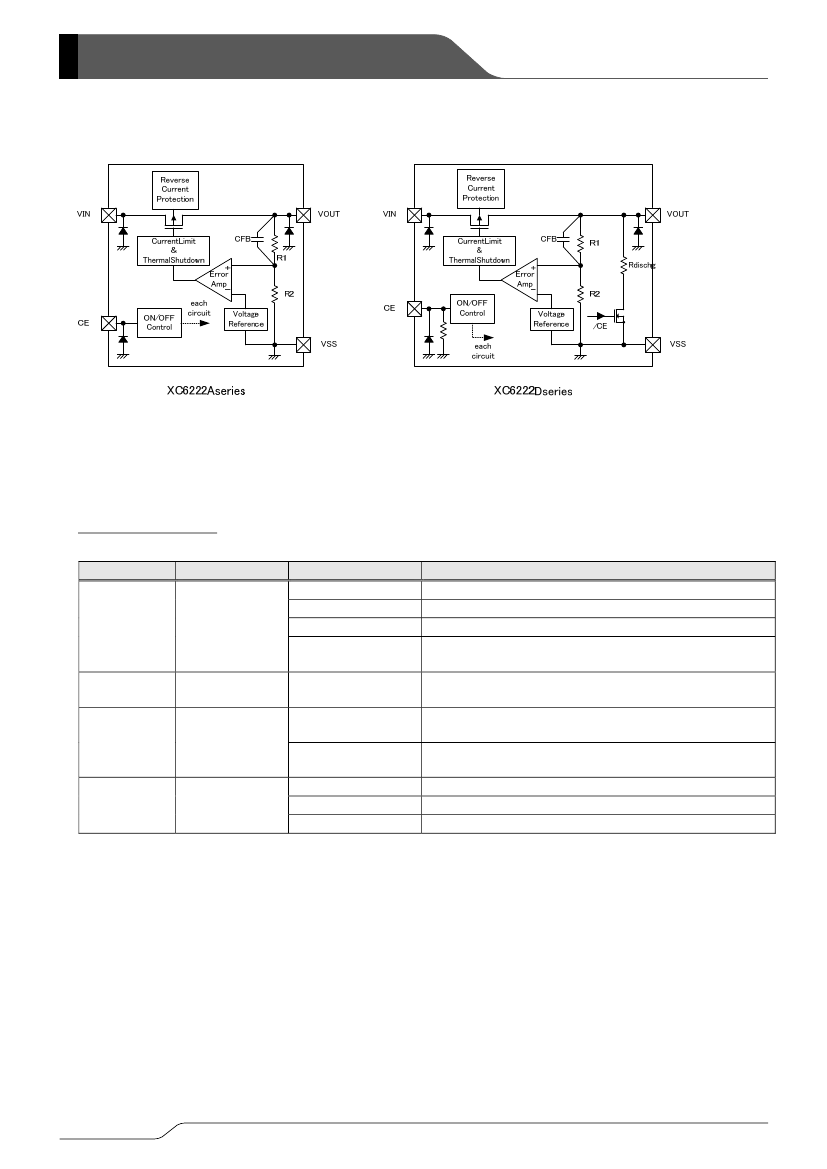

The XC6222 series is a highly accurate, low noise, high ripple rejection, low dropout, and low power consumption high speed

voltage regulator. The series consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a thermal

protection circuit, and a phase compensation circuit.

The CE function enables the entire circuit to be placed in a stand-by state by inputting a low level signal to the CE pin. In this

stand-by mode, the electric charge at the output capacitor (C

) will be discharged by the internal auto-discharge switch, and as

a result the VOUT pin will quickly return to the VSS level.

Over-current protection and thermal protection circuits are integrated. The protection circuit starts to operate when either output

current reaches the current limit level or junction temperature reaches the temperature limit.

■APPLICATIONS

●

USB / HDMI products

Optical disk drive

Magnetic disk drive

Smart phones / Mobile phones

Portable game consoles

Modules (wireless, cameras, etc. )

E-book Reader / Electronic dictionaries

■FEATURES

: 700mA

: 120mV @I

OUT

=300mA (V

OUT

=3.0V)

: 1.7V ~ 6.0V

: 0.8V~5.0V (0.05V increments)

: +1% (V

OUT

＞2.0V)

+0.02V (V

OUT

≦2.0V)

Low Power Consumption

: 100μA

High Ripple Rejection

: 65dB @ 1kHz

Low ESR Capacitor

: Ceramic capacitor

Chip Enable (CE)

: Active High, C

discharge

Standby Current below 0.1μA

Operating Ambient Temperature

: -40℃~+85℃

Packages

: USP-6C, SOT-25, SOT-89-5

: EU RoHS Compliant, Pb Free

Environmentally Friendly

Maximum Output Current

Dropout Voltage

Operating Voltage Range

Output Voltage

Accuracy

■TYPICAL

APPLICATION CIRCUIT

■TYPICAL

PERFORMANCE

CHARACTERISTICS

●

Load Transient Response

　　●負荷過渡応答特性例

XC6222x151

tr=tf=5μs,V

=2.5V, Ta=25℃

OUT

=10→300mA, C

=1.0μF(ceramic), C

=6.8μF(ceramic)

1.6

Output Voltage：V

OUT

(V)

1000

Output Voltage

1.5

1.4

1.3

1.2

1.1

800

600

Output Current

400

200

Time：100μs/div

：

2.2μ or higher (V

OUT

=2.5½5.0V)

4.7μ or higher (V

OUT

=2.1½2.45V)

6.8μ or higher (V

OUT

=0.8½2.05V)

Output Current：I

OUT

(mA)

1/27
