R574.452.400 datasheet, PDF - EEWORLD Datasheet

R574.452.400: DescriptionRF Coaxial Relay, SP4T, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size121KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R574.452.400 Overview

RF Coaxial Relay, SP4T, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount

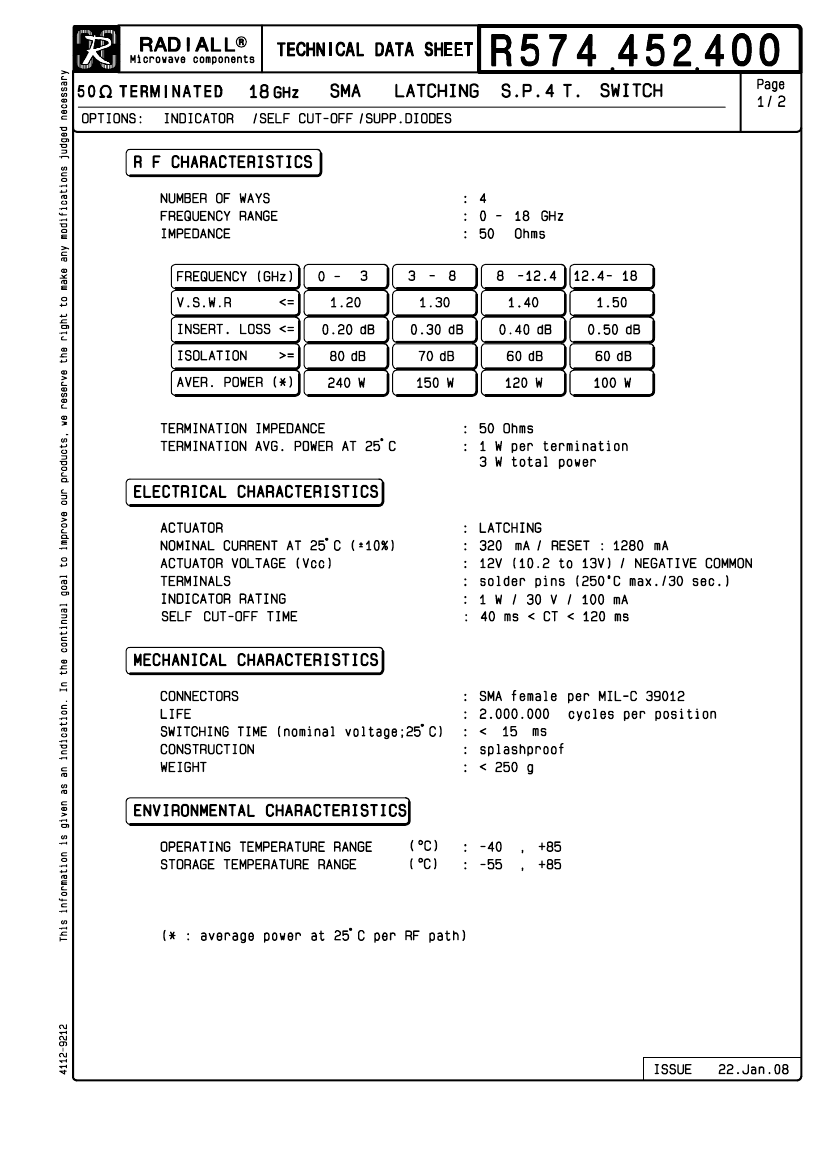

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	5 weeks 5 days

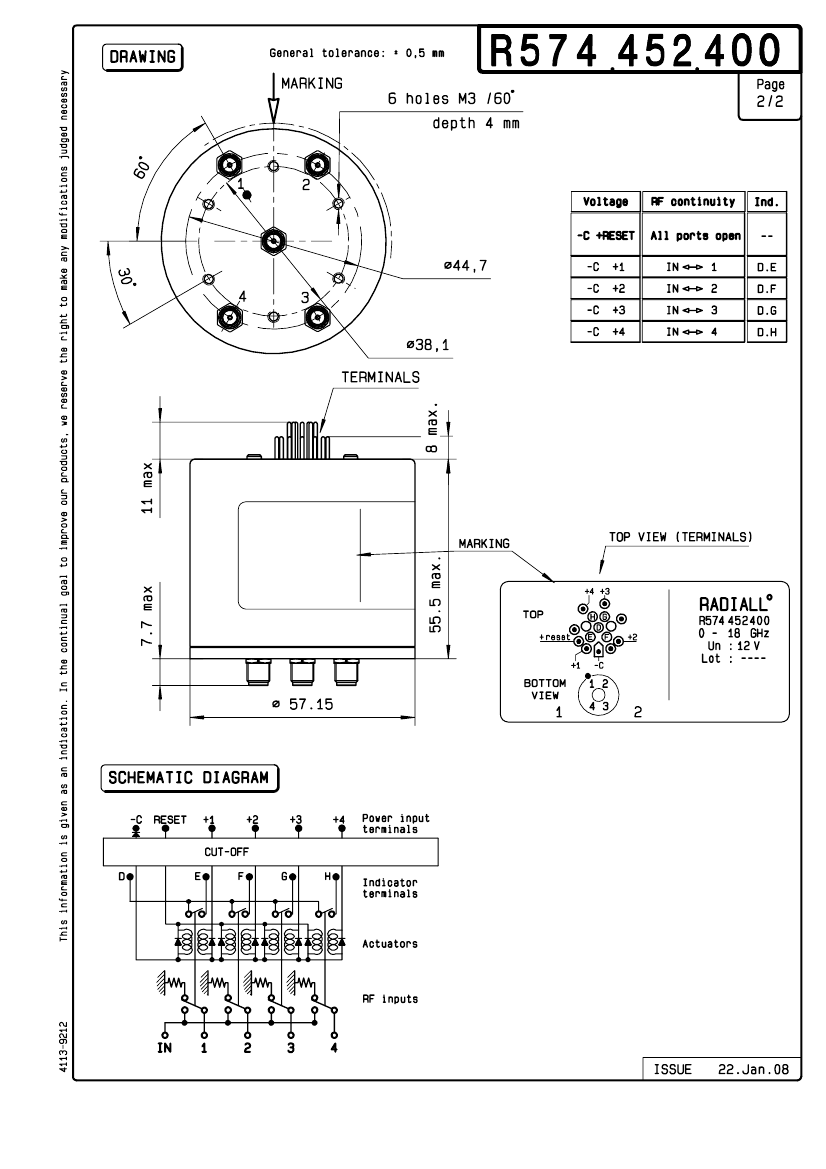

body height	55.5 mm
Body length or diameter	57.15 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.32 A
Coil power	3840 mW
Coil resistance	37.5 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Manufacturer's serial number	R574.452.400
Installation features	PANEL MOUNT
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	LATCHED
Relay function	SP4T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.5
Base Number Matches	1
