MXHV9910
I
NTEGRATED
C
IRCUITS
D
IVISION

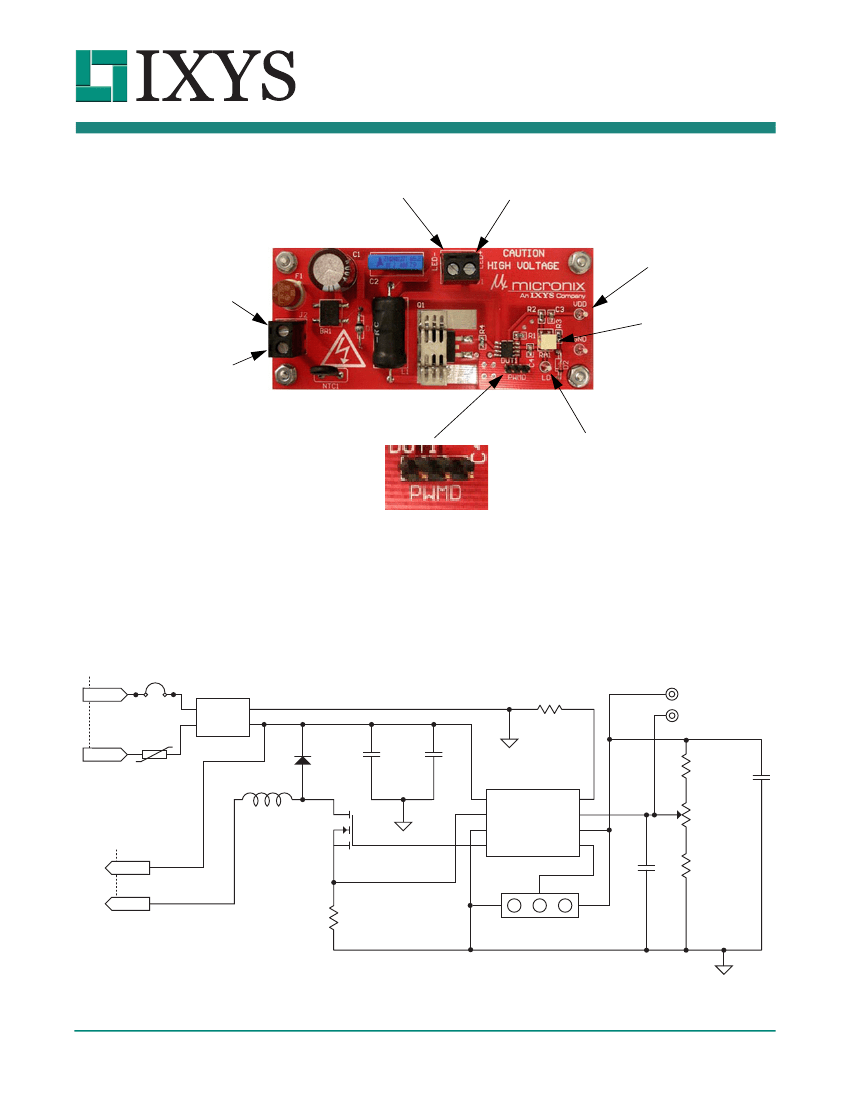

265VAC Demo Board
LED-
350mA max
LED+
VDD MONITOR
Vin
90 to 265 VAC
EXTERNAL POWER
RA1
- External
Current Sense
Threshold Adjust
Vin
Warning:
This demonstration board must
be powered through an isolation
transformer before connecting to
any external AC instrumentation.
JP1
- EXTERNAL PWMD CONTROL INPUT
Connecting the PWMD pin to VDD enables
the converter. Applying a PWM TTL signal
between the PWMD pin and GND adjusts the
average output current to the LEDs according
to the duty cycle.
LD MONITOR
The LD pin is connected to
the wiper of RA1. LED current
may be reduced in a linear
fashion by adjusting RA1.
J2
V
IN
FUSE F2
2A
BR1
AC
AC
df04s
V
IN
NTC1
D1
BYV26B
2
L1
4.7mH
J1
LED+
LED CONNECTION
LED-
R4
0.56Ω
1
JP1
2
PWMD
3
Q1
IRF840AS
3
1
C1
0.1μF
400V
C2
22μF
400V
1
2
3
4
V
IN
CS
PGND
GATE
DUT1
C4
0.1μF
25V
MXHV9910
8-PIN SOIC
RT
LD
V
DD
PWMD
8
7
6
5
R3
0Ω
RA1
5kΩ
R2
51kΩ
C2
2.2μF
16V
R1
402kΩ
V
DD
MONITOR
LD MONITOR
90-265VAC
EXT. POWER
-
+
