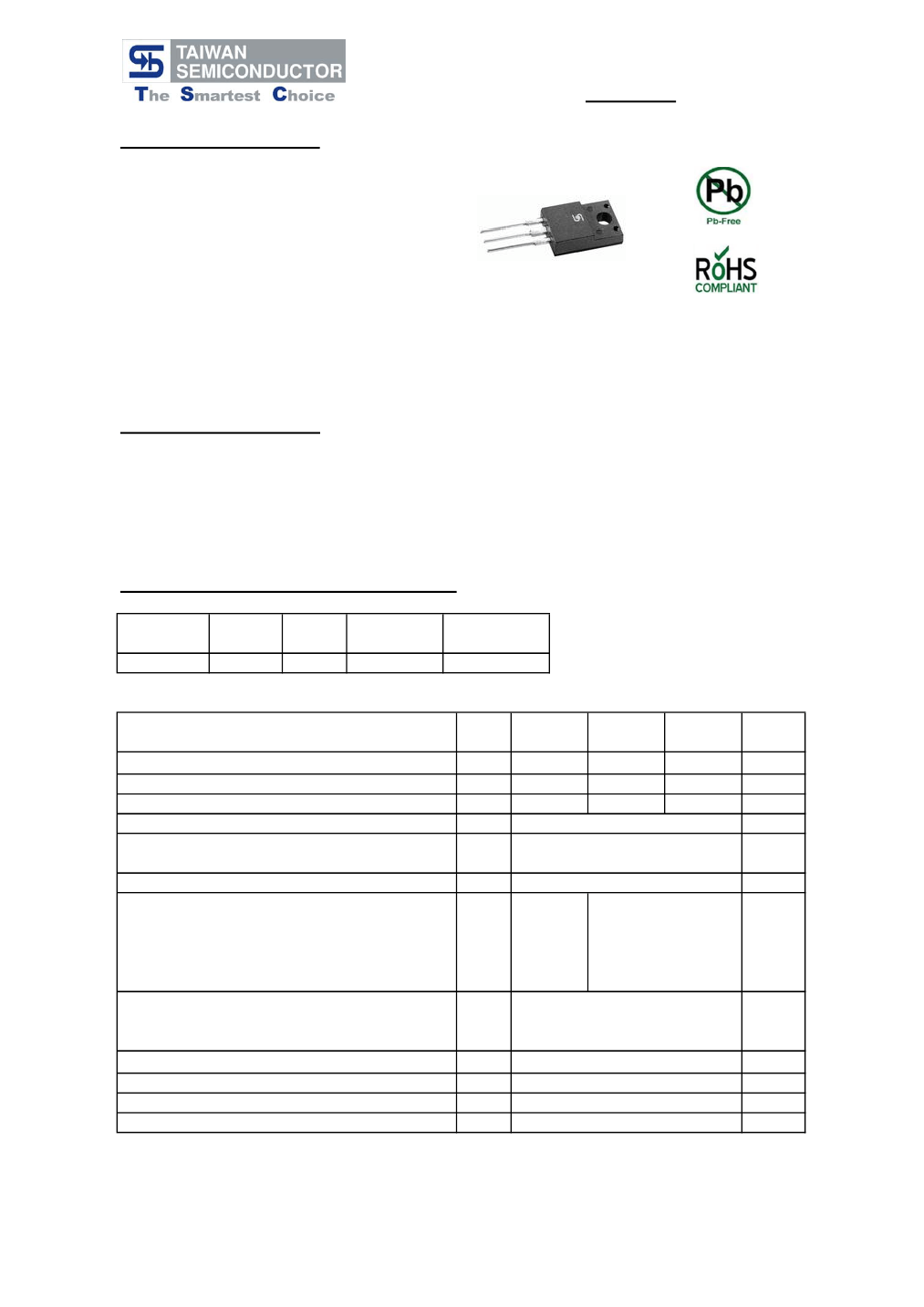

MBRF10100D - MBRF10200D
10.0AMPS Isolated Schottky Barrier Rectifier
ITO-220AB
Features
Plastic material used carries Underwriters Laboratory
Classifications 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High current capability, low forward voltage drop
High Surge capability
For use in low voltage, high frequency inverters,
free wheeling, and polarity protection applications
Guarding for overvoltage protection
High temperature soldering guaranteed: 260℃/
10 seconds, 0.25"(6.35mm) from case
Green compound with suffix "G" on packing
code & prefix "G" on datecode

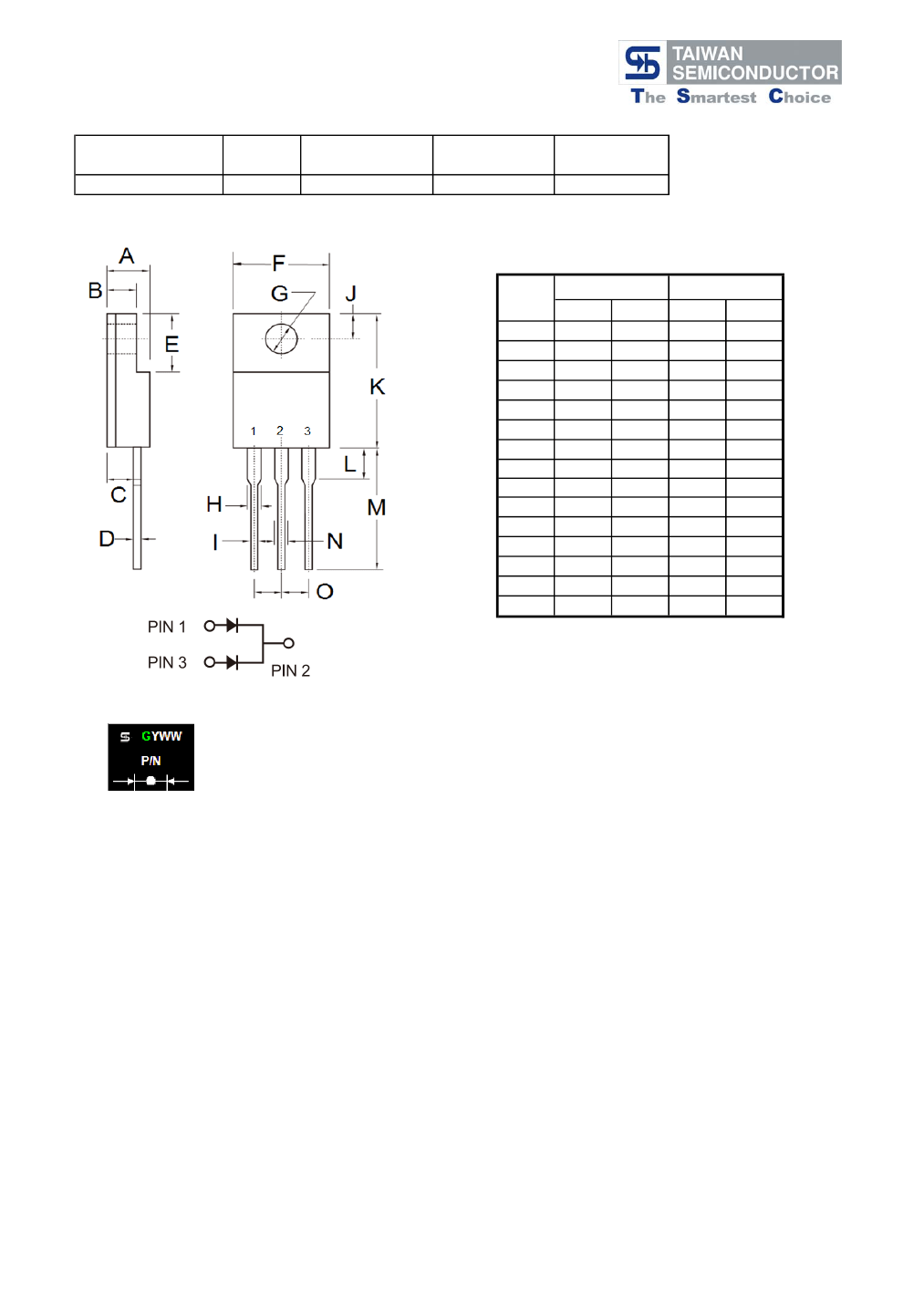

Mechanical Data
Case: ITO-220AB molded plastic body
Terminals: Pure tin plated, lead free, solderable
per MIL-STD-750, Method 2026
Polarity: As marked
Mounting position: Any
Mounting torque: 5 in-lbs. Max.
Weight: 1.74 grams
Ordering Information (example)
Part No.
Package
Packing
Packing code
C0
Packing code
(Green)
C0G
MBRF10100D ITO-220AB 50 / TUBE
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Peak Repetitive Reverse Surge Current
Maximum Instantaneous Forward Voltage at (Note 1)
IF = 5A, T
A
=25℃
IF = 5A, T
A
=125℃
IF = 10A, T
A
=25℃
IF = 10A, T
A
=125℃
Maximum Reverse Current at Rated DC Blocking Voltage
T
A
=25
℃
T
A
=125
℃
Voltage rate of change (Rated V
R
)
Maximum Thermal Resistance Per Leg (Note 2)
Operating Temperature Range
Storage Temperature Range
Note1: Pulse Test : 300us Pulse Width, 1% Duty cycle
Note2: Thermal Resistance from Junction to Case Per Leg
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
RRM
MBRF
10100D
100
70
100
MBRF
10150D
150
105
150
10
120
0.5
MBRF
10200D
200
140
200
Unit
V
V
V
A
A
A
V
F
0.85
0.75
0.95
0.85
0.88
0.78
0.98
0.88
V
I
R
dV/dt
R
θJC
T
J
T
STG
0.1
5
10,000
3.5
-65 to + 150
-65 to + 150
mA
mA
V/uS
O
C/W
O
O
C
C
Version:B13

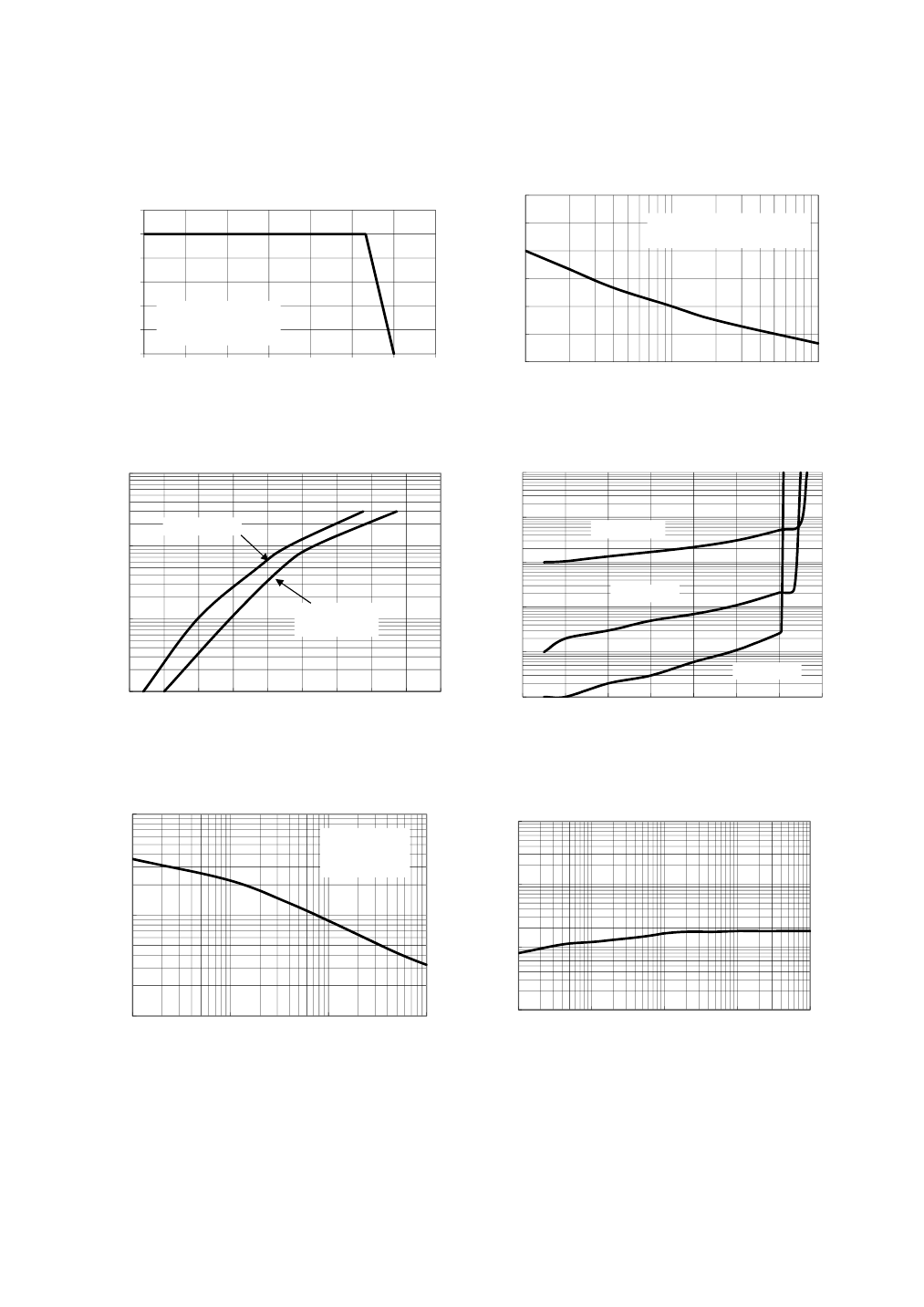

RATINGS AND CHARACTERISTIC CURVES (MBRF10100D THRU MBRF10150D)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT (A)
FIG. 2 MAXIMUM NON-REPETITIVE
FORWARD SURGE CURRENT PER LEG
PEAK FORWARD SURGE CURRENT(A)
180
150
120
90
60
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
8.3ms Single Half Sine Wave
JEDEC Method
12
10
8
6
4
2
0
0
25
50
75
100
125
150
175
CASE TEMPERATURE (℃)
RESISTER OR
INDUCTIVE LOAD
WITH HEATSINK
100
100
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
PER LEG
INSTANTANEOUS REVERSE CURRENT(mA)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
PER LEG
10
1
0.1
TA=75℃
MBRF10100D
TA=125℃
10
1
MBRF10150D-
MBRF10200D
0.01
0.001
TA=25℃
0.1
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
FORWARD VOLTAGE (V)
0.0001
0
20
40
60
80
100
120
140
PERCENT OF VR (%)
FIG. 5 TYPICAL JUNCTION CAPACITANCE
PER LEG
1000
TRANSIENT THERMAL IMPEDANCE
(℃/ W)
TA=25℃
f=1.0MHz
Vsig=50mVp-p
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
PER LEG
100
JUNCTION CAPACITANCE (pF)
10
100
1
10
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100
