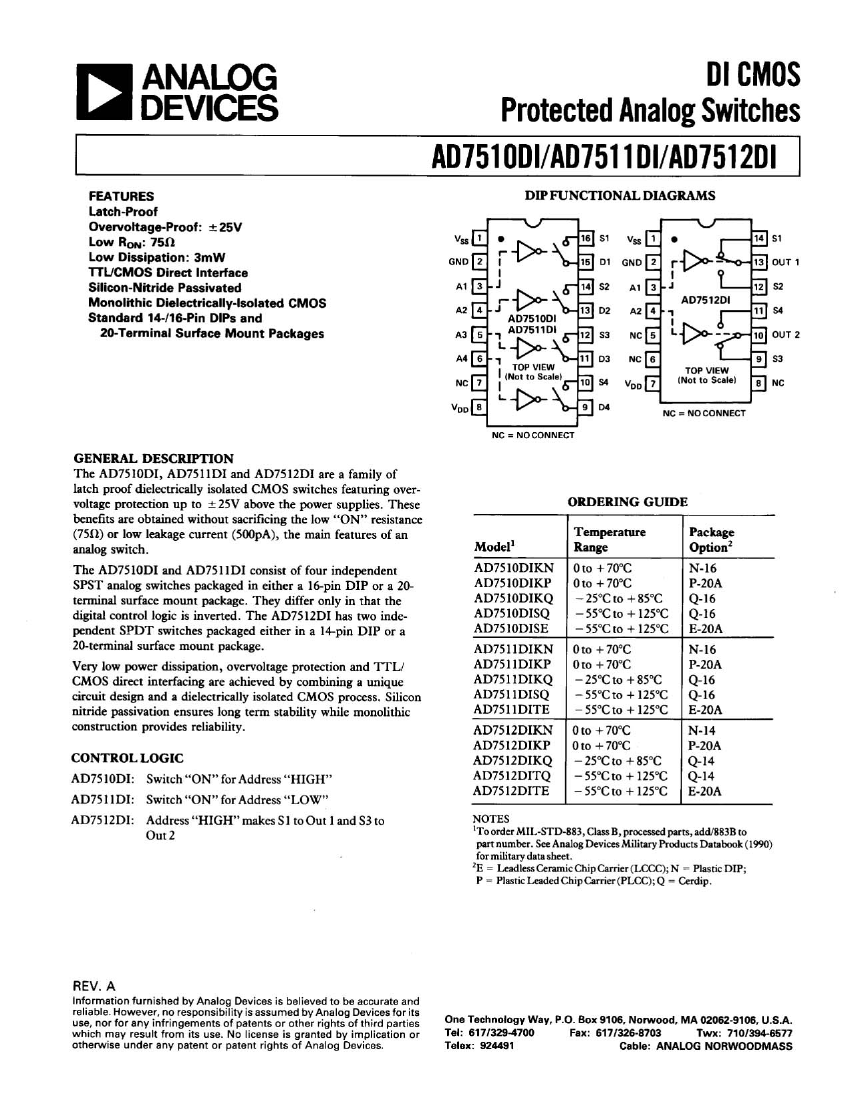

AD7510DIKQ datasheet, PDF - EEWORLD Datasheet

AD7510DIKQ: Categorysemiconductor Other integrated circuit (IC); File Size2MB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

AD7510DIKQ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AD7510DIKQ	-	-	View	Buy Now

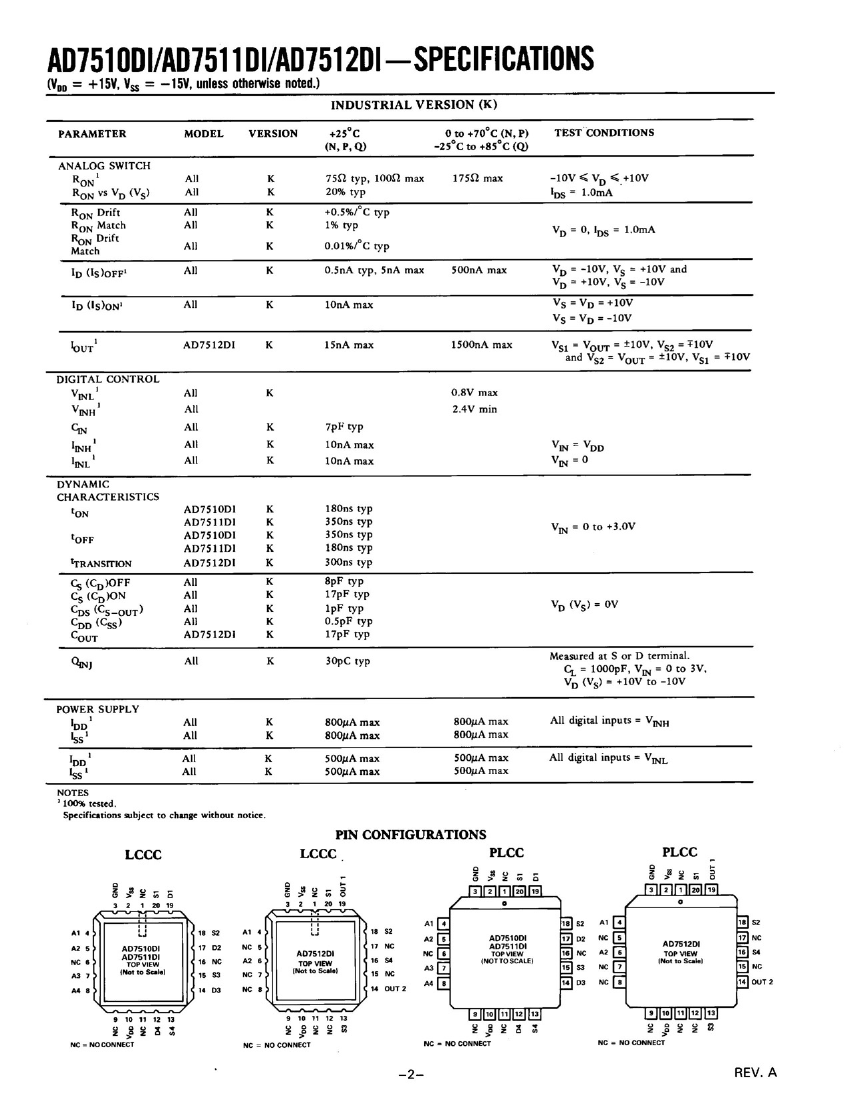

Parameter Name	Attribute value
Product Category	Analog Switch ICs
Manufacturer	ADI
RoHS	No
Number of Switches	4 Switch
Configuration	4 x SPST
On Resistance - Max	100 Ohms
Switch Voltage - Max	+/- 15 V
On Time - Max	180 ns
Off Time - Max	350 ns
Operating Supply Voltage	+/- 15 V
Maximum Operating Temperature	+ 85 C
Mounting Style	Through Hole
Package / Case	CDIP-16
Packaging	Tube
Dual Supply Voltage	+/- 15 V
Height	3.56 mm (Max)
Length	21.34 mm (Max)
Minimum Operating Temperature	- 25 C
Pd - Power Dissipation	450 mW
Factory Pack Quantity	25
Supply Current - Max	800 uA
Supply Type	Dual Supply
Switch Continuous Current	50 mA
Width	7.87 mm (Max)

	AD7510DIKQ	AD7510DIJNZ
Description		Analog Switch ICs IC DI CMOS Protected
Product Category	Analog Switch ICs	Analog Switch ICs
Manufacturer	ADI	ADI
RoHS	No	Details
Number of Switches	4 Switch	4 Switch
Configuration	4 x SPST	4 x SPST
On Resistance - Max	100 Ohms	100 Ohms
Switch Voltage - Max	+/- 15 V	+/- 15 V
On Time - Max	180 ns	180 ns
Off Time - Max	350 ns	350 ns
Operating Supply Voltage	+/- 15 V	+/- 15 V
Maximum Operating Temperature	+ 85 C	+ 70 C
Mounting Style	Through Hole	Through Hole
Package / Case	CDIP-16	PDIP-16
Packaging	Tube	Tube
Dual Supply Voltage	+/- 15 V	+/- 15 V
Height	3.56 mm (Max)	3.3 mm
Length	21.34 mm (Max)	20.07 mm
Minimum Operating Temperature	- 25 C	0 C
Pd - Power Dissipation	450 mW	450 mW
Factory Pack Quantity	25	25
Supply Current - Max	800 uA	800 uA
Supply Type	Dual Supply	Dual Supply
Switch Continuous Current	50 mA	50 mA
Width	7.87 mm (Max)	6.35 mm
