Z53C8003PSC datasheet, PDF - EEWORLD Datasheet

Z53C8003PSC: CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，43 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z53C8003PSC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z53C8003PSC	-	-	View	Buy Now

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP, DIP48,.6
Contacts	48
Reach Compliance Code	unknown
Address bus width	3
Maximum data transfer rate	3 MBps
Drive interface standards	X3.131
External data bus width	8
JESD-30 code	R-PDIP-T48
JESD-609 code	e0
length	62.36 mm
Number of terminals	48
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP48,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.88 mm
Maximum slew rate	15 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	BUS CONTROLLER, SCSI

=&

6PDOO &RPSXWHU 6\VWHP

,QWHUIDFH 6&6,

3URGXFW 6SHFLILFDWLRQ

36

=L/2* :RUOGZLGH +HDGTXDUWHUV ( +DPLOWRQ $YHQXH &DPSEHOO &$

7HOHSKRQH )D[

ZZZ=L/2*FRP

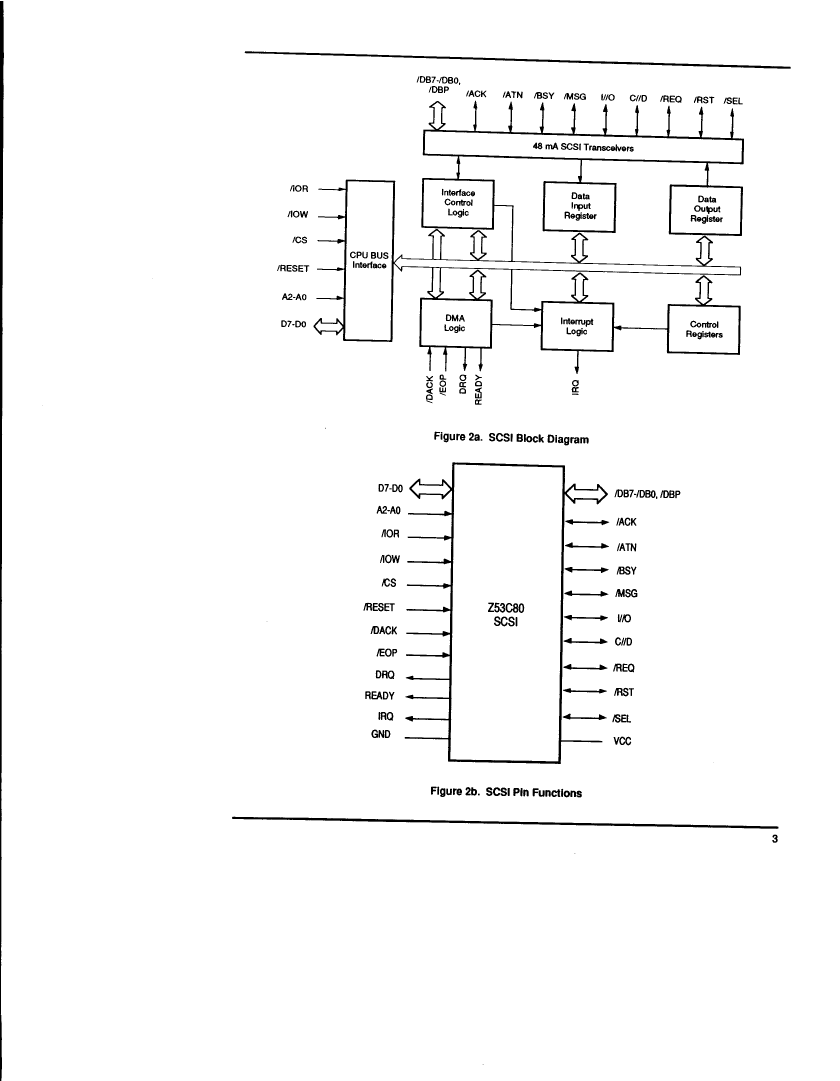

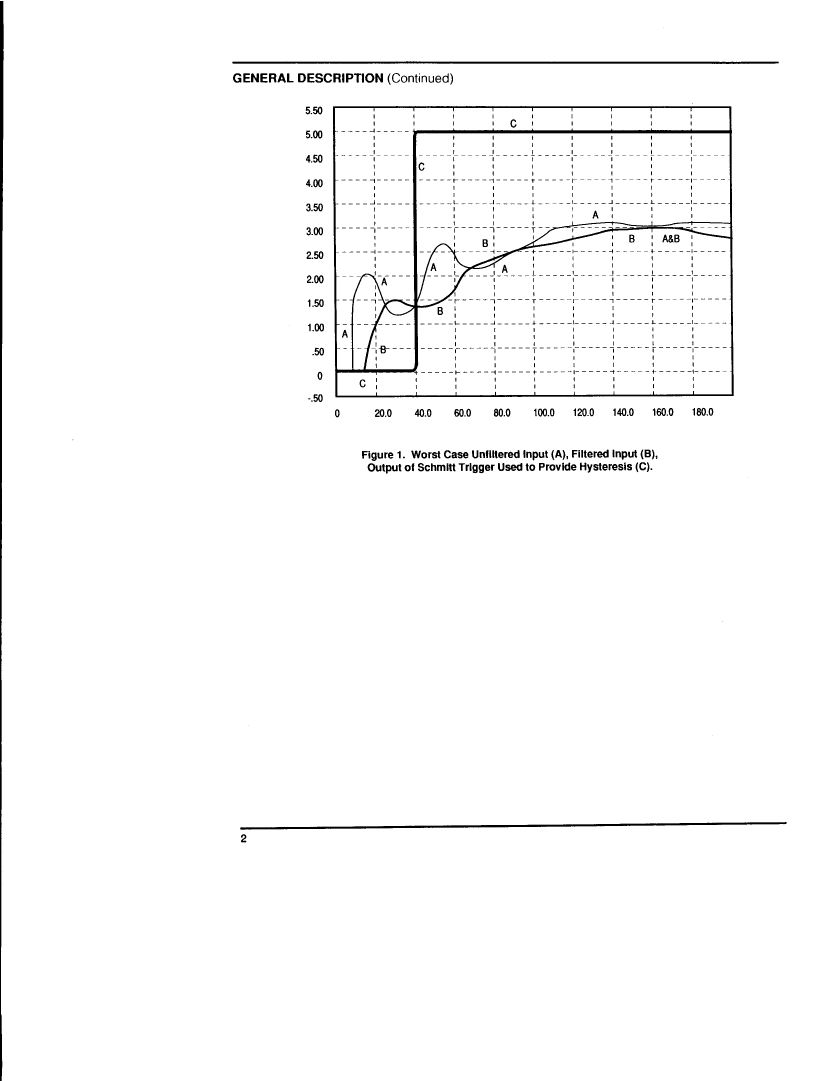

	Z53C8003PSC	Z53C8003VSC

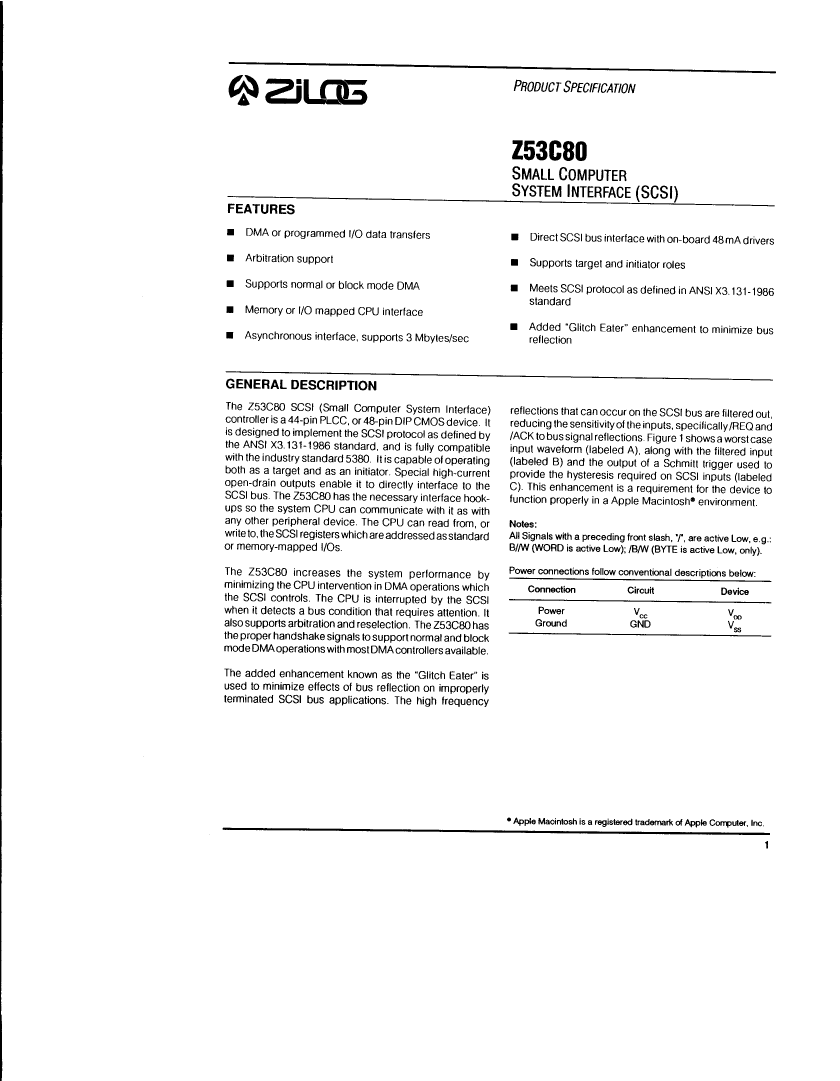

Description		SCSI Interface IC 3MB/SEC CMOS SCSI I
Is it Rohs certified?	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.
Parts packaging code	DIP	LCC
package instruction	DIP, DIP48,.6	PLASTIC, LCC-44
Contacts	48	44
Reach Compliance Code	unknown	unknown
Address bus width	3	3
Maximum data transfer rate	3 MBps	3 MBps
Drive interface standards	X3.131	X3.131
External data bus width	8	8
JESD-30 code	R-PDIP-T48	S-PQCC-J44
JESD-609 code	e0	e0
length	62.36 mm	16.5862 mm
Number of terminals	48	44
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ
Encapsulate equivalent code	DIP48,.6	LDCC44,.7SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	225
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.88 mm	4.57 mm
Maximum slew rate	15 mA	15 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	30
width	15.24 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	BUS CONTROLLER, SCSI	BUS CONTROLLER, SCSI
