BP5225 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BP5225

BP5225: DescriptionAluminum Electrolytic Capacitors - Leaded 10volts 220uF 6.3x11 20% 2.5LS; CategoryPower/power management The power supply circuit; File Size95KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BP5225 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BP5225	-	-	View	Buy Now

BP5225 Overview

Aluminum Electrolytic Capacitors - Leaded 10volts 220uF 6.3x11 20% 2.5LS

BP5225 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	, SIP4/5,.23
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	26.4 V
Minimum input voltage	10 V
Nominal input voltage	12 V
JESD-30 code	R-XSMA-T5
JESD-609 code	e2
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum output current	0.15 A
Maximum output voltage	5.2 V
Minimum output voltage	4.8 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	SIP4/5,.23
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

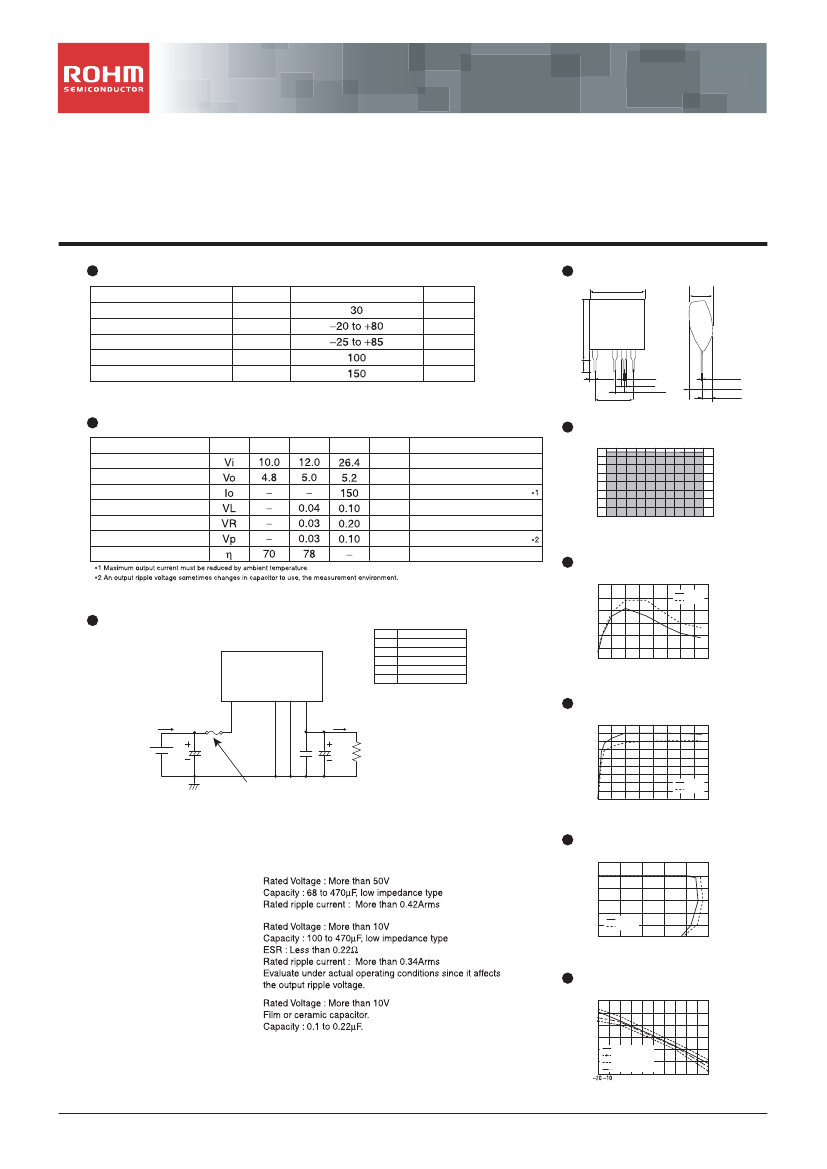

Data Sheet

5V/150mA Output

Step-down DC/DC Converter (Non-isolated)

BP5225

Absolute Maximum Ratings

Parameter

Input voltage

Operating temperature range

Storage temperature range

Maximum surface temperature

Maximum output current

Symbol

Topr

Tstg

Tsmax

Iopeak

Limits

Unit

°C

Dimensions (Unit :

)

17.0Max.

9.7Max.

Mark Side

4.0±1.0

16.8Max.

3 4

3.25Max.

0.5±0.1

1.3±0.2

P=2.54±0.2

0.25±0.05

6.05Max.

3.65Max.

2.54x 4=10.16

Electrical Characteristics

Parameter

Symbol Min.

Input voltage range

Output voltage

Output current

Line regulation

Load regulation

Output ripple voltage

Power conversion efficiency

Typ.

Max.

Unit

Vpp

Conditions

Vi=12V, Io=150mA

Vi=12V

Vi=10.0 to 26.4V, Io=150mA

Vi=12V, Io=0 to 150mA

Vi=12V, Io=150mA

Derating Curve

160

140

120

100

Operation Range

-30 -20 -10 0 10 20 30 40 50 60 70 80 90

Ambient Temperature Ta(

°C

)

Output Current Io(mA)

Oscillation Frequency

300

Frequency (kHz)

250

200

150

100

40 60 80 100 120 140 160

Output Current (mA)

Vi=12V

Vi=24V

Application Circuit

BP5225

Pin No.

Function

Input terminal Vi

Not used

GND

Output terminal Vo

Conversion Efficiency

90%

80%

70%

60%

50%

40%

30%

20%

10%

Efficiency (%)

Use a fuse for safety

Vi=12V

Vi=24V

Verify proper operation under actual conditions before use. In particular, confirm that

the load current does not exceed the maximum rating.

External Component Specifications

FUSE: FUSE

C1: Input Capacitor

Use a fast-acting fuse from 0.5 to 1A.

Output Voltage (V)

40 60 80 100 120 140 160

Output Current (mA)

Load Regulation

Vi=12V

Vi=24V

C2: Output Capacitor

100

150

200

Output Current (mA)

250

Temperature Characteristics

C3: Noise Removal Capacitor

Output voltage (V)

5.3

5.2

5.1

4.9

4.8

4.7

Vi=12V, Io=0mA

Vi=12V, Io=150mA

Vi=24V, Io=0mA

Vi=24V, Io=150mA

0 10 20 30 40 50 60 70 80

Ambient temperature (

°C

)

www.rohm.com

1/1

2010.03 -

Rev. B
