BD25GA3WEFJ-E2

Description
LDO Voltage Controllers LDO Reg Pos 2.5V 0.3A
Categorysemiconductor    Power management
File Size572KB,24 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Download Datasheet Parametric Compare View All

BD25GA3WEFJ-E2 Online Shopping

Suppliers Part Number Price MOQ In stock
BD25GA3WEFJ-E2 - - View Buy Now

BD25GA3WEFJ-E2 Overview

LDO Voltage Controllers LDO Reg Pos 2.5V 0.3A

BD25GA3WEFJ-E2 Parametric

Parameter NameAttribute value
Product CategoryLDO Voltage Controllers
ManufacturerROHM Semiconductor
RoHSDetails
Input Voltage MAX14 V
Output Voltage2.5 V
Output Current300 mA
Output TypeFixed
Number of Outputs1
Minimum Operating Temperature- 25 C
Maximum Operating Temperature+ 85 C
Mounting StyleSMD/SMT
Package / CaseHTSOP-J-8
PackagingReel
Input Voltage MIN4.5 V
Pd - Power Dissipation2110 mW
Factory Pack Quantity2500
Unit Weight0.003527 oz
Datasheet
300mA Variable / Fixed Output
LDO Regulators
BDxxGA3WEFJ / BDxxGA3WNUX

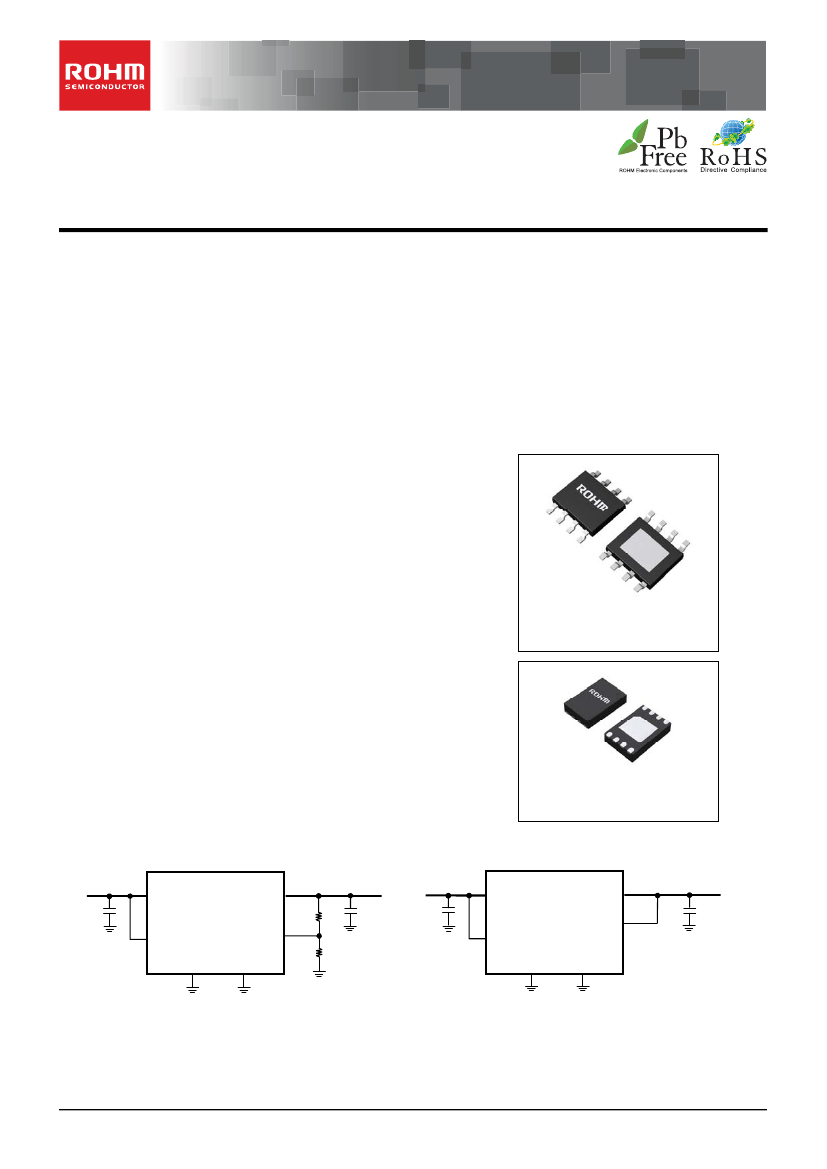

●General
Description
BDxxGA3WEFJ / BDxxGA3WNUX series devices are LDO regulators with an output current of 300mA. The output
accuracy is ±1% of the output voltage. Both fixed and variable output voltage devices are available. The output voltage of
the variable output voltage device can be varied from 1.5V to 13V using external resistors. Various fixed output voltage
devices that do not use external resistors are also available. It can be used for a wide range of digital appliance applications.
It has small package types : HTSOP-J8 (4.90mm x 6.00mm x 1.00mm) / VSON008X2030 (2.00mm x 3.00mm x 0.60mm).
These devices have built-in over current protection to protect the device when output is shorted, 0μA shutdown mode, and
thermal shutdown circuit to protect the device during thermal over-load conditions. These LDO regulators are usable with
ceramic capacitors that enable a smaller layout and longer life.
●Package
HTSOP-J8 (EFJ)
VSON008X2030 (NUX)
●Features
+/-1% output voltage accuracy
Built-in Over Current Protection (OCP)
Built-in Thermal Shut Down circuit (TSD)
Zero
µA
shutdown mode
(Typ.)
(Typ.)
(Max.)
4.90mm x 6.00mm x 1.00mm
2.00mm x 3.00mm x 0.60mm
●Key
Specifications
Input power supply voltage range:
4.5V to 14.0V
Output voltage range(Variable type):
1.5V to 13.0V
Output voltage(Fixed type): 1.5V/1.8V/2.5V/3.0V/3.3V
5.0V/6.0V/7.0V/8.0V/9.0V/10V/12V
Output current:
0.3A (Max.)
Shutdown current:
0μA(Typ.)
Operating temperature range:
-25℃ to +85℃
HTSOP-J8
(EFJ)
VSON008X2030
(NUX)
●Typical
Application Circuit
V
CC
C
IN
EN
GND
FIN
V
O
R
1
FB
R
2
C
OUT
C
IN
V
CC
V
O
V
O_S
C
OUT
EN
GND
FIN
C
IN
, C
OUT
: Ceramic Capacitor
C
IN
, C
OUT
: Ceramic Capacitor
Output voltage variable type
Output voltage fixed type
○Product
structure:Silicon monolithic integrated circuit
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product is not designed to have protection against radioactive rays.
1/20
TSZ02201-0R6R0A600180-1-2
17.May.2013 Rev.004

BD25GA3WEFJ-E2 Related Products

BD25GA3WEFJ-E2 BD50GA3WEFJ-E2 BD70GA3WEFJ-E2 BD33GA3WEFJ-E2 BDJ0GA3WEFJ-E2 BD18GA3WEFJ-E2
Description LDO Voltage Controllers LDO Reg Pos 2.5V 0.3A LDO Voltage Controllers LDO Reg Pos 7.0V 0.3A LDO Voltage Controllers LDO Reg Pos 3.3V 0.3A LDO Voltage Controllers LDO Reg Pos 10.0V 0.3A Power Switch ICs - POE / LAN IEEE 802.3af PD Controller
Product Category LDO Voltage Controllers LDO Voltage Controllers LDO Voltage Controllers LDO Voltage Controllers LDO Voltage Controllers LDO Voltage Controllers
Manufacturer ROHM Semiconductor ROHM Semiconductor ROHM Semiconductor ROHM Semiconductor ROHM Semiconductor ROHM Semiconductor
RoHS Details Details Details Details Details Details
Input Voltage MAX 14 V 14 V 14 V 14 V 14 V 14 V
Output Voltage 2.5 V 5 V 7 V 3.3 V 10 V 1.8 V
Output Current 300 mA 300 mA 300 mA 300 mA 300 mA 300 mA
Output Type Fixed Fixed Fixed Fixed Fixed Fixed
Number of Outputs 1 1 1 Output 1 Output 1 Output 1 Output
Minimum Operating Temperature - 25 C - 25 C - 25 C - 25 C - 25 C - 25 C
Maximum Operating Temperature + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C
Mounting Style SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT
Package / Case HTSOP-J-8 HTSOP-J-8 HTSOP-J-8 HTSOP-J-8 HTSOP-J-8 HTSOP-J-8
Input Voltage MIN 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V
Pd - Power Dissipation 2110 mW 2110 mW 2110 mW 2110 mW 2110 mW 2110 mW
Factory Pack Quantity 2500 2500 2500 2500 2500 2500
Packaging Reel Reel Reel Reel Reel Reel
Unit Weight 0.003527 oz 0.003527 oz 0.003527 oz 0.003527 oz - 0.003527 oz
