#648CY-331M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> #648CY-331M

#648CY-331M: DescriptionGeneral Purpose Inductor, 330uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size87KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric View All

#648CY-331M Overview

General Purpose Inductor, 330uH, 20%, 1 Element, SMD, ROHS COMPLIANT

#648CY-331M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	1.273 Ω
Nominal inductance(L)	330 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	D78C
Number of functions	1
Number of terminals	2
Maximum rated current	0.32 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

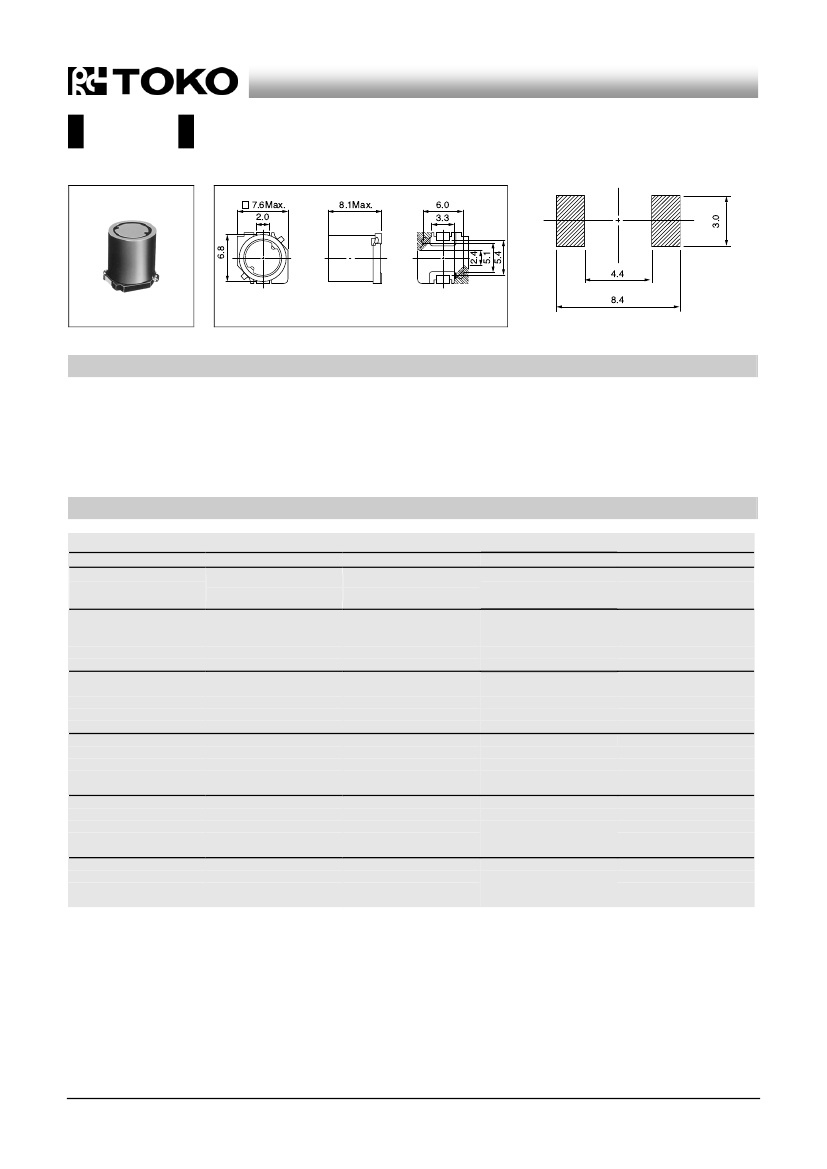

Ferrite Inductors

フェライトインダクタ

D78C

Inductance Range:

1.5~330H

7.6Max.

2.0

6.8

Recommended patterns

推奨パターン図

8.1Max.

6.0

3.3

2.4

5.1

5.4

4.4

(Unit: mm)

8.4

(Unit: mm)

FEATURES



特長



7.6mm角Max.、高さ8.1mm Max.

磁気シールド構造

大電流対応

各種機器のDC-DCコンバータ用インダクタに最適

RoHS指令対応

7.6mm Max. square, and 8.1mm Max. height.

Magnetically shielded construction.

Suitable for large current.

Ideal for a variety of DC-DC converter inductor applications.

RoHS compliant.

TOKO STANDARD PART NUMBERS

東光標準品一覧

TYPE D78C (Quantity/reel; 500 PCS)

東光品番

TOKO

Part

Number

#648CY-1R5M

#648CY-2R2M

#648CY-3R3M

#648CY-4R7M

#648CY-6R8M

#648CY-100M

#648CY-120M

#648CY-150M

#648CY-180M

#648CY-220M

#648CY-270M

#648CY-330M

#648CY-390M

#648CY-470M

#648CY-560M

#648CY-680M

#648CY-820M

#648CY-101M

#648CY-121M

#648CY-151M

#648CY-181M

#648CY-221M

#648CY-271M

#648CY-331M

インダクタンス

Inductance

L (H)

1.5

2.2

3.3

4.7

6.8

10.0

12.0

15.0

18.0

22.0

27.0

33.0

39.0

47.0

56.0

68.0

82.0

100.0

120.0

150.0

180.0

220.0

270.0

330.0

(1)

許容差

Tolerance

(%)



直流抵抗

(2)

Resistance

() Max. (Typ.)

0.023 (0.019)

0.026 (0.022)

0.031 (0.026)

0.037 (0.031)

0.044 (0.037)

0.053 (0.044)

0.056 (0.047)

0.065 (0.054)

0.071 (0.059)

0.079 (0.066)

0.082 (0.068)

0.099 (0.082)

0.134 (0.112)

0.150 (0.125)

0.201 (0.167)

0.300 (0.250)

0.320 (0.267)

0.350 (0.292)

0.581 (0.484)

0.646 (0.538)

0.725 (0.604)

0.811 (0.676)

1.148 (0.957)

1.273 (1.061)

(2)

最大許容電流

Rated

(3)

DC Current

(A) Max. (Typ.)

4.00 (6.08)

3.60 (5.47)

3.10 (4.71)

2.50 (3.80)

2.10 (3.19)

1.75 (2.66)

1.70 (2.58)

1.45 (2.20)

1.32 (2.01)

1.20 (1.82)

1.08 (1.64)

1.00 (1.52)

0.90 (1.37)

0.86 (1.31)

0.83 (1.26)

0.80 (1.22)

0.70 (1.06)

0.60 (0.91)

0.53 (0.81)

0.48 (0.73)

0.45 (0.68)

0.40 (0.61)

0.36 (0.55)

0.32 (0.49)

(1) Inductance is measured with a LCR meter 4284A (Agilent

Technologies) or equivalent.

Test frequency at 100kHz

(2) DC resistance is measured with 34420A (Agilent Technologies) or

3541(HIOKI). (Reference ambient temperature 25°C)

(3) Maximum allowable DC current is that which causes a 10%

inductance reduction from the initial value, or coil temperature to

rise by 40°C, whichever is smaller. (Reference ambient

temperature 20°C)

(1)

インダクタンスはLCRメータ4284A（Agilent

Technologies）

または同等品により測定する。

測定周波数は100kHz。

(2)

直流抵抗は測定器34420A（Agilent

Technologies）または3541

（HIOKI）と同等品により測定する。（周囲温度25°C）

(3)

最大許容電流は、直流重畳電流を流した時インダクタンスの値が

初期値より10％減少する直流電流値、または直流電流により、

コイルの温度が40°C上昇の½れか小さい値。（周囲温度20°Cを基

準とする。）
