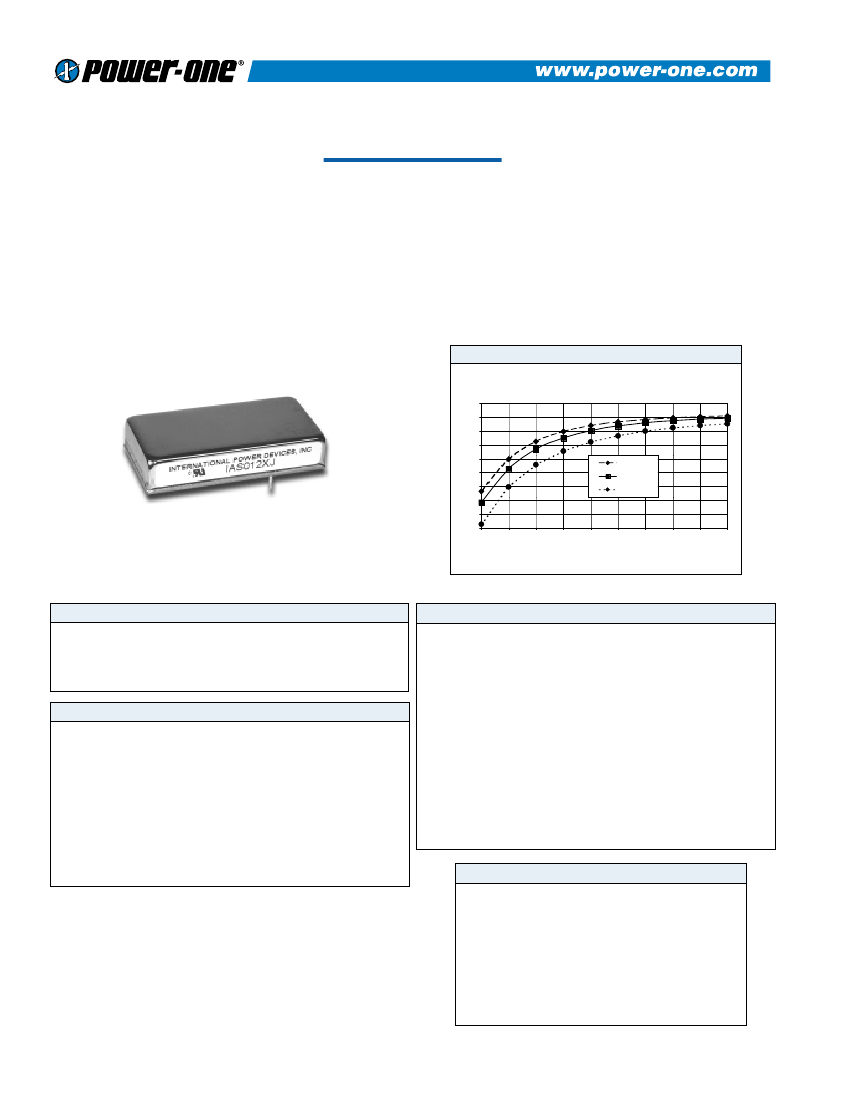

IAS SERIES - 12 WATT
DESCRIPTION
IAS DC/DC converters provide up to 12 Watts of
output power in an industry standard package and
footprint. With a maximum case temperature of
100°C, the IAS is well suited for the most demanding
applications. The IAS features 1500 VDC isolation,
short circuit, and overtemperature protection, as well
as six-sided shielding. The IAS is available with
optional enable and voltage trim. Please see the IAD
series for dual output applications.
FEATURES
• Industry Standard
Package
• Industry Standard
Footprint
• Up to 12W Output
• 100°C Case Operation
• Optional Trim and
Enable
• Wide Range Input
• 1500V Isolation
• Short Circuit Protection
Efficiency vs. Load (24V Input)
85
80
75
EFFICIENCY %
70
65
60
55
50
45
40
10
20
30
40
50
60
IAS010YG
EFF. (18v)
EFF. (24v)
EFF. (36v)
70
80
90
100
LOAD %
TECHNICAL SPECIFICATIONS
Input
Voltage Range
24 VDC Nominal
48 VDC Nominal
Reflected Ripple
Input Reverse Input Current
Output
Setpoint Accuracy
Line Regulation V
in
Min. - V
in
Max., I
out
Rated
Load Regulation I
out
Min. - I
out
Max., V
in
Nom.
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Current Limit Threshold Range, % of I
out
Rated
±1%
±0.2% V
out
±0.5% V
out
10 % I
out
Rated
18 - 36 VDC
34 - 75 VDC
25 mA
Shunt Diode
Turn-On Time
Remote Shutdown
Switching Frequency
Isolation
Input - Output
Input - Case (24 V
in
)
General
10 ms
Positive Logic
375 kHz
1500 VDC
1050 VDC
500 VDC
±0.03%/°C
-40 To +100°C
-55 To +115°C
95%
5 g, 10 - 55 Hz
2.1 X 10
6
hrs
UL, cUL, VDE
1.0 oz
Notes
†
25% I
out
4% V
out
500
µs
±10%
Shutdown / Hiccup
110 - 140%
Output - Case (48 V
in
)
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF
†
(Bellcore Tr-nwt-000332)
Safety
Weight (Approx.)
MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless otherwise stated.
Soldering Conditions: I/O pins, 260
°
C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please consult factory
for specific model information.
Units are water-washable and fully compatible with commercial spray or immersion
post wave-solder washing equipment.
C-10
IAS SERIES - 12 WATT
MODELS - (See the last page of this file for options.)
Vin
(Volts)
24
24
24
24
48
48
48
48
Vin Range
(Volts)
18 - 36
18 - 36
18 - 36
18 - 36
34 - 75
34 - 75
34 - 75
34 - 75
Iin Max.*
(Amps)
0.49
0.69
0.81
0.79
0.26
0.36
0.43
0.43
Vout
(Volts)
3.3
5
12
15
3.3
5
12
15
Iout Rated
(Amps)
2.0
2.0
1.0
0.8
2.0
2.0
1.0
0.8
Ripple & Noise
Pk-Pk (mV)
75
75
120
150
75
75
120
150
Efficiency
Typ. **
75%
80%
85%
86%
75%
81%
85%
86%
Model
IAS006YE
†
IAS010YG
IAS012YH
IAS012YJ
IAS006ZE
IAS010ZG
IAS012ZH
IAS012ZJ
† Denotes advanced product release. Consult factory for product availability.
* Maximum input current at minimum input voltage, maximum rated output power.
** At nominal Vin, rated output..
MECHANICAL DRAWING
1.00"
(25.4mm)
0.18" MIN.
(4.6mm)
4
0
5
6
2.00"
(50.8mm)
1
0.800"(20.3mm)
2
3
DIA 0.040"
(1.0mm)
1.40"(35.6mm)
0
0.300"
(7.6mm)
0.400"
(10.2mm)
0.900"
(22.9mm)
0.800"
(20.3mm)
0.42"
(10.7mm)
BOTTOM VIEW
0.500"
(12.7mm)
Thermal Impedance
Natural Convection
100 LFM
200 LFM
300 LFM
400 LFM
15.4
12.2
9.3
7.4
6.4
°C/W
°C/W
°C/W
°C/W
°C/W
Pin
1
2
3
4
5
6
Function
+V
in
-V
in
No Pin
(Shutdown)
+V
out
No Pin
(Trim)
-V
out
Inches:
.XX ± 0.020
.XXX ± 0.010
Pin:
± 0.002
Case:
+ 0.04, - 0.00
Tolerances
(Millimeters)
.X ± 0.5
.XX ± 0.25
± 0.05
Note:
Thermal impedance data is dependent on
many environmental factors. The exact
thermal performance should be validated for
specific application.
+ 1.0, - 0.00
( Dimensions as listed unless otherwise
specified.)
C-11
OPTIONS
When ordering equipment options, use the following suffix information. Select the option(s) that
you prefer and add them to the model number. Example ordering options are located below the
options table.
OPTION
Negative Logic
Lucent Compatible Trim
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
SUFFIX
N
T
TS
1
2
3
4
Y
APPLICABLE SERIES
HAS, HBD, HBS, HES, LES, QBS,
QES, TES, TQD
HAS, HBD, HBS, HES, QBS, QES
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
REMARKS
TTL “Low” Turns Module ON
TTL “High” Turns Module OFF
PIN LENGTH AND HEATSINK
OPTIONS
0.110” (2.8mm) Pin Length
0.150” (3.8mm) Pin Length
0.24” (6.1mm) Horizontal Heatsink
0.24” (6.1mm) Vertical Heatsink
0.45” (11.4mm) Horizontal
Heatsink
0.45” (11.4mm) Vertical Heatsink
0.95” (24.1mm) Horizontal
Heatsink
0.95” (24.1mm) Vertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Units (Except SMS)
All Units (Except SMS)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
Standard Pin Length is 0.180”
(4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and
0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.
