PI5C3309
3:1 Mux/DeMux Bus Switch
Features
Near-Zero propagation delay
5-ohm switches connect inputs to outputs
Direct bus connection when switches are ON
Ultra Low Quiescent Power (0.2μA typical)– Ideally suited
for notebook applications
• Packaging (Pb-free & Green available):
– 8 pin 118-mil wide plastic MSOP (U)
•
•
•
•
Description
Pericom Semiconductor’s PI5C3309 is a 3:1 Multiplexer/
Demultiplexerwith 3-State outputs. Inputs can be connected
to outputs with lowOn-Resistance (5-ohm) with no additional
ground bounce noise orpropagation delay.
Logic Block Diagram
IA
0
IA
1
IA
2
Product Pin Configuration
S
0
S
1
IA
0
IA
1
IA
2
GND
YA
1
2
3
4
8
7
6
5
V
CC
S
1
S
0
YA
Truth Table
(1)
Select
S1
L
L
H
H
S0
L
H
L
H
YA
IA0
IA1
IA2
Hi-Z
Function
S1-0 = 0
S1-0 = 1
S1-0 = 2
S1-0 = 3
Pin Description
Pin Name
IAn
S0-1
YA
GND
V
CC
Description
Data Inputs
Select Inputs
Data Output
Ground
Power
Note:
1. H = High Voltage Level
L = Low Voltage Level
12-0242
1
www.pericom.com
P-0.1
08/03/12
3:1 Mux/DeMux Bus Switch
Maximum Ratings
PI5C3309
(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ......................................................... –65°C to +150°C
Ambient Temperature with Power Applied ........................ –40°C to +85°C
Supply Voltage to Ground Potential (Inputs & V
CC
only) . –0.5V to +7.0V
.
Supply Voltage to Ground Potential (Outputs & D/O only) –0.5V to +7.0V
DC Input Voltage ................................................................. –0.5V to +7.0V
DC Output Current ........................................................................... 120mA
.
Power Dissipation .................................................................................0.5W
Stresses greater than those listed under MAXIMUM RAT-
INGS may cause permanent damage to the device. This is
a stress rating only and functional operation of the device
at these or any other conditions above those indicated in
the operational sections of this specification is not implied.
Exposure to absolute maximum rating conditions for ex-
tended periods may affect reliability.
Note:
DC Electrical
Characteristics
(Over Operating Range, T
A
= –40°C to +85°C, V
CC
= 5V ±5%)
Parameters
V
IH
V
IL
I
IH
I
IL
I
OZH
V
IK
I
OS
V
H
R
ON
Description
Input HIGH Voltage
Input LOW Voltage
Input HIGH Current
Input LOW Current
Clamp Diode Voltage
Short Circuit current
Input Hysteresis at Control Pins
Switch on Resistance (4)
V
CC
= Min., V
IN
= 0.0V, I
ON
= 48mA
V
CC
= Min., V
IN
= 2.4V, I
ON
= 15mA
Test Conditions
(1)
Min.
2.0
–0.5
Guaranteed logic HIGH level
Guaranteed logic LOW level
V
CC
= Max., V
IN
= V
CC
V
CC
= Max., V
IN
= GND
V
CC
= Min, I
IN
= -18mA
I(Y)=0V, Y(I)=V
CC
–0.7
Typ.
(2)
Max.
0.8
±1
±1
±1
1.2
100
Units
V
µA
V
mA
mV
High Impedance Output Current 0 ≤ I
N
, Y
N
≤ V
CC
150
5
10
7
15
Ω
Notes:
1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device type.
2. Typical values are at V
CC
= 5.0V, T
A
= 25°C ambient and maximum loading.
3. Not more than one output should be shorted at one time. Duration of the test should not exceed one second.
4. Measured by the voltage drop between I and Y pin at indicated current through the switch. On-Resistance is determined
by the lower of the voltages on the two (I, Y) pins.
Capacitance
(T
A
= 25°C, f = 1 MHz)
Parameters
(1)
C
IN
C
OFF
C
ON
Description
Input Capacitance
I
A
Capacitance, Switch Off
I
A
Capacitance, Switch On
V
IN
= 0V
Test Conditions
Typ.
3
4
16
pF
Units
Notes:
1. This parameter is determined by device characterization but is not production tested.
12-0242
2
www.pericom.com
P-0.1
08/03/12
3:1 Mux/DeMux Bus Switch
Power Supply Characteristics
Parameters
I
CC
∆I
CC
Description
Quiescent Power Supply
Current
Supply Current per Input @
TTL HIGH
Supply Current per Input per
MHz
(4)
PI5C3309
Test Conditions
(1)
V
CC
= Max.
V
CC
= Max.,
I and Y pins open
Control Input Tog-
gling 50% Duty
Cycle
V
IN
= GND or V
CC
V
IN
= 3.4V
(3)
Min.
Typ.
(2)
0.1
Max.
3.0
2.5
Units
µA
mA
I
CCD
0.25
mA/
MHz
Notes:
1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device.
2. Typical values are at V
CC
= 5.0V, +25°C ambient.
3. Per TTL driven input (V
IN
= 3.4V, control inputs only); I and Y pins do not contribute to I
CC
.
4. This current applies to the control inputs only and represent the current required to switch internal capacitance at the specified frequency. The I
and Y inputs generate no significant AC or DC currents as they transition. The parameter is not tested, but is guaranteed by design.
Switching Characteristics over Operating Range
PI5C3309
Parameters
t
IY
t
SY
t
PZH
t
PZL
Description
Propogation Delay
(1,2)
I
N
to Y
N
Bus Select Time S
N
to Y
N
Bus Enable Time S
N
to Y
N
C
L
= 50pF
R
L
= 500Ω
0.5
0.5
Conditions
Min.
Com
Max.
0.25
6.6
6.0
ns
Units
t
PHZ
Bus Disable Time S
N
to Y
N
0.5
6.0
t
PLZ
Notes:
1. This parameter is guaranteed but not tested on Propagation Delays.
2. The bus switch contributes no propagational delay other than the RC delay of the On-Resistance of the switch and the load
capacitance. The time constant for the switch alone is of the order of 0.25ns for 50pF load. Since this time constant is much
smaller than the rise/fall times of typical driving signals, it adds very little propagational delay to the system. Propagational de-
lay of the bus switch when used in a system is determined by the driving circuit on the driving side of the switch and its interac-
tion with the load on the driven side.
12-0242
3
www.pericom.com
P-0.1
08/03/12
3:1 Mux/DeMux Bus Switch
PI5C3309
15˚ Max.
.003
.012
0.07
0.30
.003
.012
0.07
0.30
DOCUMENT CONTROL NO.
PD - 1261
REVISION: E
DATE: 03/09/05
Gauge
Plane
.010
0.25
.016
.028
0.40
0.70
Detail A
15˚ Max.
.037
0.95
REF
0
˚
- 6
˚
.112 2.85
.120 3.05
15
˚
MAX
1
Detail A
.114 2.90
.122 3.10
15
˚
MAX
.114 2.90
.122 3.10
Pericom Semiconductor Corporation
3545 N. 1st Street, San Jose, CA 95134
1-800-435-2335
• www.pericom.com
Notes:
1) Controlling Dimensions inMillimeters
2) Ref. JEDEC MO-187E/AA

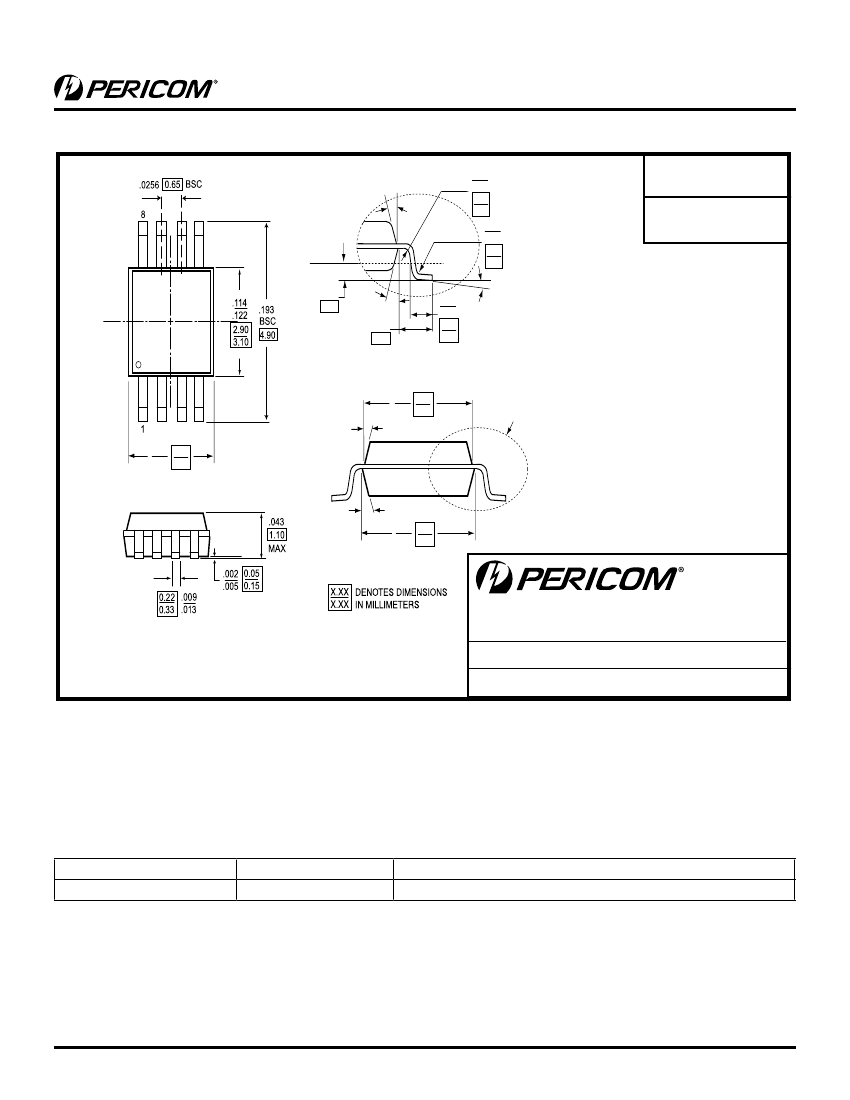

DESCRIPTION: 8-Pin Mini Small Outline Package, MSOP
PACKAGE CODE: U
Note:
• For latest package info, please check: http://www.pericom.com/products/packaging/mechanicals.php
Ordering Information
Ordering Code
PI5C3309UEX
Packaging Code
U
Package Description
Pb-free & Green, 8-pin MSOP
Notes:
•
Thermal characteristics can be found on the company web site at www.pericom.com/packaging/
•
E = Pb-free & Green
• Adding an
X suffix = Tape/Reel
Pericom Semiconductor Corporation • 1-800-435-2336 • www.pericom.com
12-0242
4
www.pericom.com
P-0.1
08/03/12
