2SB1215T-H

Description
Bipolar Transistor, -100V, -3A, Low VCE(sat), PNP Single, TP/TP-FA, IPAK / TP, 500-BLKBG
CategoryDiscrete semiconductor    The transistor
File Size286KB,8 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

2SB1215T-H Online Shopping

Suppliers Part Number Price MOQ In stock
2SB1215T-H - - View Buy Now

2SB1215T-H Overview

Bipolar Transistor, -100V, -3A, Low VCE(sat), PNP Single, TP/TP-FA, IPAK / TP, 500-BLKBG

2SB1215T-H Parametric

Parameter NameAttribute value
Brand Nameonsemi
Is it lead-free?Lead free
Objectid1388777671
Parts packaging codeIPAK / TP
Manufacturer packaging code369AJ
Reach Compliance Codenot_compliant
ECCN codeEAR99
Samacsys Manufactureronsemi
Samacsys Modified On2024-02-23 15:06:34
Maximum collector current (IC)3 A
ConfigurationSINGLE
Minimum DC current gain (hFE)200
JESD-609 codee6
Number of components1
Maximum operating temperature150 °C
Polarity/channel typePNP
Maximum power dissipation(Abs)20 W
surface mountNO
Terminal surfaceTIN BISMUTH
Ordering number : EN2539C
2SB1215/2SD1815
Bipolar Transistor
(–)100V, (–)3A, Low VCE(sat) (PNP)NPN Single TP/TP-FA
Applications
http://onsemi.com
Relay drivers, high-speed inverters, converters, and other general high-current switching applications
Features
Excllent linearity of hFE
Low collector to emitter saturation voltage
Small-sized package permitting 2SB1215/2SD1815-applied sets to be made small and slim
Fast switching time
High fT
Halogen free compliance
Specifications
( ): 2SB1215
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector to Base Voltage
Collector to Emitter Voltage
Emitter to Base Voltage
Collector Current
Collector Current (Pulse)
Symbol
VCBO
VCEO
VEBO
IC
ICP
Conditions
Ratings
(-
-)120
(-
-)100
(-
-)6
(-
-)3
(-
-)6
Unit
V
V
V
A
A
Continued on next page.
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

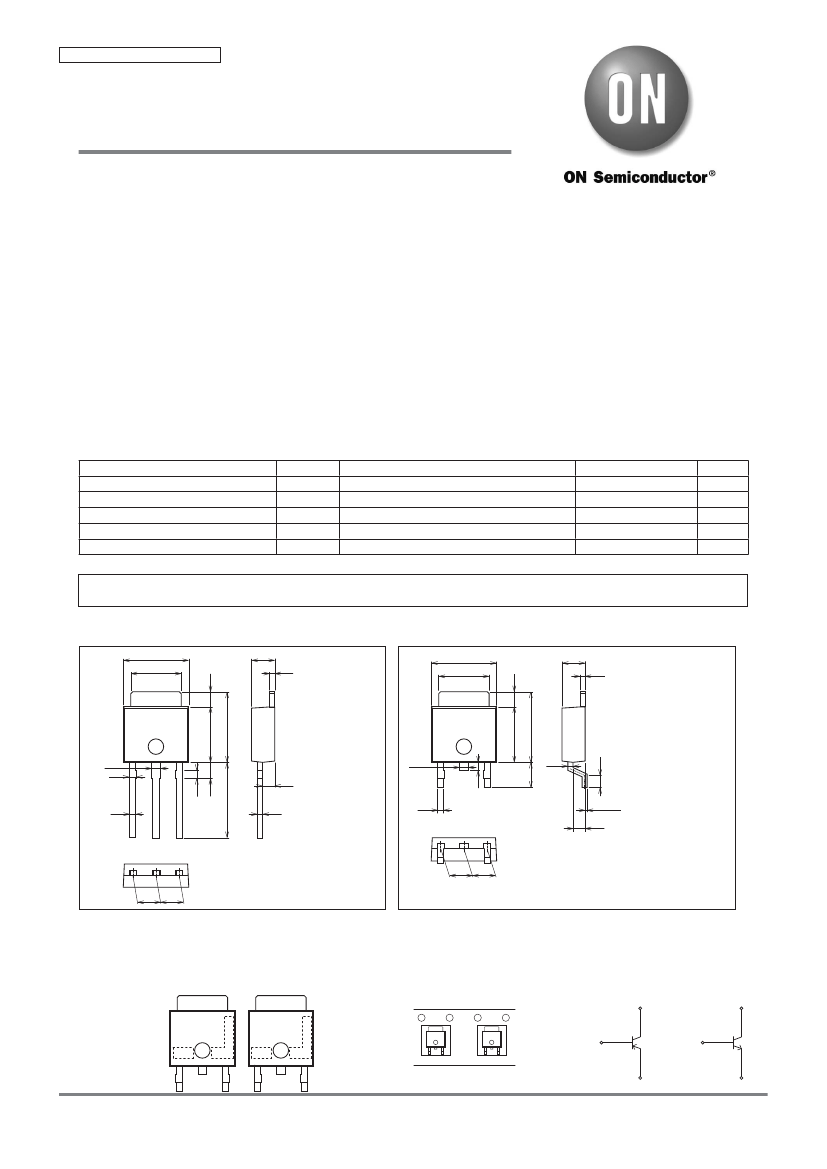

Package Dimensions
unit : mm (typ)
7518-003
1.5
6.5
5.0
4
2.3
0.5
Package Dimensions
unit : mm (typ)
7003-003
2SB1215S-E
2SB1215S-H
2SB1215T-E
2SB1215T-H
2SD1815S-E
2SD1815S-H
2SD1815T-E
2SD1815T-H
1.5
6.5
5.0
4
2.3
0.5
0.8
1.6
1.2
7.5
0.5
1
0.6
2
0.8
3
0 to 0.2
1.2
0.6
2.5
0.85
0.7
0.85
0.5
2SB1215S-TL-E
2SB1215S-TL-H
2SB1215T-TL-E
2SB1215T-TL-H
2SD1815S-TL-E
2SD1815S-TL-H
2SD1815T-TL-E
2SD1815T-TL-H
1 : Base
2 : Collector
3 : Emitter
4 : Collector
TP-FA
5.5
7.0
5.5
7.0
1
2
3
1 : Base
2 : Collector
3 : Emitter
4 : Collector
TP
2.3
2.3
2.3
2.3
Product & Package Information
• Package : TP
• JEITA, JEDEC : SC-64, TO-251
• Minimum Packing Quantity : 500 pcs./bag
• Package : TP-FA
• JEITA, JEDEC : SC-63, TO-252
• Minimum Packing Quantity : 700 pcs./reel
Marking
(TP, TP-FA)
B1215
RANK
LOT No.
Packing Type (TP-FA) : TL
D1815
Electrical Connection
2,4
2,4
1.2
1
1
RANK
LOT No.
TL
2SB1215
3
2SD1815
3
Semiconductor Components Industries, LLC, 2013
November, 2013

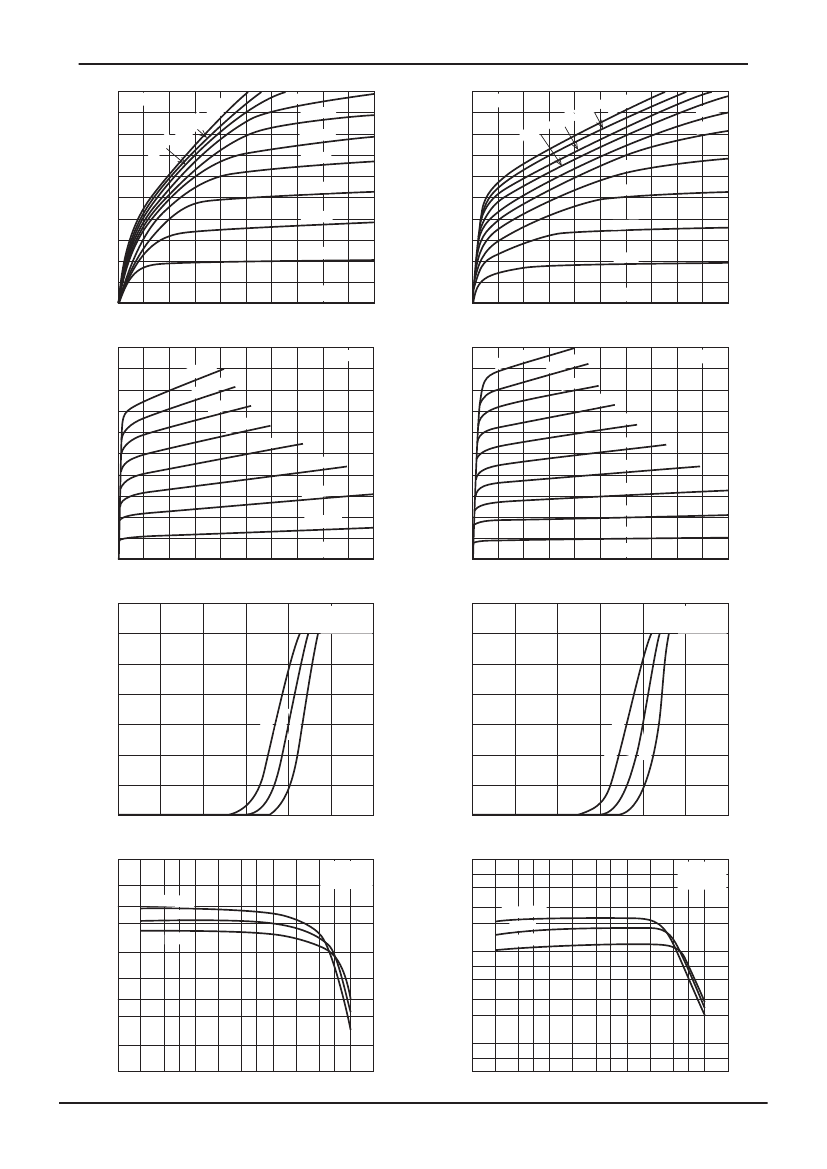

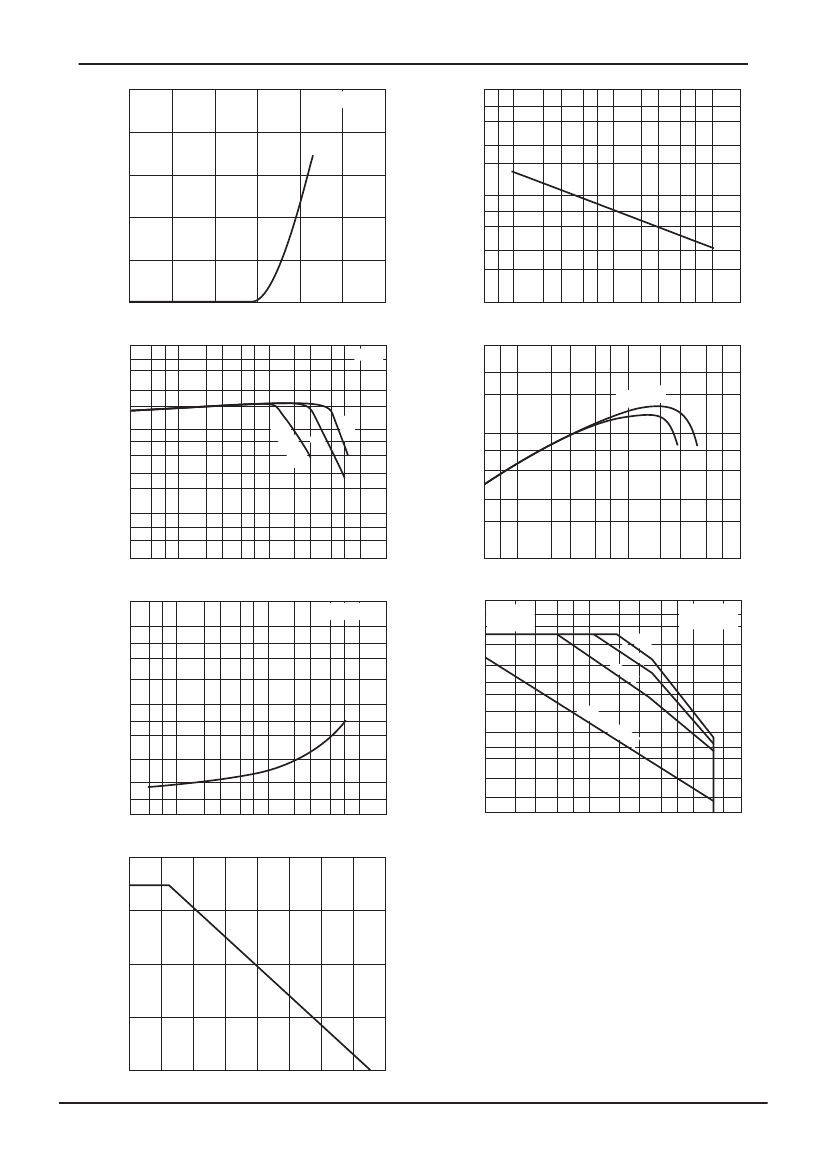

N2713 TKIM TC-00003057/N2503TN (KT)/92098HA (KT)/40196TS (KOTO) 8-9913/8229MO/4097TA, TS No.2539-1/7
