MC78PC18NTRG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MC78PC18NTRG

MC78PC18NTRG: DescriptionInterface - CODECs IC Lo Pwr,4/6 HD Aud Codec w/HP Amp; CategoryPower/power management The power supply circuit; File Size140KB，16 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

MC78PC18NTRG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC78PC18NTRG	-	-	View	Buy Now

MC78PC18NTRG Overview

Interface - CODECs IC Lo Pwr,4/6 HD Aud Codec w/HP Amp

MC78PC18NTRG Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	SOT-23
package instruction	LSSOP, TSOP5/6,.11,37
Contacts	5
Manufacturer packaging code	1212-01
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	1.4 V
Maximum absolute input voltage	9 V
Maximum input voltage	8 V
Minimum input voltage	2.3 V
JESD-30 code	R-PDSO-G5
JESD-609 code	e3
length	2.9 mm
Maximum grid adjustment rate	0.0205%
Maximum load regulation	0.04%
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Maximum output current 1	0.15 A
Maximum output voltage 1	1.836 V
Minimum output voltage 1	1.764 V
Nominal output voltage 1	1.8 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.4 mm
surface mount	YES
technology	CMOS
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Maximum voltage tolerance	2%
width	1.65 mm

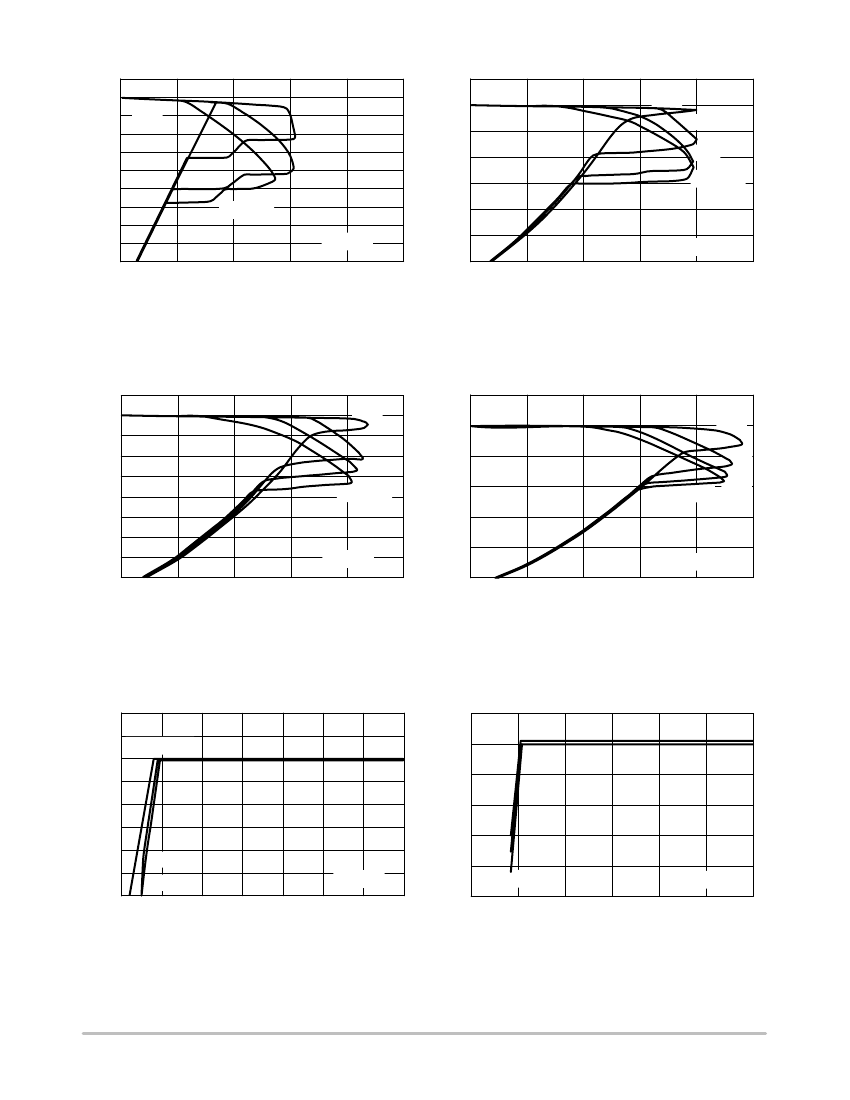

Preview

Download Datasheet

View All

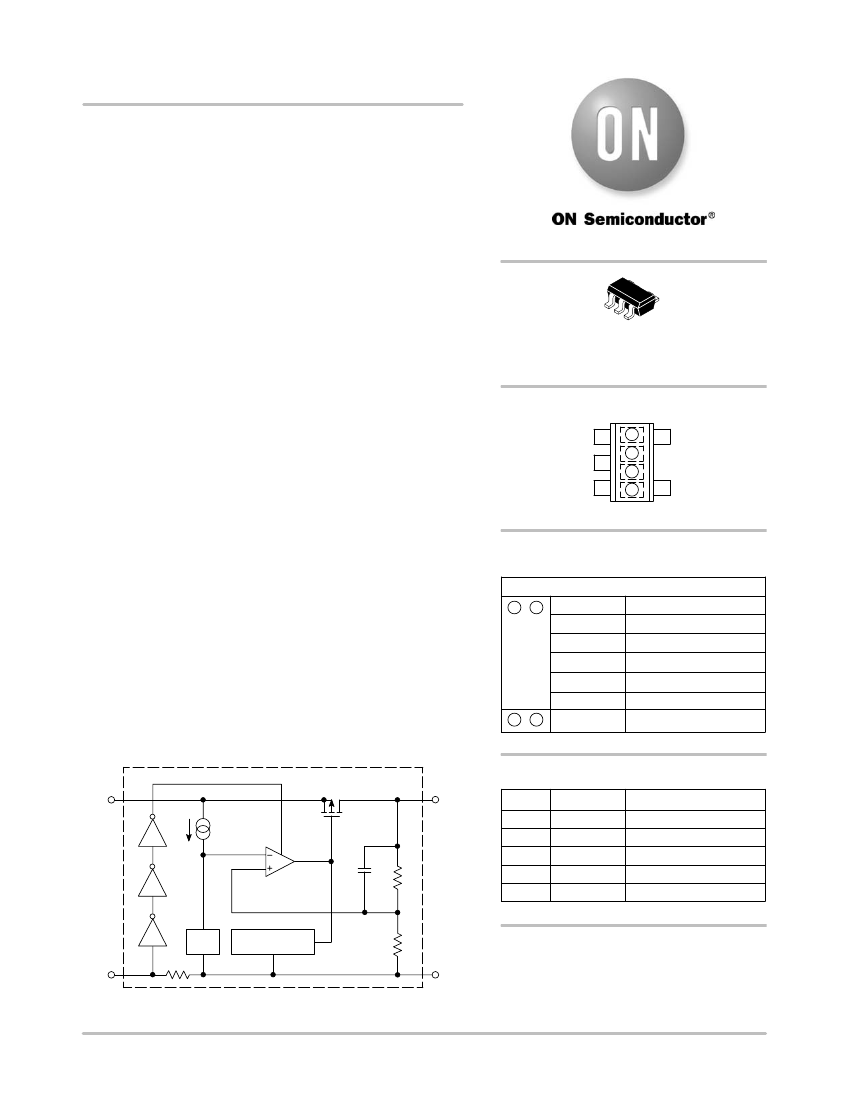

MC78PC00 Series

Low Noise 150 mA

Low Drop Out (LDO)

Linear Voltage Regulator

The MC78PC00 are a series of CMOS linear voltage regulators with

high output voltage accuracy, low supply current, low dropout voltage,

and high Ripple Rejection. Each of these voltage regulators consists of

an internal voltage reference, an error amplifier, resistors, a current

limiting circuit and a chip enable circuit.

The dynamic Response to line and load is fast, which makes these

products ideally suited for use in hand−held communication

equipment. The MC78PC00 series are housed in the SOT−23 5 lead

package, for maximum board space saving.

MC78PC00 Features:

http://onsemi.com

SOT−23−5

N SUFFIX

CASE 1212

•

Ultra−Low Supply Current: typical 35

in ON mode with no load.

Standby Mode: typical 0.1

mA.

Low Dropout Voltage: typical 0.2 V @ I

OUT

= 100 mA.

High Ripple Rejection: typical 70 dB @ f = 1 kHz.

Low Temperature−Drift Coefficient of Output Voltage:

typical

±100

ppm/°C.

Excellent Line Regulation: typical 0.05%/V.

High Accuracy Output Voltage:

±2.0%.

Fast Dynamic Response to Line and Load.

Small Package: SOT−23 5 leads.

Built−in Chip Enable circuit (CE input pin).

Identical Pinout to the LP2980/1/2.

Pb−Free Packages are Available

PIN CONNECTIONS

GND

(Top View)

4 N/C

5 V

OUT

DEVICE MARKING

(4 digits are available for device marking)

Marking

Voltage Version

1.8 V

2.5 V

2.8 V

3.0 V

3.3 V

5.0 V

Lot Number

MC78PC00 Applications:

•

Power source for cellular phones (GSM, CDMA, TDMA), Cordless

Phones (PHS, DECT) and 2−way radios.

•

Power source for domestic appliances such as cameras, VCRs and

camcorders.

•

Power source for battery−powered equipment.

Block Diagram

MC78PCxx

OUT

Pin #

PIN DESCRIPTION

Symbol

GND

N/C

OUT

Description

Input Pin

Ground Pin

Chip Enable Pin

No Connection

Output Pin

ref

CURRENT LIMIT

GND

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 14 of this data sheet.

Semiconductor Components Industries, LLC, 2005

June, 2005 − Rev. 6

Publication Order Number:

MC78PC00/D
