2N2218

2N2218A

SILICON

NPN TRANSISTORS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR 2N2218 and

2N2218A are silicon NPN transistors manufactured by

the epitaxial planar process, and designed for small

signal general purpose and switching applications.

MARKING: FULL PART NUMBER

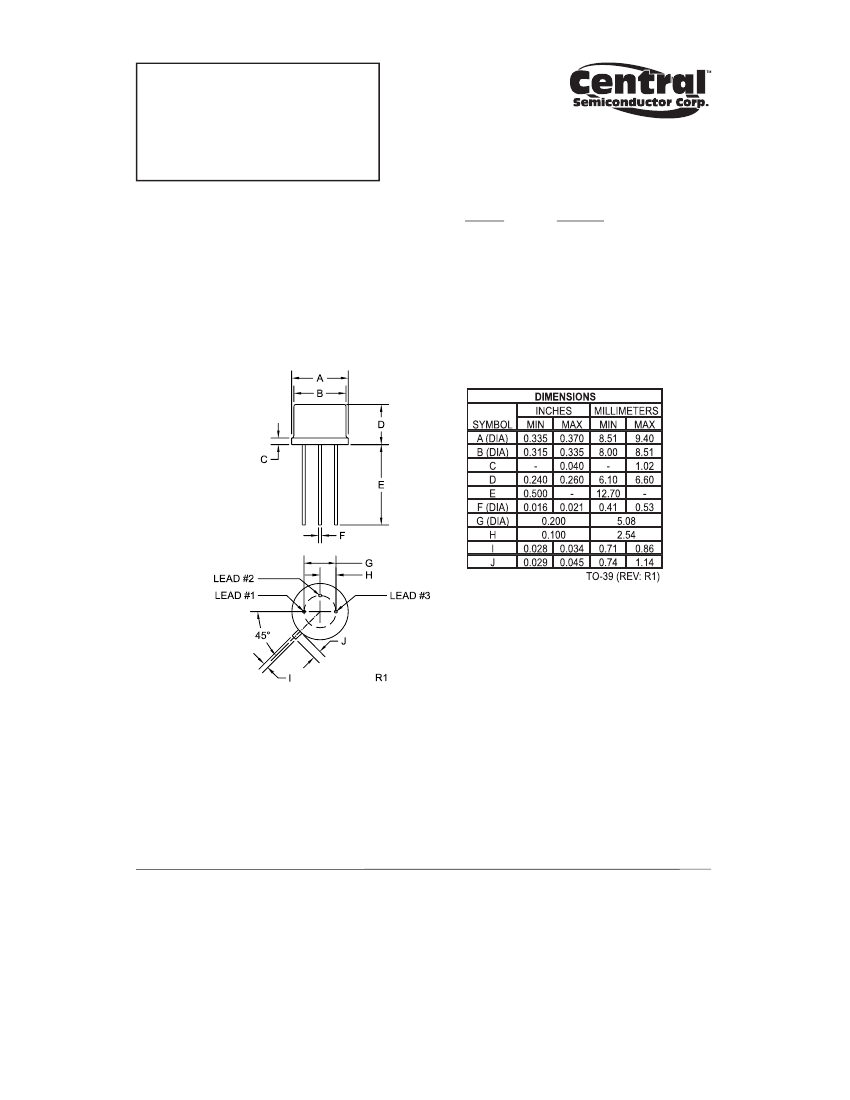

TO-39 CASE

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

SYMBOL

Collector-Base Voltage

VCBO

Collector-Emitter Voltage

VCEO

Emitter-Base Voltage

Continuous Collector Current

Power Dissipation

Power Dissipation (TC=25°C)

Operating and Storage Junction Temperature

ELECTRICAL

SYMBOL

ICBO

ICEV

IEBO

BVCBO

BVCEO

BVEBO

VCE(SAT)

VBE(SAT)

hFE

CHARACTERISTICS:

(TA=25°C)

TEST CONDITIONS

VCB=50V

VCB=60V

VCE=60V, VEB=3.0V

VEB=3.0V

IC=10μA

IC=10mA

IE=10μA

IC=150mA,

IC=500mA,

IC=150mA,

IC=500mA,

IB=15mA

IB=50mA

IB=15mA

IB=50mA

VEBO

TJ, Tstg

2N2218

MIN

MAX

5.0

0.4

1.6

1.3

2.6

120

2N2218

5.0

800

3.0

2N2218A

6.0

UNITS

°C

-65 to +200

2N2218A

MIN

MAX

6.0

0.3

1.0

1.2

2.0

120

UNITS

VCE=10V, IC=100μA

VCE=10V, IC=1.0mA

VCE=10V,

IC=10mA

IC=150mA

VCE=1.0V, IC=150mA

VCE=10V, IC=500mA
