B270Q -B2100Q
2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
Product Summary
(@ +25°C)
B270Q
V
RRM
(V)
70
B280Q
V
RRM
(V)
80
B290Q
V
RRM
(V)
90
B2100Q
V
RRM
(V)
100
I
O
(A)
2.0
V
F
Max (V)
0.79
I
R
Max (µA)
7
Features and Benefits
Schottky Barrier Chip
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Surge Overload Rating to 50A Peak
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
High Temperature Soldering: +260°C/10 second at Terminal
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
I
O
(A)
2.0
V
F
Max (V)
0.79
I
R
Max (µA)
7
I
O
(A)
2.0
V
F
Max (V)
0.79
I
R
Max (µA)
7
I
O
(A)
2.0
V
F
Max (V)
0.79
I
R
Max (µA)
7
Description and Applications
This Schottky Barrier Rectifier is designed to meet the general
requirements of commercial applications. It is ideally suited for use as
a:
Polarity Protection Diode
Re-Circulating Diode
Switching Diode
Mechanical Data
Case: SMB
Case Material: Molded Plastic. "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.093 grams (Approximate)
Top View
Bottom View
Ordering Information
(Note 5)
Part Number
B2xxxQ-13-F
Notes:
Compliance
Automotive
Case
SMB
Packaging
3,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
XXXX = Product Type Marking Code, ex: B290 (SMB Package)
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 16 for 2016)
WW = Week Code (01 to 53)
B270Q - B2100Q
Document number: DS38620 Rev. 1 - 2
1 of 5
www.diodes.com
February 2016
© Diodes Incorporated
B270Q -B2100Q
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
T
= +125°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
B270Q
70
49
B280Q
80
56
2.0
50
B290Q
90
63
B2100Q
100
70
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Terminal (Note 6)
Operating and Storage Temperature Range
Symbol
R
θJT
T
J,
T
STG
Value
15
-65 to +150
Unit
°C/W
°C
Electrical Characteristics
Forward Voltage Drop
Leakage Current (Note 7)
Total Capacitance
Notes:
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
F
I
R
C
T
Min
—
—
Characteristic
Typ
—
—
Max
0.79
0.69
7.0
2.0
75
Unit
V
µA
mA
pF
—
—
Test Condition
I
F
= 2.0A, T
A
= +25°C
I
F
= 2.0A, T
A
= +100°C
@ Rated V
R
, T
A
= +25°C
@ Rated V
R
, T
A
= +100°C
V
R
= 4V, f = 1MHz
6. Valid provided that terminals are kept at ambient temperature.
7. Short duration pulse test used to minimize self-heating effect.
B270Q - B2100Q
Document number: DS38620 Rev. 1 - 2
2 of 5
www.diodes.com
February 2016
© Diodes Incorporated
B270Q -B2100Q
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
1.0
T
j
= 125°C
T
j
= 100°C
0.1
T
j
= 25°C
0.01
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

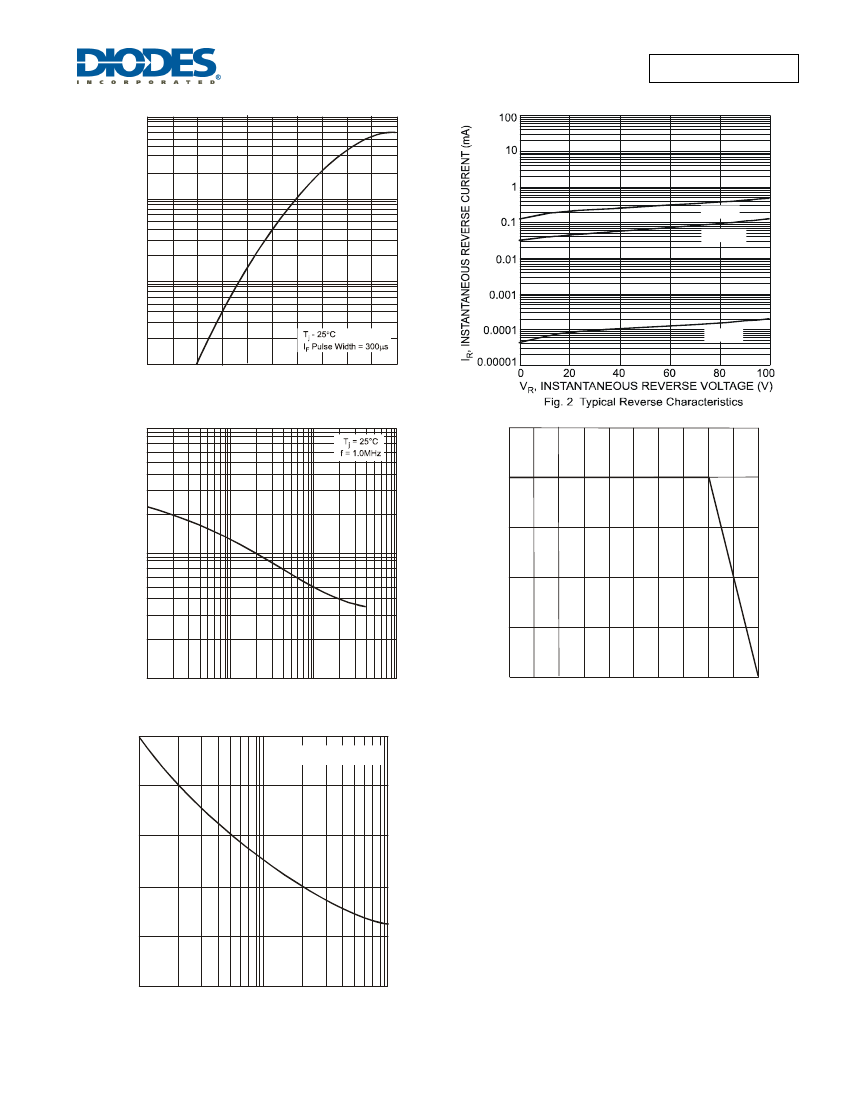

Fig. 1 Typical Forward Characteristics
1,000
2.5
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
C
T
, TOTAL CAPACITANCE (pF)
2.0
1.5
100
1.0
0.5
10
0.1
0
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
25
50
75
100
125
T
T
, TERMINAL TEMPERATURE (°C)
Fig. 4 Forward Current Derating Curve
150
50
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
Single Half-Sine-Wave
40
30
20
10
0
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 5 Max Non-Repetitive Peak Forward Surge Current
1
B270Q - B2100Q
Document number: DS38620 Rev. 1 - 2
3 of 5
www.diodes.com
February 2016
© Diodes Incorporated
B270Q -B2100Q
Package Outline Dimensions
Please see AP02001 at http://www.diodes.com/_files/datasheets/ap02001.pdf for the latest version.
SMB
B
A
C
D
J
SMB
Dim
Min
Max
A
3.30
3.94
B
4.06
4.57
C
1.96
2.21
D
0.15
0.31
E
5.00
5.59
G
0.05
0.20
H
0.76
1.52
J
2.00
2.50
All Dimensions in mm
H
E
G
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/_files/datasheets/ap02001.pdf for the latest version.
SMB
X
Y
G
C
X1
Dimensions
C
G
X
X1
Y
Value (in mm)
4.30
1.80
2.50
6.80
2.30
B270Q - B2100Q
Document number: DS38620 Rev. 1 - 2
4 of 5
www.diodes.com
February 2016
© Diodes Incorporated
B270Q -B2100Q
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2016, Diodes Incorporated
www.diodes.com
B270Q - B2100Q
Document number: DS38620 Rev. 1 - 2
5 of 5
www.diodes.com
February 2016
© Diodes Incorporated
