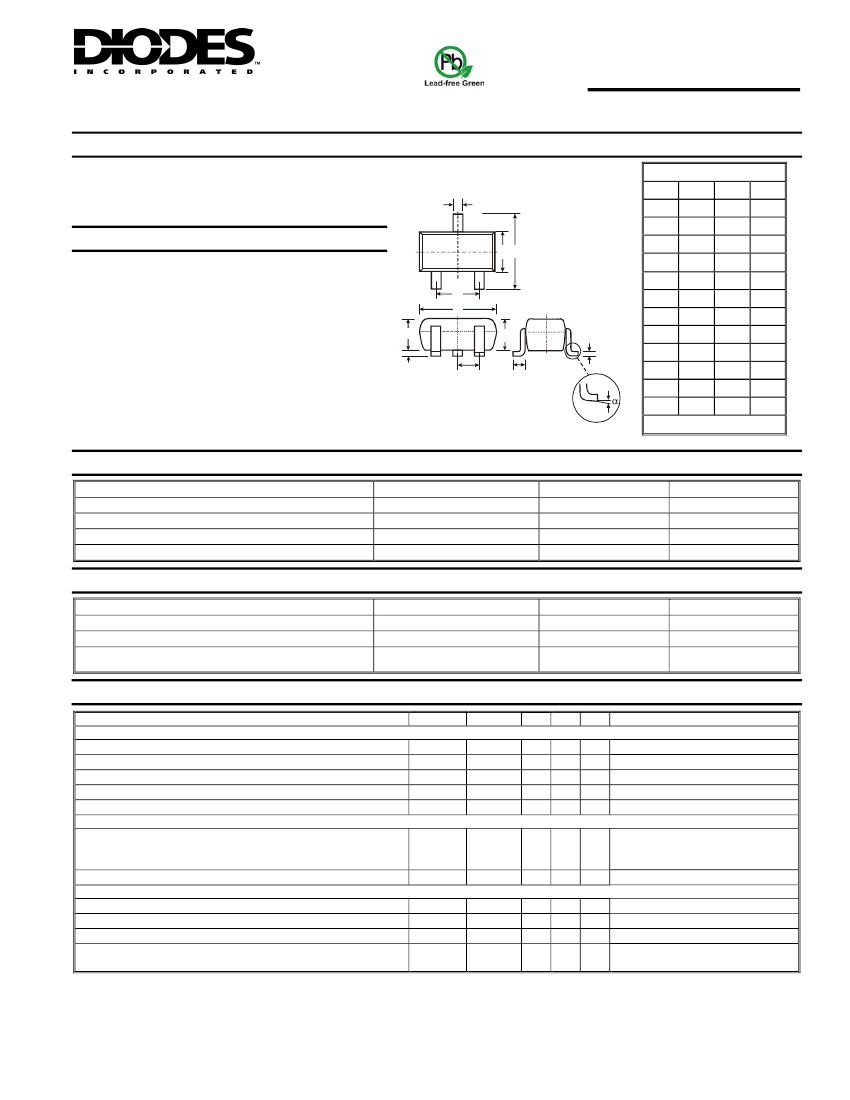

2DC4617Q/R/S
NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
Ultra Miniature Surface Mount Package
Complementary PNP Type Available (2DA1774Q,R,S)
Lead Free/RoHS Compliant (Note 3)
"Green" Device (Note 4 and 5)
SOT-523
Dim
A
C
B C
Min
0.15
0.75
1.45
⎯
0.90
1.50
0.00
0.60
0.10
0.10
0.45
0°
Max
0.30
0.85
1.75
⎯
1.10
1.70
0.10
0.80
0.30
0.20
0.65
8°
Typ
0.22
0.80
1.60
0.50
1.00
1.60
0.05
0.75
0.22
0.12
0.50
⎯
A
B
C
D
G
H
J
N
M
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-523
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: See diagram
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin annealed over Alloy 42
leadframe).
Marking Information: (See Page 3): 2DC4617Q: 8D
2DC4617R: 8E
2DC4617S: 8F
Ordering Information: See Page 3
Weight: 0.002 grams (approximate)
B
G
H
K
E
K
L
M
N
α
J
D
L
•
•
All Dimensions in mm
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
Value
60
50
7.0
150
Unit
V
V
V
mA
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current - Continuous
(Note 1)
Thermal Characteristics
Characteristic
@T
A
= 25°C unless otherwise specified
Symbol
P
d
R
θ
JA
T
j
, T
STG
Value
150
833
-55 to +150
Unit
mW
°C/W
°C
Power Dissipation
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
(Note 1)
(Note 1)
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 2)
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
ON CHARACTERISTICS (Note 2)
DC Current Gain
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
2DC4617Q
2DC4617R
2DC4617S
Min
60
50
7.0
⎯
⎯
120
180
270
⎯
⎯
⎯
180 Typ.
180 Typ.
Typ Max Unit
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
2.0
180
⎯
⎯
⎯
100
100
270
390
560
0.4
V
V
V
nA
nA
Test Condition
I
C
= 50μA, I
E
= 0
I
C
= 1.0mA, I
B
= 0
I
E
= 50μA, I
C
= 0
V
CB
= 60V
V
EB
= 7.0V
h
FE
V
CE(SAT)
C
obo
f
T
f
T
f
T
⎯
V
V
CE
= 6.0V, I
C
= 1.0mA
I
C
= 50mA, I
B
= 5.0mA
Collector-Emitter Saturation Voltage
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
Current Gain-Bandwidth Product
Current Gain-Bandwidth Product
Current Gain-Bandwidth Product
Notes:
1.
2.
3.
4.
5.
3.5 pF V
CB
= 12V, f = 1.0MHz, I
E
= 0
⎯
MHz V
CE
= 12V, I
E
= -2mA, f = 1MHz
⎯
MHz V
CE
= 12V, I
E
= 0A, f = 1MHz
V = 12V, I
C
= -2.0mA,
⎯
MHz
CE
f = 100MHz
Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Short duration pulse test used to minimize self-heating effect.
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
DS30252 Rev. 9 - 2
1 of 3
www.diodes.com
2DC4617Q/R/S
© Diodes Incorporated
Ordering Information
Device
2DC4617Q-7-F
2DC4617R-7-F
2DC4617S-7-F
Notes:
6.
(Note 6)
Packaging
SOT-523
SOT-523
SOT-523
Shipping
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
XXYM
XX = Product Type Marking Code (See Page 1, e.g. 8D = 2DC4617Q)
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
1998
J
Jan
1
1999
K
Feb
2
2000
L
2001
M
Mar
3
2002
N
Apr
4
2003
P
May
5
2004
R
Jun
6
2005
S
2006
T
Jul
7
2007
U
Aug
8
2008
V
Sep
9
2009
W
Oct
O
2010
X
2011
Y
Nov
N
2012
Z
Dec
D
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
DS30252 Rev. 9 - 2
3 of 3
www.diodes.com
2DC4617Q/R/S
© Diodes Incorporated
