2N2907-BP

Description
Bipolar Transistors - BJT 600mA 60v
Categorysemiconductor    Discrete semiconductor
File Size445KB,3 Pages
ManufacturerMCC
Websitehttp://www.mccsemi.com
Download Datasheet Parametric View All

2N2907-BP Online Shopping

Suppliers Part Number Price MOQ In stock
2N2907-BP - - View Buy Now

2N2907-BP Overview

Bipolar Transistors - BJT 600mA 60v

2N2907-BP Parametric

Parameter NameAttribute value
Product CategoryBipolar Transistors - BJT
ManufacturerMCC
RoHSDetails
Mounting StyleThrough Hole
Package / CaseTO-18-3
Transistor PolarityPNP
ConfigurationSingle
Collector- Emitter Voltage VCEO Max40 V
Collector- Base Voltage VCBO60 V
Emitter- Base Voltage VEBO5 V
Maximum DC Collector Current0.6 A
Gain Bandwidth Product fT200 MHz
Maximum Operating Temperature+ 150 C
DC Collector/Base Gain hfe Min35
Height5.33 mm
Length5.84 mm
Minimum Operating Temperature- 55 C
PackagingBulk
Pd - Power Dissipation400 mW
Factory Pack Quantity100
Width5.84 mm
MCC
Micro Commercial Components
TM
  omponents
20736 Marilla
Street Chatsworth

  !"#
$ %    !"#

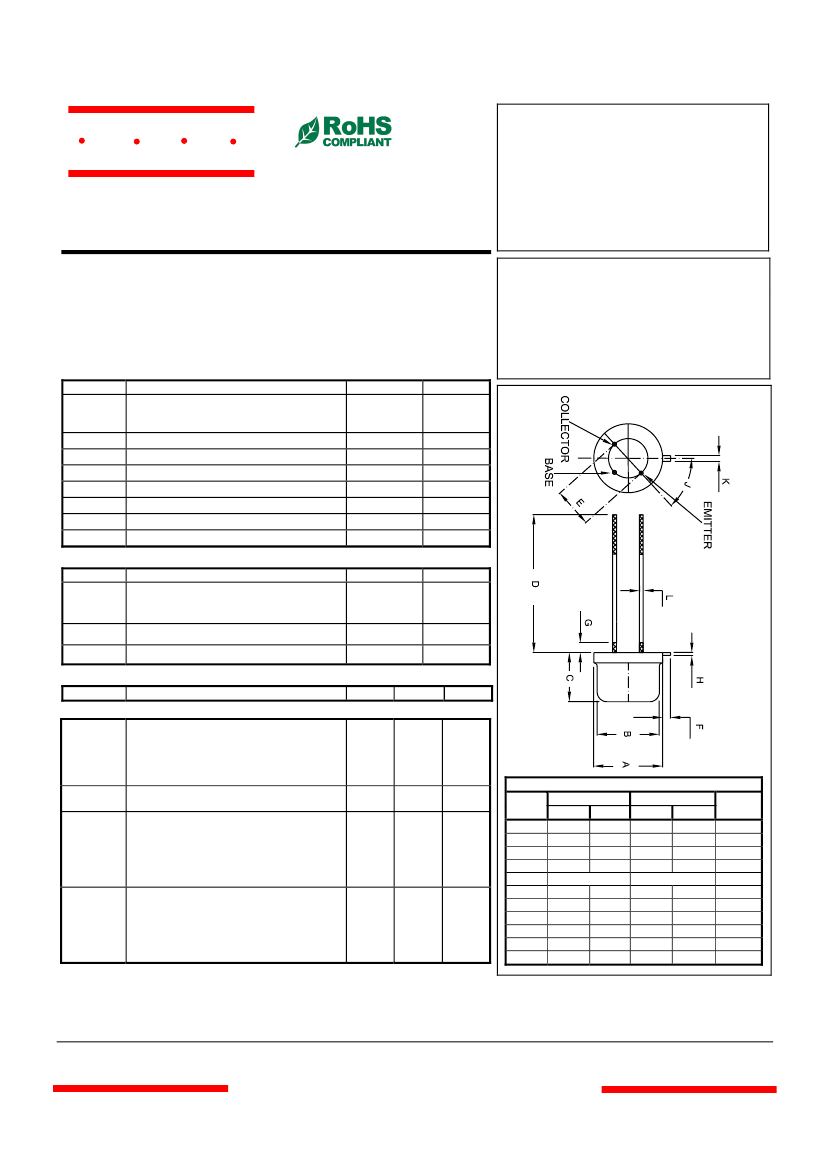

2N2907
2N2907A
Features
High current (max.600mA)
Low voltage (max.60V)
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates
RoHS Compliant. See ordering information)
Symbol
V
CEO
Rating
Collector-Emitter Voltage
2N2907
2N2907A
Collector-Base Voltage
Emitter-Base Voltage
Collector Current (DC)
Peak Collector Current
Peak Base Current
Operating Junction Temperature
Storage Temperature
Rating
40
60
60
5.0
600
800
200
-55 to +150
-55 to +150
Unit
V
V
V
mA
mA
mA
O
O
PNP Switching
Transistors
Maximum Ratings
TO-18
V
CBO
V
EBO
I
C
I
CM
I
BM
T
J
T
STG
C
C
Thermal Characteristics
Symbol
P
tot
R
JC
R
JA
Rating
Total power Dissipation
T
A
≦25℃
T
C
≦25℃
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
Max
400
1.2
146
350
Unit
mW
W
K/W
K/W
Electrical Characteristics @ 25
O
C Unless Otherwise Specified
Symbol
Parameter
Collector cut-off current
2N2907
(V
CB
=50Vdc, I
E
=0)
(V
CB
=50Vdc, I
E
=0,T
A
=150
℃)
2N2907A
(V
CB
=50Vdc, I
E
=0)
(V
CB
=50Vdc, I
E
=0,T
A
=150
℃)
Emitter Cut-off current
(I
C
=0, V
EB
=5.0Vdc)
DC Current Gain
2N2907
(I
C
=0.1mAdc, V
CE
=10Vdc)
(I
C
=1.0mAdc, V
CE
=10Vdc)
(I
C
=10mAdc, V
CE
=10Vdc)
(I
C
=150mAdc, V
CE
=10Vdc)*
(I
C
=500mAdc, V
CE
=10Vdc)*
DC Current Gain
2N2907A
(I
C
=0.1mAdc, V
CE
=10Vdc)
(I
C
=1.0mAdc, V
CE
=10Vdc)
(I
C
=10mAdc, V
CE
=10Vdc)
(I
C
=150mAdc, V
CE
=10Vdc)*
(I
C
=500mAdc, V
CE
=10Vdc)*
Min
Max
Units
OFF CHARACTERISTICS
I
CBO
---
---
---
---
---
20
20
10
10
50
nAdc
uAdc
nAdc
uAdc
nAdc
DIM
A
B
C
D
E
F
G
H
J
K
L
I
EBO
h
FE
35
50
75
100
30
75
100
100
100
50
300
h
FE
300
DIMENSIONS
INCHES
MM
MIN
MAX
MIN
MAX
.209
.230
5.309 5.842
.178
.195
4.521 4.953
.170
.210
4.318 5.334
.50
.75
12.7
19.05
.100
2.54
.028
.048
7.112 1.219
-----
.050
-----
1.27
.009
.031
0.229 0.787
44°
46°
44°
46°
.036
.046
0.914 1.168
.016
.021
0.406 0.533
NOTE
Φ
Φ
ΦTYP
Notes:1.High Temperature Solder Exemption Applied, see EU Directive Annex 7.
www.mccsemi.com
Revision: A
1 of 3
2011/01/01
