SFA1001G - SFA1008G
Taiwan Semiconductor
CREAT BY ART

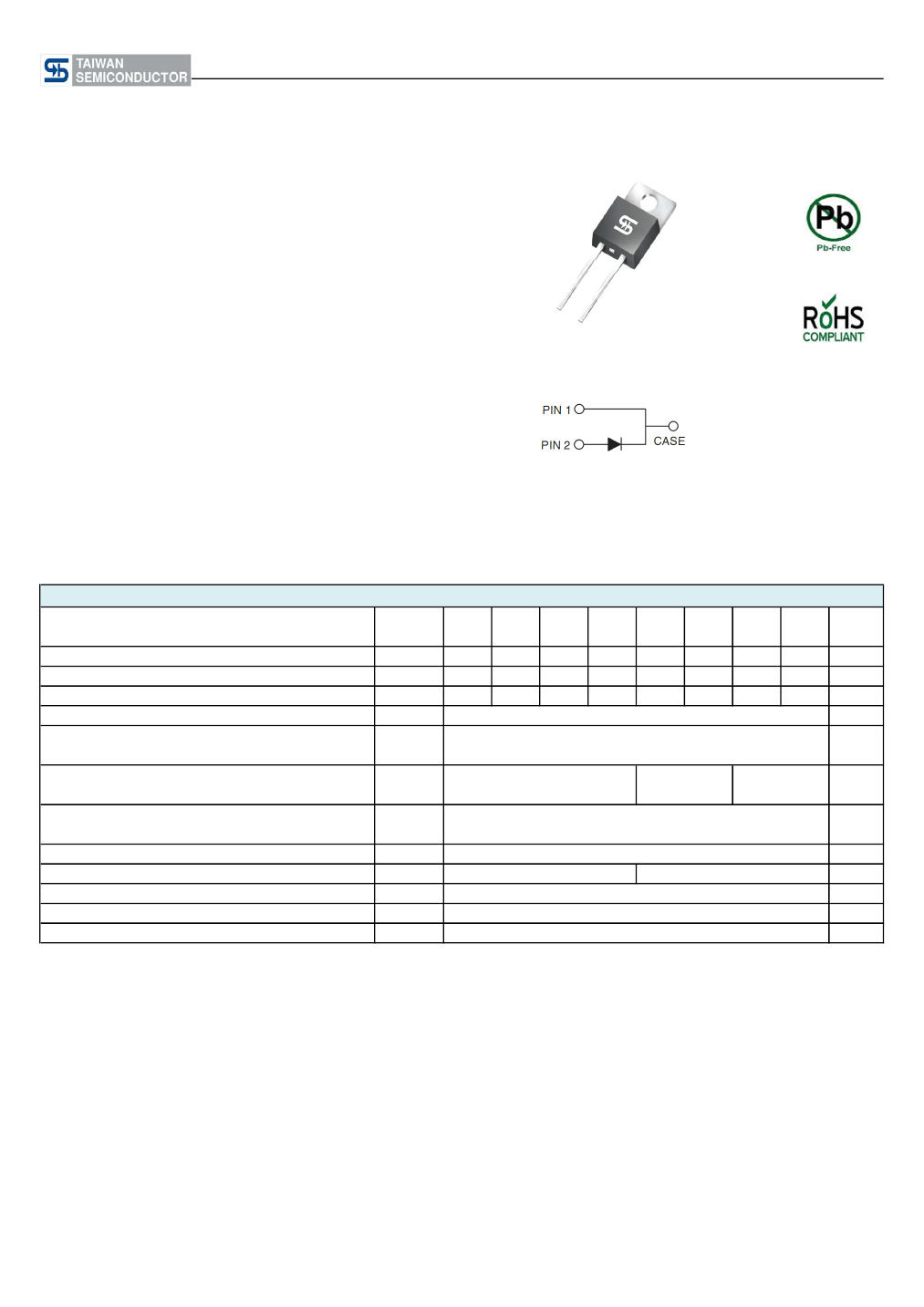

10A, 50V - 600V Glass Passivated Super Fast Rectifiers
FEATURES
- High efficiency, low VF
- High current capability
- High reliability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
C
1
2
TO-220AC
MECHANICAL DATA
Case:
TO-220AC
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.8 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
=10 A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Test conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and applied reverse voltage of 4.0V DC.
T
J
=25°C
T
J
=100°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJC
T
J
T
STG
70
3.5
- 55 to +150
- 55 to +150
0.975
10
400
35
50
SFA
1001
50
35
50
SFA
1002
100
70
100
SFA
1003
150
105
150
SFA
1004
200
140
200
10
125
1.3
1.7
SFA
1005
300
210
300
SFA
1006
400
280
400
SFA
1007
500
350
500
SFA
1008
600
420
600
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Version: J1511
SFA1001G - SFA1008G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SFA100xG
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
TO-220AC
PACKING
50 / Tube
Note 1: "x" defines voltage from 50V (SFA1001G) to 600V (SFA1008G)
EXAMPLE
EXAMPLE P/N
SFA1008GHC0G
PART NO.
SFA1008G
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

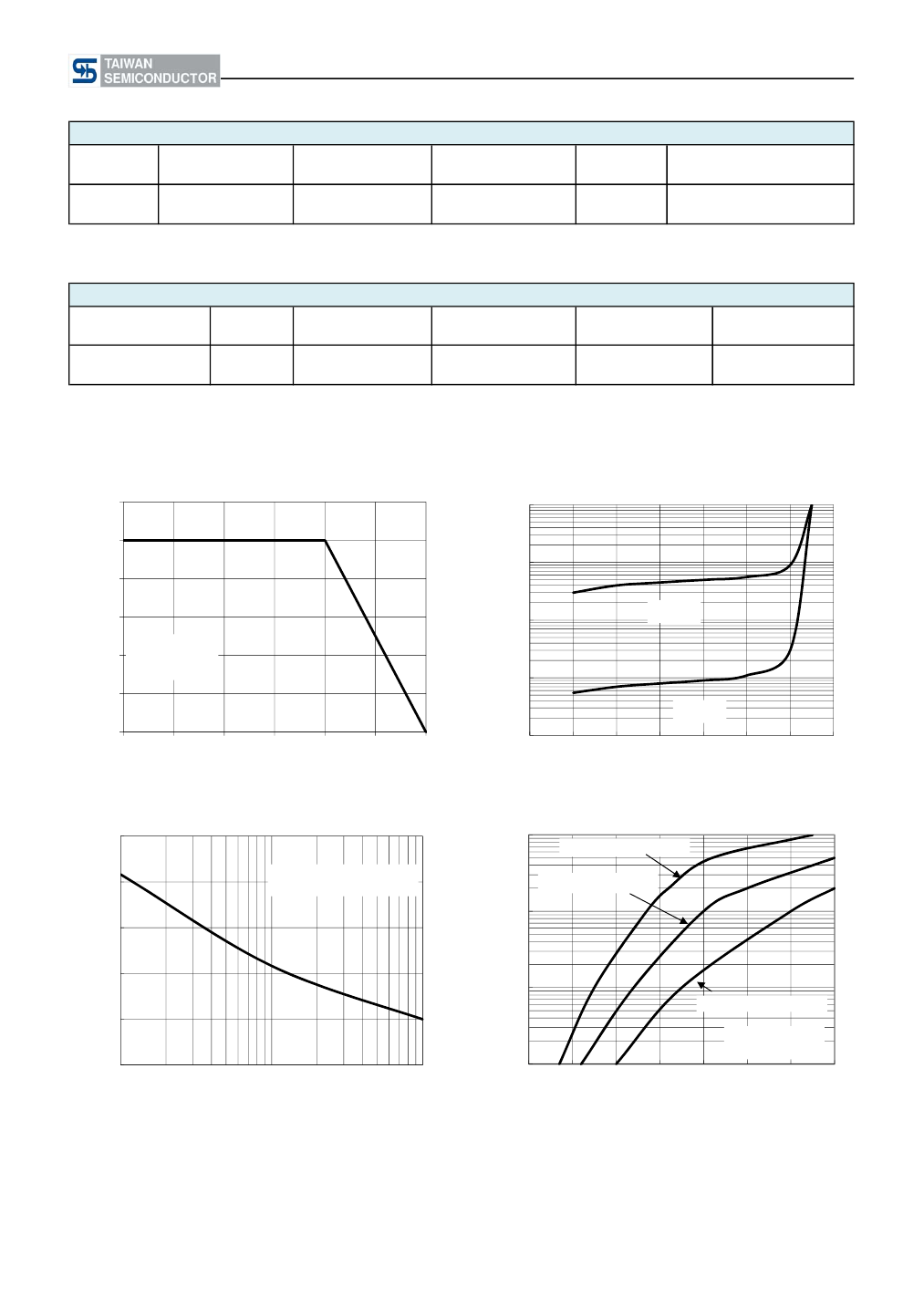

FIG.1 FORWARD CURRENT DERATING CURVE
12
10
AVERAGE FORWARD CURRENT (A)
8
6
4
2
0
0
25
50
75
100
125
150
CASE TEMPERATURE (
°
C)
Resistive or
inductive load
with heatsink
INSTANTANEOUS REVERSE CURRENT(μA)
1000
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
100
10
T
J
=100°C
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
150
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
SFA1001G-SFA1004G
SFA1005G-SFA1006G
PEAK FORWARD SURGE CURRENT(A)
120
8.3ms single half sine wave
10
90
60
1
SFA1007G-SFA1008G
Pulse width=300μs
1% duty cycle
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Version: J1511
SFA1001G - SFA1008G
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
90
CAPACITANCE (pF)
80
f=1.0MHz
Vsig=50mVp-p
SFA1001G-SFA1004G
70
60
50
40
1
10
REVERSE VOLTAGE (V)
100
SFA1005G-SFA1008G

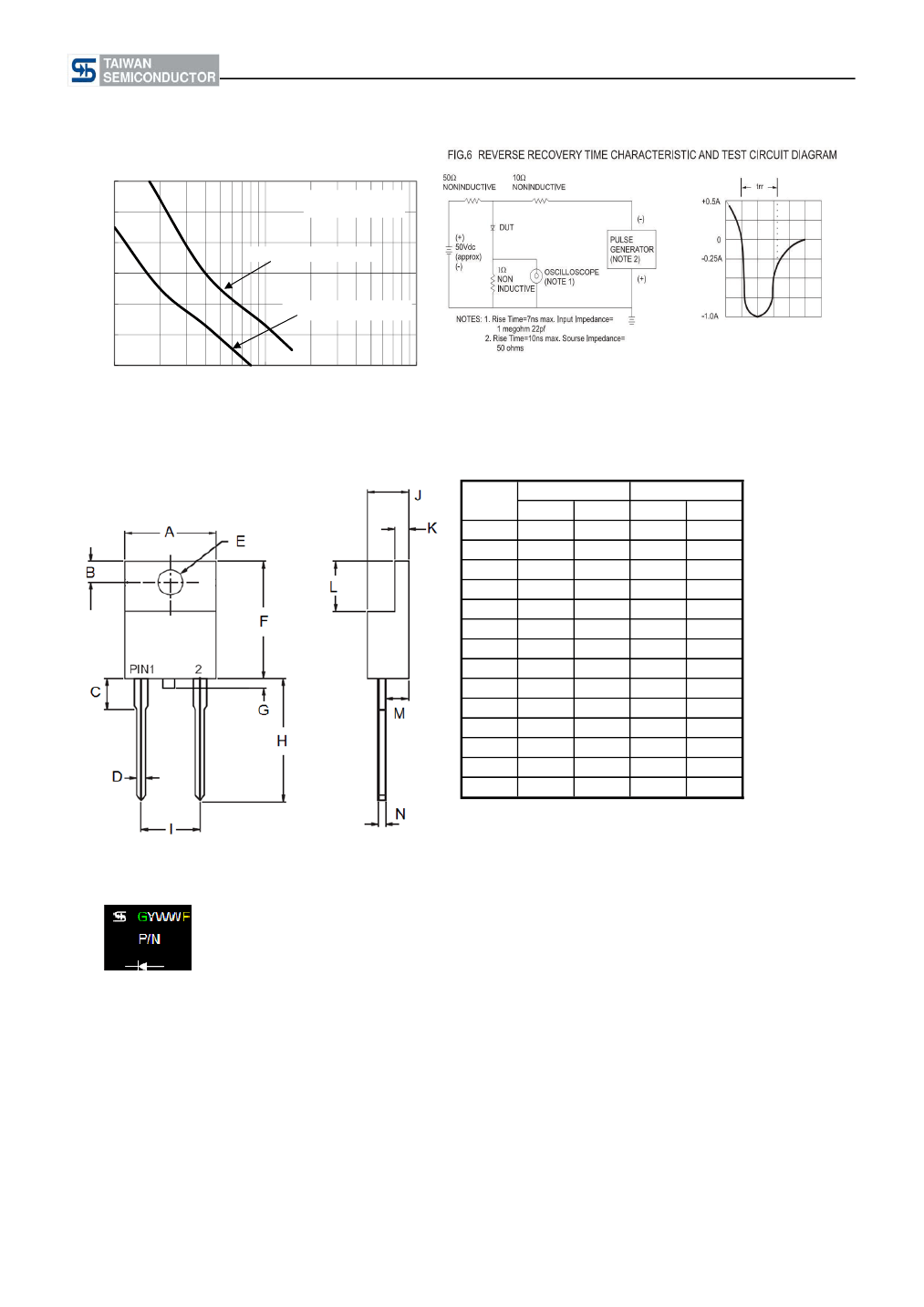

PACKAGE OUTLINE DIMENSIONS
TO-220AC
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Unit (mm)
Min
-
2.62
2.80
0.68
3.54
14.60
0.00
13.19
4.95
4.42
1.14
5.84
2.20
0.35
Max
10.50
3.44
4.20
0.94
4.00
16.00
1.60
14.79
5.20
4.76
1.40
6.86
2.80
0.64
Unit (inch)
Min
-
0.103
0.110
0.027
0.139
0.575
0.000
0.519
0.195
0.174
0.045
0.230
0.087
0.014
Max
0.413
0.135
0.165
0.037
0.157
0.630
0.063
0.582
0.205
0.187
0.055
0.270
0.110
0.025
MARKING DIAGRAM
P/N
G
YWW
F
= Marking Code
= Green Compound
= Date Code
= Factory Code
Version: J1511
SFA1001G - SFA1008G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
