NB3N551
3.3 V / 5.0 V
Ultra-Low Skew
1:4 Clock Fanout Buffer
Description
The NB3N551 is a low skew 1−to 4 clock fanout buffer, designed
for clock distribution in mind. The NB3N551 specifically guarantees
low output−to−output skew. Optimal design, layout and processing
minimize skew within a device and from device to device.
The output enable (OE) pin three−states the outputs when low.
Features
http://onsemi.com
MARKING
DIAGRAMS*
8
8
1
3N551
A
L
Y
W
G
SOIC−8
D SUFFIX
CASE 751
1
= Specific Device Code
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
6K MG
G
1
4
8
7
6
5
OE
V
DD
GND
Q4
Shipping
†
98 Units/Rail
2500/Tape & Reel
1000/Tape & Reel
3N551
ALYW
G
•
•
•
•
•
•
•
•
•
Input/Output Clock Frequency up to 180 MHz
Low Skew Outputs (50 ps typical)
RMS Phase Jitter (12 kHz – 20 MHz): 43 fs (Typical)
Output goes to Three−State Mode via OE
Operating Range: V
DD
= 3.0 V to 5.5 V
Ideal for Networking Clocks
Packaged in 8−pin SOIC
Industrial Temperature Range
These are Pb−Free Devices
1
6K
M
G
DFN8
MN SUFFIX
CASE 506AA
Q1
Q2
CLK
Q3
= Specific Device Code
= Date Code
= Pb−Free Package
(Note: Microdot may be in either location)
*For additional marking information, refer to
Application Note AND8002/D.
PIN CONNECTIONS
Q4
I
CLK
OE
Q1
Q2
Q3
1
2
3
4
Figure 1. Block Diagram
ORDERING INFORMATION
Device
NB3N551DG
NB3N551DR2G
NB3N551MNR4G
Package
SOIC−8
(Pb−Free)
SOIC−8
(Pb−Free)
DFN−8
(Pb−Free)
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2012
July, 2012
−
Rev. 4
1
Publication Order Number:
NB3N551/D
NB3N551
Table 1. OE, OUTPUT ENABLE FUNCTION
OE
0
1
Function
Disable
Enable
Table 2. PIN DESCRIPTION
Pin #
1
2
3
4
5
6
7
8
−
Name
I
CLK
Q1
Q2
Q3
Q4
GND
V
DD
OE
EP
Type
(LV)CMOS/(LV)TTL Input
(LV)CMOS/(LV)TTL Output
(LV)CMOS/(LV)TTL Output
(LV)CMOS/(LV)TTL Output
(LV)CMOS/(LV)TTL Output
Power
Power
(LV)CMOS/(LV)TTL Input
Thermal Exposed Pad
Description
Clock Input. Internal pull-up resistor.
Clock Output 1
Clock Output 2
Clock Output 3
Clock Output 4
Negative supply voltage; Connect to ground, 0 V
Positive supply voltage (3.0 V to 5.5 V)
Output Enable for the clock outputs. Outputs are enabled when HIGH or when left
open; OE pin has internal pull−up resistor. Three−states outputs when LOW.
(DFN8 only) Thermal exposed pad must be connected to a sufficient thermal
conduit. Electrically connect to the most negative supply (GND) or leave uncon-
nected, floating open.
http://onsemi.com
2
NB3N551
Table 3. MAXIMUM RATINGS
Symbol
V
DD
V
I
/V
O
T
A
T
stg
q
JA
q
JC
q
JA
q
JC
Parameter
Positive Power Supply
Input/Output Voltage
Operating Temperature Range, Industrial
Storage Temperature Range
Thermal Resistance (Junction−to−Ambient)
Thermal Resistance (Junction−to−Case)
Thermal Resistance (Junction−to−Ambient)
Thermal Resistance (Junction−to−Case)
Condition 1
GND = 0 V
t
≤
1.5 ns
−
−
0 lfpm
500 lfpm
(Note 1)
0 lfpm
500 lfpm
(Note 1)
Condition 2
−
−
−
−
SOIC−8
SOIC−8
DFN8
DFN8
DFN8
Rating
7.0
GND–1.5
≤
V
I
/V
O
≤
V
DD
+1.5
≥
−40
to
≤
+85
−65
to +150
190
130
41 to 44
129
84
35 to 40
Units
V
V
°C
°C
°C/W
°C/W
°C/W
°C/W
°C/W
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
1. JEDEC standard multilayer board
−
2S2P (2 signal, 2 power)
Table 4. ATTRIBUTES
Characteristic
ESD Protection
Human Body Model
Machine Model
Value
> 4 kV
> 200 V
Level 1
UL−94 code V−0 @ 0.125 in
531 Devices
Moisture Sensitivity, Indefinite Time Out of Drypack (Note 2)
Flammability Rating
Transistor Count
Meets or Exceeds JEDEC Standard EIA/JESD78 IC Latchup Test
Oxygen Index: 28 to 34
2. For additional Moisture Sensitivity information, refer to Application Note AND8003/D.
http://onsemi.com
3
NB3N551
Table 5. DC CHARACTERISTICS
(V
DD
= 3.0 V to 3.6 V, GND = 0 V, T
A
=
−40°C
to +85°C) (Note 3)
Symbol
I
DD
V
OH
V
OL
V
OH
V
IH,
I
CLK
V
IL,
I
CLK
V
IH,
OE
V
IL,
OE
ZO
RPU
CIN
IOS
Characteristic
Power Supply Current @ 135 MHz, No Load, V
DD
= 3.3 V
Output HIGH Voltage – I
OH
=
−25
mA, V
DD
= 3.3 V
Output LOW Voltage – I
OL
= 25 mA
Output HIGH Voltage – I
OH
=
−12
mA (CMOS level)
Input HIGH Voltage, I
CLK
Input LOW Voltage, I
CLK
Input HIGH Voltage, OE
Input LOW Voltage, OE
Nominal Output Impedance
Input Pull−up Resistor, OE
Input Capacitance, OE
Short Circuit Current
Min
−
2.4
−
V
DD
−
0.4
(V
DD
/2)+0.7
−
2.0
0
−
−
−
−
Typ
20
−
−
−
−
−
−
−
20
220
5.0
±
50
Max
40
−
0.4
−
3.8
(V
DD
/2)−0.7
VDD
0.8
−
−
−
−
Unit
mA
V
V
V
V
V
V
V
W
kW
pF
mA
DC CHARACTERISTICS
(V
DD
= 4.5 V to 5.5 V, GND = 0 V, T
A
=
−40°C
to +85°C) (Note 3)
Symbol
I
DD
V
OH
V
OL
V
OH
V
IH,
I
CLK
V
IL,
I
CLK
V
IH,
OE
V
IL,
OE
ZO
RPU
CIN
IOS
Characteristic
Power Supply Current @ 135 MHz, No Load, V
DD
= 5.0 V
Output HIGH Voltage – I
OH
=
−35
mA
Output LOW Voltage – I
OL
= 35 mA
Output HIGH Voltage – I
OH
=
−12
mA (CMOS level)
Input HIGH Voltage, I
CLK
Input LOW Voltage, I
CLK
Input HIGH Voltage, OE
Input LOW Voltage, OE
Nominal Output Impedance
Input Pull−up Resistor, OE
Input Capacitance, OE
Short Circuit Current
Min
−
2.4
−
V
DD
– 0.4
(V
DD
/2) + 1
−
2.0
0
−
−
−
−
Typ
50
−
−
−
−
−
−
−
20
220
5.0
±80
Max
95
−
0.4
−
5.5
(V
DD
/2)
−
1
V
DD
0.8
−
−
−
−
Unit
mA
V
V
V
V
V
V
V
W
kW
pF
mA
Table 6. AC CHARACTERISTICS
(V
DD
= 3.0 V to 5.5 V, GND = 0 V, T
A
=
−40°C
to +85°C) (Note 3)
Symbol
f
in
t
jitter
(f)
t
jitter (pd)
t
r
/t
f
t
pd
t
skew
Input Frequency
RMS Phase Jitter (Integrated 12 kHz
−
20 MHz)
(See Figures 2 and 3)
Period Jitter (RMS, 1s)
Output rise and fall times; 0.8 V to 2.0 V
Propagation Delay, CLK to Qn, 0
−
180 MHz,
(Note 4)
Output−to−Output Skew; (Note 5)
f
carrier
= 25 MHz
f
carrier
= 50 MHz
Characteristic
Conditions
Min
−
−
−
−
−
1.5
−
Typ
−
43
16
2.0
0.5
3.0
50
Max
180
−
−
−
1.0
6.0
160
Unit
MHz
fs
ps
ns
ns
ps
3. Outputs loaded with external R
L
= 33−W series resistor and C
L
= 15 pF to GND. Duty cycle out = duty in. A 0.01
mF
decoupling capacitor
should be connected between V
DD
and GND. A 33
W
series terminating resistor may be used on each clock output if the trace is longer than
1 inch.
4. Measured with rail−to−rail input clock.
5. Measured on rising edges at V
DD
÷
2.
http://onsemi.com
4
NB3N551

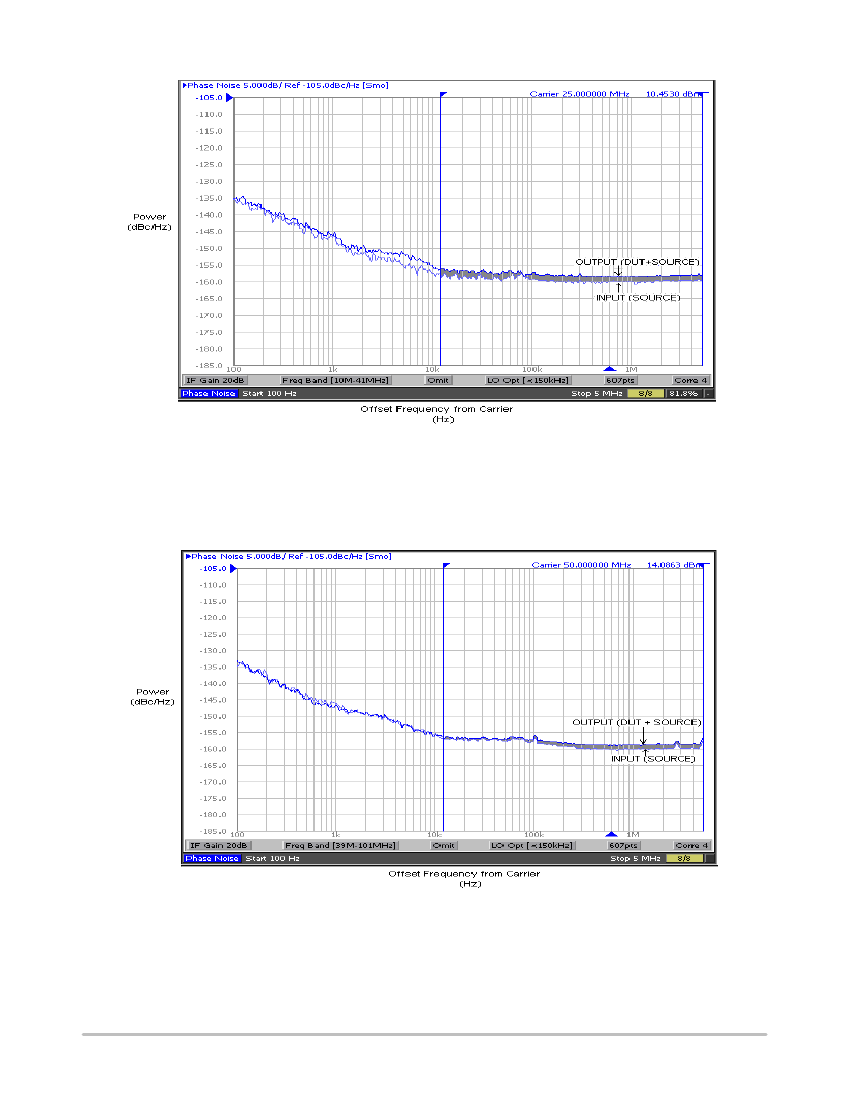

Figure 2. Phase Noise Plot at 25 MHz at an Operating Voltage of 3.3 V, Room Temperature
The above plot captured using Agilent E5052A shows Additive Phase Noise of the NB3N551 device measured with an input
source generated by Agilent E8663B. The RMS phase jitter contributed by the device (integrated between 12 kHz to 20 MHz;
as shown in the shaded region of the plot) is 43 fs (RMS Jitter of the input source is 203.31 fs and Output (DUT+Source) is
247.06 fs).
Figure 3. Phase Noise Plot at 50 MHz at an Operating Voltage of 5 V, Room Temperature
The above plot captured using Agilent E5052A shows Additive Phase Noise of the NB3N551 device measured with an input
source generated by Agilent E8663B. The RMS phase jitter contributed by the device (integrated between 12 kHz to 20 MHz;
as shown in the shaded region of the plot) is 16 fs (RMS Jitter of the input source is 104.08 fs and Output (DUT + Source) is
119.77 fs).
http://onsemi.com
5
