Halogen and Antimony Free. “Green” Device (Note 3)
NEW PRODUCT
Description and Applications

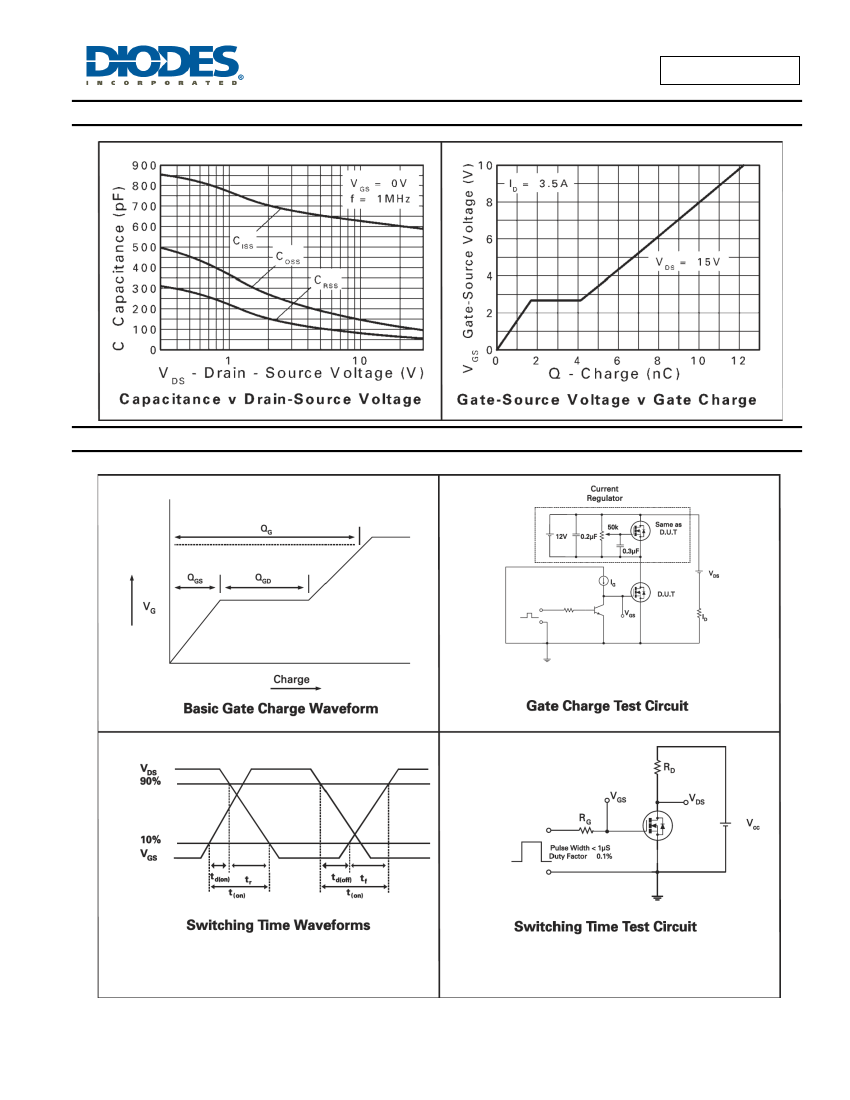

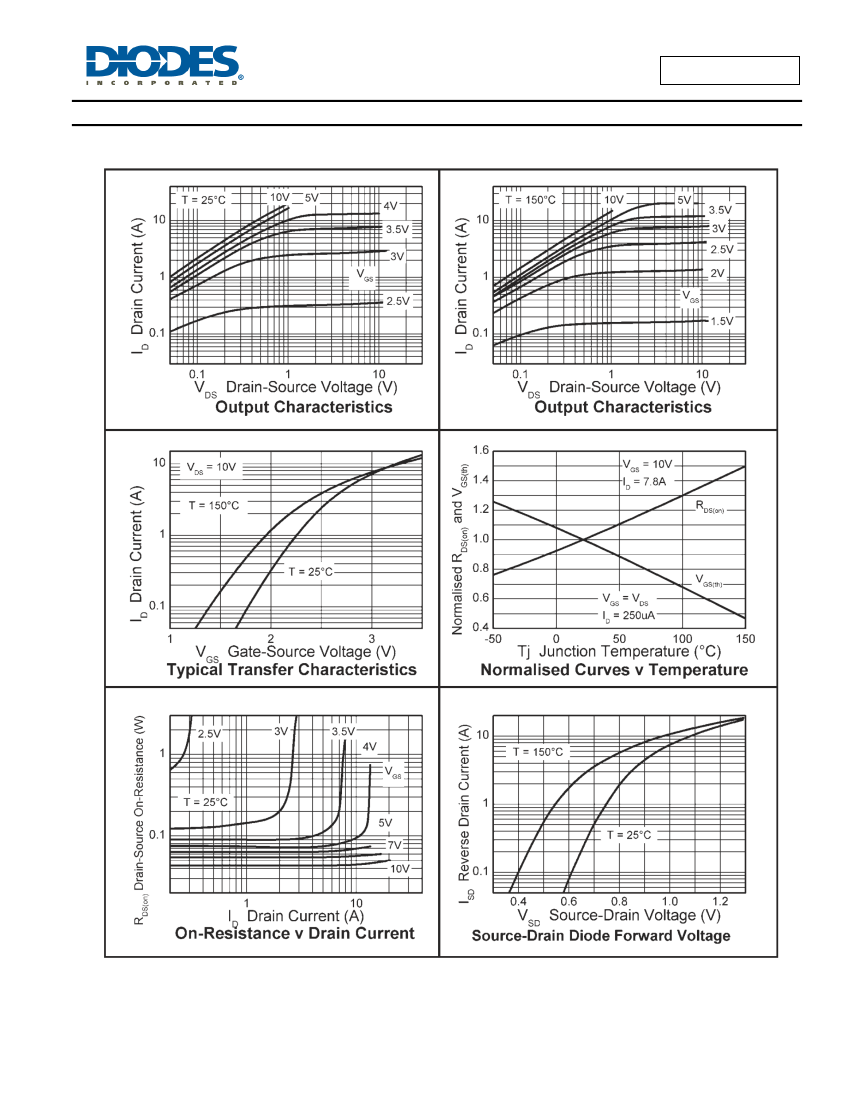

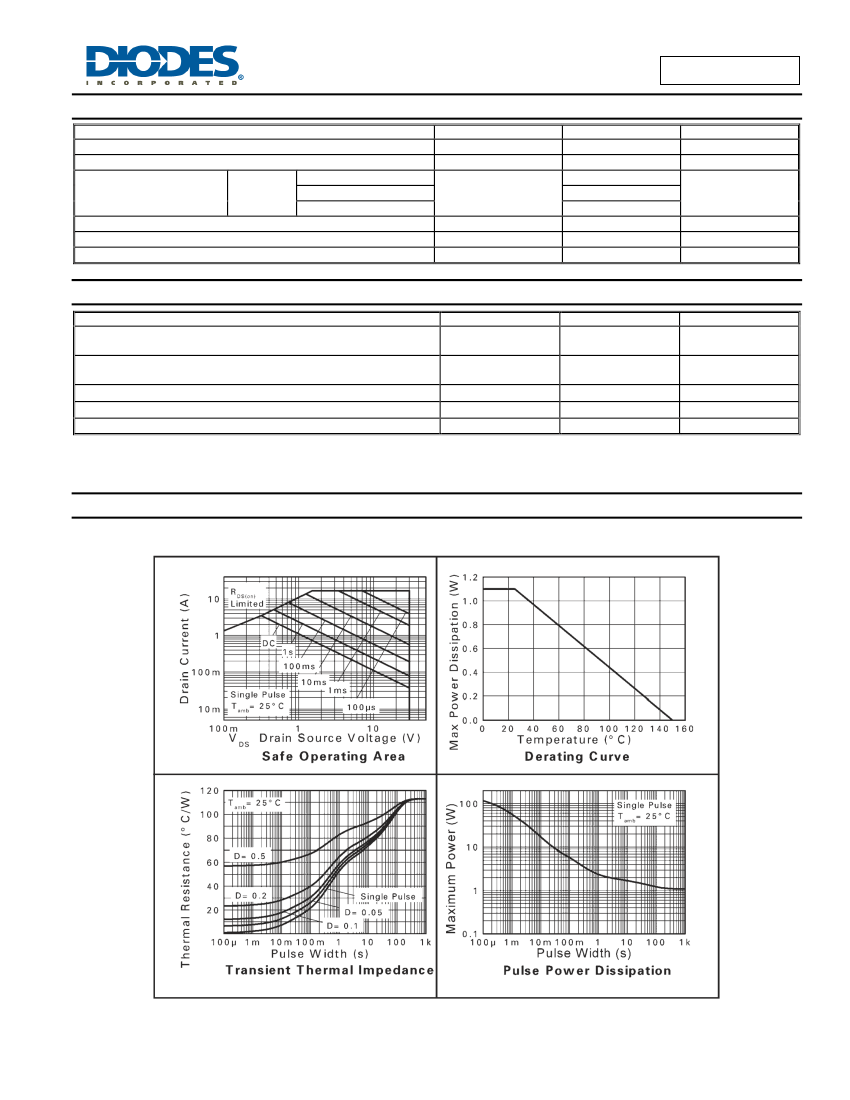

This new generation of TRENCH MOSFET from Zetex utilizes a
unique structure that combines the benefits of low on-resistance with
fast switching speed. This makes them ideal for high efficiency, low
voltage, power management applications.
DC - DC converters
Power Management Functions
Disconnect Switches
Motor Control
Mechanical Data
Case: SOT26
Case Material: Molded Plastic, ―Green‖ Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.015 grams (Approximate)

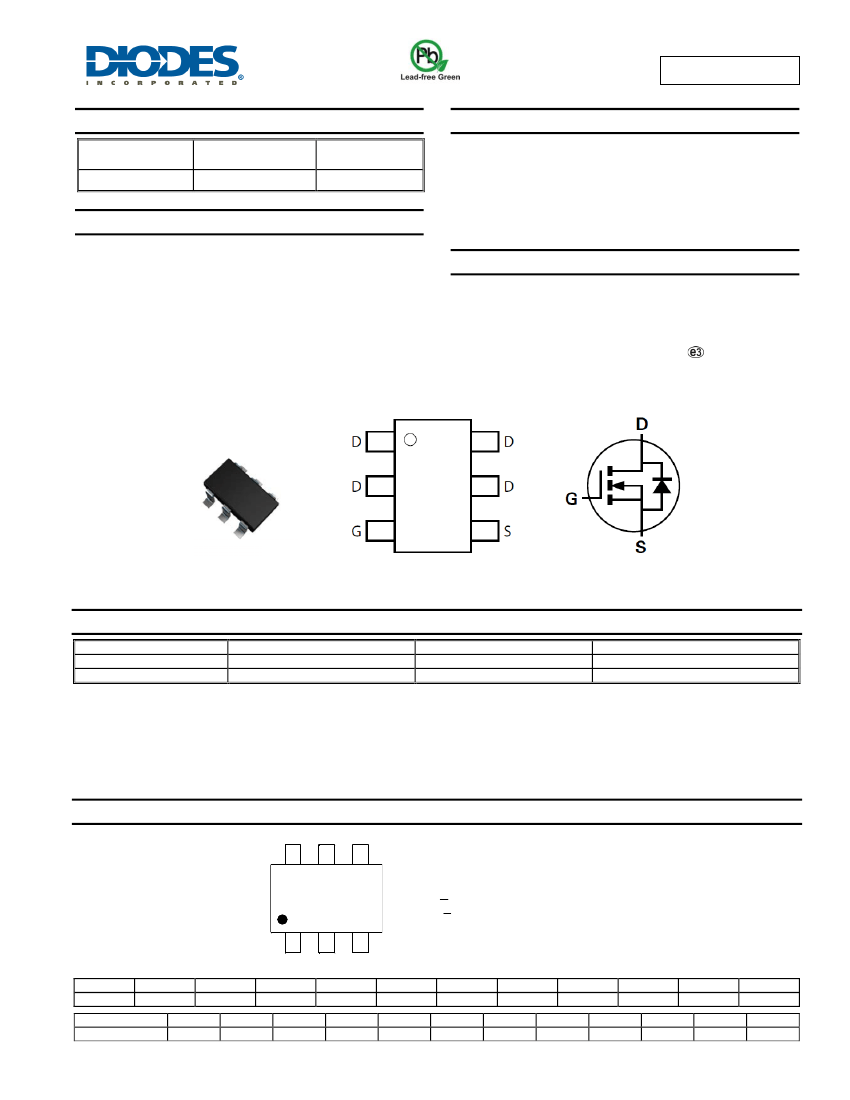

SOT26
Top View
Pinout Top-view
Device Symbol
Ordering Information
(Note 4)
Part Number
ZXMN3A03E6TA
ZXMN3A03E6TC
Notes:
Reel Size (inch)
7
13
Tape Width (mm)
8
8
Quantity Per Reel
3000
10,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
