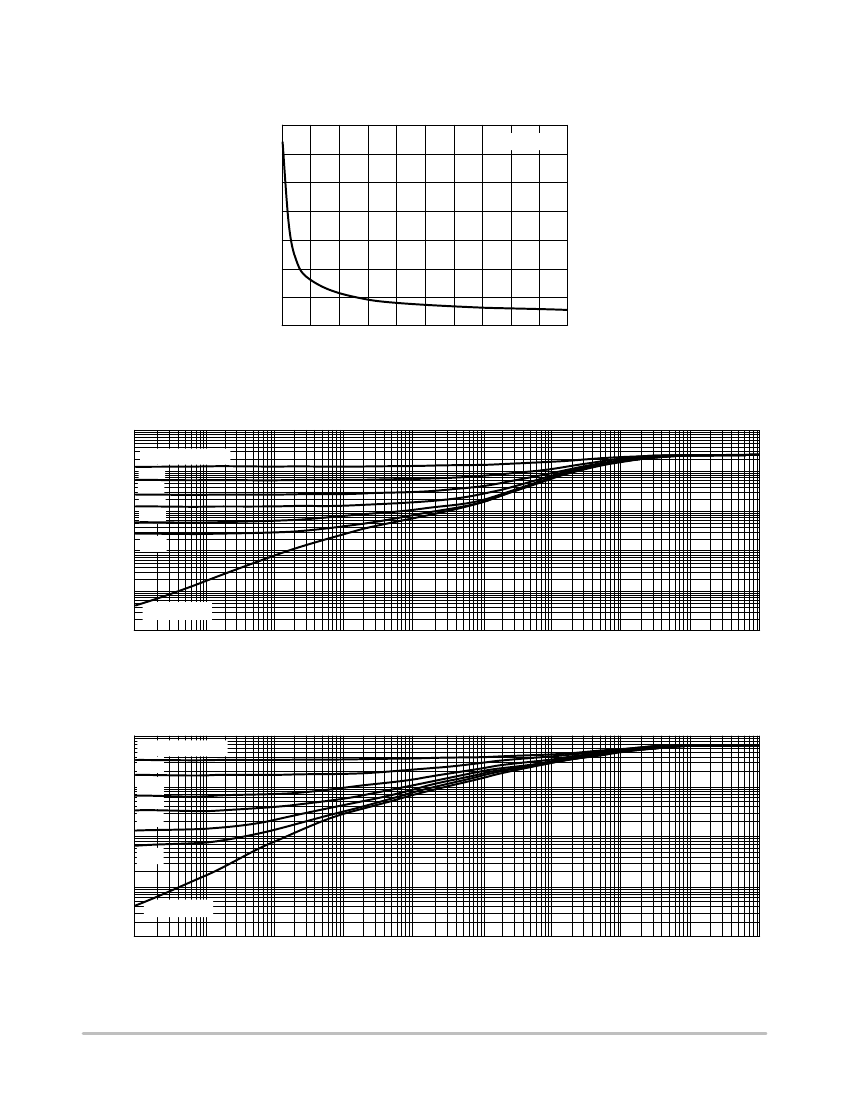

Figure 8. Thermal Response, Junction−to−Ambient (20 mm
2
pad)
100
50% (DUTY CYCLE)
25%
10
R(t) (C/W)
10%
5.0%
2.0%
1.0
1.0%
0.1
SINGLE PULSE
0.01
0.000001
0.00001
0.0001
0.001
0.01
PULSE TIME (s)
0.1
1.0
10
100
1000
Figure 9. Thermal Response, Junction−to−Ambient (1 in
2
pad)
http://onsemi.com
4
MBRM2H100T3G, NRVBM2H100T3G
PACKAGE DIMENSIONS
POWERMITE
CASE 457−04
ISSUE F
−A−
S
C
J
F
0.08 (0.003)
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSIONS A AND B DO NOT INCLUDE MOLD
FLASH, PROTRUSIONS OR GATE BURRS. MOLD
FLASH, PROTRUSIONS OR GATE BURRS SHALL
NOT EXCEED 0.15 (0.006) PER SIDE.
DIM
A
B
C
D
F
H
J
K
L
R
S
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
1.75
2.05 0.069
0.081
1.75
2.18 0.069
0.086
0.85
1.15 0.033
0.045
0.40
0.69 0.016
0.027
0.70
1.00 0.028
0.039
-0.05
+0.10 -0.002 +0.004
0.10
0.25 0.004
0.010
3.60
3.90 0.142
0.154
0.50
0.80 0.020
0.031
1.20
1.50 0.047
0.059
0.50 REF
0.019 REF
M
T B
S
C
S
−B−
K
PIN 1
PIN 2
R
J
H
−T−
L
D
0.08 (0.003)
M
T B
S
C
S
SOLDERING FOOTPRINT*
0.635
0.025
0.762
0.030
2.67
0.105
2.54
0.100
1.27
0.050
SCALE 10:1
mm
inches
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
