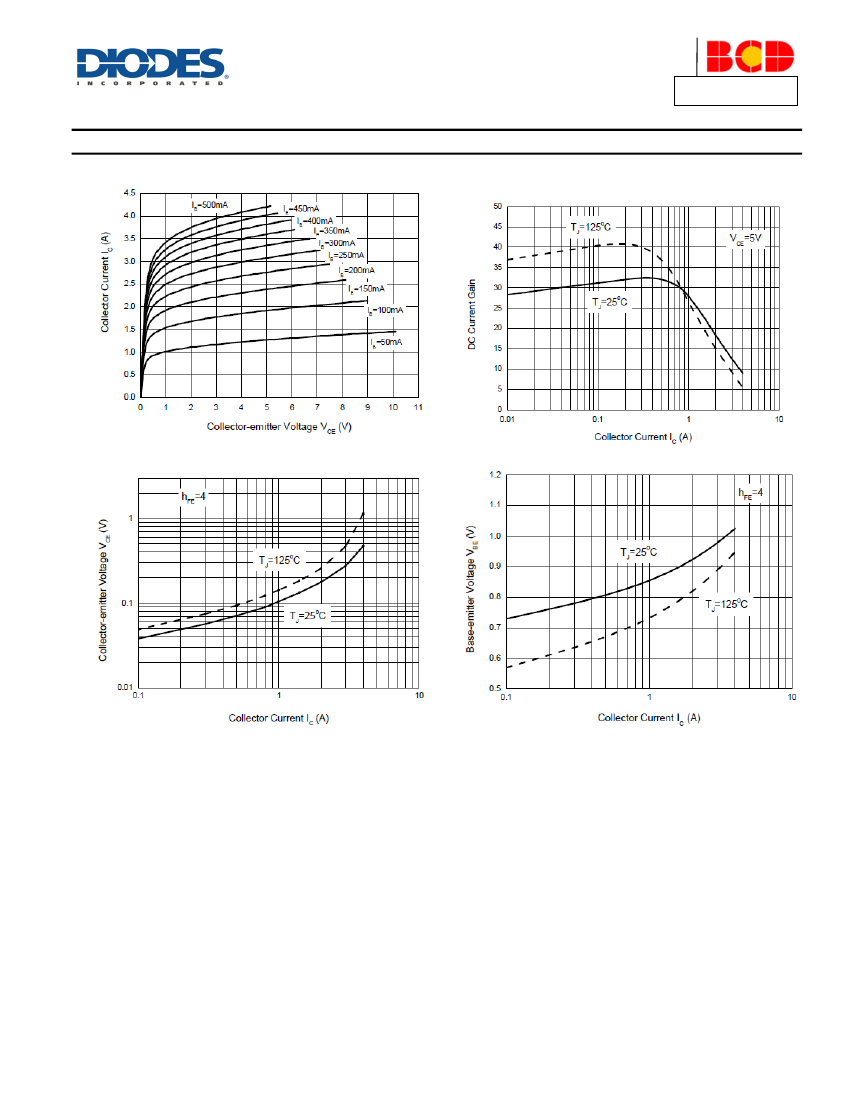

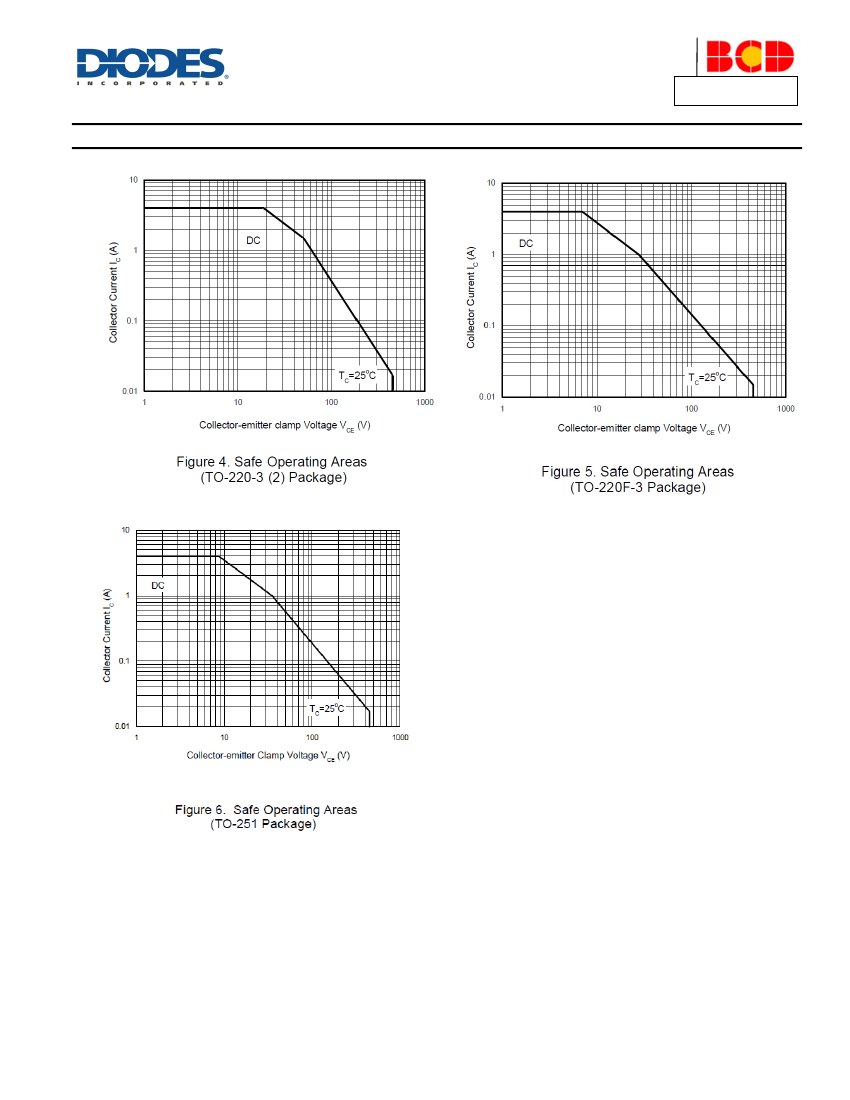

Integrated Anti-Parallel Diode to act as free-wheeling diode
Anti-Saturation feature
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: TO220F-3, TO251, TO220AB Type C
Case Material: Molded Plastic, "Green" Molding Compound
UL Flammability Classification Rating 94V-0
Terminals: Finish - Matte Tin Finish Leads, Solderable per
MIL-STD-202, Method 208
Weight: TO251:
TO220F-3:
340mg (Approximate)
1500mg (Approximate)
TO220AB Type C : 2000mg (Approximate)
Applications
Low power AC-DC SMPS for:
Battery Chargers for Mobile Phone / Tablets / Smartphones
Power Supply for DVD / STB
LED lighting

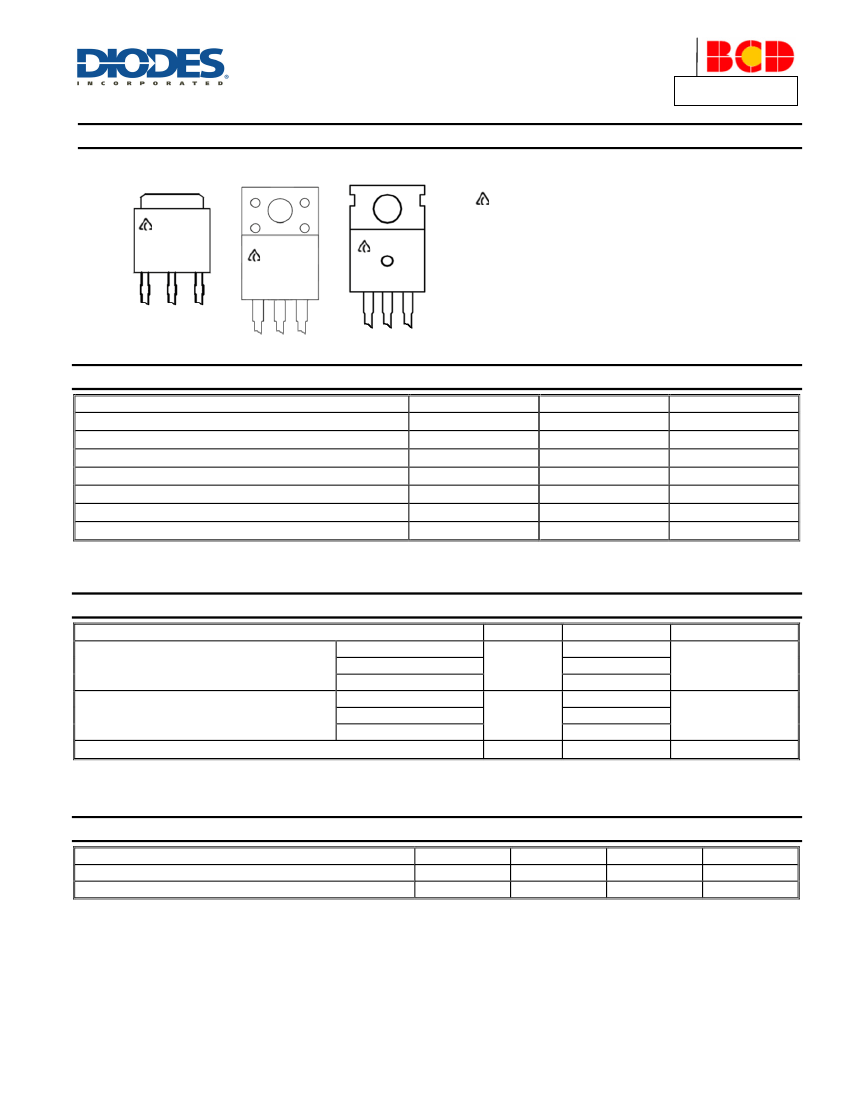

TO220AB Type C
(TO220-3(2))
Non-isolated
TO251
TO220F-3
Isolated
B C E
Front Face View
Pin-Out
B C E
Front Face View
Pin-Out
B C E
Front Face View
Pin-Out

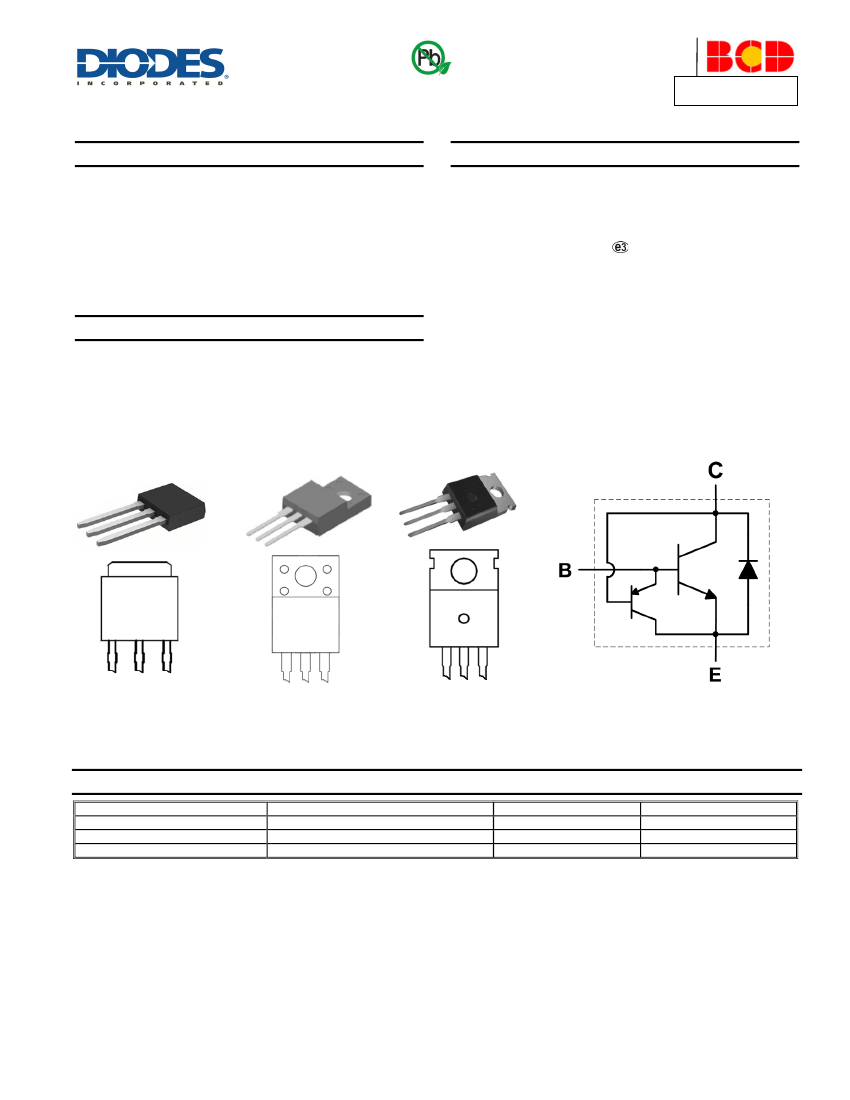

Device Schematic
Ordering Information
(Note 4)
Product
APT13005DI-G1
APT13005DTF-G1
APT13005DT-G1
Notes:
Package
TO251
TO220F-3
TO220AB Type C (TO220-3(2))
Marking
APT13005DI-G1
APT13005DTF-G1
APT13005DT-G1
Quantity
3,600 per Box in Tubes
1,000 per Box in Tubes
1,000 per Box in Tubes
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
