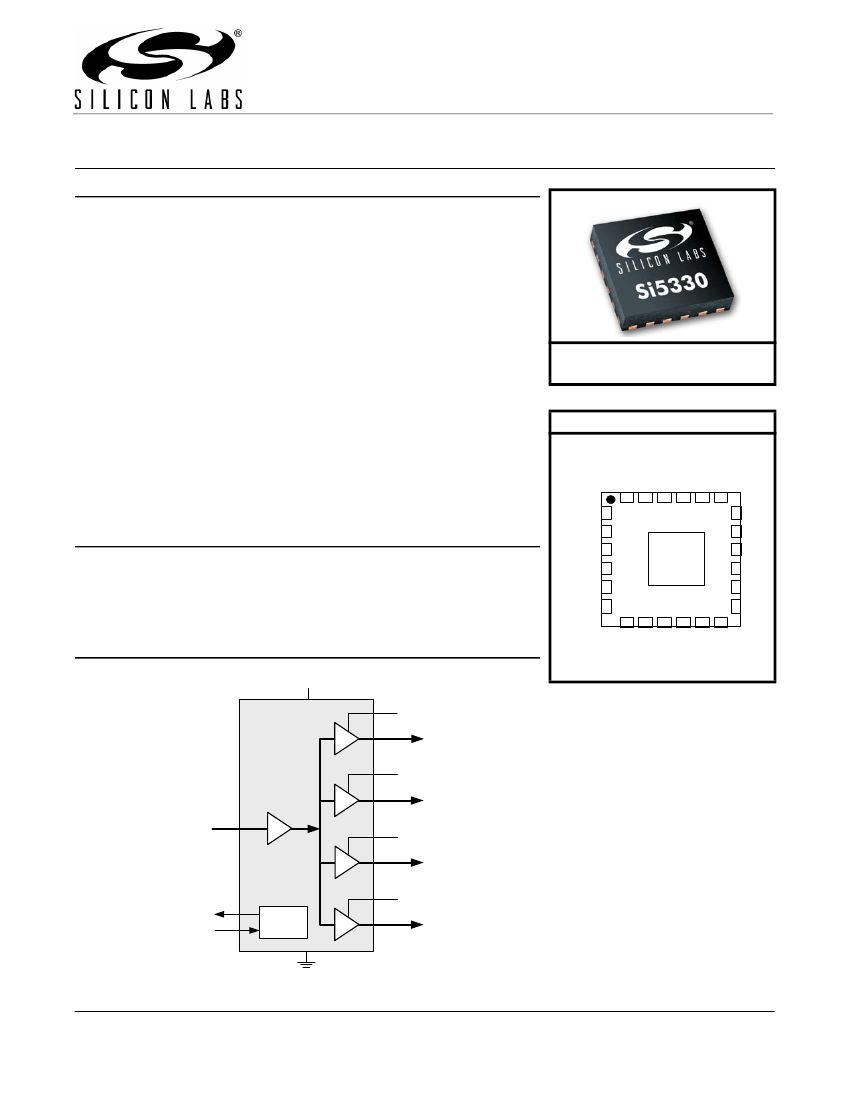

Si5330
1 . 8 / 2 . 5 / 3 . 3 V L
O W
- J
I T T E R
, L
O W
- S
K EW
C
L O C K
B
U F F E R
/ L
E V E L
T
R A N S L A T O R
Features
18
17
15
14
7
8
9
10
11
12
Supports single-ended or
differential input clock signals
Generates four differential
(LVPECL, LVDS, HCSL) or eight
single-ended (CMOS, SSTL,
HSTL) outputs
Provides signal level translation
Differential to single-ended
Single-ended to differential
Differential to differential
Single-ended to single-ended
Wide frequency range
LVPECL, LVDS: 5 to 710 MHz
HCSL: 5 to 250 MHz
SSTL, HSTL: 5 to 350 MHz
CMOS: 5 to 200 MHz
Additive jitter: 150 fs RMS typ
RSVD_GND
CLK0A
CLK0B
VDDO0
20
Small size: 24-lead, 4 x 4 mm
QFN
24
23
22
21
19
OEB
CLK1A
CLK1B
VDDO1
VDDO2
CLK2A
CLK2B
RSVD_GND
13
16
IN1
IN2
IN3
Applications
High Speed Clock Distribution
Ethernet Switch/Router
SONET / SDH
VDD
1
2
3
Output-output skew: 100 ps
Propagation delay: 2.5 ns typ
Single core supply with excellent
PSRR: 1.8, 2.5, or 3.3 V
Output driver supply voltage
independent of core supply: 1.5,
1.8, 2.5, or 3.3 V
Loss of Signal (LOS) indicator
allows system clock monitoring
Output Enable (OEB) pin allows
glitchless control of output clocks
Low power: 10 mA typical core
current
Industrial temperature range:
–40 to +85
°
C
Ordering Information:
See page 14.
Pin Assignments
PCI Express 2.0/3.0
Fibre Channel
MSAN/DSLAM/PON
Telecom Line Cards
RSVD_GND
RSVD_GND
RSVD_GND
GND
GND
CLK3B
Functional Block Diagram
V
DD
V
DDO0
CLK0
Si5330
V
DDO1
CLK1
Single-ended
or
Differential
IN
V
DDO2
CLK2
Single-ended
or
Differential
V
DDO3
LOS
OEB
Control
CLK3
Rev. 1.1 1/13
Copyright © 2013 by Silicon Laboratories
VDDO3
VDD
LOS
CLK3A
4
5
6
Si5330
Si5330
Functional Block Diagrams Based on Orderable Part Number
*
1:4 Differential to Differential Buffer
Si5330A/B/C
V
DDO0
CLK0A
CLK0B
IN1
IN2
IN3
V
DDO1
CLK1A
CLK1B
V
DDO2
CLK2A
CLK2B
LOS
OEB
Control
V
DDO3
CLK3A
CLK3B
LOS
OEB
Control
IN1
IN2
IN3
1:8 Single-Ended to Single-Ended Buffer
Si5330F
V
DDO0
CLK0A
CLK0B
V
DDO1
CLK1A
CLK1B
V
DDO2
CLK2A
CLK2B
V
DDO3
CLK3A
CLK3B
1:8 Differential to Single-Ended Buffer
Si5330G/H/J
V
DDO0
CLK0A
CLK0B
IN1
IN2
IN3
V
DDO1
CLK1A
CLK1B
V
DDO2
CLK2A
CLK2B
LOS
OEB
Control
V
DDO3
CLK3A
CLK3B
1:4 Single-Ended to Differential Buffer
Si5330K/L/M
V
DDO0
CLK0A
CLK0B
IN3
IN1
IN2
V
DDO1
CLK1A
CLK1B
V
DDO2
CLK2A
CLK2B
LOS
OEB
Control
V
DDO3
CLK3A
CLK3B

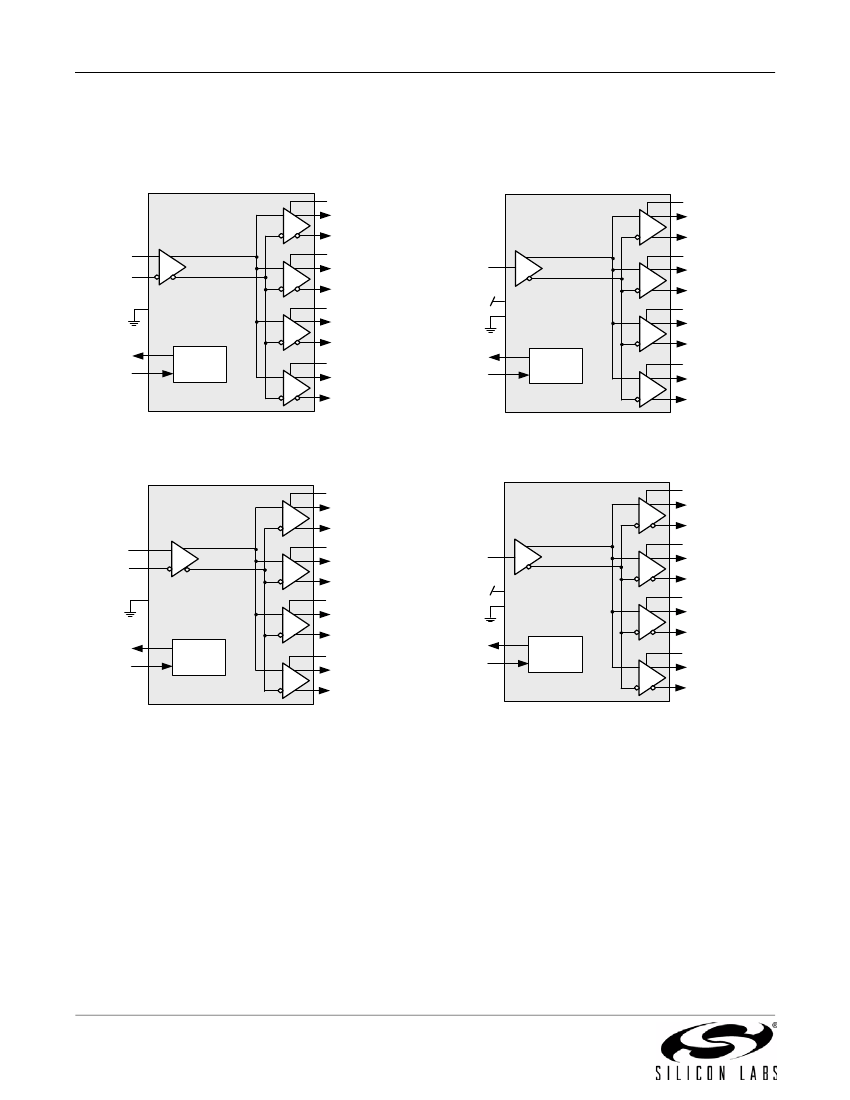

Figure 1. Si5330 Functional Block Diagrams
*Note:
See Table 11 for detailed ordering information.
2
Rev. 1.1
Si5330
T
ABLE
Section
OF
C
ONTENTS
Page
1. Functional Block Diagrams Based on Orderable Part Number* . . . . . . . . . . . . . . . . . . .2
2. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.1. VDD and VDDO Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.2. Loss Of Signal Indicator (LOS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.3. Output Enable (OEB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.4. Input Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.5. Output Driver Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.6. Input and Output Terminations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4. Ordering the Si5330 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5. Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6. Orderable Part Numbers and Device Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7. Package Outline: 24-Lead QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8. Recommended PCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9. Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9.1. Si5330 Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9.2. Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
