MBRF20030R datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBRF20030R

Preview

MBRF20030R: DescriptionSchottky Diodes u0026 Rectifiers Schottky Rectifier - 30 V - 200 A - TO-244AB; CategoryDiscrete semiconductor diode; File Size458KB，3 Pages; ManufacturerGeneSiC; Websitehttp://www.genesicsemi.com/

Download Datasheet Parametric Compare View All

MBRF20030R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBRF20030R	-	-	View	Buy Now

MBRF20030R Overview

Schottky Diodes u0026 Rectifiers Schottky Rectifier - 30 V - 200 A - TO-244AB

MBRF20030R Parametric

Parameter Name	Attribute value
Maker	GeneSiC
Reach Compliance Code	compliant
application	POWER
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V
JEDEC-95 code	TO-244AB
JESD-30 code	R-PUFM-X2
Maximum non-repetitive peak forward current	1500 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	100 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	30 V
Maximum reverse current	1000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	UNSPECIFIED
Terminal location	UPPER

Preview

Download Datasheet

View All

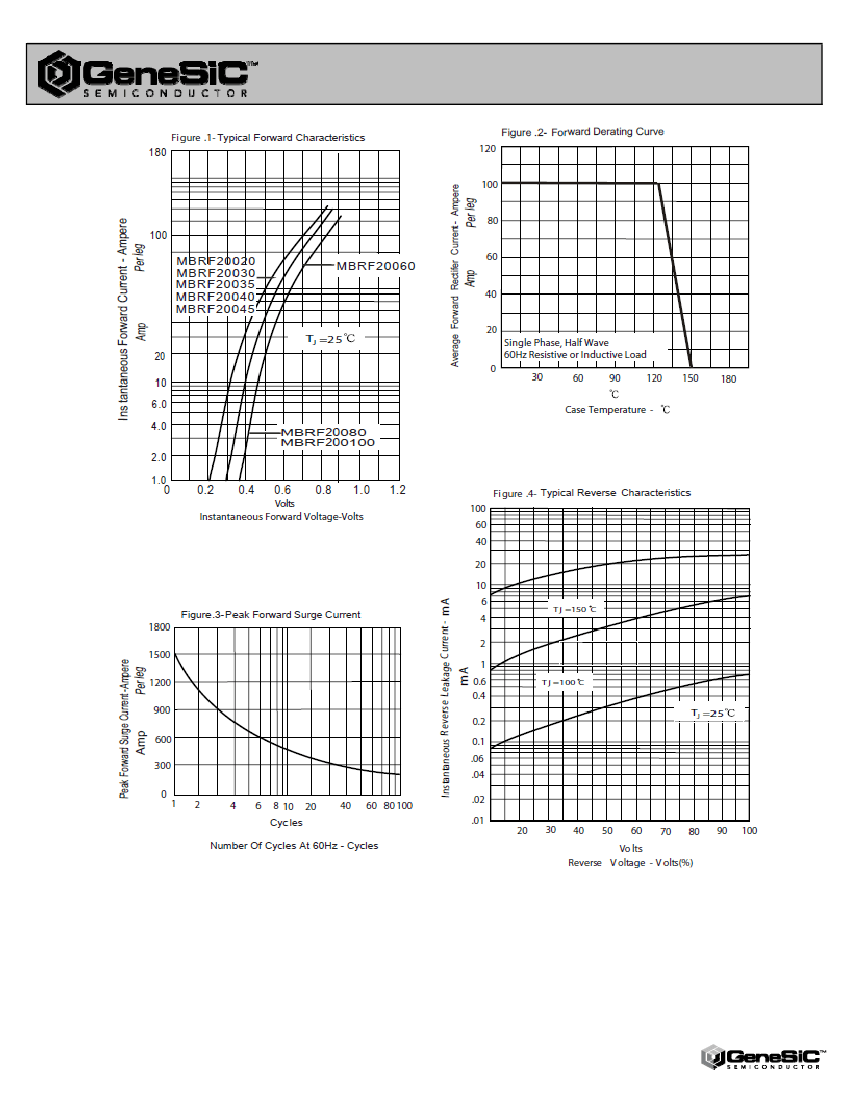

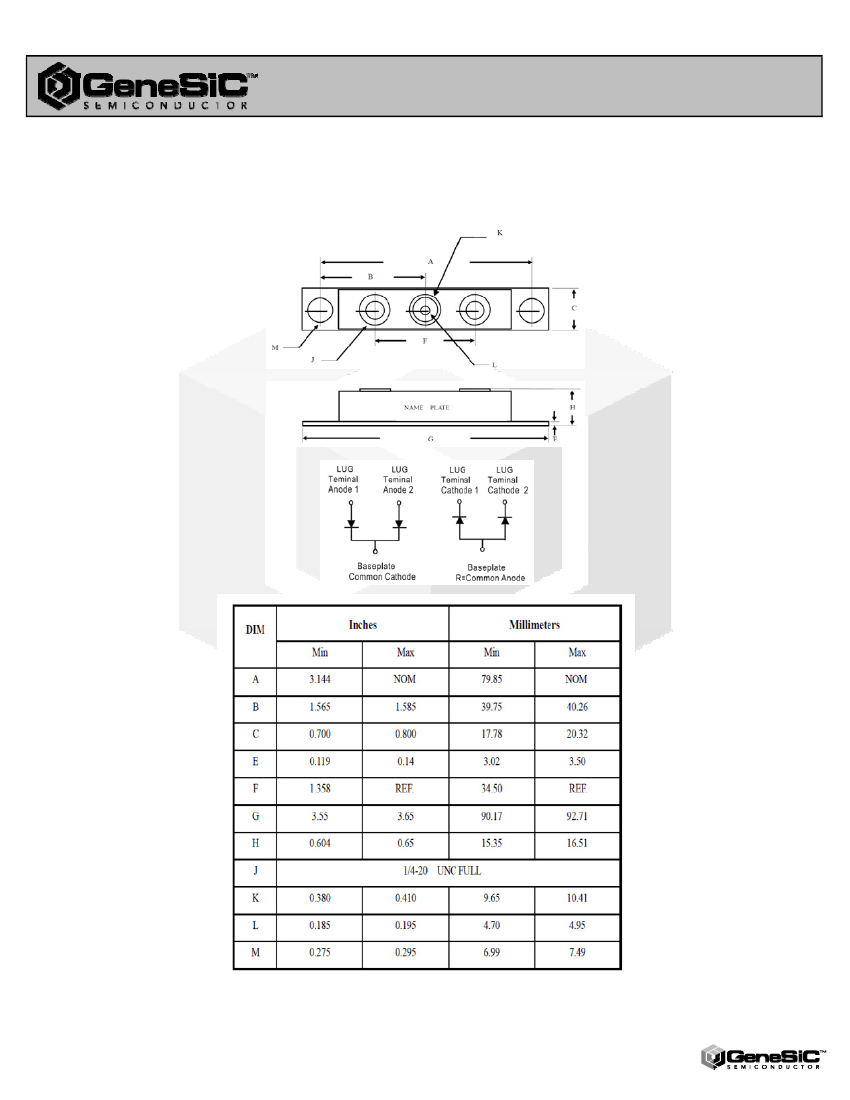

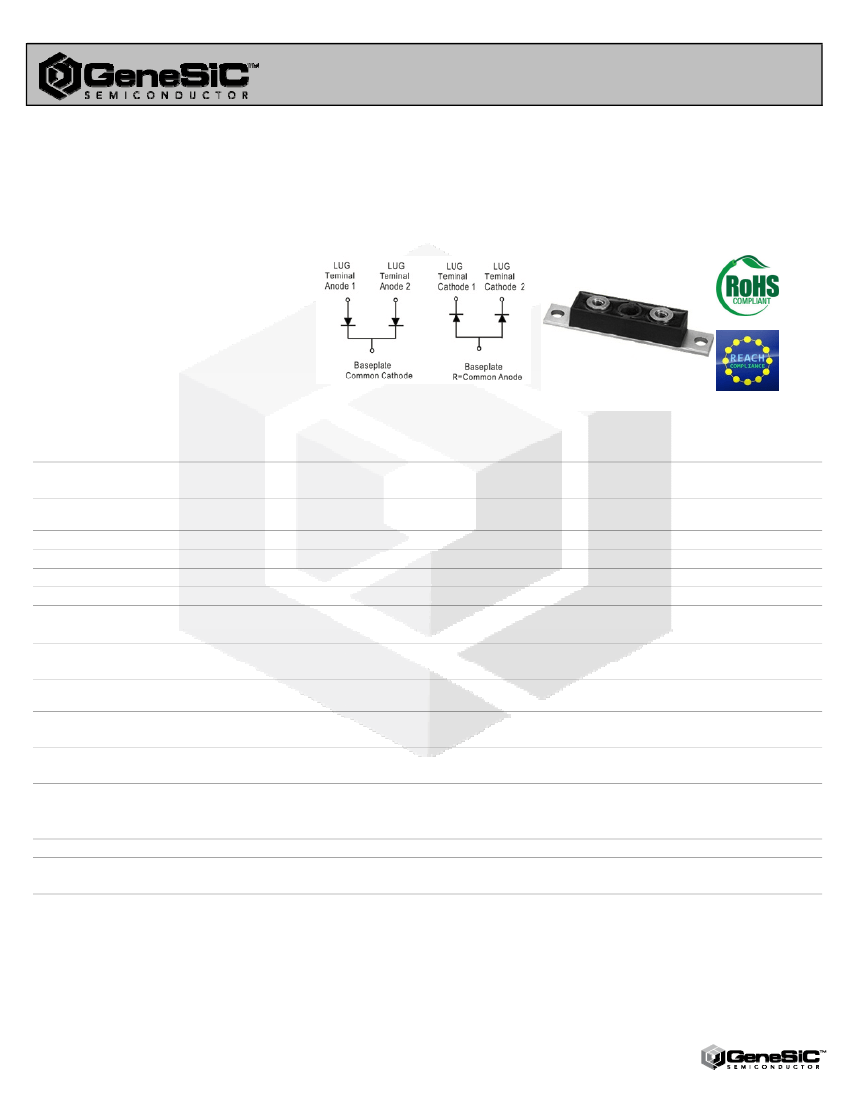

MBRF20020 thru MBRF20040R

Silicon Power

Schottky Diode

Features

• High Surge Capability

• Types from 20 to 40 V V

RRM

• Not ESD Sensitive

TO-244AB Package

V

RRM

= 20 V - 40 V

I

F(AV)

= 200 A

Maximum ratings, at T

j

= 25 °C, unless otherwise specified ("R" devices have leads reversed)

Parameter

Repetitive peak reverse

voltage

RMS reverse voltage

DC blocking voltage

Operating temperature

Storage temperature

Symbol

V

RRM

V

RMS

V

DC

T

j

T

stg

Conditions

MBRF20020(R) MBRF20030(R) MBRF20035(R) MBRF20040(R)

20

14

20

-55 to 150

30

21

30

-55 to 150

35

25

35

-55 to 150

40

28

40

-55 to 150

Unit

V

°C

Electrical characteristics, at Tj = 25 °C, unless otherwise specified

Parameter

Average forward current

(per pkg)

Peak forward surge current

(per leg)

Maximum forward voltage

(per leg)

Reverse current at rated DC

blocking voltage (per leg)

Symbol

I

F(AV)

I

FSM

V

F

I

R

Conditions

T

C

= 125 °C

t

p

= 8.3 ms, half sine

I

FM

= 100 A, T

j

= 25 °C

T

j

= 25 °C

T

j

= 100 °C

T

j

= 150 °C

MBRF20020(R) MBRF20030(R) MBRF20035(R) MBRF20040(R)

200

1500

0.70

1

10

30

200

1500

0.70

1

10

30

200

1500

0.70

1

10

30

200

1500

0.70

1

10

30

Unit

A

V

mA

Thermal characteristics

Thermal resistance, junction-

case (per leg)

R

ΘJC

0.45

°C/W

www.genesicsemi.com/silicon-products/schottky-rectifiers/
