PSE Technology Corporation
SPECIFICATION FOR APPROVAL
CUSTOMER
NOMINAL FREQUENCY
PRODUCT TYPE
SPEC. NO. ( P/N )
CUSTOMER P/N
ISSUE DATE
VERSION
APPROVED
PREPARED
40.000000 MHz
TYPE FL 3.2x2.5 SEAM SEALED CRYSTAL
FL400WFMR1
0
June 23, 2016
A
QA
APPROVED BY CUSTOMER：
AVL Status
Please return one copy with approval to PSE-TW
PSE Technology Corporation
No.2, Tzu-Chiang 5th Rd, Chung Li Industrial Park,
Chung Li City, Taoyuan County, Taiwan (R.O.C.)
TEL: 886-3-451-8888
FAX: 886-3-461-3865
http://www.saronix-ecera.com.tw
*Pb-free
*RoHS Compliant
*HF-Halogen Free
*REACH Compliant
Pericom Internal Reference NO. FL4000238Z
E0-R-4-014 Rev. E
Page
i
TYPE FL 3.2x2.5 SEAM SEALED CRYSTAL
FL400WFMR1
VERSION HISTORY
Version
No.
A
Version
Date
Jun.23,2016
Customer Receipt
Date
Supplier Receipt
Date
Initial Release
Description
Notes
VER. A
23-Jun-16
E0-R-4-014 Rev. E
Page
ii
TYPE FL 3.2x2.5 SEAM SEALED CRYSTAL
FL400WFMR1
ELECTRICAL SPECIFICATIONS
Item
Nominal Frequency
Mode of Oscillation
Calibration Load Capacitance
Calibration Tolerance
Operating Temperature Range
Frequency Stability
(Frequency Deviation over the
Operating Temperature Range)
Operating Drive Level
Maximum Drive Level
Equivalent Series Resistance
Shunt Capacitance
Aging at 25°C
Storage Temperature
Insulation Resistance
ESR
C0
VER. A
23-Jun-16
Symbol
Fn
MO
CL
FL
TR
F/T
Specifications
40.000000
AT Cut-Fundamental
10
±10
-20 to +85
±10
10
100
40
5
±3
-55 to +125
500
Units
MHz
Notes
pF
ppm
°C
ppm
µW
µW
Ω
pF
ppm
°C
MΩ
Min
Max
Max
Max, 1st year
Reference to the Frequency at 25°C
at 25°C±3°C
※
This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free).
E0-R-4-014 Rev. E
Page 1
TYPE FL 3.2x2.5 SEAM SEALED CRYSTAL
FL400WFMR1
RELIABILITY SPECIFICATIONS
MECHANICAL AND ENVIRONMENTAL RATINGS:
a) FINE LEAK TEST: JESD22-A109 (Condition 1A)
b) GROSS LEAK TEST: JESD22-A109 (Condition C)
c) MOISTURE RESISTANCE: JESD22-A113
d) SHOCK: JESD22-B104 (Condition B)
e) SOLDERABILITY : (RoHS version): J-STD-002
f) VIBRATION: JESD22-B103
g) SOLVENT RESISTANCE: JESD22-B107
h) RESISTANCE TO SOLDERING HEAT (RoHS version): J-STD-020D Table 5.2 Pb free devices (3 cycles max)
VER. A
23-Jun-16

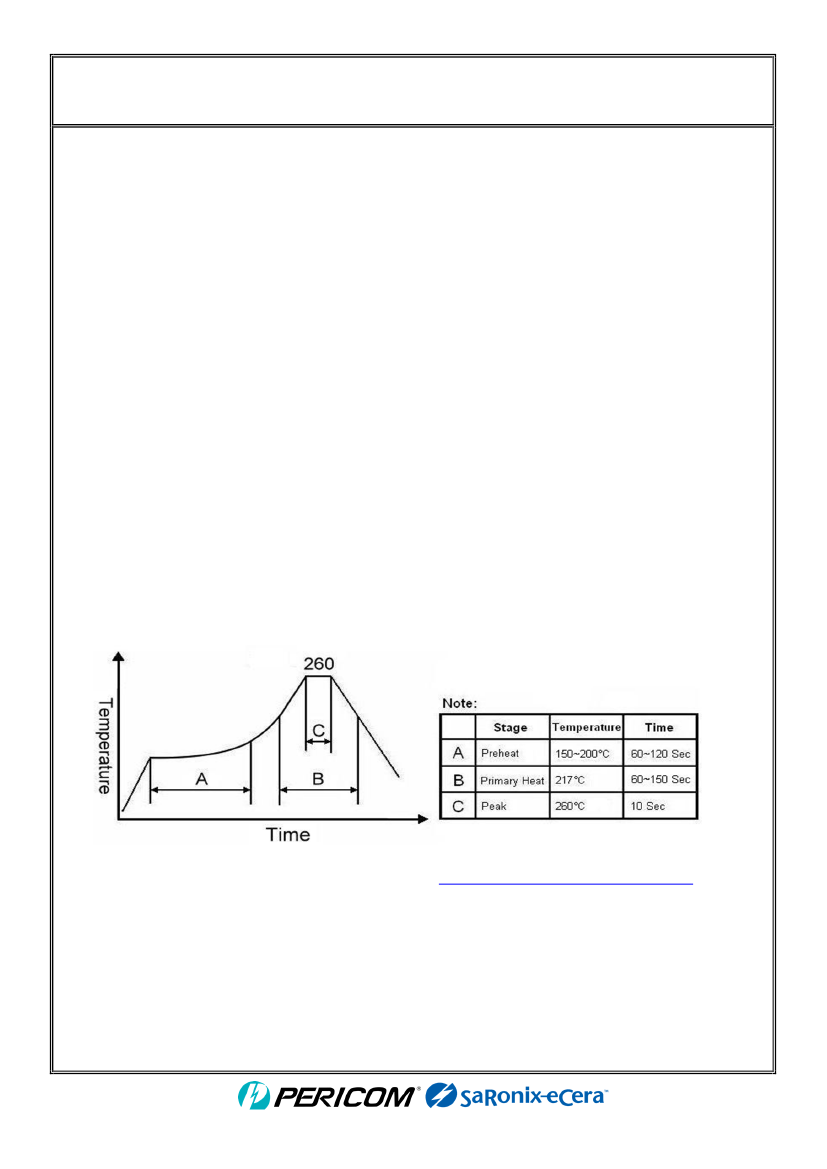

SUGGESTED IR REFLOW PROFILE
*As per IPC-JEDEC J-STD-020D
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow.pdf
E0-R-4-014 Rev. E
Page 2
TYPE FL 3.2x2.5 SEAM SEALED CRYSTAL
FL400WFMR1
MARKING
Logo
Dot denotes Pin#1
Frequency Code
Date & Factory Code
VER. A
23-Jun-16
e 400
ywwv
y
Year Code (last digit of year)
ww
Week Code
v
Factory Code

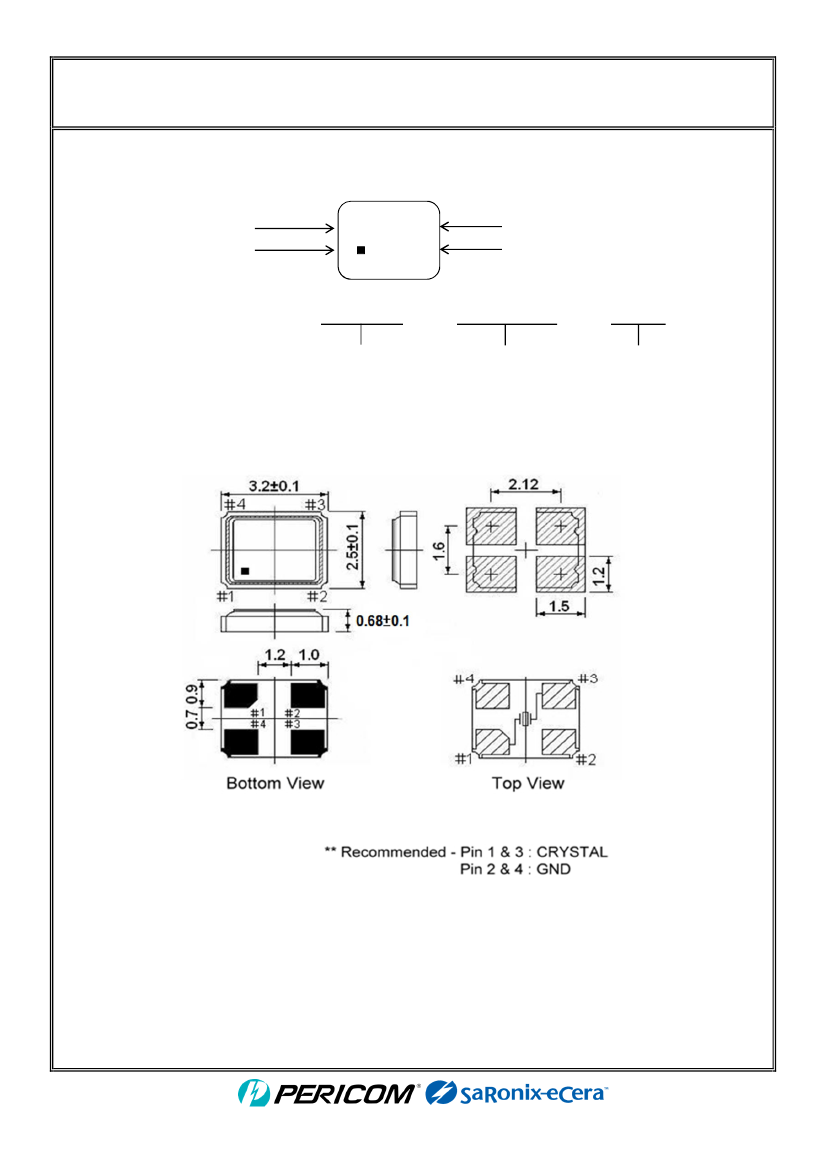

MECHANICAL DRAWINGS
( Scale: None. Dimensions are in mm.)
Recommended Land Pattern
Notes:
1. Package drawings are for reference only, and the appearances of objects may vary.
Actual packages are based on the real product.
2. The marking dot denotes Pin#1.
3. The position and shape of the chamfer pin may vary and are based on the real product.
E0-R-4-014 Rev. E
Page 3
