Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for
video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers
with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.
MST-compliant graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors with higher
resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth,
whereas 4K monitors will use 40% or more. As each monitor will be different, it is necessary to verify the
percentage of bandwidth being used by each monitor in the display settings interface of your graphics card. If
the total percentage of bandwidth taken up by all the connected monitors exceeds 100%, an image will not
display on one or more of them.

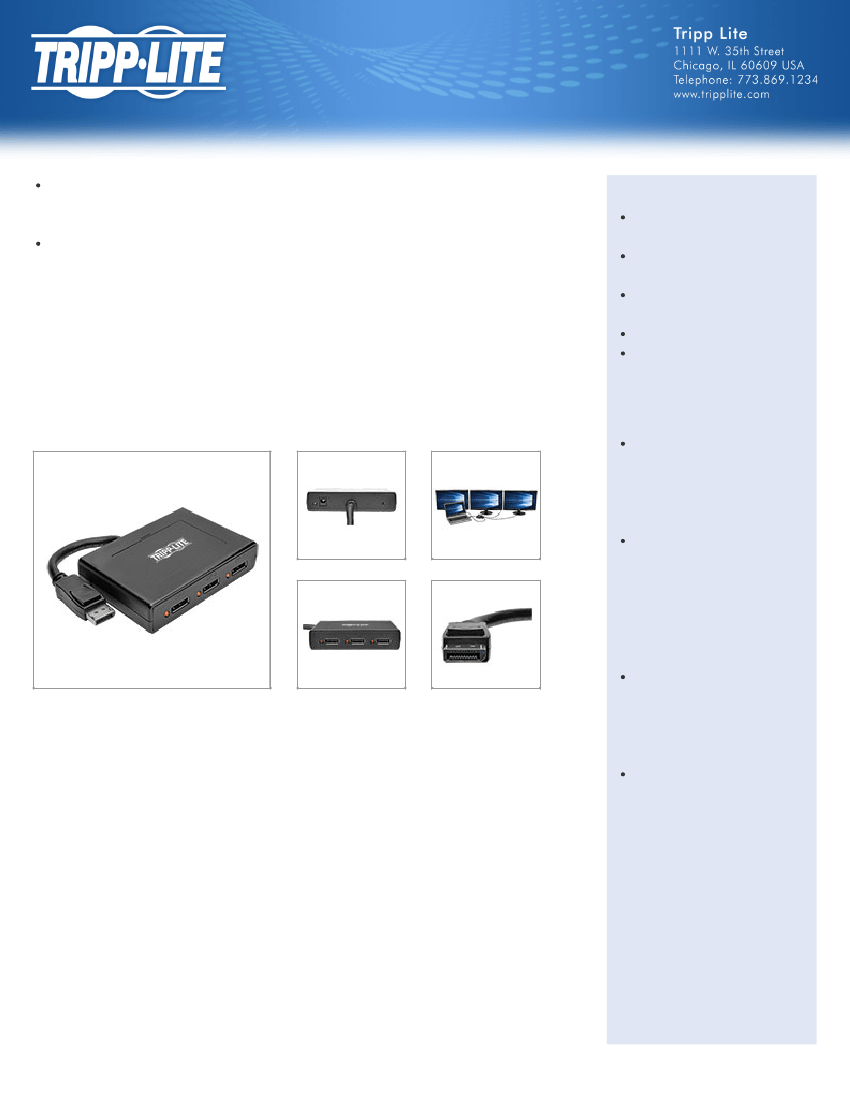

Highlights
Supports UHD video resolutions
up to 3840 x 2160 (4K x 2K)
Built-in 6 in. cable connects
directly to DisplayPort source
Supports up to 48-bit Deep Color
(16 bits per channel)
Works with all operating systems
Supports DTS-HD, Dolby
3-Port DisplayPort 1.2 Multi-Stream Transport (MST)
Hub, 3840 x 2160 (4K x 2K) UHD, TAA
MODEL NUMBER:
B156-003-V2
TrueHD and 7.1-channel
surround sound
System Requirements
Computer with DisplayPort
1.2-compatible graphics card
(e.g. AMD Radeon with AMD
Eyefinity) required for video wall
mode
Backward compatible with most
DisplayPort 1.1a equipment
running current graphics drivers
with feature set limited to that of
your equipment. Compatibility
with older graphics cards not
guaranteed.
Mac OS X does not support MST
for NVIDIA and Intel Graphics
Description
The B156-003-V2 3-Port DisplayPort 1.2 MST Hub connects up to three DisplayPort monitors to the DisplayPort
output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels
and retail outlets, this hub allows you to display the same image on all three monitors, extend the desktop across
them, or combine all three into one large monitor in video wall mode.
Processor Units, limiting video
display on connected monitors to
mirror mode.
MST-compliant graphics cards
are limited to a bandwidth of 21.6
Gbps amongst all monitors with
The B156-003-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the
feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up
to 3840 x 2160 (4K x 2K) at 24/30 Hz with the number of 4K monitors limited according to your graphics card’s
specifications. In video wall mode, this hub supports expanded resolutions, such as 5760 x 1080 in a horizontal 1
x 3 monitor configuration or 1920 x 3240 in a vertical 3 x 1 configuration.
higher resolution monitors using
up more bandwidth. 1080p
monitors will use up
approximately 22% of bandwidth,
whereas 4K monitors will use
40% or more. As each monitor
This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as
DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems.
Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly
to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-003-V2 complies with
the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
1/3
will be different, it is necessary to
verify the percentage of
bandwidth being used by each
monitor in the display settings
interface of your graphics card. If
the total percentage of bandwidth
the total percentage of bandwidth
Features
Connects Up to 3 DisplayPort Monitors to Your Computer’s DisplayPort Output
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
Displays same image on 3 monitors simultaneously in mirror mode
Extends desktop across 3 monitors in extended mode
Combines 3 monitors into one large monitor in video wall mode
Built-in 6 in. cable connects directly to DisplayPort source
LEDs indicate when monitors are receiving a signal
taken up by all the connected
monitors exceeds 100%, an
image will not display on one or
more of them.
Monitor(s) with DisplayPort input
Package Includes
B156-003-V2 3-Port DisplayPort
1.2 MST Hub
Meets the Latest Performance Standards
Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
Supports expanded resolutions in video wall mode, such as 5760 x 1080 in horizontal 1 x 3 configuration
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby True HD and 7.1-channel surround sound audio
Backward compatible with DisplayPort 1.1 and 1.1a
External power supply with
NEMA 1-15P plug and 5 ft. cord
(Input: 100–240V, 50/60 Hz,
0.5A; Output: 5V, 2A)
Owner’s manual
Easy to Use Almost Anywhere
Works with all operating systems
Plug and play—no software or drivers required
TAA Compliant
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
PHYSICAL
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Color
0.94 x 4.3 x 3
2.4 x 10.9 x 7.62
0.25
0.11
Black
CONNECTIONS
Ports
Side A - Connector 1
Side B - Connector 1
3
DISPLAYPORT (MALE)
(3) DISPLAYPORT (FEMALE)
