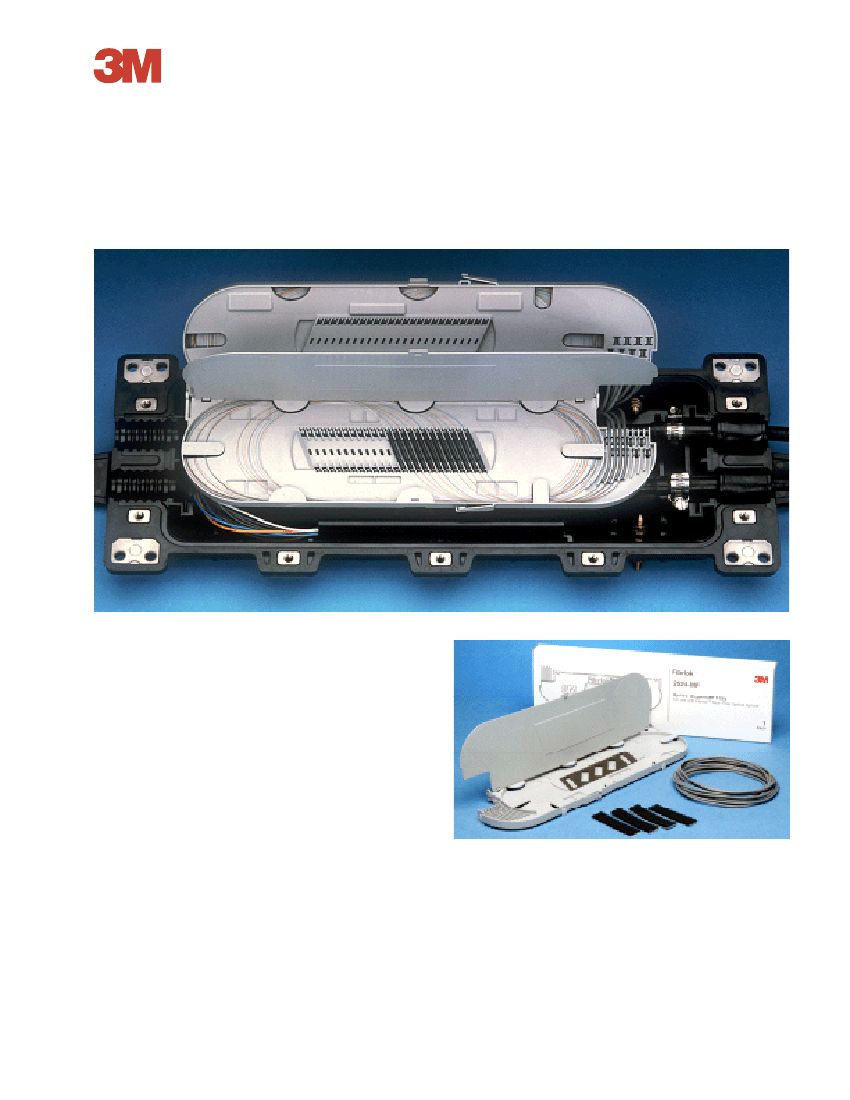

Fibrlok
2524 Splice Organizer Tray
™
A versatile splice tray designed to accommodate
Fibrlok Splices and simplify optical fiber splicing
and storage
™
1
The Fibrlok
™
2524 Series Splice Organizer Trays store and
protect discrete and mass, mechanical and fusion fiber optic
splices in a variety of 3M and non 3M fiber optic splice
closures. It reduces fiber optic splice tray assembly time by:
• using fewer parts
• offering simpler installation
• better organizing splices and fiber
The 2524 splice tray holds 24 Fibrlok
™
splices
(2525, 2590, 2599) and accommodates up to eight buffer
tubes holding up to 48 fibers (900µm or 250µm). The tubes
are secured with channel snaps so that cable ties are not
required. The fibers all enter the tray in one corner
eliminating the need for figure 8’s in the fiber.
Easy maintenance, easy access
The 2524 splice tray maintains a four-inch bend diameter in
the fiber. When splices are installed according to the
practice, fibers are spread out during splicing to allow
access to individual fibers. Splices snap into the tray upside
down, resting on a flat cap for stability with the snaps
recessed for protection. There is an opening under the splice
for easy removal.
An important design feature of these stackable trays is
the snap-on hinge cover on each tray. The trays snap
together with a hinge along the length of one side and with
a latch on the other side. This way, individual trays may
be accessed without disassembly of the trays above or
below – and without kinking buffer tubes.
2
Splicing and storing is a snap
The 2524 splice tray fits and mounts into the 3M
™
2177
Fiber Optic Splice Closure or 2178 Fiber Optic Splice Case.
It is also compatible with a variety of closures not
manufactured by 3M.
Other features of the 2524 splice tray include:
• label for record keeping
• single molded parts
• flame retardant and isopropyl alcohol resistant
The Fibrlok
™
2524-FT Fusion Splice Organizer Tray.
This tray is designed to hold up to 24 fusion optical fiber
splices.
Fibrlok
™
2524 Splice Organizer Tray
Features
Sizing
Snap-on tray hinge
4-inch bend diameter
Buffer tubes secured with channel snaps
Fiber retention lips
Flame retardant/isopropyl alcohol resistant
Benefits
Fits existing fiber closures; flexibility
Stackable; individual tray access; saves time
Individual fiber access; allows easy maintenance
No cable ties/no figure 8’s; simplifies handling
Holds fibers in place; reduce fiber damage
Meets fire codes and industry standards
Fibrlok
TM
4.25 in
(10.80 cm)
SPLICE
TRAY
15.5 in (39.37 cm)
0.41 in
(1.04 cm)
Ordering Information
Product Number
2524 Splice Organizer Tray
2524-FT Fusion
Splice Organizer Tray
2524-A Mass and Single
Splice Organizer Tray
2524-MF Multi-Fiber
Splice Organizer Tray
Packaging
1/box, 3/cs.
1/box, 3/cs.
1/box, 3/cs.
1/box, 3/cs.
Min Order
3 ea.
3 ea.
3 ea.
3 ea.
Important Notice
All statements, technical information, and recommendations related
to Seller’s products are based on information believed to be
reliable, but the accuracy or completeness thereof is not
guaranteed. Before utilizing the product, the user should determine
the suitability of the product for its intended use. The user assumes
all risks and liability whatsoever in connection with such use.
Any statements or recommendations of the Seller which are not
contained in the Seller’s current publications shall have no force or
effect unless contained in an agreement signed by an authorized
officer of Seller. The statements contained herein are made in lieu
of all warranties, expressed or implied, including but not limited to
the implied warranties of merchantability and fitness for a particular
purpose which warranties are hereby expressly disclaimed.
SELLER SHALL NOT BE LIABLE TO THE USER OR ANY OTHER
PERSON UNDER ANY LEGAL THEORY, INCLUDING BUT NOT
LIMITED TO NEGLIGENCE OR STRICT LIABILITY, FOR ANY
INJURY OR FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES
SUSTAINED OR INCURRED BY REASON OF THE USE OF ANY OF
THE SELLER’S PRODUCTS THAT WERE DEFECTIVE.
Telecom Systems Division
6801 River Place Blvd.
Austin, TX 78726-9000
800/426 8688
FAX 800/626 0329
http://www.mmm.com/telecom
Litho in USA.
40% Pre-consumer waste paper
10% Post-consumer waste paper
© 3M 1997 80-6105-8085-6
