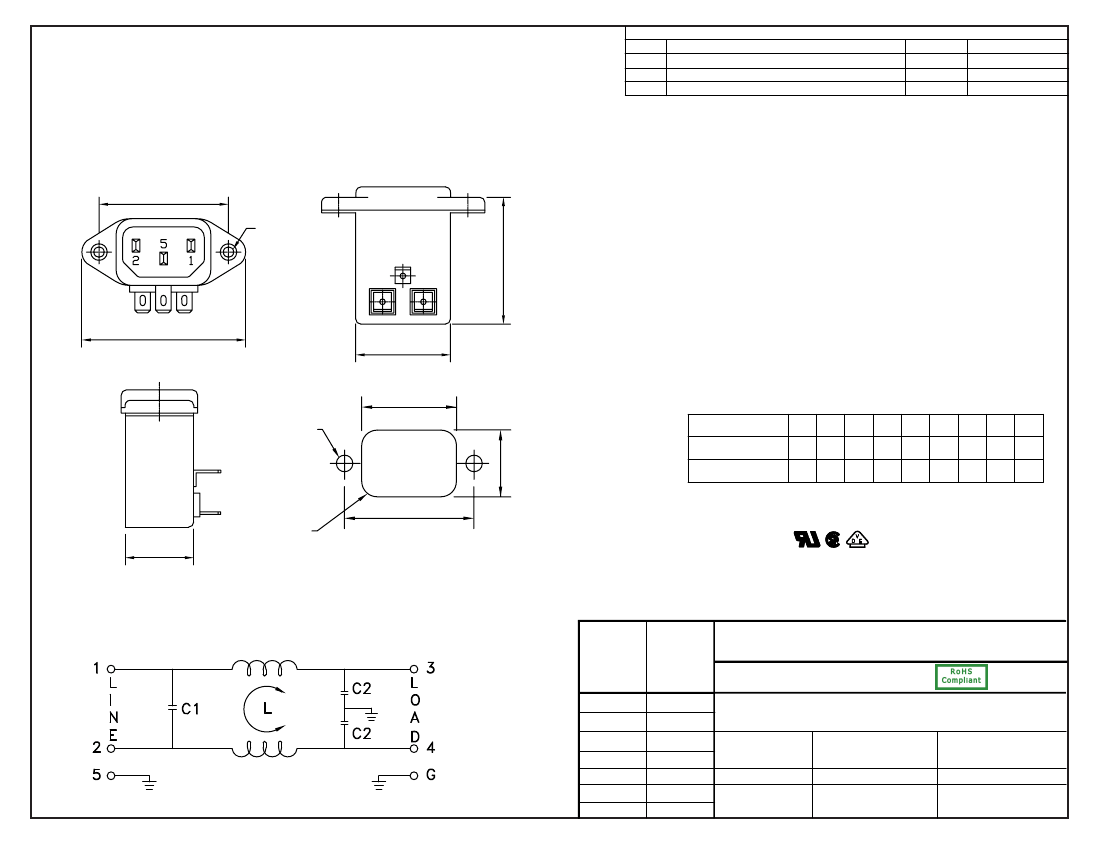

1. PHYSICAL DIMENSIONS
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115 VAC..........................................3 A RMS MAX
B. @ 250 VAC.........................................3 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.25 mA MAX
B. @ 250 VAC 50Hz.............................0.45 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
9
/
.10
16
/
.15
20
/
.50
29
/
1.0
36
/
5.0
48
/
10
52
/
30
55
/
1.575 ± 0.02
Ø0.13 ± 0.02
1.55MAX
1-3.
1-4.
4 G
3
1.18MAX
1.2 ± 0.005
0.9 ± 0.004
Ø0.14
1-5.
1.99MAX
1-6.
FREQ. MHz
COM. MODE dB
DIF. MODE dB
1-7.
OPERATING TEMPERATURE.................-25° TO +100° C
SAFETY:
RoHS COMPLIANT
R0.234
0.82MAX
1.575 ± 0.005
PANEL CUTOUT
(MOUNTING FROM BEHIND)
1-8.
1-9.
2. ELECTRICAL SCHEMATIC
Dim
range
(mm)
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
L: 2.5mH
C1: 0.1uF
C2: 3300pF
PPC DIVISION
858-03/017
EMI FILTER
UNIT: in
0-1
1-6
6-18
18-50
50-120
120-250
250-500
REV. B
Approved / Date
JJH / 09-12-01
Drawn / Date
B.ZHANG
09-12-01
Checked / Date
09-12-01
