885136
®
2437 MHz BAW Filter

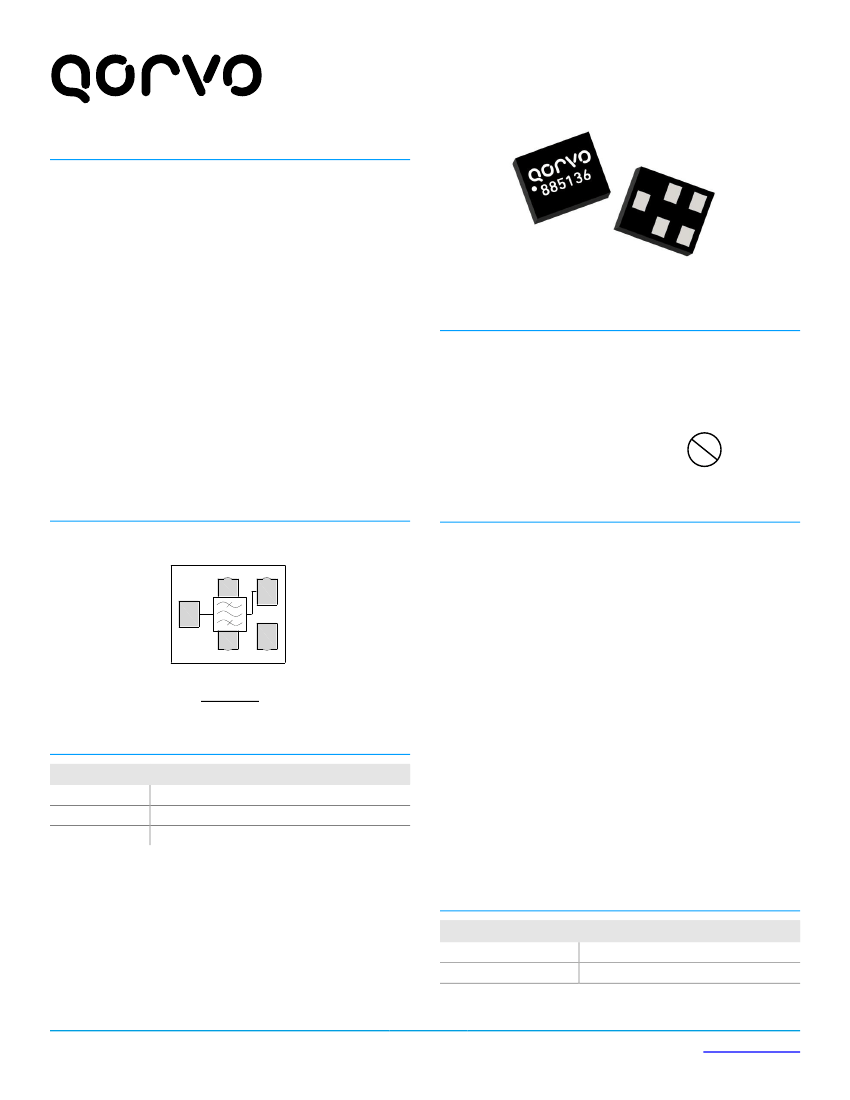

General Description
The 885136 is a high-performance, high power Bulk
Acoustic Wave (BAW) band-pass filter with extremely
steep skirts, simultaneously exhibiting low loss in the WiFi
band and high rejection in the band-edge and adjacent
LTE /TD-LTE bands.
The 885136 enables coexistence of WiFi and LTE signals
within the same device or in close proximity to one
another. Its unique power handling capability allows for
implementation into high performance high power access
points and small cell base stations.
The 885136 uses common module packaging techniques
to achieve the industry standard 1.1 x 0.9 x 0.50 mm
footprint.
1.1 X 0.9 X 0.50 mm
Product Features
Industry leading small size: 1.1 x 0.9 x 0.50 mm
Performance over - 40 to + 95º C
High Rejection at 2390 MHz, 2483.5 MHz,
B38/B40/B7/B41
Single Ended Operation
RoHS Compliant, Pb-Free
Pb
Functional Block Diagram
Gnd
Output
Applications
Usable Bandwidth of 69 MHz (CH1-11)
High-power WLAN Access Points and Small Cells
Band-edge filtering of WiFi signal emissions at
2390 MHz and 2483.5 MHz
WiFi bandpass filter that enables the coexistence of 4G
(LTE/TD-LTE) & WiFi signals
ISM band applications such as Smart Meters
Portable Hotspots and Mobile Routers
5
Input
1
2
4
3
Gnd
Gnd
Top View
Pin Configuration - Single Ended
Pin No.
1
4
2,3,5
Label
Input
Output
Ground
Ordering Information
Part No.
885136
885136-EVB
Description
15,000 units/reel (standard)
Evaluation board
PRELIMINARY DATA SHEET: July 2016 rev C
Subject to change without notice
-
1 of 8
-
www.qorvo.com
885136
®
2437 MHz BAW Filter
Absolute Maximum Ratings
Parameter
Storage Temperature
(1)
(2)
Rating
−40 to +125 °C
−40 to +95 °C
Operating Temperature
Notes:
1. Operation of this device outside the parameter ranges given may
cause permanent damage.
2. Specifications are not guaranteed over all operating conditions.
Electrical Specifications
(1)
Test conditions unless otherwise noted:
(2)
Temp= −40 °C to +95 °C
Parameter
(3)
Conditions
2402.5 – 2421.5 MHz (WiFi Ch.1)
2407.5 – 2426.5 MHz (WiFi Ch.2)
2412.5 – 2461.5 MHz (WiFi Ch.3 - 9)
2447.5 – 2466.5 MHz (WiFi Ch.10)
2452.5 – 2471.5 MHz (WiFi Ch.11)
2402.5 – 2421.5 MHz (WiFi Ch.1)
2407.5 – 2426.5 MHz (WiFi Ch.2)
2412.5 – 2461.5 MHz (WiFi Ch.3 - 9)
2447.5 – 2466.5 MHz (WiFi Ch.10)
2452.5 – 2471.5 MHz (WiFi Ch.11)
100 – 2300 MHz
(6)
2300 – 2370 MHz
(6)
2370 – 2390 MHz
(6)
2483.5 – 2500 MHz
(6)
2500 – 2520 MHz
(6)
2520 – 2570 MHz
(6)
2570 – 2620 MHz
(6)
2620 – 2690 MHz
4800 – 5000 MHz
2402.5 – 2471.5 MHz
single-ended
single-ended
Min
-
Typ
(4)
1.2
1.0
0.8
0.9
1.0
1.5
0.8
0.5
0.5
1.0
23
28
31
24
25
31
28
27
31
1.5
50
50
Max
1.7
1.2
1.1
1.2
1.6
3.0
1.5
1.1
1.2
3.5
Units
dB
Insertion Loss
(5)
Amplitude Variation
-
-
dB p-p
Absolute Attenuation
(6)
Input/Output VSWR
(8)
Source Impedance
(8)
Load Impedance
(7)
20
25
25
15
20
25
24
23
28
-
-
-
-
dB
2.0:1
-
-
-
Ω
Ω
Notes:
1. All specifications are based on the Qorvo schematic for the reference design shown on page 5.
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature.
3. Electrical margin has been built into design to account the variations due to temperature drift and manufacturing tolerances..
4. Only at 25 °C.
5. Data is the integrated value of the linear s-parameter over a 19 MHz range in the indicated band at the specified temperature.
6. Data is the integrated value of the linear s-parameter over 5 MHz range at the specified temperature.
7. An external impedance matching network with ±3 % tolerance will be necessary to achieve the stated specifications.
8. This is the optimum impedance in order to achieve the performance shown.
PRELIMINARY DATA SHEET: July 2016 rev C
Subject to change without notice
-
2 of 8
-
www.qorvo.com
885136
®
2437 MHz BAW Filter
Electrical Specifications
(1)
Test conditions unless otherwise noted:
(2)
Temp= −30 °C to +85 °C
Parameter
(3)
Insertion Loss
(5)
Conditions
2402.5 – 2421.5 MHz (WiFi Ch.1)
2407.5 – 2426.5 MHz (WiFi Ch.2)
2412.5 – 2461.5 MHz (WiFi Ch.3 - 9)
2447.5 – 2466.5 MHz (WiFi Ch.10)
2452.5 – 2471.5 MHz (WiFi Ch.11)
2402.5 – 2421.5 MHz (WiFi Ch.1)
2407.5 – 2426.5 MHz (WiFi Ch.2)
2412.5 – 2461.5 MHz (WiFi Ch.3 - 9)
2447.5 – 2466.5 MHz (WiFi Ch.10)
2452.5 – 2471.5 MHz (WiFi Ch.11)
100 – 2300 MHz
(6)
2300 – 2370 MHz
(6)
2370 – 2390 MHz
(6)
2483.5 – 2500 MHz
(6)
2500 – 2520 MHz
(6)
2520 – 2570 MHz
(6)
2570 – 2620 MHz
(6)
2620 – 2690 MHz
4800 – 5000 MHz
2402.5 – 2471.5 MHz
single-ended
single-ended
Min
-
Typ
(4)
1.2
1.0
0.8
0.9
1.0
1.5
0.8
0.5
0.5
1.0
23
28
31
25
25
31
28
27
31
1.5
50
50
Max
1.6
1.2
1.1
1.2
1.6
2.8
1.4
1.0
1.2
3.0
Units
dB
Amplitude Variation
-
-
dB p-p
Absolute Attenuation
(6)
Input/Output VSWR
(8)
Source Impedance
(8)
Load Impedance
(7)
20
25
28
20
20
25
24
23
28
-
-
-
-
dB
1.8:1
-
-
-
Ω
Ω
Notes:
1. All specifications are based on the Qorvo schematic for the reference design shown on page 5.
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature.
3. Electrical margin has been built into design to account the variations due to temperature drift and manufacturing tolerances..
4. Only at 25 °C.
5. Data is the integrated value of the linear s-parameter over a 19 MHz range in the indicated band at the specified temperature.
6. Data is the integrated value of the linear s-parameter over 5 MHz range at the specified temperature.
7. An external impedance matching network with ±3 % tolerance will be necessary to achieve the stated specifications.
8. This is the optimum impedance in order to achieve the performance shown.
PRELIMINARY DATA SHEET: July 2016 rev C
Subject to change without notice
-
3 of 8
-
www.qorvo.com
885136
®
2437 MHz BAW Filter
Electrical Specifications
(1)
Test conditions unless otherwise noted:
(2)
Temp= 0 °C to +70 °C
Parameter
(3)
Conditions
2402.5 – 2421.5 MHz (WiFi Ch.1)
2407.5 – 2426.5 MHz (WiFi Ch.2)
2412.5 – 2461.5 MHz (WiFi Ch.3 - 9)
2447.5 – 2466.5 MHz (WiFi Ch.10)
2452.5 – 2471.5 MHz (WiFi Ch.11)
2402.5 – 2421.5 MHz (WiFi Ch.1)
2407.5 – 2426.5 MHz (WiFi Ch.2)
2412.5 – 2461.5 MHz (WiFi Ch.3 - 9)
2447.5 – 2466.5 MHz (WiFi Ch.10)
2452.5 – 2471.5 MHz (WiFi Ch.11)
100 – 2300 MHz
(6)
2300 – 2370 MHz
(6)
2370 – 2390 MHz
(6)
2483.5 – 2500 MHz
(6)
2500 – 2520 MHz
(6)
2520 – 2570 MHz
(6)
2570 – 2620 MHz
(6)
2620 – 2690 MHz
4800 – 5000 MHz
2402.5 – 2471.5 MHz
single-ended
single-ended
Min
-
Typ
(4)
1.2
1.0
0.8
0.9
1.0
1.5
0.8
0.5
0.5
1.0
23
28
31
25
25
31
28
27
31
1.5
50
50
Max
1.5
1.2
1.1
1.1
1.5
2.5
1.3
1.0
1.0
2.5
Units
dB
Insertion Loss
(5)
Amplitude Variation
-
-
dB p-p
Absolute Attenuation
(6)
Input/Output VSWR
(8)
Source Impedance
(8)
Load Impedance
(7)
20
25
28
20
20
25
24
23
28
-
-
-
-
dB
1.8:1
-
-
-
Ω
Ω
Notes:
1. All specifications are based on the Qorvo schematic for the reference design shown on page 5.
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature.
3. Electrical margin has been built into design to account the variations due to temperature drift and manufacturing tolerances..
4. Only at 25 °C.
5. Data is the integrated value of the linear s-parameter over a 19 MHz range in the indicated band at the specified temperature.
6. Data is the integrated value of the linear s-parameter over 5 MHz range at the specified temperature.
7. An external impedance matching network with ±3 % tolerance will be necessary to achieve the stated specifications.
8. This is the optimum impedance in order to achieve the performance shown.
PRELIMINARY DATA SHEET: July 2016 rev C
Subject to change without notice
-
4 of 8
-
www.qorvo.com
885136
®
2437 MHz BAW Filter

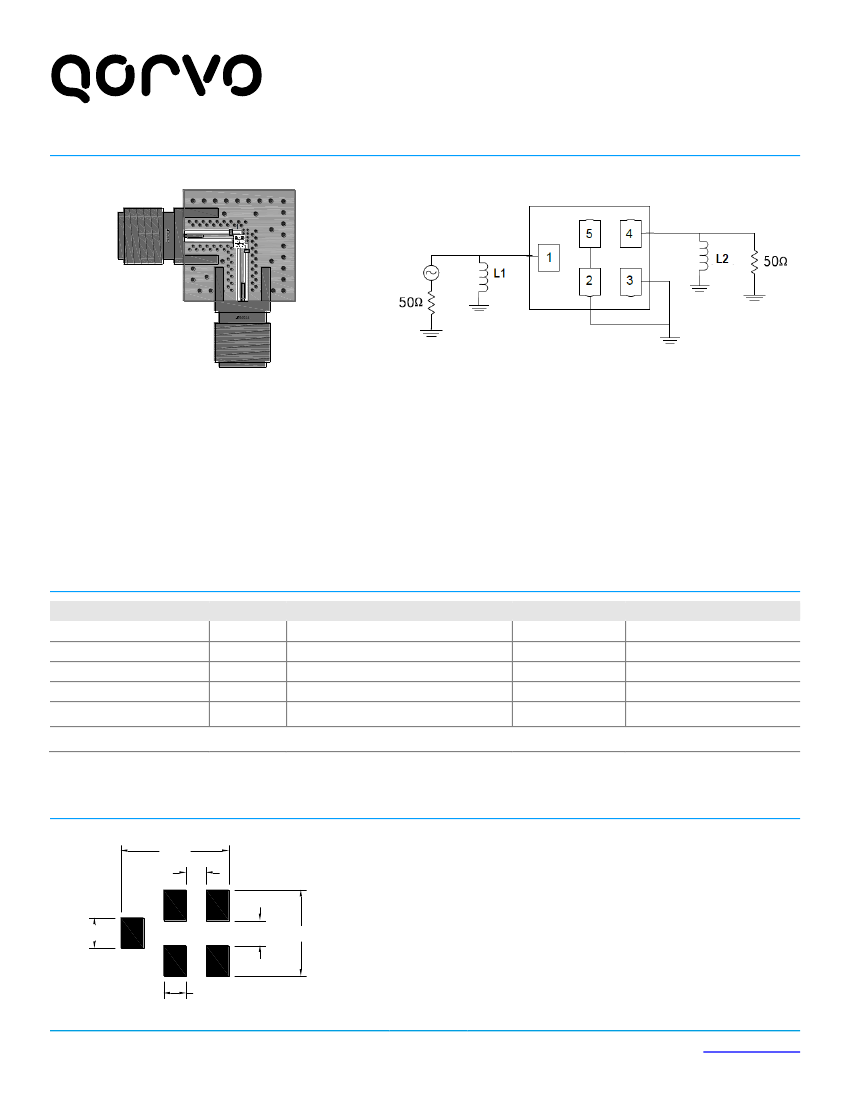

Evaluation Board – 885136-EVB
Notes:
1. Matching component values shown are for the specified Qorvo evaluation board. Value adjustment may be required in end user
product circuits depending on component manufacturer and PCB material.
2. Top, middle & bottom layers: 1 oz. copper. Substrates: FR4 dielectric 031” thick. Finish plating: Nickel: 3-8 µm thick, Gold: 0.03 -
0.2 µm thick. Hole plating: Copper min .0008 µm thick.
Bill of Material – 885136-EVB
Reference Des.
U1
L1
L2
SMA
PCB
Value
-
15nH
15nH
-
-
Description
2437 MHz BAW Filter
0201 chip Inductor, ± 3%
0201 chip Inductor, ± 3%
SMA connector
3-layer
Manuf.
Qorvo
Murata
Murata
Radiall
Qorvo
Part Number
885136
LQP03TN15NH02
LQP03TN15NH02
9602-1111-018
961094-04
PCB Mounting Pattern
0.975
3X
0.18
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. This drawing specifies the mounting pattern used on the Qorvo evaluation
board for this product. Some modification may be necessary to suit end user
assembly materials and processes.
2X 0.225
0.775
5X 0.275
5X
0.205
PRELIMINARY DATA SHEET: July 2016 rev C
Subject to change without notice
-
5 of 8
-
www.qorvo.com
