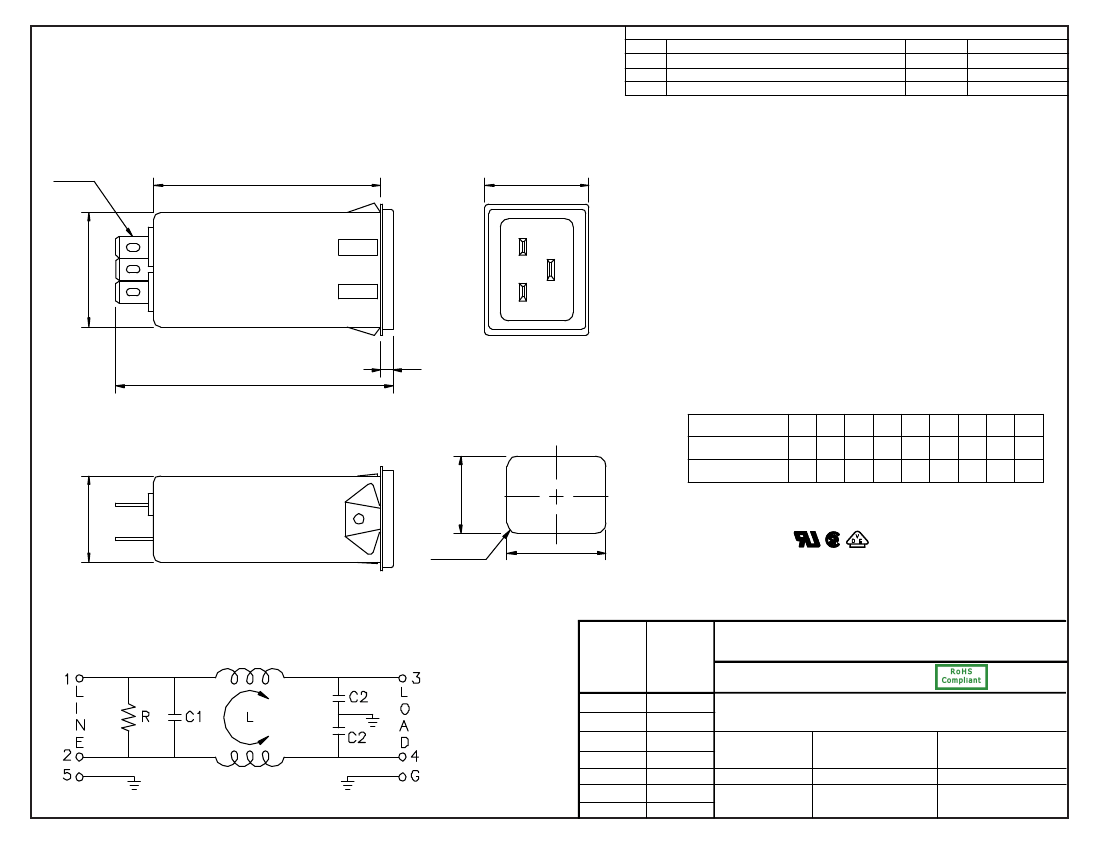

1. PHYSICAL DIMENSIONS
6.3X0.8
65.0
30.0
REVISION
REV.
DESCRIPTION
DATE
APPROVED
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................125/250VAC
1-2.
CURRENT RATING
A. @ 125 VAC..........................................20 A RMS MAX
B. @ 250 VAC.........................................16 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 125 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
2
0
.10
5
2
.15
8
2
.50
10
10
1.0
15
15
5.0
25
40
10
30
40
30
35
40
1-3.
33.5
1-4.
1-5.
3.5
80.0
1-6.
FREQ. MHz
COM. MODE dB
26.5 ±
0
0.5
DIF. MODE dB
25.5
1-7.
1-8.
OPERATING TEMPERATURE.................-25° TO +85° C
SAFETY:
RoHS COMPLIANT
R4.0MAX.
36.0 ±
0.5
0
1-9.
PANEL CUTOUT
2. ELECTRICAL SCHEMATIC
Dim
range
(mm)
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
L:
C1:
C2:
R:
0.3mH
0.1uF
2200pF
1.0MΩ
PPC DIVISION
869-20/043
EMI FILTER
UNIT: mm
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Drawn / Date
R.Nuti
11-27-07
Checked / Date
11-27-07
Approved / Date
JJH / 11-27-07
