Quick Mount Relay Sockets
Reduce Weight and Installation Time
Eliminate Loose Hardware / No FOD
Amphenol Pcd
introduces JRS/JRE Quick Mount Relay Sockets. These relay sockets snap
mount into standard aircraft panel cutouts and eliminate all socket-to-bulkhead mounting
hardware, simplifying installation and dramatically reducing weight and installed cost.
JRS/JRE sockets meet the applicable performance and dimensional requirements of
MIL- PRF-12883, are compatible with MIL- approved relays from any manufacturer, and can be
used in existing avionic systems with standard slotted panel cutouts.
Amphenol Pcd ~ www.amphenolpcd.com ~ 978.624.3400 ~ info@amphenolpcd.com
JRS / JRE Product Series
2 Pole / 5 Amp
- Replaces M12883 / 45 Sockets
- Mates with Following Relays
- M83536
- M6106
- Accepts Following Contacts
- M39029 / 101 -553 Size 20
Product Ben
- Size 20

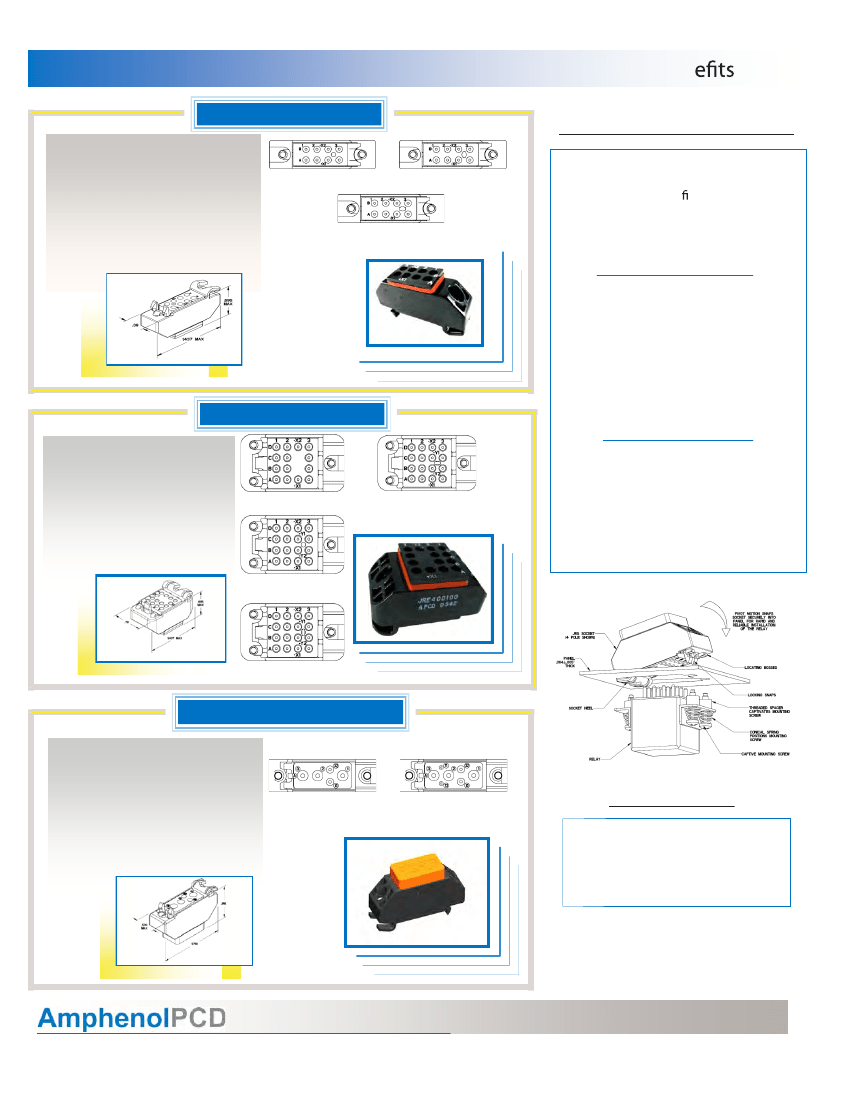

Socket Construction and Installation
JRE200110
JRE200210
JRE200310
JRS/JRE sockets maintain the same
MIL mounting con gurations and
construction (molded polyetherimide
bodies and silicone rubber sealing
grommets) as Amphenol Pcd’s
traditional relay sockets.
The installation process consists of
partially inserting the socket into a
panel cutout, placing the fulcrum ears
located at one end of the socket over
the bulkhead lip, and then pivoting
the socket around the fulcrum ears
until the locking tabs at the opposite
end of the socket engage the
bulkhead and snap in place.
A heel and toe snap -in system allows
the socket to be mounted to the
panel without hardware and held securely
in place. The assembled socket and
relay meet all shock and vibration
requirements of MIL-PRF-12883.
4 Pole / 5 Amp
- Replaces M12883 / 44 Sockets
- Mates with Following Relays
- M83536/5
- M83536/6
- M83536/7
- Accepts Following Contacts
- M39029/101 -553 Size 20
- Size 20
JRE400110
JRE400410
JRE400210
JRE400310
1 Pole / 25 Amp
- Replaces M12883 / 55 Sockets
- Mates with Following Relays
- M6106/19
- M6106/20
- Accepts Following Contacts
- M39029 / 92 -533 Size 16
- M39029 / 92 -535 Size 12
- Size 12 & 16
JRS500110
JRS500210
Lower Installed Cost
Elimination of loose hardware and
the time required to assemble
individual hardware components to
the sockets results in a reduction of
over 45% in socket installation time.
Note: mounting hardware supplied
with JRS/JRE Relay Sockets.
All Schematics Depict Bottom View, Relay Mating Face
Product B
No Loose Hardware
ts

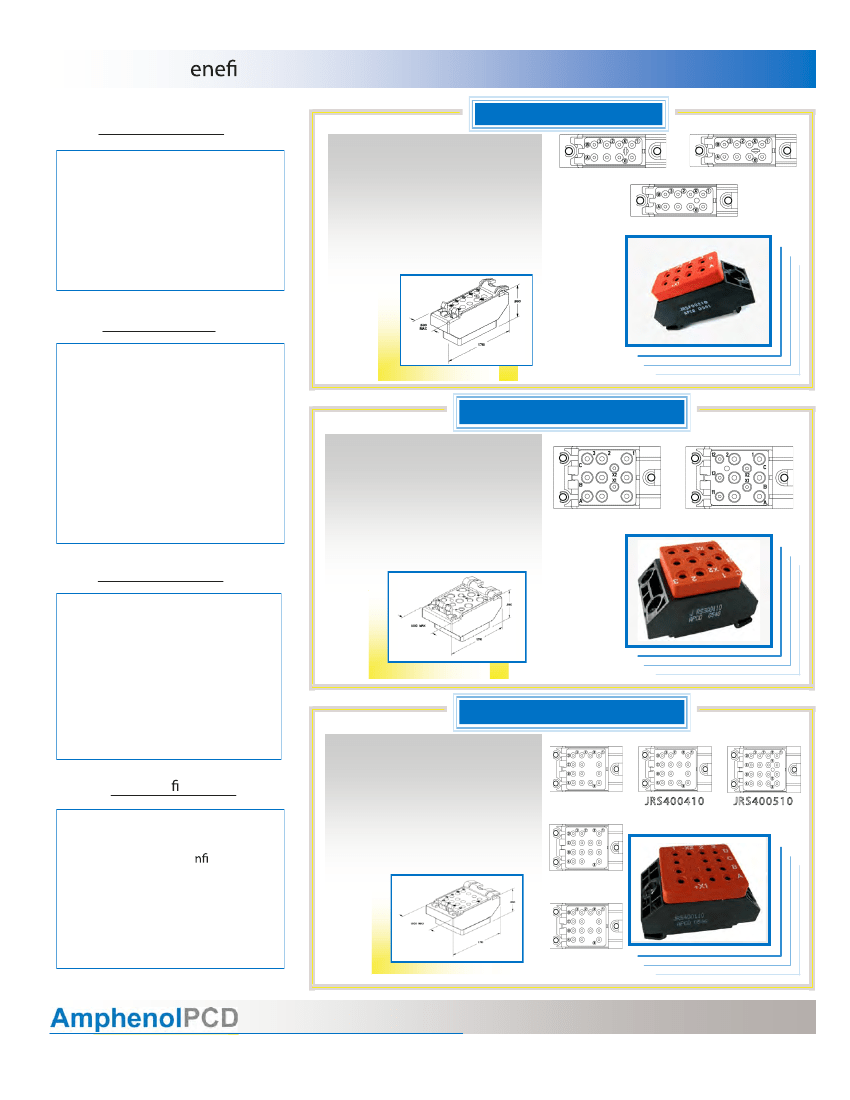

JRS / JRE Product Series
2 Pole / 10 Amp
- Replaces M12883 / 41 Sockets
- Mates with Following Relays
- M83536
- Accepts Following Contacts
- M39029 / 92-533 Size 16
- Weighs 12 Grams Max
- Size 16
The combination of snap-in
relay -to-panel mounting and
pre-assembled relay hardware
eliminates all loose hardware from
the socket and relay mounting and
installation process. The logistical
and safety issues related with loose
hardware are completely avoided.
JRS200110
JRS200210
JRS200310
Relay Installation
JRE/JRS Relay Sockets feature
externally threaded mounting screws
and spacer assemblies which are
pre-assembled to the relay. These
mounting screws are captured and
aligned by a conical spring, and are
used to fasten the relay to the socket.
The screws engage internally thread-
ed bushings captured in the socket
and once the relay is secured, the
socket snap features are no longer
under stress.
3 Pole / 25 Amp
- Replaces M12883 / 48 Sockets or /54 Sockets
- Mates with Following Relays
- M6106/13
- MS27743
- Accepts Following Contacts
- M39029 / 92-533 Size 16
- M39029 / 92-535 Size 12
- Size 12 & 16
JRS300110
JRS310110
Reduced Weight
The elimination of socket mounting
hardware and a streamlined
polyetherimide body combine to
reduce the weight of a Quick Mount
Relay Socket. When compared to
Amphenol Pcd standard MIL-PRF-
12883 relay sockets provided with
traditional mounting hardware, the
weight is reduced by 30 to 40%.
- Weighs 20 Grams Max
4 Pole / 10 Amp
- Replaces M12883 / 40 Sockets
- Mates with Following Relays
- M83536
- M83726
- MS27709
- Accepts Following Contacts
- M39029 / 92 -533 Size 16
- Weighs 20 Grams Max
- Size 16
Other Con gurations
Amphenol Pcd welcomes customer
inquiries for snap -in style sockets in
military or custom co gurations
not covered by this publication.
Sockets can also be made available in
“extended height” version which
accept the M39029 contact, if
contact standardization is an
application priority.
JRS400110
JRS400410
JRS400510
JRS400210
JRS400310
Technical Speci cations

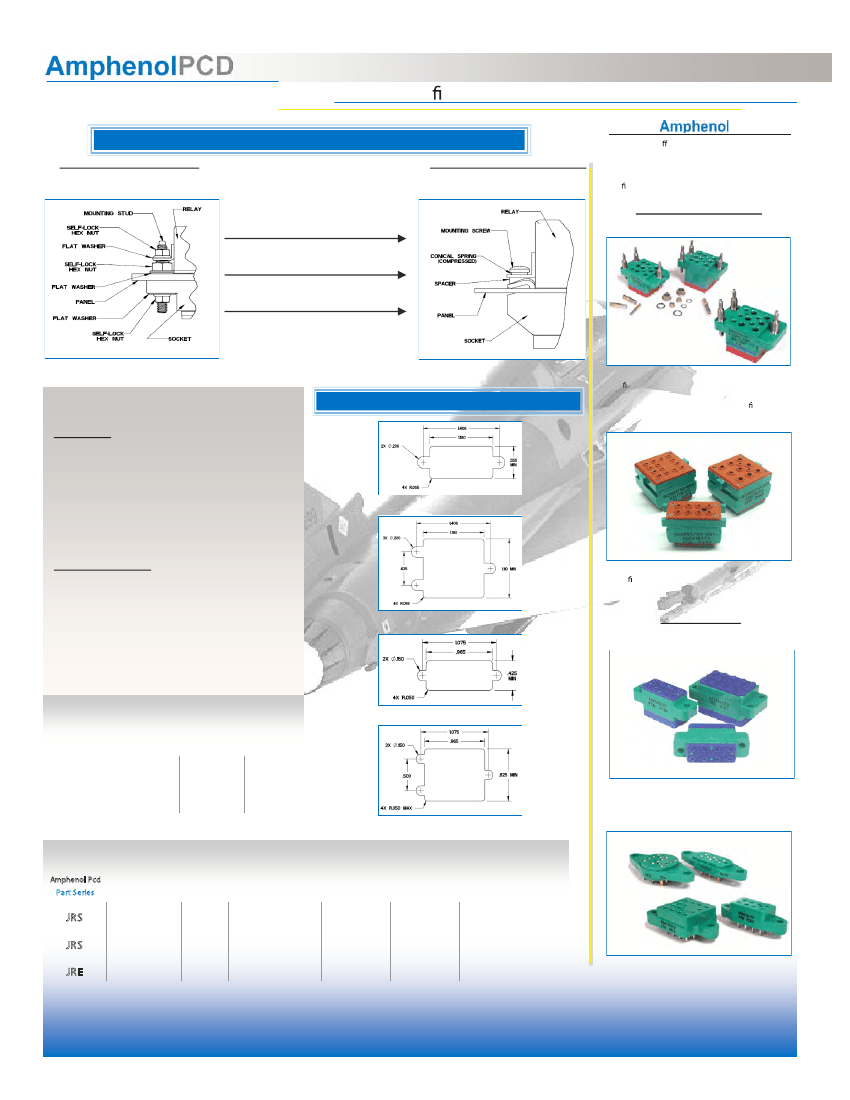

Mounting Hardware Comparison: Conventional Style vs. Quick Mount Style
Conventional Style Socket
Socket and relay mounting require 6 -7
loose pieces of hardware
Related
Products
JRS/JRE Quick Mount Socket
3 captive pieces of hardware secure
both socket and relay
Amphenol Pcd o ers the industry’s broadest line of
pluggable Relay Sockets and Junction Modules for
commercial and military airborne, ground, and
shipboard applications and equipment. European
Speci cation Relay Sockets available upon request.
M12883 Relay Sockets
Reduce weight
Panel Mount Relay Sockets
Reduce installation time
Reduce part count / FOD
P
ERFORMANCE
M
ATERIALS
Socket Body:
Grommet:
Contact Retainers:
Socket Contacts :
Polyetherimide Per
ASTMD5205
Silicone Rubber
A-A-59588
Stainless Steel
Copper Alloy, Hard Gold
Finish Per SAE -AMS -45204
Recommended Cutouts For .064 +/
- .005” Thick Panels
Panel mount relay sockets are provided in all military
con gurations, are designed to minimize size and
weight, and accept MIL -C -39029 /92, /101, /5 contact
families. Available in low and extended pro le styles.
Track Mount Relay Sockets
JRS 1 & 2 Pole Sockets
O
PERATING
R
ANGE
-65°C to 125°C
> 1000 Megohms
MIL -STD -202, Method
204, Test Condition G
MIL -STD -202, Method
213, Test Condition C
Temperature Range:
Insulation Resistance:
Vibration:
Shock:
Track mount relay sockets are available in multiple
con gurations and designed to meet MIL -PRF -
12883 requirements and snap into M12883/53-001
mounting track.
JRS 3 & 4 Pole Sockets
Relay Sockets
Microminiature Relay Sockets
Dielectric Withstanding Voltage
JRE 2 Pole Sockets
@ 80,000 ft
500 VRMS
500 VRMS
500 VRMS
Relay Sockets that are designed to mate with
MIL -Spec M39016 and M5757 microminiature relays.
Part Description
JRS 1 Pole / 2 Pole
JRS 3 Pole / 4 Pole
JRE 2 Pole/ 4 Pole
@ Sea Level
1500 VRMS
1500 VRMS
1000 VRMS
JRE 4 Pole Sockets
Board Mount Relay Sockets
Socket Contacts and Termination Accessories
Amphenol Pcd
Part Series
Military P/N
PCD Part No.
M39029/92 -533
CNS126900
M39029/92 -535
CNS128900
M39029/101 -553
Pin Size
(AWG)
16
16, 18, 20
12
12, 14
20,
20, 22, 24
Color Bands
1st
2nd
3rd
Basic Tool
Crimp Tool
Positioner
M2222520/1 -02
Blue
M2222520/1 -02
Yellow
M22520/7 -12
Installation
Installation / Removal Tool
M81969/14 -03 or
M81969/8 -07 & -08
M81969/14 -04 or
M81969/8 -09 & -10
M81969/14 -10 or
JRS
JRS
JRE
Green Orange Orange
Green Orange Green
Green Green Orange
M22520/1 -01
M22520/1 -01
M22520/7/0 -01
PC board mount relay sockets that are light weight
and pluggable, and allow separate mounting of relays
direct to boards in airborne or ground applications.
Amphenol Pcd
~ www.amphenolpcd.com ~ 978.624.3400 ~ info@amphenolpcd.com
