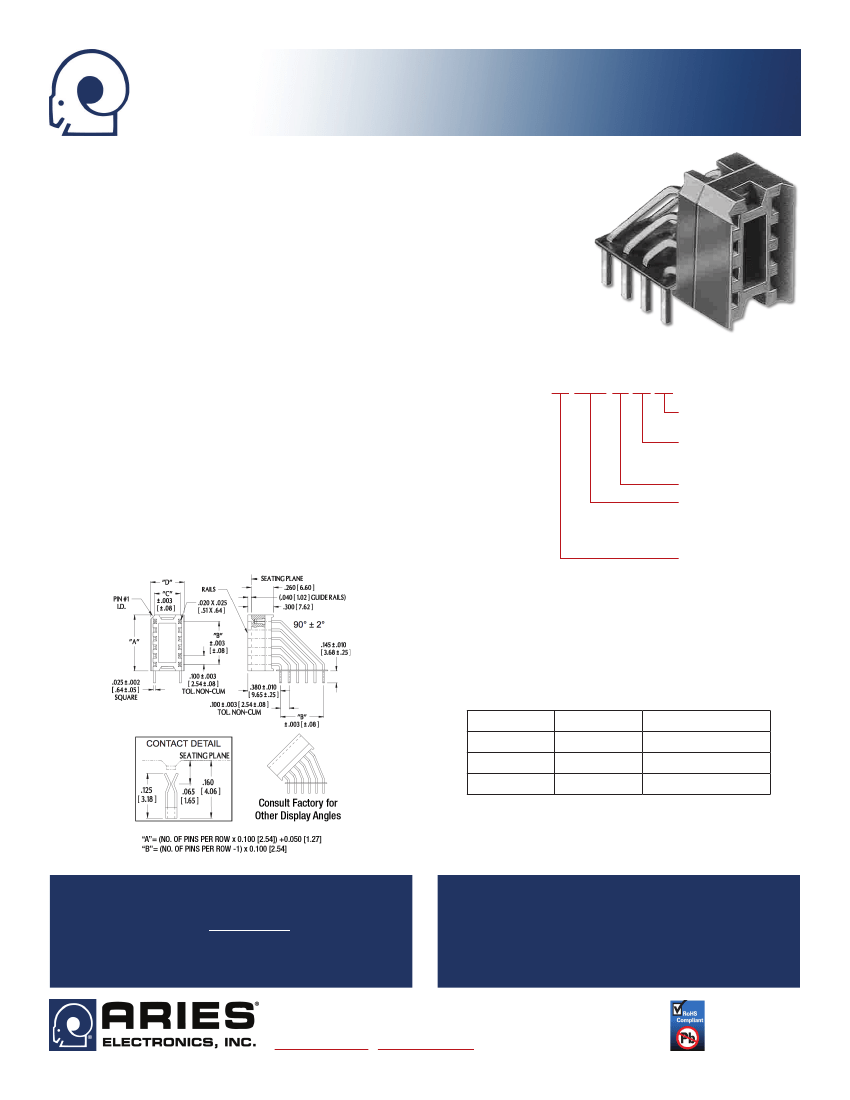

Series 800 Vertisocket
™
w/Bifurcated Contacts for Vertical Mounting
FEATURES
• DIP Packaging of LEDs, Incandescent Lamps, DIP Switches, Test Points, etc.
• Variations of Mounting Positions and Pin Configurations provide Exceptional Design Freedom
• Restricted Entry for Contact Protection
• Accepts Standard LEDs and Incandescent Displays as well as 0.500 [12.70] and 0.600 [15.24] Tall
Displays
GENERAL SPECIFICATIONS
•
STANDARD BODY MATERIAL: black UL 94V-0 4/6 Nylon
•
BIFURCATED CONTACTS: Grade A spring-tempered Phosphor Bronze per QQ-B-750
•
STANDARD CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204, over 50µ [1.27µ] min.
Ni per QQ-N-290
•
PLATING OPTIONS: 200µ min. matte Sn per ASTM B545-97(2004)e1 over 50µ [1.27µ] min. Ni
per QQ-N-290 –OR– 200µ min. bright 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ
ORDERING INFORMATION
[1.27µ] min. Ni per QQ-N-290
XX-X810-90 XX XX
•
CONTACT CURRENT RATING: 1.5 amps
•
OPERATING TEMPERATURE: 221 °F [105°C] Sn and Sn/Pb plating; 257°F [125°C] Au
Optional Rails
WR = Without Rails
plating
•
INSERTION FORCE: 110g/pin average
Plating Options
T = Sn
•
WITHDRAWAL FORCE: 75g/pin average
TL = Sn/Pb
•
FLAT LEADS: flat leads up to 0.014 [0.36] thick and 0.020 [0.51] wide
Display Angle
•
ROUND LEADS: up to 0.020 [0.51] dia.
•
LEAD LENGTHS: 0.075-0.160 [1.91-4.06]
Series, Dim. “C”
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.044 ±0.002 [1.12 ±0.05] dia.
2810 = 0.200 [5.08]
810 = 0.300 [7.62]
6810 = 0.600 [15.24]
No. of Pins
(See Table)
Dim. “C”
0.200 [5.08]
0.300 [7.62]
0.600 [15.24]
Dim. “D”
0.290 [7.37]
0.390 [9.91]
0.690 [17.53]
No. of Pins
8, 10
8, 14, 16, 18, 20
8, 10, 12, 14, 16, 18, 20
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR HORIZONTAL MOUNTING, SEE DATA SHEET 13001
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
