Freescale Semiconductor, Inc.

Technical Data

Advance Information

DSP56L307/D

Rev. 5, 6/2004

24-Bit Digital Signal

Processor

Freescale Semiconductor, Inc...

Memory Expansion Area

Program

RAM

16 K

24 bits

15 K

24 bits

and

Instruction

Cache

1024

24 bits

PM_EB

SCI

Triple

Timer

HI08

ESSI

EFCOP

X Data

RAM

24 K

24 bits

Y Data

RAM

24 K

24 bits

The DSP56L307 is

intended for

applications requiring

a large amount of

internal memory, such

as networking and

wireless infrastructure

applications. The

EFCOP can accelerate

general filtering

applications, such as

echo-cancellation

applications,

correlation, and

general-purpose

convolution-based

algorithms.

PIO_EB

XM_EB

Address

Generation

Unit

Six Channel

DMA Unit

Bootstrap

ROM

YAB

XAB

PAB

DAB

YM_EB

Peripheral

Expansion Area

External

Address

Bus

Switch

External

Bus

Interface

and

I - Cache

Control

External

Data

Bus

Switch

Power

Management

JTAG

OnCE™

Address

24-Bit

DSP56300

Core

DDB

YDB

XDB

PDB

GDB

Control

Internal

Data

Bus

Switch

Data

Clock

PLL

Generator

EXTAL

XTAL

RESET

PINIT/NMI

Program

Interrupt

Controller

Program

Decode

Controller

MODA/IRQA

MODB/IRQB

MODC/IRQC

MODD/IRQD

Program

Address

Generator

Data ALU

24 + 56

→

56-bit MAC

Two 56-bit Accumulators

56-bit Barrel Shifter

PCAP

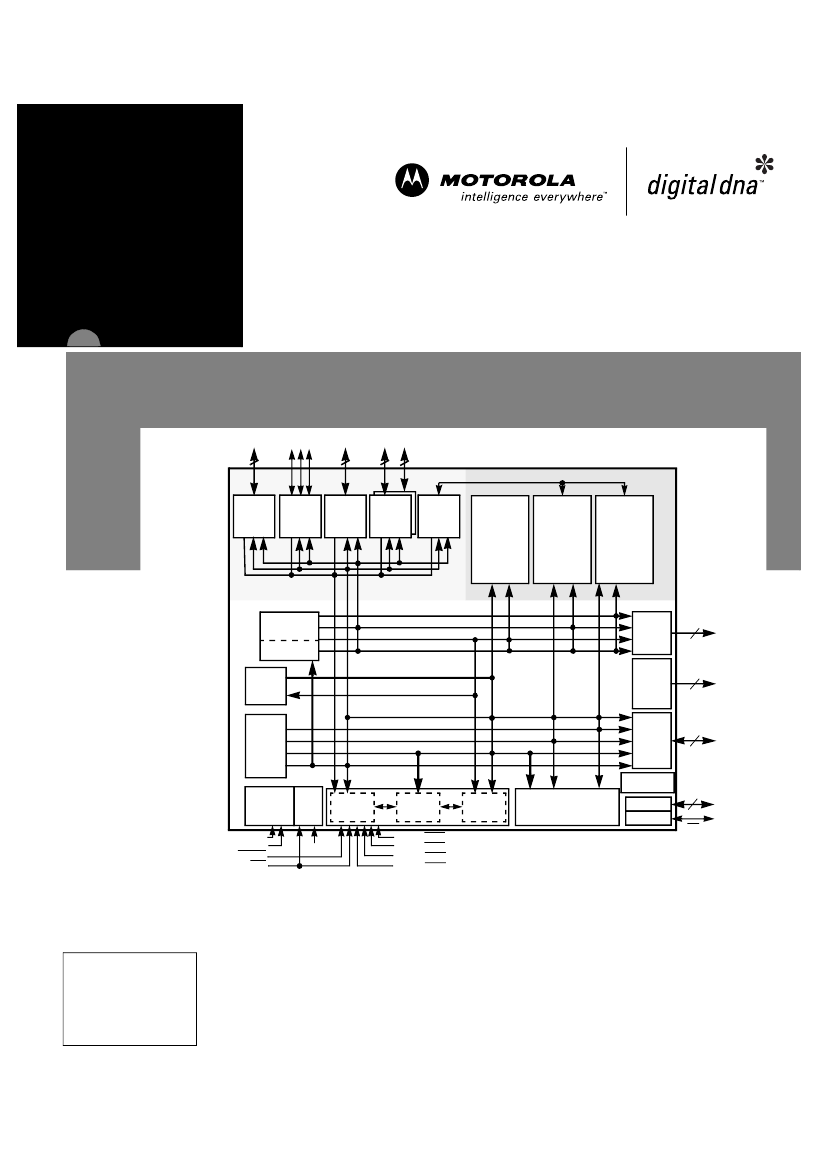

Figure 1.

DSP56L307 Block Diagram

The Motorola DSP56L307, a member of the

DSP56300 Digital Signal Processor (DSP) family,

supports network applications with general

filtering operations. The Enhanced Filter

Coprocessor (EFCOP) executes filter algorithms in

parallel with core operations, enhancing signal

quality with no impact on channel throughput or

total channels supported. The result is increased

overall performance. Like the other DSP56300

family members, the DSP56L307 uses a

high-performance, single-clock-cycle-per-

instruction engine (DSP56000 code-compatible), a

barrel shifter, 24-bit addressing, an instruction

cache, and a direct memory access (DMA)

controller (see

Figure 1).

The DSP56L307

performs at 160 million instructions per second

(MIPS), attaining 290 MIPS when the EFCOP is in

use. It operates with an internal 160 MHz clock

with a 1.8 volt core and independent 3.3 volt

input/output (I/O) power.

What’s New?

Rev. 5 updates the

example clock input

circuits in

Figure 2-1.

Note:

This document contains information on a new product. Specifications and information herein are subject to change without notice.

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Table of Contents

DSP56L307 Features ......................................................................................................................................... iii

Target Applications ..............................................................................................................................................v

Product Documentation........................................................................................................................................v

Chapter 1

Signal/ Connection Descriptions

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

1.10

1.11

1.12

1.13

Signal Groupings.............................................................................................................................................. 1-1

Power................................................................................................................................................................ 1-3

Ground.............................................................................................................................................................. 1-3

Clock ................................................................................................................................................................ 1-4

PLL................................................................................................................................................................... 1-4

External Memory Expansion Port (Port A)...................................................................................................... 1-5

Interrupt and Mode Control ............................................................................................................................. 1-8

Host Interface (HI08) ....................................................................................................................................... 1-9

Enhanced Synchronous Serial Interface 0 (ESSI0)........................................................................................ 1-13

Enhanced Synchronous Serial Interface 1 (ESSI1)........................................................................................ 1-14

Serial Communication Interface (SCI)........................................................................................................... 1-16

Timers............................................................................................................................................................. 1-17

JTAG and OnCE Interface ............................................................................................................................. 1-18

Introduction ...................................................................................................................................................... 2-1

Maximum Ratings............................................................................................................................................ 2-1

Thermal Characteristics ................................................................................................................................... 2-2

DC Electrical Characteristics ........................................................................................................................... 2-3

AC Electrical Characteristics ........................................................................................................................... 2-4

Pin-Out and Package Information .................................................................................................................... 3-1

MAP-BGA Package Description ..................................................................................................................... 3-2

MAP-BGA Package Mechanical Drawing .................................................................................................... 3-10

Thermal Design Considerations....................................................................................................................... 4-1

Electrical Design Considerations ..................................................................................................................... 4-2

Power Consumption Considerations ................................................................................................................ 4-4

PLL Performance Issues .................................................................................................................................. 4-5

Input (EXTAL) Jitter Requirements................................................................................................................. 4-5

Freescale Semiconductor, Inc...

Chapter 2

Specifications

2.1

2.2

2.3

2.4

2.5

Chapter 3

Packaging

3.1

3.2

3.3

Chapter 4

Design Considerations

4.1

4.2

4.3

4.4

4.5

Appendix A

Index

Power Consumption Benchmark

Data Sheet Conventions

OVERBAR

“asserted”

“deasserted”

Examples:

Used to indicate a signal that is active when pulled low (For example, the RESET pin is active when

low.)

Means that a high true (active high) signal is high or that a low true (active low) signal is low

Means that a high true (active high) signal is low or that a low true (active low) signal is high

Signal/Symbol

Logic State

True

False

True

False

Signal State

Asserted

Deasserted

Asserted

Deasserted

Voltage

Note:

Values for V

, V

, and V

are defined by individual product specifications.

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

DSP56L307 Features

High-Performance DSP56300 Core

• 160 million instructions per second (MIPS) (290 MIPS using the EFCOP in filtering applications) with

a 160 MHz clock at 1.8 V core and 3.3 V I/O

• Object code compatible with the DSP56000 core with highly parallel instruction set

• Data Arithmetic Logic Unit (Data ALU) with fully pipelined 24

24-bit parallel

Multiplier-Accumulator (MAC), 56-bit parallel barrel shifter (fast shift and normalization; bit stream

generation and parsing), conditional ALU instructions, and 24-bit or 16-bit arithmetic support under

software control

• Program Control Unit (PCU) with Position Independent Code (PIC) support, addressing modes

optimized for DSP applications (including immediate offsets), internal instruction cache controller,

internal memory-expandable hardware stack, nested hardware DO loops, and fast auto-return interrupts

• Direct Memory Access (DMA) with six DMA channels supporting internal and external accesses;

one-, two-, and three-dimensional transfers (including circular buffering); end-of-block-transfer

interrupts; and triggering from interrupt lines and all peripherals

• Phase Lock Loop (PLL) allows change of low-power Divide Factor (DF) without loss of lock and

output clock with skew elimination

• Hardware debugging support including On-Chip Emulation (OnCE™) module, Joint Test Action

Group (JTAG) Test Access Port (TAP)

Freescale Semiconductor, Inc...

Enhanced Filtering Coprocessor (EFCOP)

• Internal 24

24-bit filtering and echo-cancellation coprocessor that runs in parallel to the DSP core

• Operation at the same frequency as the core (up to 160 MHz)

• Support for a variety of filter modes, some of which are optimized for cellular base station applications:

— Real Finite Impulse Response (FIR) with real taps

— Complex FIR with complex taps

— Complex FIR generating pure real or pure imaginary outputs alternately

— A 4-bit decimation factor in FIR filters, thus providing a decimation ratio up to 16

— Direct form 1 (DFI) Infinite Impulse Response (IIR) filter

— Direct form 2 (DFII) IIR filter

— Four scaling factors (1, 4, 8, 16) for IIR output

— Adaptive FIR filter with true least mean square (LMS) coefficient updates

— Adaptive FIR filter with delayed LMS coefficient updates

Internal Peripherals

• Enhanced DSP56000-like 8-bit parallel host interface (HI08) supports a variety of buses (for example,

ISA) and provides glueless connection to a number of industry-standard microcomputers,

microprocessors, and DSPs

• Two enhanced synchronous serial interfaces (ESSI), each with one receiver and three transmitters

(allows six-channel home theater)

• Serial communications interface (SCI) with baud rate generator

• Triple timer module

• Up to 34 programmable general-purpose input/output (GPIO) pins, depending on which peripherals are

enabled

iii

For More Information On This Product,

Go to: www.freescale.com
