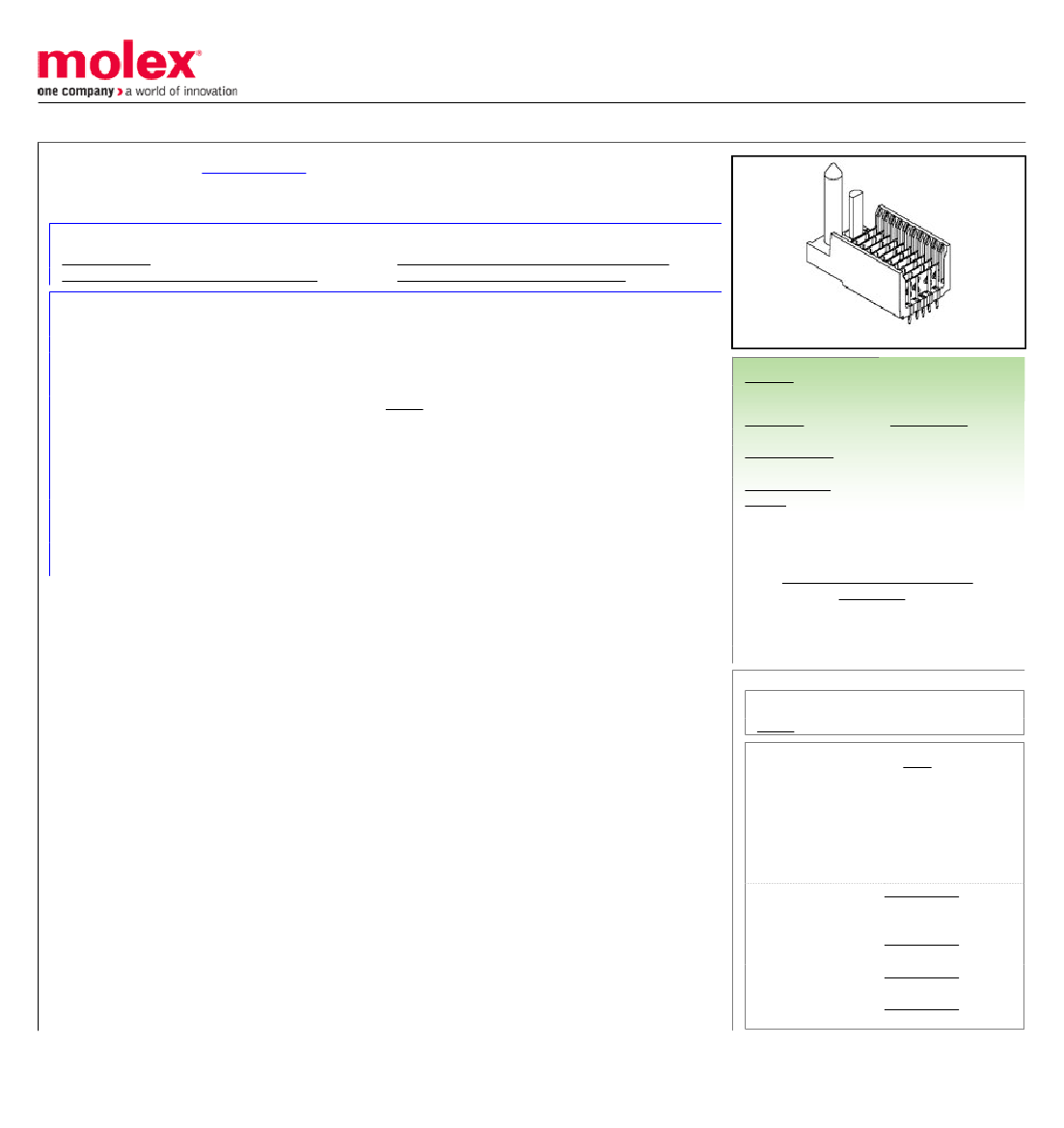

DIN 41612 Connectors VHDM HSD 5 ROW SIGNAL END BACKPLANE
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | 10 SHIELD CONTACTS IN 1 ROW |
| body width | 0.571 inch |
| subject depth | 0.484 inch |
| body length | 2.244 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 18 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 200 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .3892 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.089 inch |
| Mixed contacts | NO |
| Installation option 1 | GUIDE PIN |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.286 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED KEY |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.098 inch |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 125 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .139 N |
