Circular
mixed power/signal

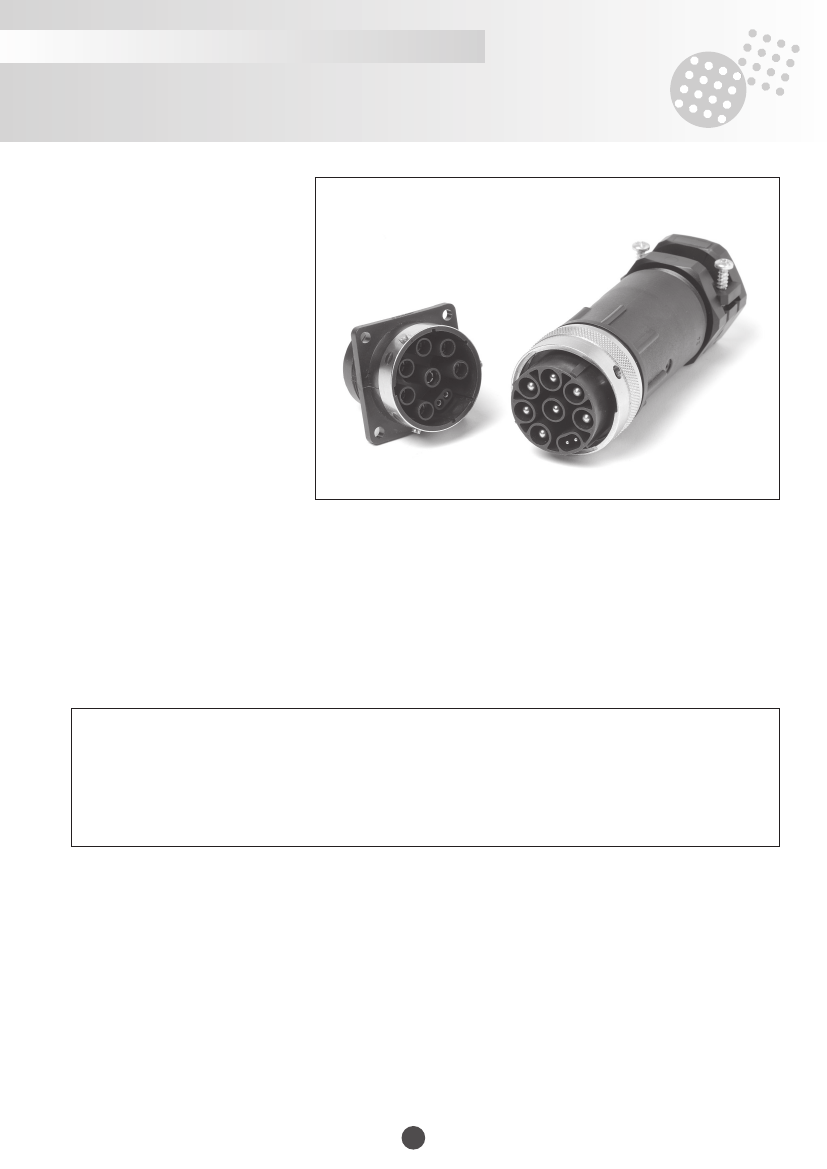

Description
Power connectors are connectors
to meet mixed power and signal
requirements.
This range of power connectors
is an extension of the long
established and popular TRIM
TRIO connector series shown
in this catalogue, but with the
advantage of offering a number of
additional features
Features and benefits
• Connectors suitable for mixed
power / signal application.
• Design in flexibility of TRIM TRIO.
Our Design flexibilities are virtually unlimited on:
•
•
•
•
•
•
•
•
•
Contact arrangements
Mixed contact lay-outs
Power versions
Hybrid contacts arrangements
Filtered connectors
High speed solutions
Robust designs
Higher corrosion withstandings
...
The next pages are listing some of the mixed power / signal TRIM TRIO connector configurations.
It is intended to give you a general idea of our design capabilities.
As the creation of mixed power / signal TRIM TRIO connectors is an ongoing process, we advise you to
contact our nearest SOURIAU sales office if you have specific connector needs.
Our design flexibility is virtually unlimited, so we are always willing to consider any customised design.
Separate data sheets with more detailed technical info of the listed mixed power / signal TRIM TRIO versions
are available.
35
Circular
mixed power/signal

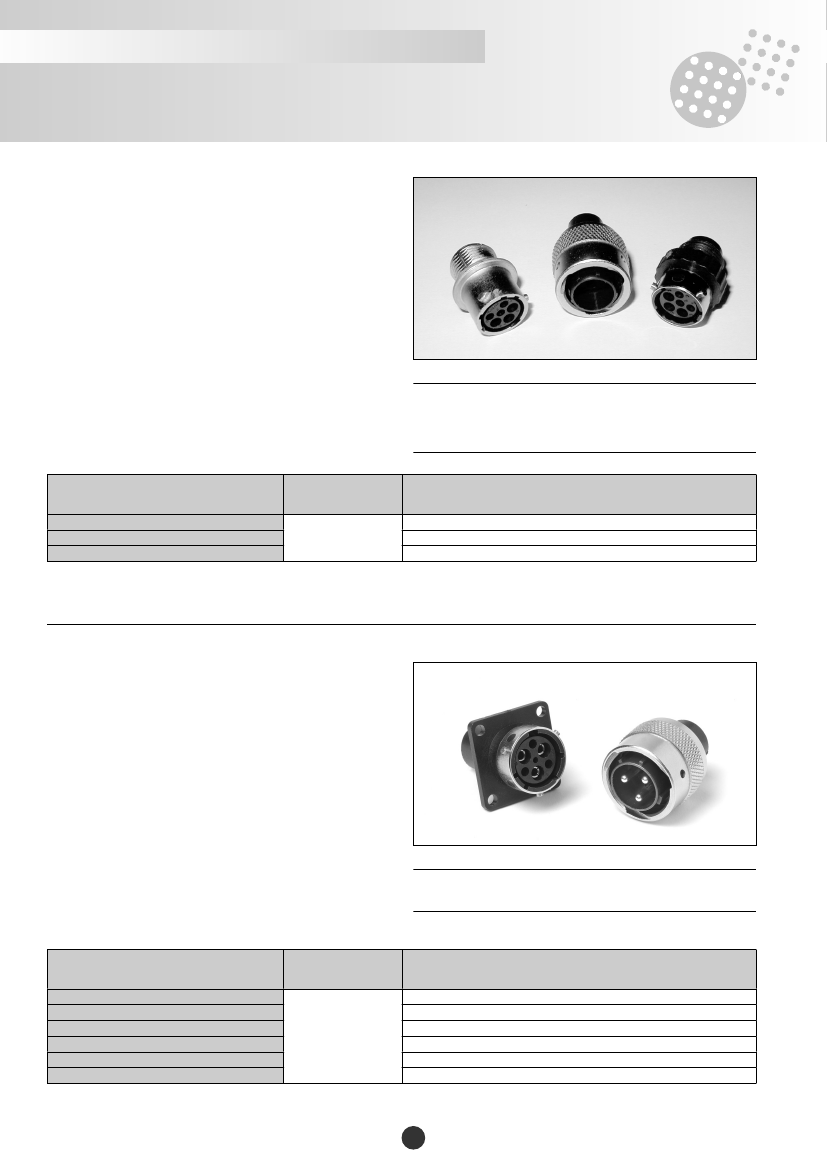

UT0/UTG size 10-3W3 with:
3 contacts #20 (1
.0mm)
3 standard TRIM TRIO contacts
Description
UT0/UTG size 10-3W3 is a standard shell size 10 connector with a
modified insert arrangement to accept:
3 TRIM TRIO #20 (1.0mm) contacts
3 TRIM TRIO #16 (1.6mm) contacts
Typical performance characteristics
• For characteristics, refer to UTG/UT0 series and Contact sections
Contact accommodation
• #20 cavities accept the #20 TRIM TRIO size 16 crimptype
removable snap-lock contacts (see contacts section)
• #16 cavities accept the #16 TRIM TRIO crimptype removable
snap-lock contacts (see contacts section)
• Contacts to be ordered seperately.
Available part numbers:
Part number
UTG1
103W3S
UTG6103W3PN
UT01
103W3SH6
Shell size
Description
Free hanging receptacle for socket contacts
Cable plug connector for pin contacts
Metal free hanging receptacle for socket contacts
10
For dimensions or others characteristics, refer to section UTG/UT0 with corresponding shell size or refer to the technical drawings
UTG size 1
2-3 with 3 power
contacts.
Description
UTG size 1
2-3 is a standard shell size 1 connector with a modified
2
insert arrangement to accept
3 power contacts #1 (2.4mm).
2
It also offers 3 extra discrimination cavities that accept the
SMSPKE3 discrimination pins.
Typical performance characteristics
• Power contacts #1 (2.4mm) for up to 26 Amp
2
• For furtur characteristics, refer to UTG series and power contacts
8291 series.
Contact accommodation
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Available part numbers:
Part number
UTG01
23S
UTG01
23SH
UTG01
23P (consult factory)
UTG01
23PH (consult factory)
UTG61
23SN (consult factory
UTG61
23PN
Shell size
Description
Panel mount receptacle for socket contacts.
Panel mount receptacle for socket contacts – IP65 waterprotection
Panel mount receptacle for pin contacts.
Panel mount receptacle for pin contacts – IP65 waterprotection
Cable plug connector for socket contacts.
Cable plug connector for pin contacts.
1
2
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
36
Circular
mixed power/signal
UTG size 1
4-8 with 4 power &
4 standard TRIM TRIO contacts.
Description
UTG size 1
4-8 is a standard shell size 1 connector with a modified
4
insert arrangement to accept
4 power contacts #1 (2.4mm) and
2
4 TRIM TRIO #16 (1.6mm) signal contacts.
Typical performance characteristics
• Power contacts #1 (2.4mm) for up to 26 Amp
2
• Per VDE 01 (refer to technical drawings)
10
• For furtur characteristics, refer to UTG series and power contacts
8291 series.
Contact accommodation
• Signal cavities accept the TRIM TRIO size 16 crimp-type
removable snap-lock contacts (see contacts section)
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Available part numbers:
Part number
UTG01
48P24PVDE
UTG01
48P24PHVDE
UTG01
48P24SVDE (consult factory)
UTG01
48P24SHVDE (consult factory)
UTG61
48P24SNVDE
UTG61
48P24PNVDE (consult factory)
Shell size
Description
Panel mount receptacle for pin contacts.
Panel mount receptacle for pin contacts – IP65 waterprotection
Panel mount receptacle for socket contacts.
Panel mount receptacle for socket contacts – IP65 waterprotection
Cable plug connector for socket contacts.
Cable plug connector for pin contacts.
1
4
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings

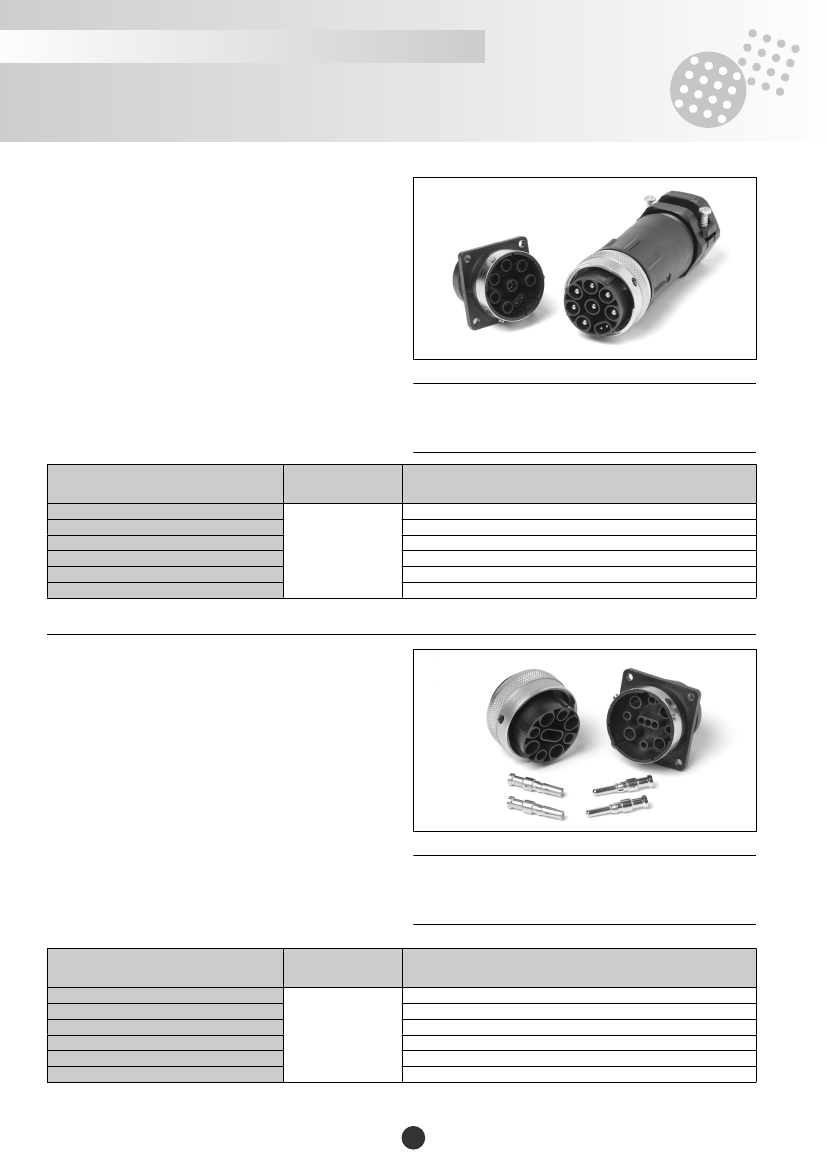

UTG size 1
8-7 with 2 power &
5 standard TRIM TRIO contacts.
Description
UTG size 18-7 is a standard shell size 18 connector with a
modified insert arrangement to accept
2 power contacts #1 (2.4mm) and
2
5 TRIM TRIO #16 (1.6mm) signal contacts.
Typical performance characteristics
•
•
•
•
Power contacts #1 (2.4mm) for up to 26 Amp
2
Per VDE 01 Group C – 380V.
10
2 mating levels.
For furtur characteristics, refer to UTG series and power contacts
8291 series.
Contact accommodation
• Signal cavities accept the TRIM TRIO size 16 crimp-type
removable snap-lock contacts (see contacts section)
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Available part numbers:
Part number
UTG01
87PVDE34
UTG01
87PHVDE34
UTG01
87SVDE34
UTG01
87SHVDE34
UTG61
87PNVDE34
UTG61
87SNVDE34
Shell size
Description
Panel mount receptacle for pin contacts.
Panel mount receptacle for pin contacts – IP65 waterprotection
Panel mount receptacle for socket contacts.
Panel mount receptacle for socket contacts – IP65 waterprotection
Cable plug connector for pin contacts.
Cable plug connector for socket contacts.
1
8
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
37
Circular
mixed power/signal

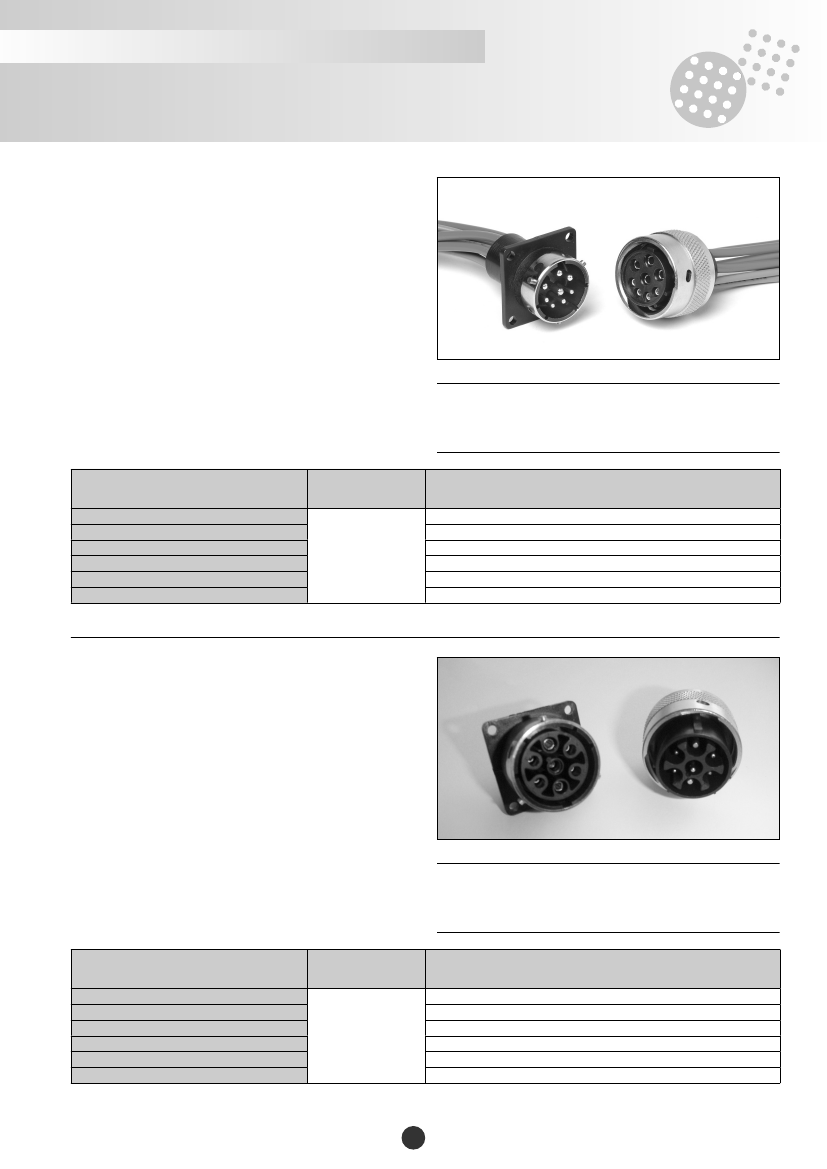

UTG size 24-7 with 7 power &
2 standard TRIM TRIO contacts.
Description
UTG size 24-7 is a standard shell size 24 connector with a
modified insert arrangement to accept
7 power contacts #8 (3.6mm) and
2 TRIM TRIO #16 (1.6mm) signal contacts.
Typical performance characteristics
•
•
•
•
•
Power contacts #8 (3.6mm) for up to 44 Amp
VDE 01 Group C – 660V.
10
UL recognized file Nr.: E238675
Central power cavity is advanced for grounding purposes.
For furtur characteristics, refer to UTG series and power contacts
8291 series.
Contact accommodation
• Signal cavities accept the TRIM TRIO size 16 crimp-type
removable snap-lock contacts (see contacts section)
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Available part numbers:
Part number
UTG0247P
UTG0247PH
UTG0247S
UTG0247SH
UTG6247PN
UTG6247SN
Shell size
Description
Panel mount receptacle for pin contacts.
Panel mount receptacle for pin contacts – IP65 waterprotection
Panel mount receptacle for socket contacts.
Panel mount receptacle for socket contacts – IP65 waterprotection
Cable plug connector for pin contacts.
Cable plug connector for socket contacts.
24
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
UTG size 24-1 with 4 power &
1
7 standard TRIM TRIO contacts.
Description
UTG size 24-1 is a standard shell size 24 connector with a
1
modified insert arrangement to accept
4 power contacts #8 (3.6mm) and
7 TRIM TRIO #16 (1.6mm) signal contacts.
Typical performance characteristics
• Power contacts #1 (2.4mm) for up to 26 Amp
2
• Per VDE 01 (refer to technical drawings)
10
• For furtur characteristics, refer to UTG series and power contacts
8291 series..
Contact accommodation
• Signal cavities accept the TRIM TRIO size 16 crimp-type
removable snap-lock contacts (see contacts section)
• Power cavities accept the 8291 power contacts (see power
contacts 8291 section)
• Contacts to be ordered seperately.
Available part numbers:
Part number
UTG0241
1P
UTG0241
1PH
UTG0241 (consult factory)
1S
UTG0241
1SH (consult factory)
UTG6241
1SN
UTG6241
1PN (consult factory)
Shell size
Description
Panel mount receptacle for pin contacts.
Panel mount receptacle for pin contacts – IP65 waterprotection
Panel mount receptacle for socket contacts.
Panel mount receptacle for socket contacts – IP65 waterprotection
Cable plug connector for socket contacts.
Cable plug connector for pin contacts.
24
For dimensions or others characteristics, refer to section UTG with corresponding shell size or refer to the technical drawings
38

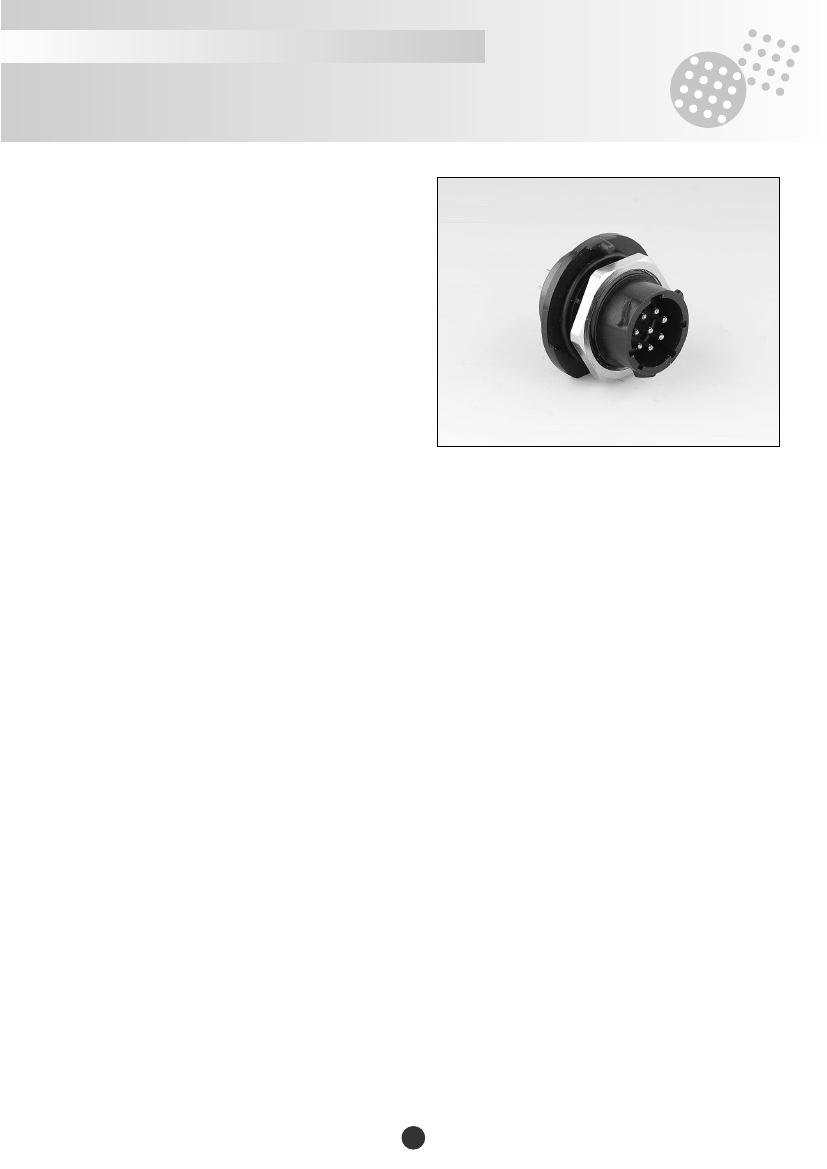

Circular
Boardmount versions
UTP7 size 1
2-8 for boardmount
applications
Description
UTP7 size 1
2-8 is a standard jam nut receptacle size 1 connector
2
with pre-assembled TRIM TRIO #16 (1.6mm) dipsolder contacts
Performance characteristics
Refer to technical drawings
Available part numbers (consult factory):
Different part number are available with:
• Male or female contacts
• Machined or stamped and formed contacts
• Different solder tail lengths
39
