Connector Series uses rugged and environmentally sealed (IP68) shells to protect existing APP
®
Powerpole
®
contacts and
housings. Customer configured SPEC Pak
®
Connectors may be used anywhere a rugged and waterproof high-power interconnect with signal and
ground capabilities is required such as in; mass transportation, off-road vehicles, factory automation, oil and petrochemical exploration, agricultural
equipment, and many more.
The core APP
®
Powerpole
®
technology within the SPEC Pak
®
is proven reliable and cost effective. The broad selection of touch safe, color-coded
Powerpole
®
housings with power, signal and ground contacts accept a broad range of wire gauges, #24 to #10 AWG (0.25 to 4.0 mm²), giving users
thousands of flexible design solutions in a single interconnect.
14
15
13
1
2
3 4 5
6
7
8
12
9
10
11

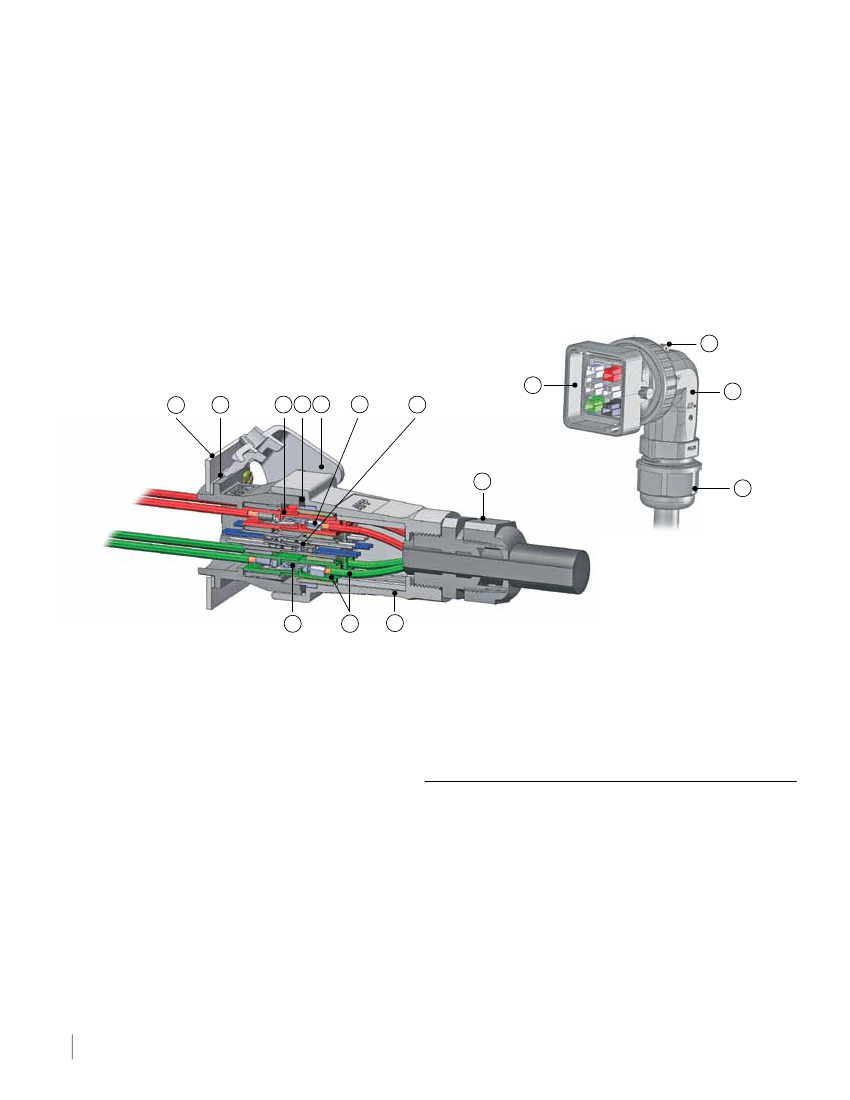

1 - Industry Standard Panel Cut Out
(Same as 26482 & 5015 shell size 24)
9 - First Mate / Last Break Ground Contacts
10 - Color Coded Housings to Match Wire Color
11 - UV & Chemical Resistant Ruggedized Shells
Additional Features Available on the Right Angle Include:
12 - Uses Industry Standard PG Gland
(PG gland compatible - size 21 or 29)
2 - IP68 Panel Mount Sealing Gasket
3 - Touch Safe Housings
(UL1977, Section 10.2)
4 - IP68 Interfacial Sealing Gasket
5 - Latch
(top or bottom of plug or receptacle)
6 - Power Contacts
(up to 45 amps)
7 - Signal Contacts
(4 contacts per PPMX housing)
8 - Uses Industry Standard Sealing Components
(PG gland compatible - size 21)
13 - Right Angle Backshell Lockable in 8 Directions for
Cable Routing
14 - Integrated Strain Relief
15 - Ruggedized Right Angle Plug Shell
-2-
www.andersonpower.com
Specifications
SPEC Pak
®
Shell / Components
Electrical
UL Voltage Rating (AC/DC)
Dielectric Withstanding Voltage (AC)
Operating Temperature (°C)
(°F)
Flammability Rating of SPEC Shells
Mechanical
Shells / Latch Mating Cycles
Connect / Disconnect (lbf)
(N)
IP Rating
UL50 Sec 30 Sealing Requirement
Material
Shells (Plug / Receptacle)
Latch
Holder
600
3000
-40° to 105°
-40° to 221°
UL 94V-0
Powerpole
®
Power (1327FP Series) &
Ground (1827 Series) Contacts
Ratings for SPEC Pak
®
Use
Electrical
UL Current Rating (Amperes)
CSA (30°C Rise) (Amperes)
Voltage Rating (AC/DC)
Contact Barrel Wire Size (AWG) - Power
- Ground
(mm²) - Power
- Ground
Average Contact Resistance (micro-ohms)
Contact Retention Force (lbf)
(N)
Operating Temperature (°C)
(°F)
Flammability Rating
15 to 45
10 to 29
600
20 to 10
14 to 10
0.5 to 4.0
1.5 to 4.0
600
25
111
-20° to 105°
-4° to 221°
UL94 V-0
1500 Min
18 Max
80 Max
IP68
Pass
PBT
Nylon
Polycarbonate
Mechanical
PPMX (4800 Series) Powerpole
®
Signal Contact
Ratings for SPEC Pak
®
Use
Electrical
UL Current Rating (Amperes)
Voltage Rating (AC/DC)
Contact Barrel Wire Size (AWG)
(mm²)
Contact Retention Force (lbf)
(N)
Insertion Force (lbf)
(N)
Operating Temperature (°C)
(°F)
Mechanical
Mating Cycles (No load)
Material
Housing Material
Contact Material
Contact Plating
NOTE: PPMX Contacts, up to 4 per housing
PBT
Copper Alloy
Gold, 50 Micro-inches
1500
Mating Cycles
No Load
- Tin
- Silver
Under Load (Hot Plug 250 mating cycles @ 120V) *
1,500
10,000
30A
45A
Mil Standard
202 213 Cond. A
Mil Standard
202 204 Cond. A
7
300
#20 to #24
0.5 to 0.25
12.0
53.0
4.5 Max
20.0 Max
-20° to 105°
-4° to 221°
(Hot Plug 250 mating cycles @ 72V) *
Mechanical Shock (50 g)
Vibration (10 g)
Material
Housing Material
Touch Safe (Power / Signal Housing)
Contact Material
Contact Plating
* Hot Plug testing completed with individual Powerpole
