39-01-3063

Description
Headers u0026 Wire Housings SOCKET 24-18AWG BULK
CategoryThe connector    The connector
File Size41KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39-01-3063 Online Shopping

Suppliers Part Number Price MOQ In stock
39-01-3063 - - View Buy Now

39-01-3063 Overview

Headers u0026 Wire Housings SOCKET 24-18AWG BULK

39-01-3063 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresMINI-FIT
body width0.378 inch
subject depth0.941 inch
body length0.543 inch
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance5 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability30 Cycles
empty shellYES
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Minimum insulation diameter0.035 inch
Insulation resistance1000000000 Ω
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.165 inch
Match contact row spacing0.165 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1POLARIZED LCK
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyCENTER
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell materialNYLON66
Termination typeCRIMP
Total number of contacts6
UL Flammability Code94V-2
Maximum wire diameter16 AWG
Minimum wire diameter28 AWG
Evacuation force-minimum value3.1136 N
Base Number Matches1
This document was generated on 11/17/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039013063
Active
Mini-Fit Jr. Power Connectors
Mini-Fit Jr. Plug Housing, Dual Row, 6 Circuits, UL 94V-2, without Panel Mounting
Ears, Natural
Documents:
3D Model
Drawing (PDF)
Product Specification PS-45750-001-001 (PDF)
Product Specification PS-5556-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Specification TS-5556-002-001 (PDF)
Application Specification AS-5557-001-001 (PDF)
RoHS Certificate of Compliance (PDF)

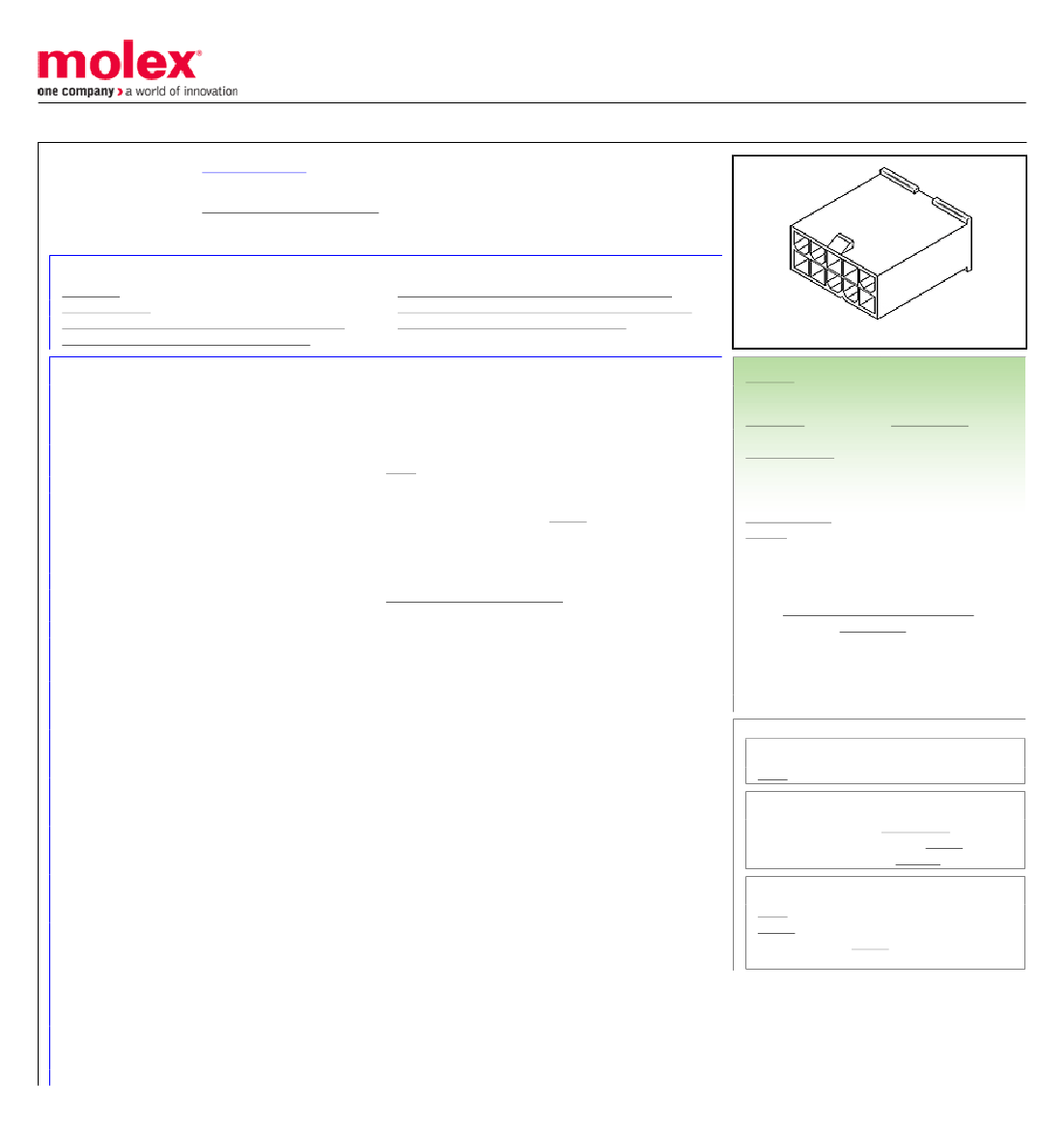

Series image - Reference only
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Compliant
Not Contained
LR19980
E29179
Crimp Housings
5559
Power, Wire-to-Board, Wire-to-Wire
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 series terminals
crimped to 16 AWG wire. . See Molex product
specification PS-45750-001 for additional current
derating information.
Yes
Mini-Fit Jr. Power Connectors
Mini-Fit Jr.
800753726659
No
6
Natural
94V-2
Plug
No
None
Yes
Nylon
1.920/g
2
Bag
No
4.20mm
4.20mm
Yes
No
-40°C to +105°C
13.0A
N/A
5559-06P1
MolexKits
Overview
Product Name
UPC
Physical
Breakaway
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Electrical
Current - Maximum per Contact
Solder Process Data
Lead-freeProcess Capability
Material Info
Engineering Number
Search Parts in this Series
5559 Series
Mates With
Receptacle Housing 39-01-2060 <br>Mini-
Fit Jr. TPA Cable Assembly 45135 <br>Mini-
Fit Jr. Cable Assembly 245135
Use With
5558 Mini-Fit Jr. Male Crimp Terminals.
30490 Mini-Fit Male Grounding Crimp
Terminals <br> 46012 Mini-Fit Plus Crimp
Terminal
