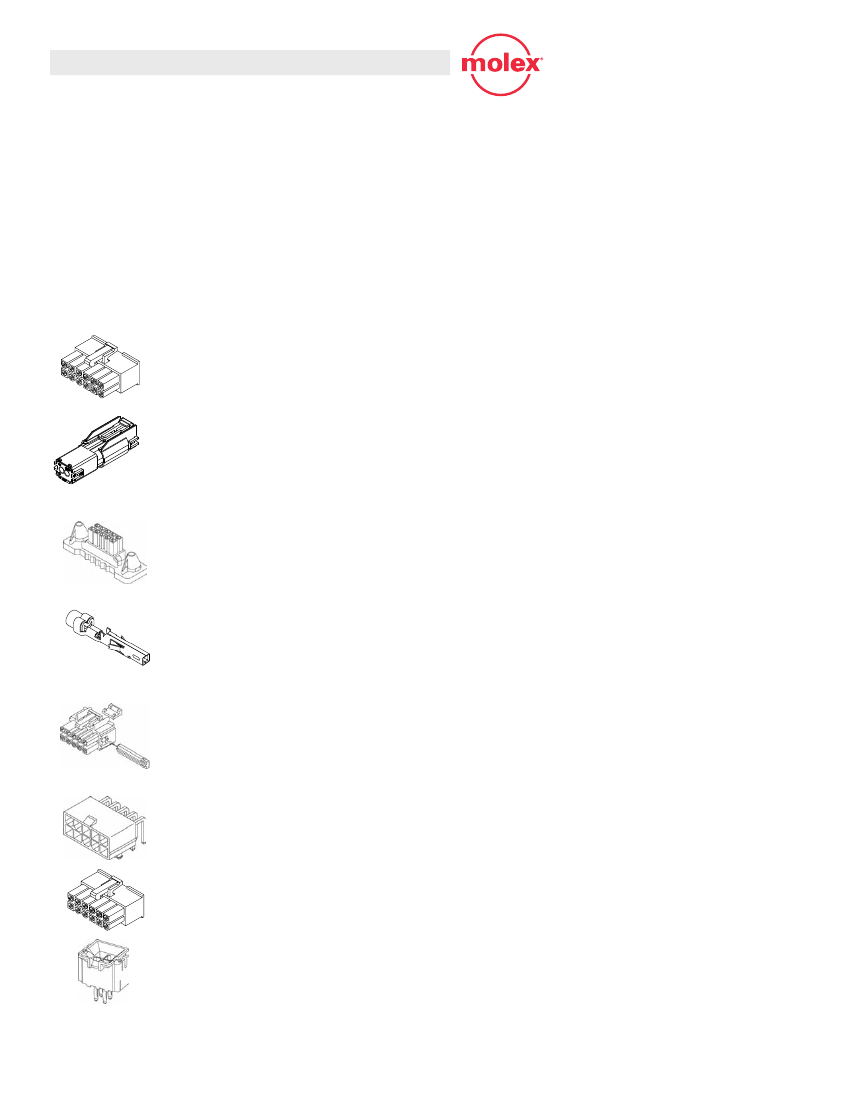

FEATURES AND SPECIFICATIONS
Mini-Fit
®
Families
Specifications
I
Voltage: 600V
I
Max Current: Mini-Fit Plus HCS – 13.0A
Brass – 9.0A
Phosphor Bronze – 8.0A
I
Mating Cycles: Mini-Fit, Jr. – Tin 30 cycles
Mini-Fit Plus HCS – Tin 75 cycles, Gold 100 cycles
I
UL, CSA and TUV Approved
I
RoHS Compliant
Custom Options
I
Make First, Break Last (MFBL) contacts
I
Longer tail lengths for thicker PCBs
I
Voided circuits
Common to all Mini-Fit
®
Families
I
Headers and receptacles designed with individual
silos to protect and isolate each contact
I
Locking pegs or screw mount flanges available to
hold headers to PCB during soldering
I
Receptacles polarized to headers and plug housings
to prevent mis-mating
I
Available in tin and gold-plated versions
I
High normal force contact design ideal for high
vibration applications
Features and Benefits
Mini-Fit Jr.
™
I
Positive locking system prevents accidental unmating
I
Single and dual row versions
I
Vertical and right angle header options
Mini-Fit H2O
™
I
An IP67-rated system ensures a water and dust-tight interconnection
I
Receptacle and plug assemblies will be shipped pre-assembled with matte and perimeter seals installed means
less handling required, resulting in lower applied costs during the cable assembly operation
I
Positive locking system ensures the connectors are securely mated and prevents accidental un-mating
I
Connectors are molded from UV stabilized materials making system suitable for use in outdoor applications
Mini-Fit BMI
™
(Blind-Mating Interface)
I
Headers and plugs have flanges to “capture” mating connector
I
Blind mating design accommodates mating connector misalignment of 1.27mm (.050”) in any direction
I
Headers are available in vertical and right angle through hole versions, and a vertical compliant pin version
I
Uses existing Mini-Fit crimp terminals
Mini-Fit Plus HCS
™
(High Current System)
I
Plus HCS terminals are for use with standard Mini-Fit plug and receptacles
I
Manufactured from a higher current capable alloy to increase current rating
I
Female terminals feature an elongated mating interface providing more wipe and contact area
I
Uses existing Mini-Fit crimp terminal tooling
Mini-Fit TPA
™
(Terminal Position Assurance)
I
Positive locking system prevents accidental unmating
I
TPA key assures terminals are fully seated in plugs and receptacles
I
TPA key prevents unwanted terminal backouts
I
Accepts standard Mini-Fit crimp terminals
I
Optional plug panel mounting ears
Mini-Fit RTC
™
(Reflow Temperature Capable)
I
Headers are made from LCP material which can withstand lead free reflow temperatures to 265°C
I
Vertical and right angle options
I
Mate with standard Mini-Fit receptacles
Mini-Fit
®
Glow Wire Capable
I
Third party certified to IEC 60335-1
I
Headers, receptacles and plugs are available
I
Over 800 Glow Wire capable part numbers available
Mini-Fit CPI
™
(Compliant Pin Interface)
I
Press-fit pin requires no soldering
I
Blind-mating capabilities
I
Molex press tooling is available
