74058-1014

CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

74058-1014 Online Shopping

Suppliers Part Number Price MOQ In stock
74058-1014 - - View Buy Now

74058-1014 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPOLARIZED, NO.OF SHIELDED CONTACTS: 10, PANEL MOUNTABLE
body width0.669 inch
subject depth0.484 inch
body length1.063 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance13.5 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage750VAC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.3892 N
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.089 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number11
Number of rows loaded6
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing1.143 mm
Plating thickness30u inch
polarization keyPOLARIZED KEY
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts70
UL Flammability Code94V-0
Evacuation force-minimum value.139 N
Base Number Matches1

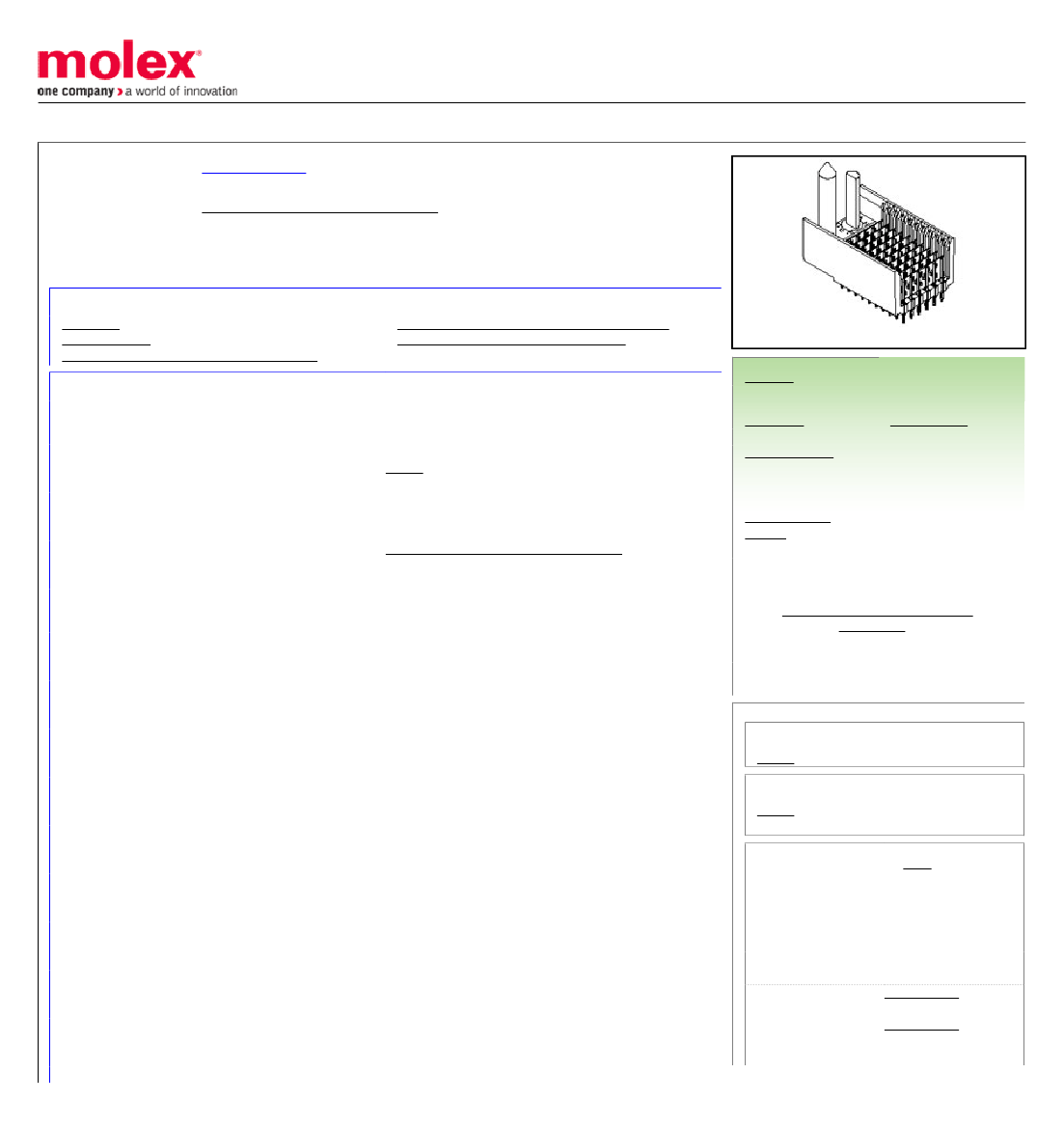

This document was generated on 09/30/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0740581014
Active
VHDM® Backplane Connector Systems
VHDM® Single-Ended Board-to-Board Backplane Header, 2.00mm Pitch, Vertical,
6-Rows, Pin End Version, 60 Circuits, Pin Length 5.15mm. Series:74074 Enables
designers to create custom loaded connectors utilizing standard pin lengths 4.25, 4.75,
5.15 and 6.25mm
Documents:
3D Model
Drawing (PDF)
Product Specification PS-74031-999 (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Application Tooling Documents
Comments
Component Type
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Surface Mount Compatible (SMC)
Packaging Specification PK-74058-003 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
E29179
Backplane Connectors
74058
Backplane
TM-622010999
Keying Position A
PCB Header
VHDM® Backplane Connector Systems
VHDM®
800753260092
60
60
Black
200
No
94V-0
Yes
Yes
Beryllium Copper, High Performance Alloy (HPA),
Stainless Steel
Gold
Matte Tin
High Temperature Thermoplastic
7.950/g
10
Open Pin Field
6
Vertical
2.50mm
No
None
1.80mm
Tube
2.00mm
1.00mm
0.762µm
0.762µm
Yes
Yes
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/21/2016 (20 June
2016)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
Green Image
Not Relevant
Search Parts in this Series
74058 Series
Mates With
74030 VHDM® Board-to-Board
Daughtercard Receptacle
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
6-Row Pin and
0622015800
Shield Repair Tool
Insertion Module
0622020203
for Advanced Mate
Signal Header, 6-
