43020-0600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 43020-0600

43020-0600: DescriptionHeaders u0026 Wire Housings FEMALE TERM 20-24; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

43020-0600 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	43020-0600	-	-	View	Buy Now

43020-0600 Overview

Headers u0026 Wire Housings FEMALE TERM 20-24

43020-0600 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	11 weeks 3 days
Other features	WITH PANEL MOUNT EARS
subject depth	0.665 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	8.0064 N
Insulator color	BLACK
insulator material	POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Shell material	PBT-POLYESTER
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

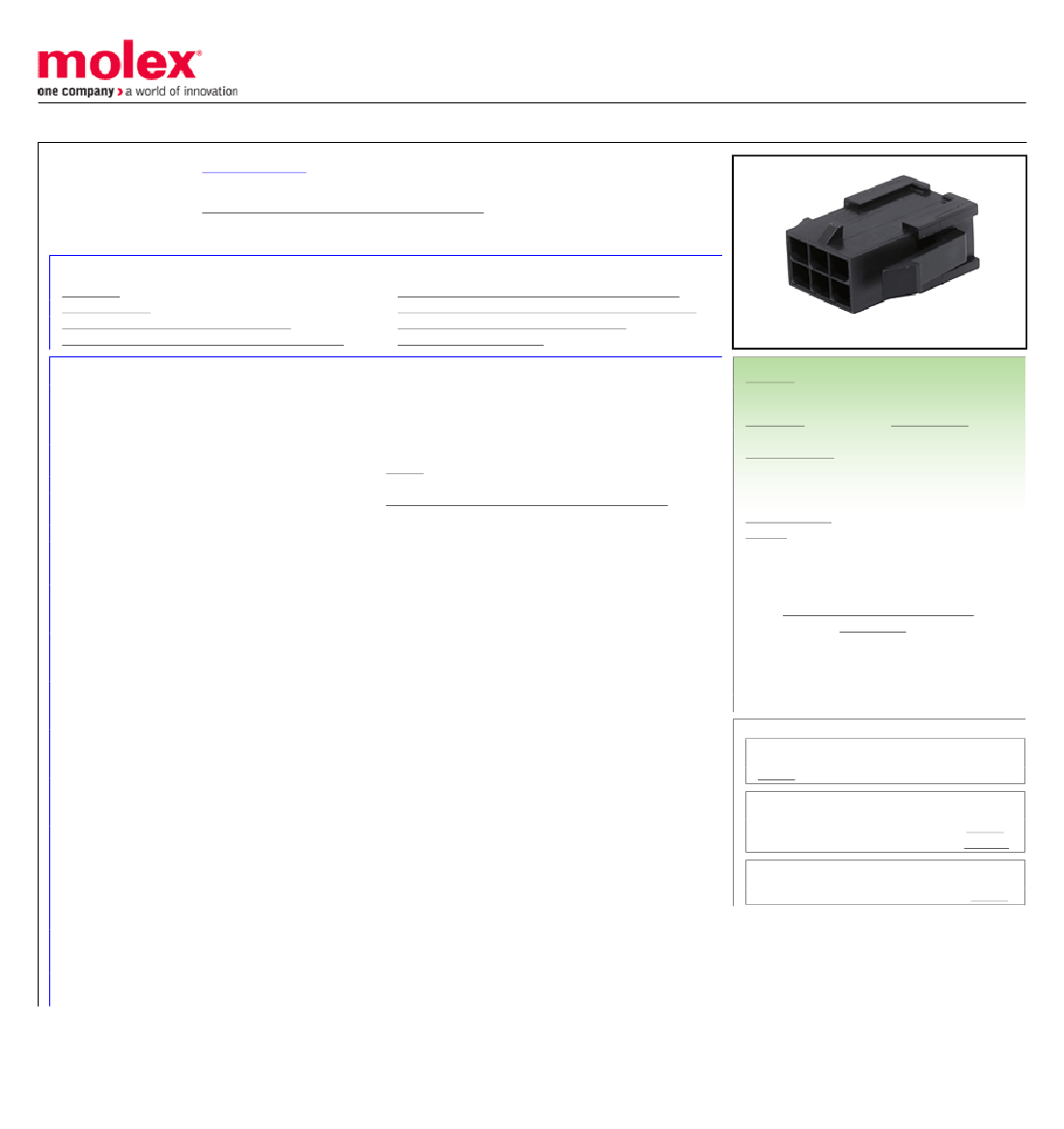

Preview

Download Datasheet

View All

This document was generated on 11/09/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0430200600

Active

Micro-Fit 3.0 Connector System Product Family

Micro-Fit 3.0 Plug Housing, Dual Row, 6 Circuits, UL 94V-0, Panel Mount Ears, Low-

Halogen, Black

Documents:

3D Model

Drawing (PDF)

Product Specification PS-43045 (PDF)

Product Specification TS-43045-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Product Specification TS-46235-001-001 (PDF)

Packaging Specification PK-43020-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Crimp Housings

43020

Power, Wire-to-Wire

Micro-Fit 3.0 Connector System Product Family

987650-5984

Micro-Fit 3.0

800754383356

Black

94V-0

Plug

None

Yes

Nylon

0.912/g

Bag

Yes

3.00mm

Yes

-40°C to +105°C

N/A

Search Parts in this Series

43020 Series

Mates With

Micro-Fit 3.0 Receptacle Housings 43025

<br>Micro-Fit 3.0 Cable Assembly 245132

Use With

Micro-Fit 3.0 Male Crimp Terminals 43031

PK-43020-001-001

PS-43045, TS-43045-001-001, TS-46235-001-001

SDA-43020-****

This document was generated on 11/09/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
