M80-8672605

Description
Development Boards u0026 Kits - ARM 32F746GDISCOVERY Discovery Kit
CategoryThe connector    The connector
File Size59KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric Compare View All

M80-8672605 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-8672605 - - View Buy Now

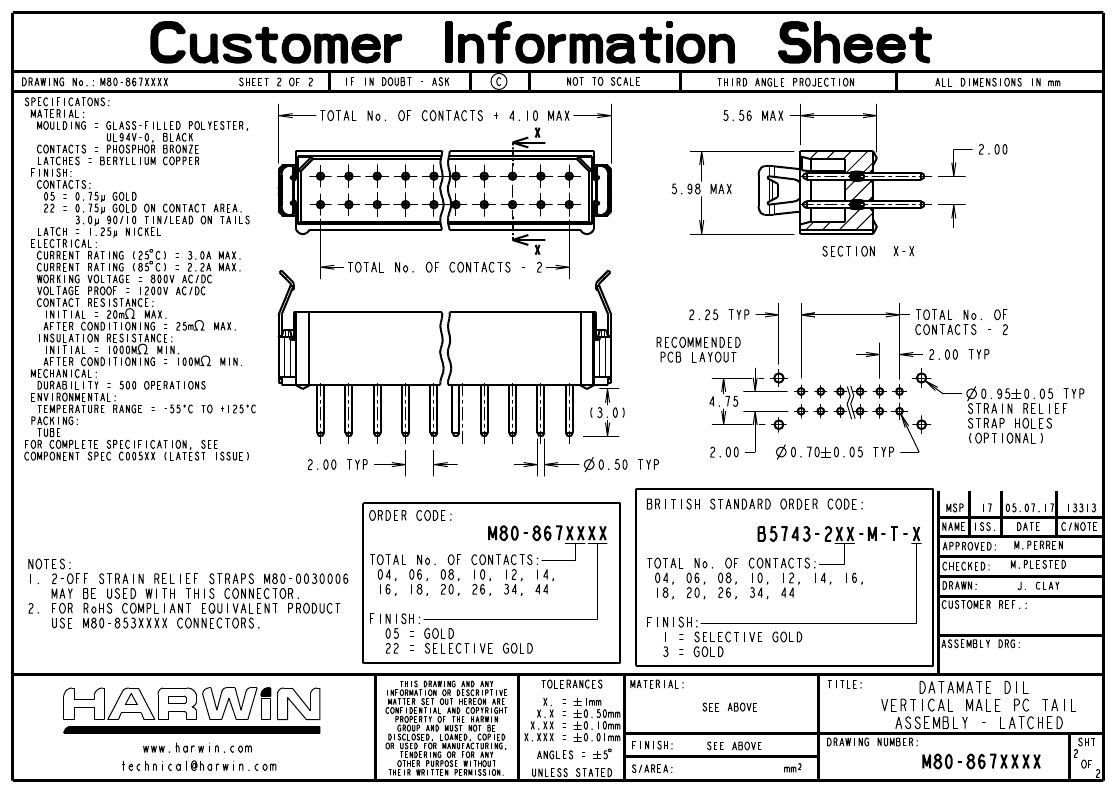

M80-8672605 Overview

Development Boards u0026 Kits - ARM 32F746GDISCOVERY Discovery Kit

M80-8672605 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLATCHED
body width0.235 inch
subject depth0.219 inch
body length1.185 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage360VAC V
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LATCH
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts26
UL Flammability Code94V-0
Base Number Matches1

M80-8672605 Related Products

M80-8672605 B5743-220-M-T-3
Description Development Boards u0026 Kits - ARM 32F746GDISCOVERY Discovery Kit Headers u0026 Wire Housings M80-8672005 DATAMATE MALE VERT
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Reach Compliance Code compliant compliant
Other features LATCHED LATCHED
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated Gold (Au) TIN LEAD
Contact point gender MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
JESD-609 code e4 e0
MIL compliance NO NO
Mixed contacts NO NO
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of rows loaded 2 2
Options GENERAL PURPOSE GENERAL PURPOSE
Termination type SOLDER SOLDER
Total number of contacts 26 20
UL Flammability Code 94V-0 94V-0
