This document was generated on 11/14/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5034894410
Active

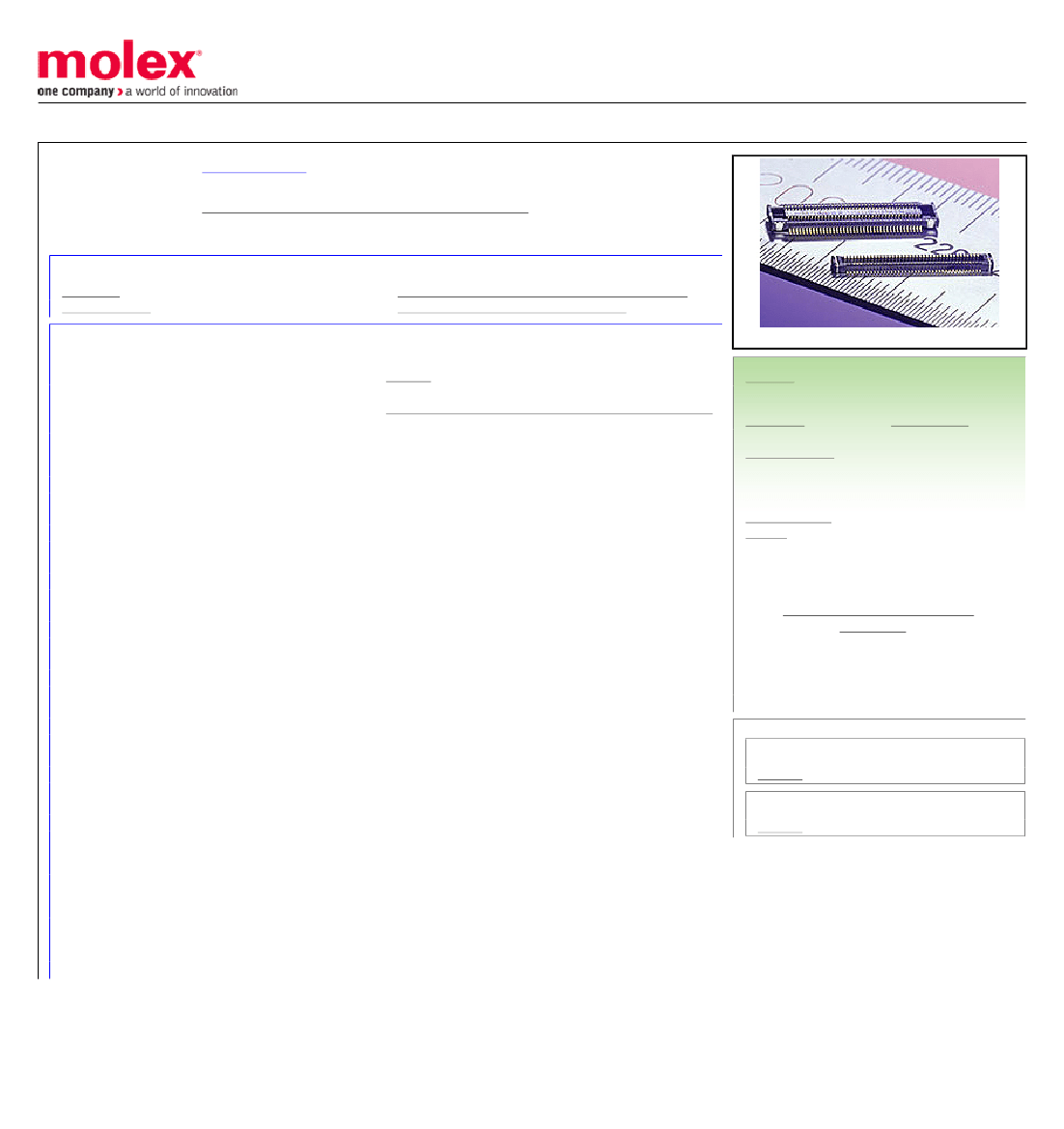

SlimStack™ 0.40mm Pitch Board-to-Board Connectors
0.40mm Pitch SlimStack™ Board-to-Board Receptacle, Surface Mount, Dual Row,
Vertical, 1.00mm Stacking Height, 44 Circuits
Documents:
3D Model
Drawing (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
Product Specification PS-503489-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
PCB Receptacles
503489
Board-to-Board, Signal
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
SlimStack™
884982013919
44
44
Black
30
No
Yes
1.00mm
Copper Alloy
Gold
Gold
33.447/mg
2
Vertical
No
Yes
Embossed Tape on Reel
0.40mm
No
No
No
-20°C to +85°C
Surface Mount
0.3A
50V AC/DC
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/21/2016 (20 June
2016)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
503489 Series
Mates With
503308 PCB Header
PS-503489-001-001
SD-503489-001, SD-503489-002
