Connector Series uses rugged and environmentally sealed (IP68) shells to protect existing APP
®
Powerpole
®
contacts and
housings. Customer configured SPEC Pak
™
Connectors may be used anywhere a rugged and waterproof high-power, signal and ground intercon-
nect solution is required such as in; mass transportation, off-road vehicles, factory automation, oil and petrochemical exploration, agricultural equip-
ment, and many more.
The core APP
®
Powerpole
®
technology within the SPEC Pak
™
is proven reliable and cost effective. The broad selection of touch safe, color-coded
Powerpole
®
housings with power, signal and ground contacts accept a broad range of wire gauges, #24 to #10 AWG (0.25 to 4.0 mm²), giving users
thousands of flexible design solutions in a single interconnect.
1
2
3
4
5
6
7
8
9
10

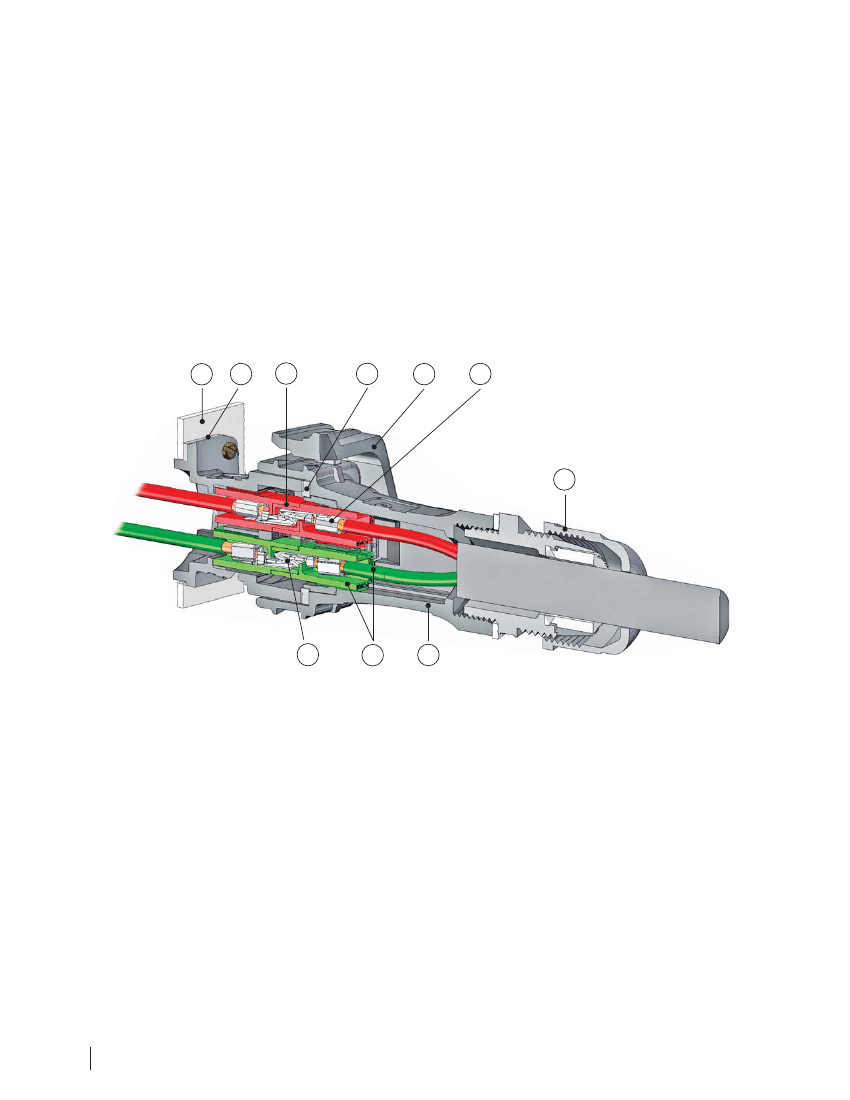

1 - Industry Standard Panel Cut Out
(Same as 26482 & 5015 shell size 20)
6 - Power Contacts
(up to 4) and / or
Signal Contacts
(up to 16)
7 - Uses Industry Standard Sealing Components
(PG gland compatible - size 16)
2 - IP68 Panel Mount Sealing Gasket
3 - Touch Safe Housings
(UL1977, Section 10.2)
4 - IP68 Interfacial Sealing Gasket
5 - Latch
(top or bottom of plug or receptacle)
8 - First Mate / Last Break Ground Contacts
9 - Color Coded Housings Match Wire Colors
10 - UV & Chemical Resistant Ruggedized Shells
-2-
www.andersonpower.com
Specifications
SPEC Pak
™
Shell / Components
Electrical
UL Voltage Rating (AC/DC)
Dielectric Withstanding Voltage (AC)
Operating Temperature (°C)
(°F)
Flammability Rating of SPEC Shells
Mechanical
Shells / Latch Mating Cycles
Connect / Disconnect (lbf)
(N)
1500 Min
12 Max
53 Max
600
3000
-40° to 105°
-40° to 221°
UL 94V-0
Electrical
UL Current Rating (Amperes)
CSA (30°C Rise) (Amperes)
Voltage Rating (AC/DC)
Contact Barrel Wire Size (AWG) - Power
- Ground
(mm²) - Power
- Ground
Average Contact Resistance (micro-ohms)
Contact Retention Force (lbf)
(N)
Operating Temperature (°C)
(°F)
PBT
Nylon
Polycarbonate
Mechanical
Life
Flammability Rating
15 to 40
10 to 26
600
20 to 10
14 to 10
0.5 to 4.0
1.5 to 4.0
600
25
111
-20° to 105°
-4° to 221°
UL94 V-0
Powerpole
®
Power (1327FP Series) &
Ground Contact (1827 Series)
Ratings for SPEC Pak
™
Use
IP Rating
IP68
Sealing Exceeds (IP68), Meets Sealing Requirements of UL50
