158-P02EK381V10-E datasheet, PDF

Datasheet> All Categories > The connector> 158-P02EK381V10-E

158-P02EK381V10-E: DescriptionHeaders u0026 Wire Housings 2MM STRT PIN HDR 2P SMT GOLD; CategoryThe connector; File Size62KB，1 Pages; ManufacturerKobiconn

Download Datasheet Parametric Compare View All

158-P02EK381V10-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	158-P02EK381V10-E	-	-	View	Buy Now

158-P02EK381V10-E Overview

Headers u0026 Wire Housings 2MM STRT PIN HDR 2P SMT GOLD

158-P02EK381V10-E Parametric

Parameter Name	Attribute value
Product Category	Fixed Terminal Blocks
Manufacturer	Kobiconn
RoHS	Details
Number of Positions	10 Position
Pitch	3.81 mm
Current Rating	12 A
Voltage Rating	300 V
Mounting Method	-
Packaging	Bulk
Product	Fixed Terminal Blocks
Factory Pack Quantity	1
Termination Style	Through Hole
Wire Gauge Max	16 AWG
Wire Gauge Min	30 AWG

Preview

Download Datasheet

View All

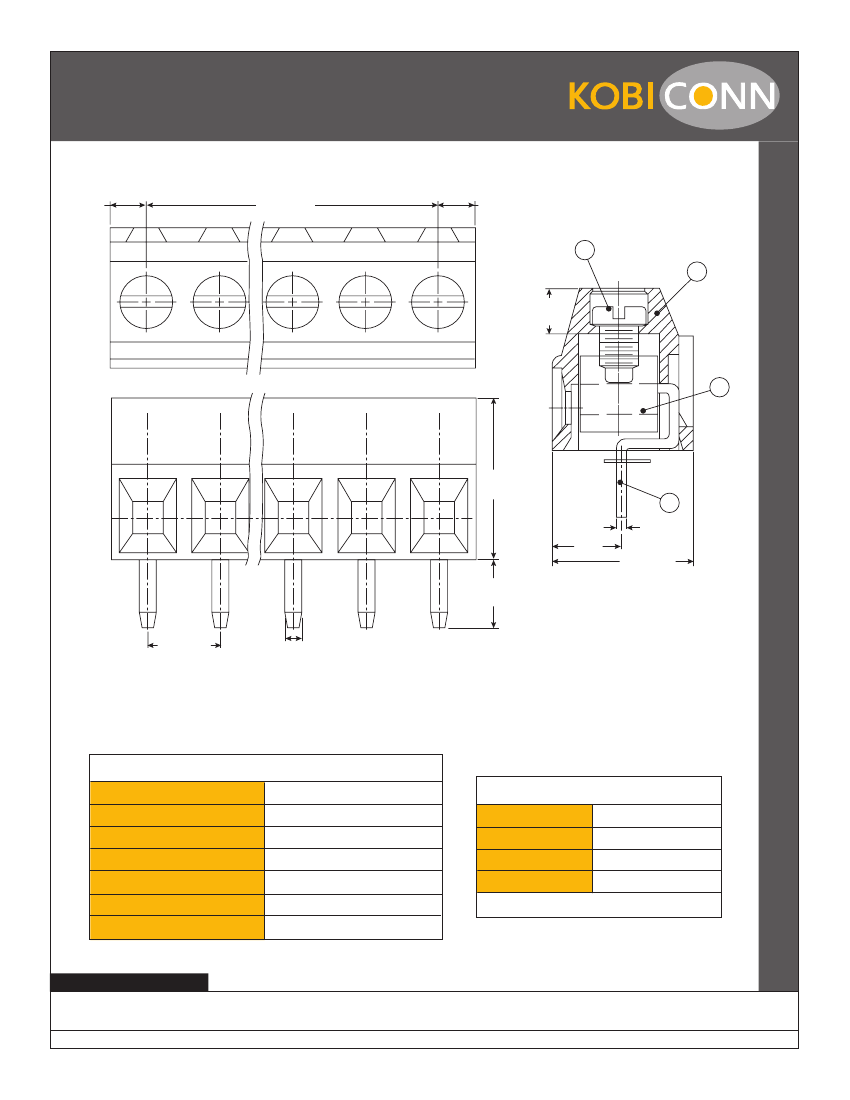

Terminal Blocks

158-P02EK381V2-E, 158-P02EK381V3-E, 158-P02EK381V4-E, 158-P02EK381V5-E,

158-P02EK381V6-E, 158-P02EK381V7-E, 158-P02EK381V8-E, 158-P02EK381V9-E,

158-P02EK381V10-E, 158-P02EK381V11-E, 158-P02EK381V12-E

Terminal Blocks

1.91

(.075)

3.81x(P-1)

(.15x(P-1))

1.91

(.075)

2.35

(.093)

158-P02EK381V2-E, 158-P02EK381V3-E, 158-P02EK381V4-E, 158-P02EK381V5-E,

158-P02EK381V6-E, 158-P02EK381V7-E, 158-P02EK381V8-E, 158-P02EK381V9-E,

158-P02EK381V10-E, 158-P02EK381V11-E, 158-P02EK381V12-E

8.50

(.335)

3.60

(.142)

3.50±.30

(.138±.01)

3.81±.08

(.15±.003)

.50±.05

(.02±.002)

7.40 (.291)

Section A-A

.90±.10

(.035±.004)

Dimensions: mm (in.)

SPECIFICATIONS

Rating:

PITCH:

Insulation withstands voltage:

Insulation resistance:

Temperature range:

Screw torque value:

Electric wire:

300V 12A

3.81mm

AC 1500V/Min

500MΩ or more at DC500V

-40°C~+105°C

2kgf-cm

AWG 16~22

MATERIAL SPECIFICATIONS

Wire cage (4):

Screw (3):

Solder pin (2):

Housing (1):

brass M2/Ni plated

steel M2/Zn plated

copper tin plated

PA66 green

RoHS Compliant

Date Last Revised: 3-7-07

Available from Mouser Electronics

1-800-346-6873 / www.mouser.com

KC-300992

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
