DSS-4832-561R: DescriptionGeneral Purpose Inductor, 560uH, 20%, 1 Element, SMD,; CategoryPassive components inductor; File Size177KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

DSS-4832-561R Overview

General Purpose Inductor, 560uH, 20%, 1 Element, SMD,

DSS-4832-561R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	1.07 Ω
Nominal inductance(L)	560 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DSS-4832
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

TransformingMagnetics

SwitchmodePower

Surface Mount Drum Core

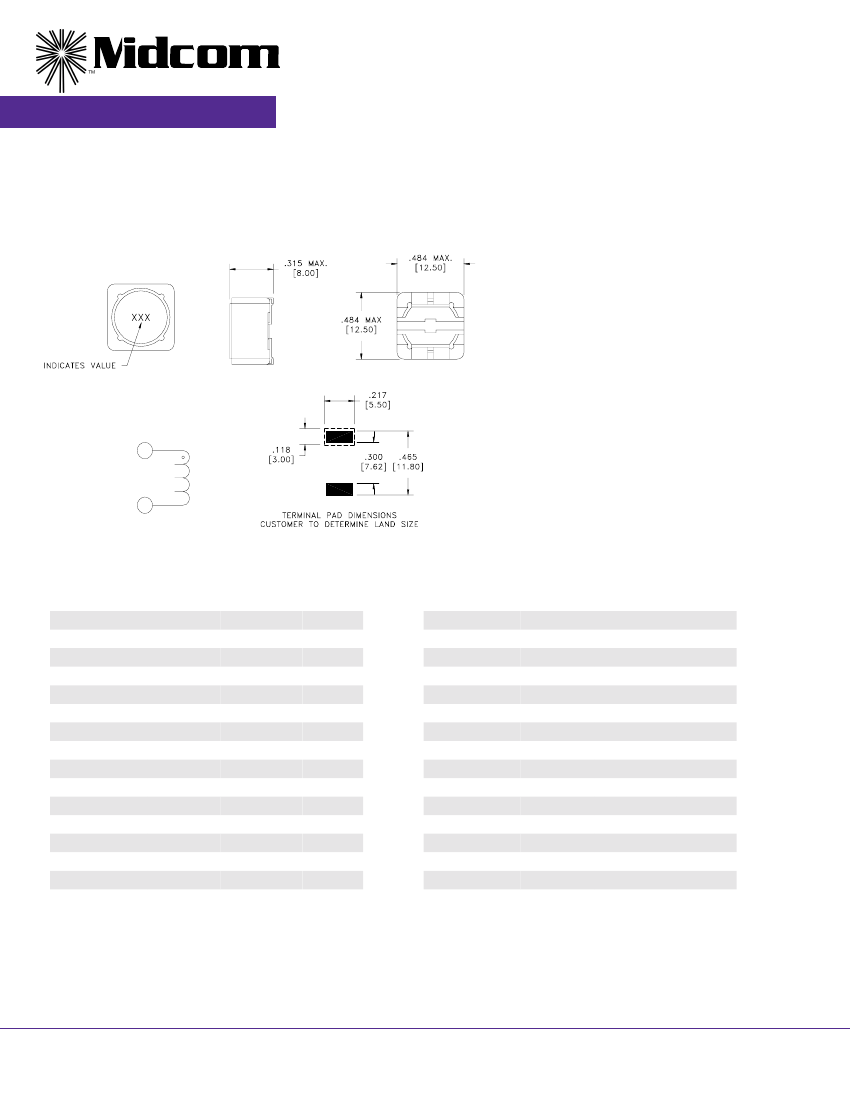

Power Inductors: DSS-4832 Series

Features

• Magnetically shielded, SMD power

inductors

• Small footprint with low-profile package

• Inductance range: 1.2 uH to 1000 uH

• Saturating current to 9.8ADC

• DC Resistances as low as 0.007 Ohms

• High energy storage capability

• Flat top for pick and place operations

• Tape and reel packaging for automatic

handling

Applications

• DC/DC Converters, high efficiency

shielded applications

• Second stage filters

Environmental Specifications

• Operating temperature range: -40°C to

85°C

• Storage temperature range: -50° to

+125°C

Packaging

• DSS-4832 is packaged 500 pieces per

reel

P a rt N u m b e r

D S S -4 8 3 2 -1 R 2 R

D S S -4 8 3 2 -2 R 4 R

D S S -4 8 3 2 -3 R 5 R

D S S -4 8 3 2 -4 R 7 R

D S S -4 8 3 2 -6 R 1 R

D S S -4 8 3 2 -7 R 6 R

D S S -4 8 3 2 -1 0 0 R

D S S -4 8 3 2 -1 2 0 R

D S S -4 8 3 2 -1 5 0 R

D S S -4 8 3 2 -1 8 0 R

D S S -4 8 3 2 -2 2 0 R

D S S -4 8 3 2 -2 7 0 R

D S S -4 8 3 2 -3 3 0 R

D S S -4 8 3 2 -3 9 0 R

D S S -4 8 3 2 -4 7 0 R

D S S -4 8 3 2 -5 6 0 R

I n d u c ta n c e

u H + /- 2 0 %

1 .2 0

2 .4 0

3 .5 0

4 .7 0

6 .1 0

7 .6 0

1 0 .0 0

1 2 .0 0

1 5 .0 0

1 8 .0 0

2 2 .0 0

2 7 .0 0

3 3 .0 0

3 9 .0 0

4 7 .0 0

5 6 .0 0

(N o te 1 )

DCR

(o h m s m a x)

0 .0 0 70

0 . 0 11 5

0 .0 1 35

0 .0 1 58

0 .0 1 76

0 .0 2 00

0 .0 2 16

0 .0 2 43

0 .0 2 70

0 .0 3 92

0 .0 4 32

0 .0 4 59

0 .0 6 48

0 .0 7 29

0 .1 0 0

0 . 11 0

(N o te 2 )

Is a t

(A d c m a x)

9 .8 0

8 .0 0

7 .5 0

6 .8 0

6 .6 0

5 .9 0

5 .4 0

4 .9 0

4 .5 0

3 .9 0

3 .6 0

3 .4 0

3 .0 0

2 .7 5

2 .5 0

2 .3 5

P art N u m b er

D S S -4 8 3 2 -6 8 0 R

D S S -4 8 3 2 -8 2 0 R

D S S -4 8 3 2 -1 0 1 R

D S S -4 8 3 2 -1 2 1 R

D S S -4 8 3 2 -1 5 1 R

D S S -4 8 3 2 -1 8 1 R

D S S -4 8 3 2 -2 2 1 R

D S S -4 8 3 2 -2 7 1 R

D S S -4 8 3 2 -3 3 1 R

D D S -4 8 3 2 -3 9 1 R

D D S -4 8 3 2 -4 7 1 R

D D S -4 8 3 2 -5 6 1 R

D D S -4 8 3 2 -6 8 1 R

D D S -4 8 3 2 -8 2 1 R

D D S -4 8 3 2 -1 0 2 R

I n d u c ta n c e

u H + /- 2 0 %

6 8 .0 0

8 2 .0 0

1 0 0 .0 0

1 2 0 .0 0

1 5 0 .0 0

1 8 0 .0 0

2 2 0 .0 0

2 7 0 .0 0

3 3 0 .0 0

3 9 0 .0 0

4 7 0 .0 0

5 6 0 .0 0

6 8 0 .0 0

8 2 0 .0 0

1 0 0 0.0 0

(N o te 1 )

DCR

(o h m s m a x)

0 .1 4 0

0 .1 6 0

0 .2 2 0

0 .2 5 0

0 .2 8 0

0 .3 5 0

0 .3 9 0

0 .5 6 0

0 .6 4 0

0 .7 0 0

0 .9 8 0

1 .0 7

1 .4 6

1 .6 4

1 .8 2

(N o te 2 )

Is a t

(A d c m a x)

2 .10

1 .9 5

1 .7 0

1 .6 0

1 .4 2

1 .3 0

1 .1 6

1 .0 6

0.9 5 0

0.8 8 0

0.7 9 0

0.9 3 0

0.6 7 0

0.6 0 0

0.5 5 0

NOTES:

1 DCR limits at 20

2 Saturating DC current for approximately 35% rolloff from initial inductance

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are ± .010/0,25 and electrical specifications are @ 25°C unless otherwise specified.

2/12/04

Midcom, Inc. USA

121 Airport Drive - PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

www.midcom.com.cn ~ email:sye@midcom-inc.com

DSS-4832-561R Related Products

	DSS-4832-561R	DSS-4832-681R	DSS-4832-471R	DSS-4832-391R	DSS-4832-821R	DSS-4832-102R
Description	General Purpose Inductor, 560uH, 20%, 1 Element, SMD,	General Purpose Inductor, 680uH, 20%, 1 Element, SMD,	General Purpose Inductor, 470uH, 20%, 1 Element, SMD,	General Purpose Inductor, 390uH, 20%, 1 Element, SMD,	General Purpose Inductor, 820uH, 20%, 1 Element, SMD,	General Purpose Inductor, 1000uH, 20%, 1 Element, SMD,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	1.07 Ω	1.46 Ω	0.98 Ω	0.7 Ω	1.64 Ω	1.82 Ω
Nominal inductance(L)	560 µH	680 µH	470 µH	390 µH	820 µH	1000 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DSS-4832	DSS-4832	DSS-4832	DSS-4832	DSS-4832	DSS-4832
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	20%	20%	20%	20%	20%	20%
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	-	Wurth Elektronik
Base Number Matches	1	1	1	1	1	-
