1842429 Overview

Isolated DC/DC Converters

1842429 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	PBT, 94V-0
Fastening method	PLUG IN
Manufacturer's serial number	1842429
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	8
Rated current	10 A
Rated voltage	250 V
safety certificate	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1842429

Base strip - MDSTB 2,5/ 8-GF-5,08 - 1842429

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 10 A, Rated voltage (III/2): 320 V, Number of positions: 8, Pitch: 5.08 mm, Color: green,

Contact surface: Tin, Assembly: Soldering, The article can be aligned to create different nos. of positions! In

combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or

FKCVR) must be used. Combination with TMSTBP plug components is not possible!

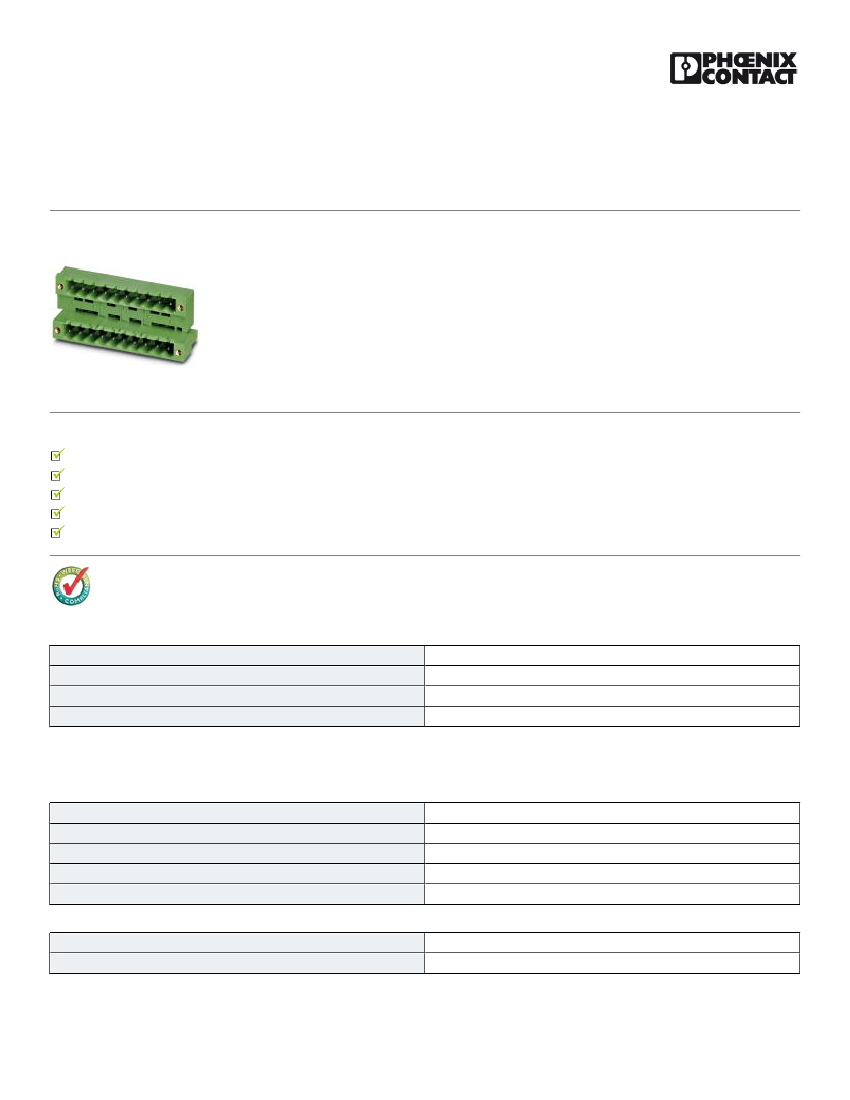

The figure shows a 10-pos. version

with 20 contacts

Product Features

Double-level header with offset levels

Plug-in direction parallel to the PCB

High contact density

Improved view and access to lower level

Add-on ejectors for high-pos. connectors should be mounted to the left and right

Key commercial data

Packing unit

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

16.79 GRM

85366990

Germany

Technical data

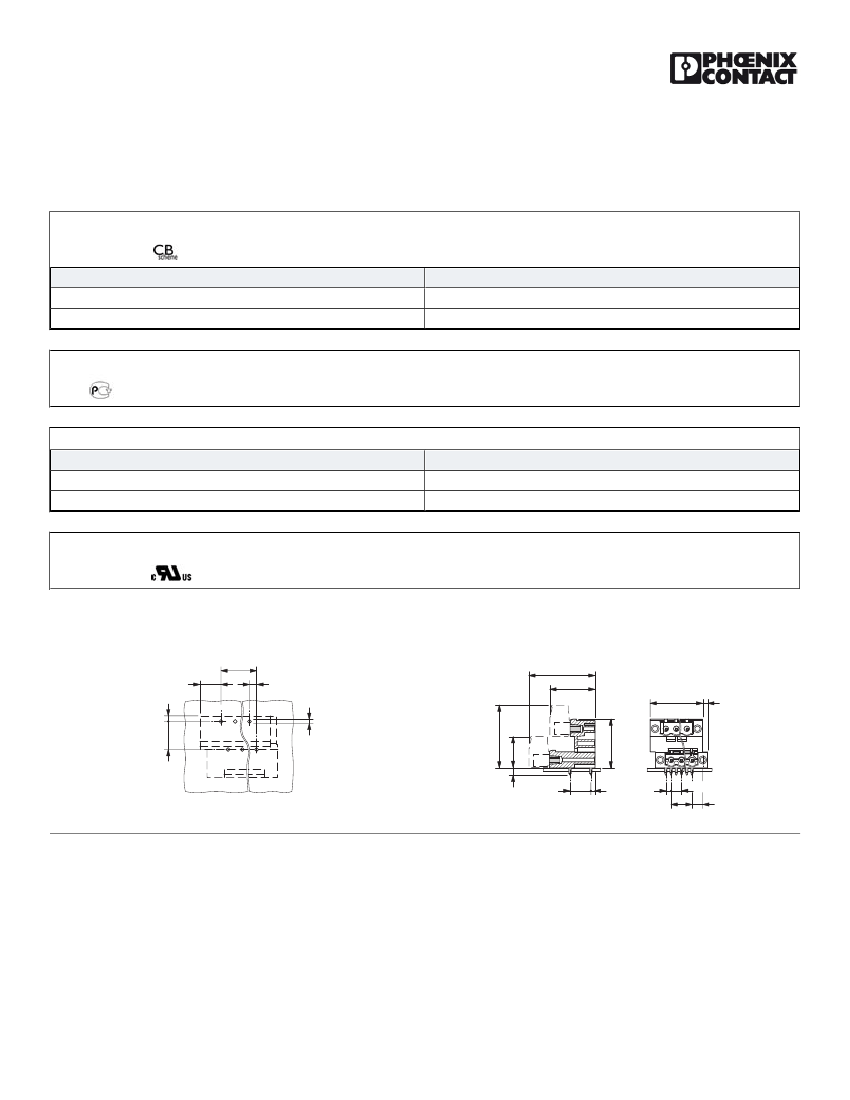

Dimensions

Length

Pitch

Dimension a

Pin dimensions

Hole diameter

22.1 mm

5.08 mm

35.56 mm

1 x 1 mm

1.4 mm

General

Range of articles

Insulating material group

MDSTB 2,5/..-GF

10/28/2014 Page 1 / 4
