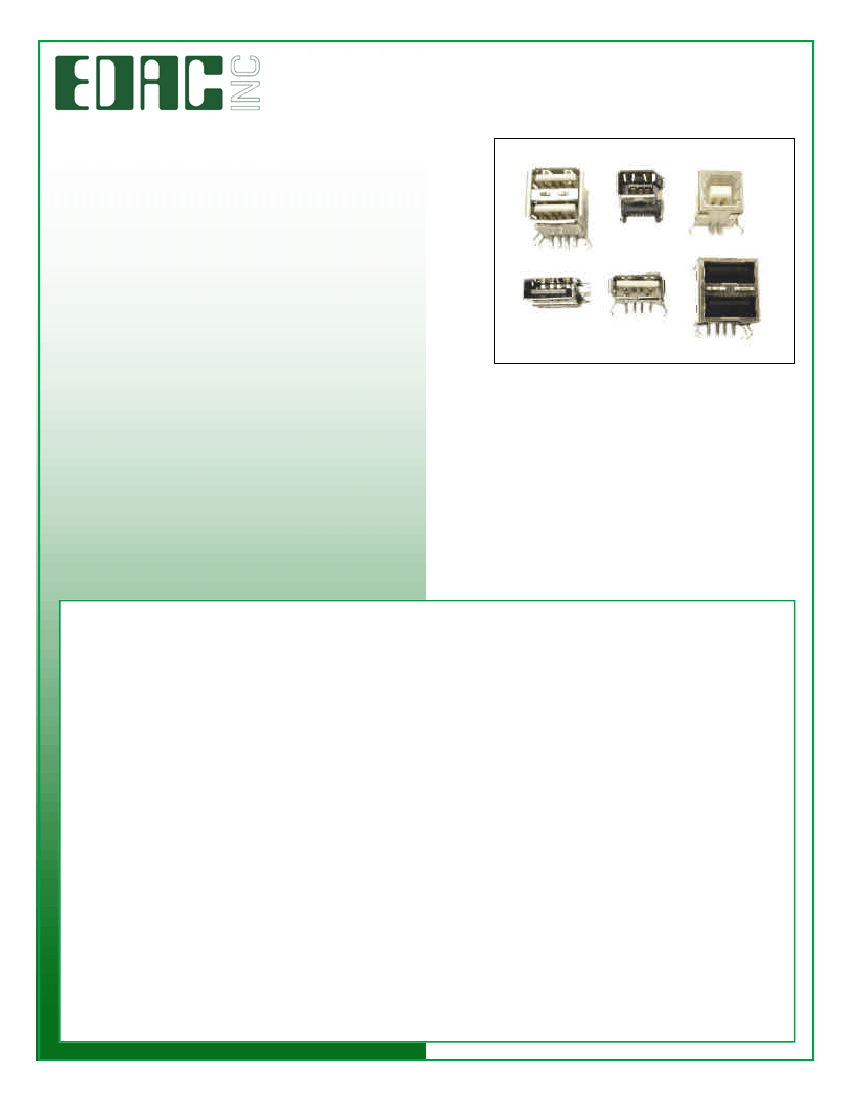

SERIES 690 / 693
USB AND IEEE 1394
Edac series 690 USB (Universal Serial Bus) and series 693
(IEEE1394) connectors are industry-standard data transfer
devices used to interconnect computers to peripheral de-
vices such as scanners and printers. A wide variety of
styles are available including right angle, vertical, and a
unique right angle vertical that minimizes board space.
USB products are compatible with asynchronous and
isochronous data transfer methods up to 1.2 Mbps and util-
ize plug and play technology. Edac manufactures both USB
and IEE1394 connectors in through-hole or SMT board
styles as well as molded cable assemblies for USB A, B,
mini-USB and IEEE variations (see cable series 628 and
table below). Edac can also manufacture USB units
stacked with RJ45s (with or without LEDs) on special order.
SPECIFICATIONS
•
•
•
•
•
•
•
•
USB 1.1 or USB 2.0 available
Minimum mating cycles: 1500 per EIA 364-09
Insulator Housing: UL 94V-0 thermoplastic
Contact Material: P Bronze (USB), Copper Alloy (1394)
Contact Plating: Gold Flash or Gold Plate over nickel
Contact Resistance: 30 milliohms maximum
Insulation Resistance: 100 megaohms minimum
Current Rating: 1 amp maximum under 30 degrees C
•
•
•
•
•
Voltage Rating: 30 volts AC rms maximum
DW Voltage: 750 vac@0asl (USB), DC500 (1394)
Shield Housing: copper alloy
Mate/Un-mate: 35/10 Newtons per EIA 364-13
Temperature Range -55 to +85 degrees C
Popular styles are stocked by our authorized
distributors worldwide. Factory minimum order
quantity (MOQ) is 1,000 pieces per item.
ORDERING CODE
•
•
•
•
SAMPLE PART NUMBER:
693-006-620-003
693 = Series Number:
690 = USB (1.1 or 2.0), 693 = IEEE 1394a Standard
006 = Number of contacts:
004 = single jack USB; 006 = single jack IEEE 1394a; 008 = dual stacked USB
type A; 012 = triple stacked USB type A
6 = Gold thickness:
2 = gold flash (standard for original USB). 3 = 15u gold plate (USB 1.1 only), 6 = 30u
gold plate (mandatory for series 693 to meet IEEE 1394a specification; also mandatory for USB 2.0).
20 = Contact Orientation:
FOR SERIES 690:
21 = Right angle contacts (jack face 90 degrees from PCB
and parallel to board). 60 = vertical contacts (jack face 180 degrees from PCB), 61 = Right angle vertical
(jack face 90 degrees from PCB and vertical to board), 99 = surface mount right angle contacts.
FOR SERIES 693:
20 = Right angle contacts (jack face 90 degrees from PCB and parallel to board). 21 =
Right angle vertical (jack face 90 degrees from PCB and vertical to board), 22 = vertical contacts (jack face
180 degrees from PCB), 99 = surface mount right angle contacts.
003 = Connector Type:
003 = IEEE 1394a, 013 = USB Type A, 023 = USB Type B, 033 = Miniature USB
Type A, 043 = Miniature USB Type B
Popular cable assembles (all connectors are male):
628-000-940 = USB A to Mini USB A x 1 meter
628-000-906-1 = IEEE1394a both ends x 0.7meter
628-000-942 = USB A to USB A x 1.8 meters
628-000-906-2 = IEEE1394a both ends x 2.0 meters
628-000-943 = USB A to USB B x 1.8 meters
628-000-906-3 = IEEE1394a both ends x 4.5 meters
628-000-944 = USB B to USB B x 1.8 meters
628-000-906-4 = IEEE1394a both ends x 10.0 meters
•
•
Copyright © 2004 Edac Inc. All rights reserved
www.edacelco.de
Sheet D-6903
