1.5
+0.2
- 0.1
Board
Receptacle
●
Board-to-FPC Application
Plug
FPC
1.5
+0.2
- 0.1
Receptacle
Board
■

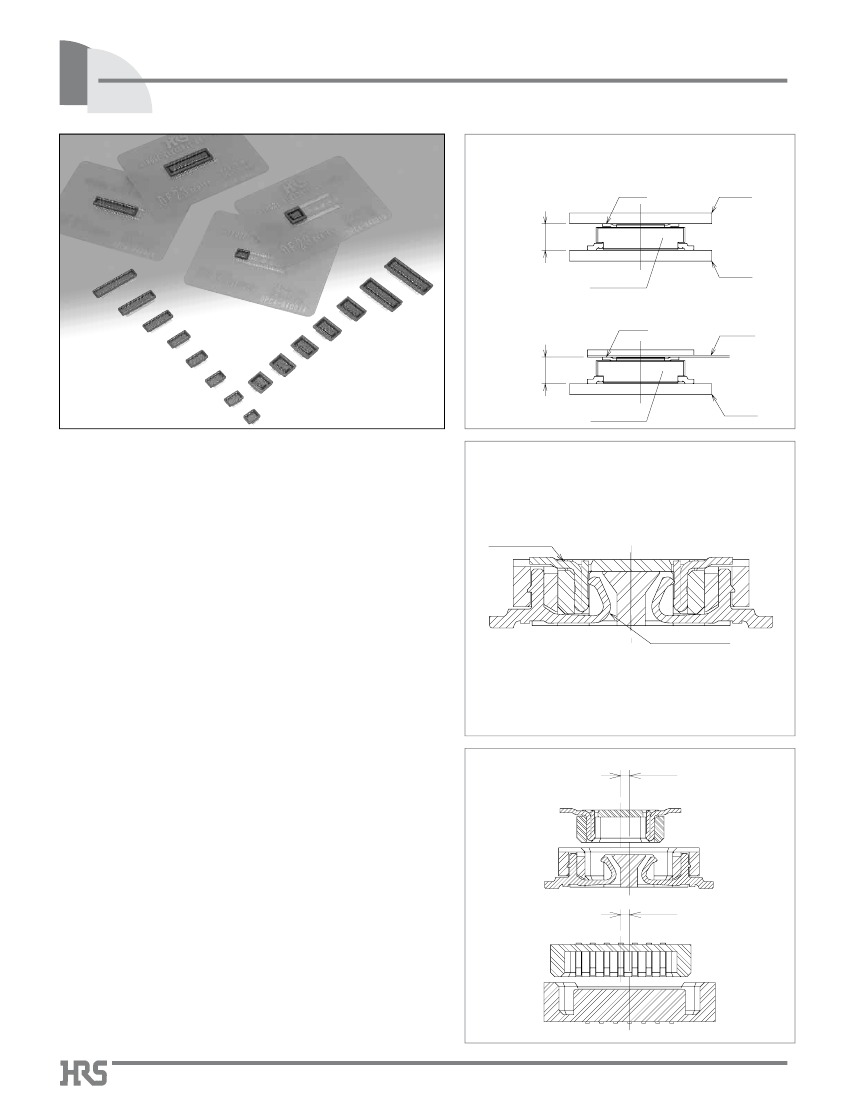

Features
High Contact Reliability
1. Low profile
The 1.5 mm board-to-board distance makes these
connectors ideal for limited space applications.
2. Large variety of number of contacts
Available with 10, 12, 14, 16, 18, 20, 30, 40, 50, and 60
contacts.
Connectors with 10 to 20 contacts are ideal for use in
small LCD connections in cellular phones, PDA’s, video
equipment, photo cameras and miniature of other
devices requiring reliable connections in a small spaces.
Male contact
Female contact
3. Click sensation
Positive click sensation when completely mated confirms
correct insertion and connection of all contacts.
4. High contact reliability
Although connectors are low profile, the female contacts
maintain reliable spring force assuring secure electrical
contact.
Large Self-alignment
0.3
5. Large self-alignment
The large range of alignment of 0.3 mm allows for
smooth insertion.
6. Board placement with automatic equipment
Flat surfaces allows placement of embossed tape
packaged connectors with vacuum nozzles.
■
Applications
Mobile phones, PDA’s, notebook PC’s, digital cameras and
other miniature devices.
0.3
A238
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Frequency of 10 to 55 Hz, single amplitude of 0.75 mm, in 3
directions for 2 hours
Temperature of 40
ç±
2
ç
, humidity of 90% to 95%, 96 hours
(-55
ç
: 30minutes
/
5 to 35
ç
: 10minutes
/
85
ç
: 30minutes
/
5 to 35
ç
: 10minutes ) for 5 cycles
50 cycles (mating/unmating)
Reflow: At recommended temperature profile
Manual soldering: Soldering iron temperature 300°C, for 3 seconds
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5. Humidity
6. Temperature cycle
7. Durability
8. Resistance to
soldering heat
Note 1: Includes temperature rise caused by the current flow.
Note 2: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
■Materials
Item
Receptacles
Plugs
Part
Insulator
Contacts
Material
LCP
Phosphor bronze
Finish
Color : Black
Gold plated
Remarks
UL94V-0
----------
■Ordering
information
●Receptacles/Plugs
DF23 C -
*
DS - 0.5 V (
* *
)
1
1
2
3
4
Series name: DF23
Metal fitting & Locating boss type
C: Without metal fittings, without Locating boss
Number of contacts: 10, 12, 14, 16, 18, 20, 22, 30, 40, 50, 60
Connector type
DS: Double-row receptacle
DP: Double-row plug
2
3
4
5
6
5
6
7
Contact pitch: 0.5mm
Terminal type
V: Straight SMT

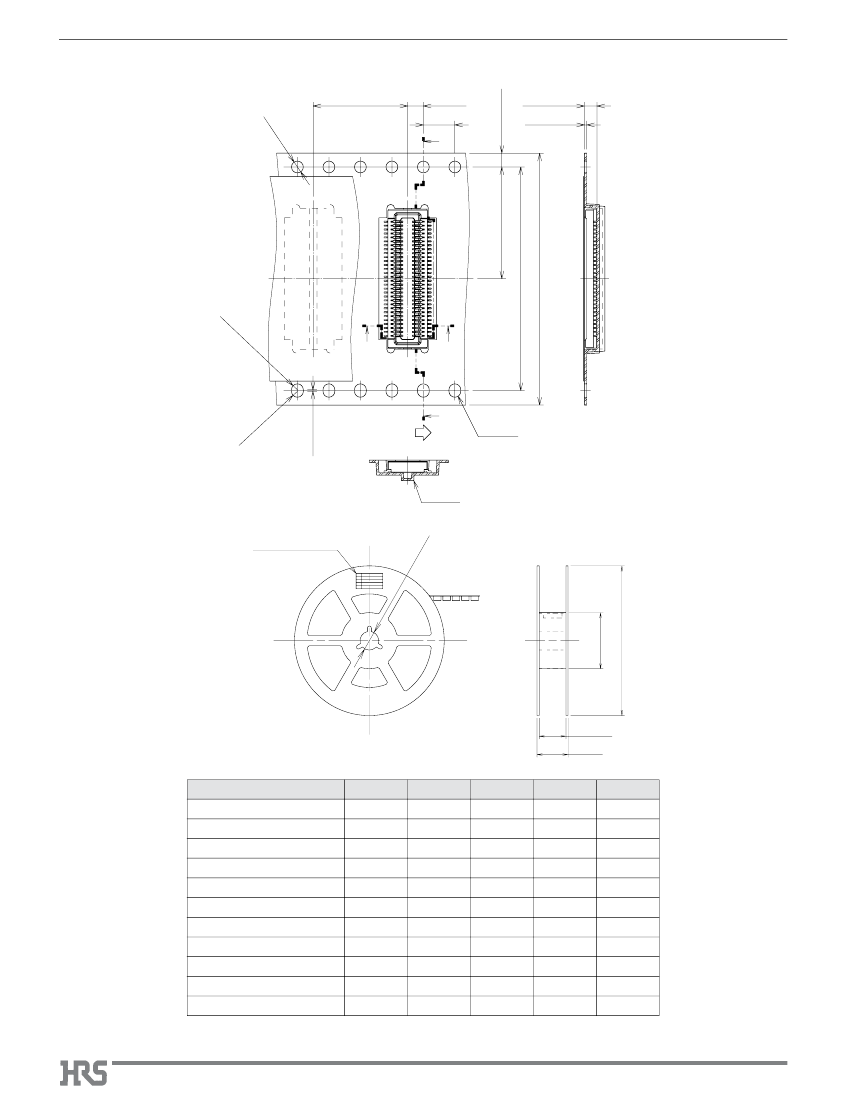

Packaging type
Receptacle(51): Embossed tape packaging (2,000 pieces per reel)
Receptacle(53): Embossed tape packaging (3,000 pieces per reel)
Plug(92): Embossed tape packaging (2,000 pieces per reel)
Plug(91): Embossed tape packaging (3,000 pieces per reel)
7
A239
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

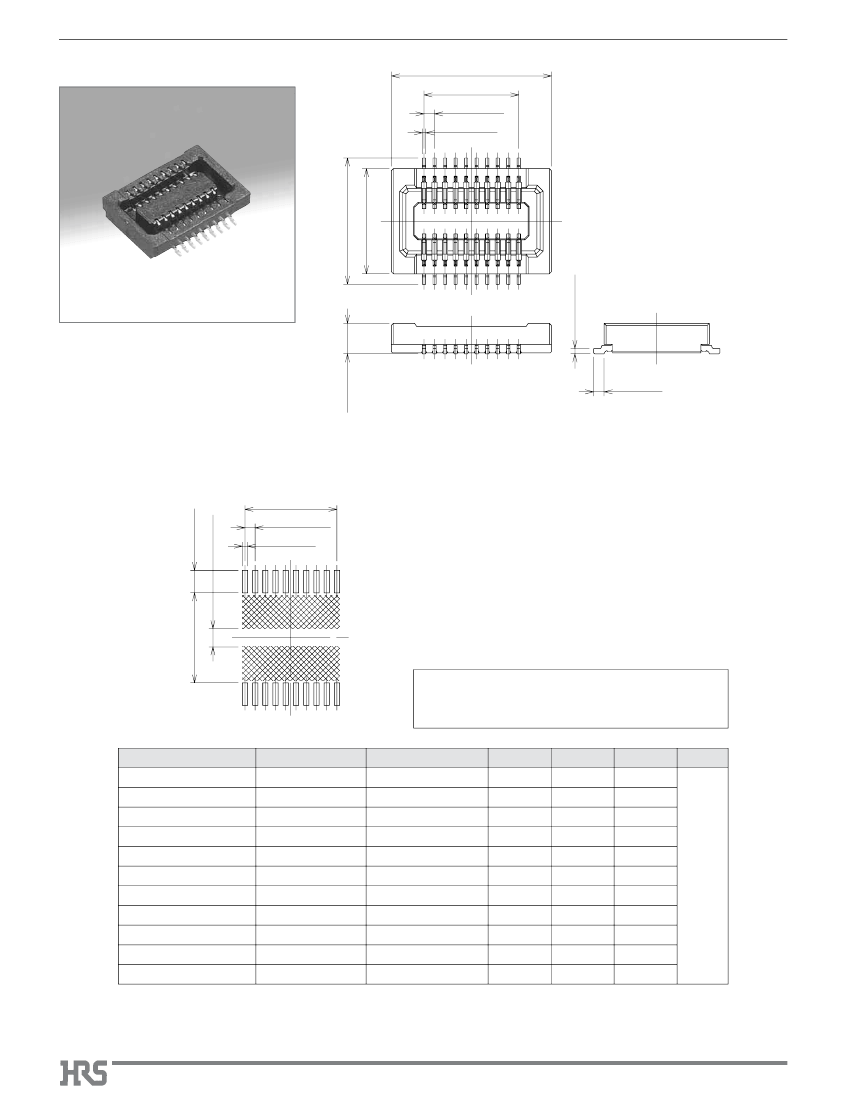

5±0.2
1.45±0.1
0.25±0.05
0.5±0.1
BRecommended
PCB Footprints
B±0.03
1.1±0.05
0.9±0.05
P=0.5±0.02
0.25±0.02
4.4±0.05
Note: Shaded area should be free of any conductive
traces.
[Packaging/
quantity per reel code] -
* *,
(*
*)
(51): Embossed tape packaging (2,000 pieces per reel)
(53): Embossed tape packaging (3,000 pieces per reel)
Unit: mm
Product No.
DF23C-10DS-0.5V(**)
DF23C-12DS-0.5V(**)
DF23C-14DS-0.5V(**)
DF23C-16DS-0.5V(**)
DF23C-18DS-0.5V(**)
DF23C-20DS-0.5V(**)
DF23C-22DS-0.5V(**)
DF23C-30DS-0.5V(**)
DF23C-40DS-0.5V(**)
DF23C-50DS-0.5V(**)
DF23C-60DS-0.5V(**)
CL No.
CL688-0306-9-**
CL688-0309-7-**
CL688-0300-2-**
CL688-0307-1-**
CL688-0308-4-**
CL688-0301-5-**
CL688-0310-6-**
CL688-0302-8-**
CL688-0303-0-**
CL688-0304-3-**
CL688-0305-6-**
Number of Contacts
10
12
14
16
18
20
22
30
40
50
60
A
05.1
05.6
06.1
06.6
07.1
07.6
08.1
10.1
12.6
15.1
17.6
B
02.0
02.5
03.0
03.5
04.0
04.5
05.0
07.0
09.5
12.0
14.5
(Note 1)
(Note 2)
(Note 1)
(Note 2)
(Note 1)
(Note 1)
(Note 1)
(Note 1)
YES
(Note 2)
Remarks
RoHS
Note
Note
Note
Note
1:
2:
3:
4:
Available in code (51) only.
Available in code (53) only.
Contact Hirose for availability.
Please order embossed tape packaging items by the reel.
A240
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

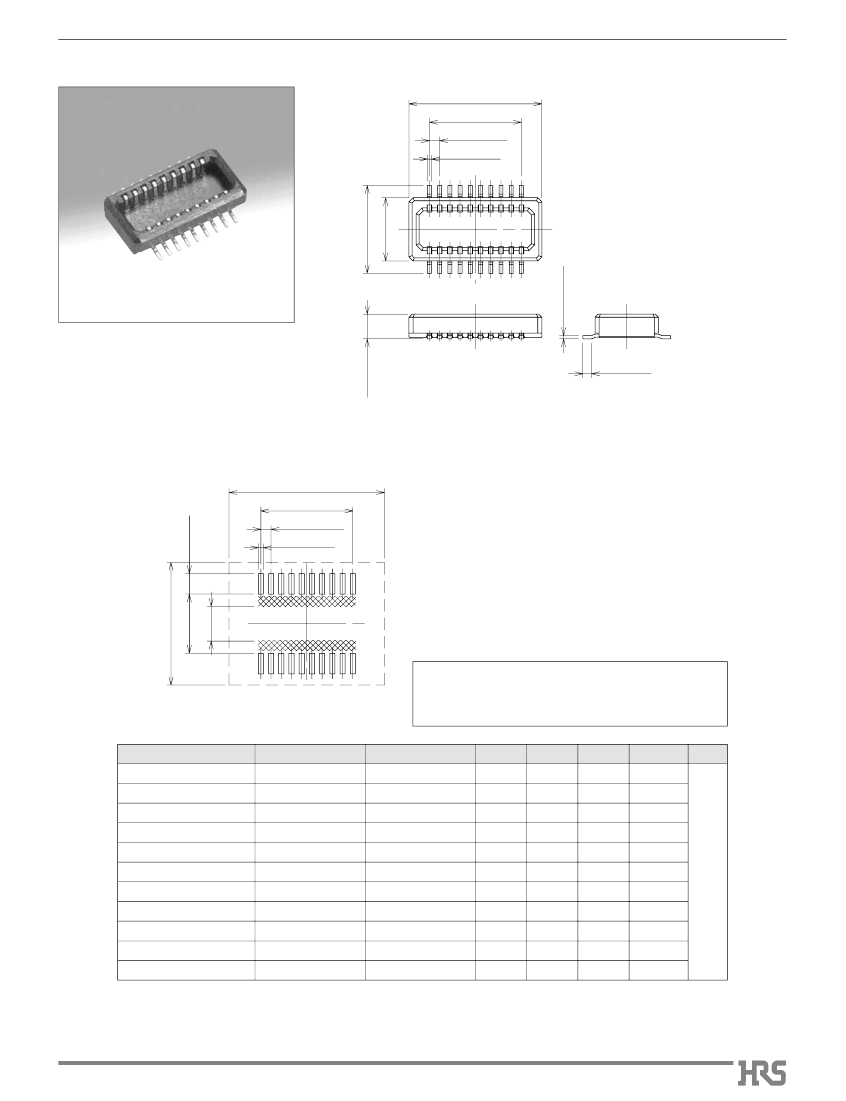

3.1±0.15
4.3±0.2
1.2±0.1
0.15±0.05
0.45±0.1
BRecommended
PCB Footprints
C
B±0.03
1±0.05
P=0.5±0.02
0.25±0.02
Note 1: Shaded area should be free of any conductive
traces.
Note 2: Do not leave any conductive traces or install
components in this area.
2.9±0.05
0
1.7
-0.1
6
[Packaging/
quantity per reel code] -
* *,
(*
*)
(92): Embossed tape packaging (2,000 pieces per reel)
(91): Embossed tape packaging (3,000 pieces per reel)
Unit: mm
Product No.
DF23C-10DP-0.5V(**)
DF23C-12DP-0.5V(**)
DF23C-14DP-0.5V(**)
DF23C-16DP-0.5V(**)
DF23C-18DP-0.5V(**)
DF23C-20DP-0.5V(**)
DF23C-22DP-0.5V(**)
DF23C-30DP-0.5V(**)
DF23C-40DP-0.5V(**)
DF23C-50DP-0.5V(**)
DF23C-60DP-0.5V(**)
CL No.
CL688-0806-1-**
CL688-0809-0-**
CL688-0800-5-**
CL688-0807-4-**
CL688-0808-7-**
CL688-0801-8-**
CL688-0810-9-**
CL688-0802-0-**
CL688-0803-3-**
CL688-0804-6-**
CL688-0805-9-**
Number of Contacts
10
12
14
16
18
20
22
30
40
50
60
A
04.0
04.5
05.0
05.5
06.0
06.5
07.0
09.0
11.5
14.0
16.5
B
02.0
02.5
03.0
03.5
04.0
04.5
05.0
07.0
09.5
12.0
14.5
C
05.1
05.6
06.1
06.6
07.1
07.6
08.1
10.1
12.6
15.1
17.6
(Note 2)
(Note 2)
(Note 2)
(Note 2)
(Note 1)
YES
(Note 2)
(Note 1)
Remarks
RoHS
Note
Note
Note
Note
1:
2:
3:
4:
Available in code (91) only.
Available in code (92) only.
Contact Hirose for availability.
Please order embossed tape packaged items by the reel.
A241
