37303-A124-0PE-MB datasheet, PDF

Datasheet> All Categories > The connector> The connector> 37303-A124-0PE-MB

37303-A124-0PE-MB: CategoryThe connector The connector; File Size406KB，7 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

37303-A124-0PE-MB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	37303-A124-0PE-MB	-	-	View	Buy Now

37303-A124-0PE-MB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT, GREEN COVER
body width	0.252 inch
subject depth	0.921 inch
body length	0.543 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (8) OVER NICKEL
Contact completed and terminated	MATTE TIN (300) OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.039 inch
Insulation resistance	1000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	373
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LATCH
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	3
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

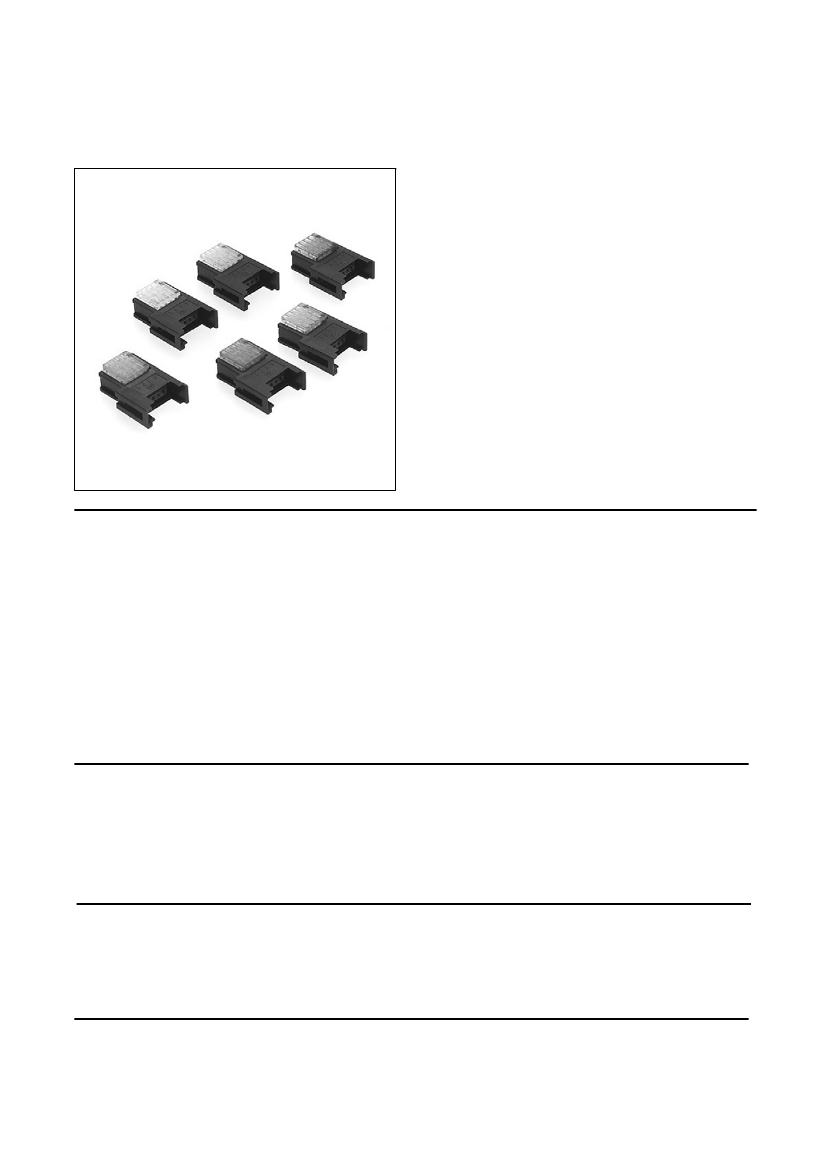

3M™ Mini-Clamp II Socket

Designed for Wiring Supplied from Europe and North America

2 mm, IDC, Wiremount, Optional Latch

•

373

Series

Designed to accommodate typical wiring specifications

per Europe and North America suppliers.

Easy, quick and reliable IDC termination

Integrated cable retention

Design accepts multiple wire size diameter

No special tooling needed

Latch helps enable rugged field termination

Compact design saves board space

High number of mating cycles

RoHS compliant as declared in Regulatory

Information Appendix notes E1 & C1

Date Modified:3/10/2008

TS–2234-D

Sheet 1 of 4

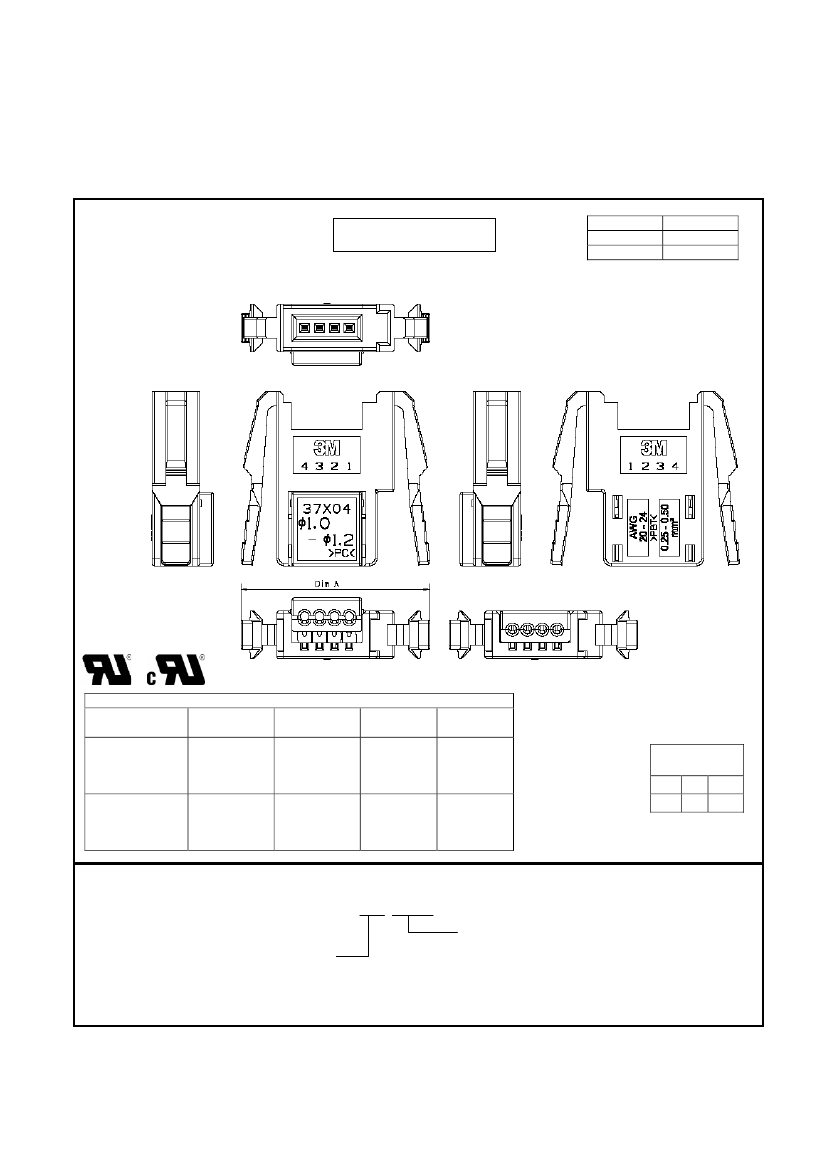

Physical

Insulation

Material: Glass Reinforced Thermoplastic Body & Lower Cover, Transparent Thermoplastic Cover

Flammability: UL 94V-0

Color: Black Body, Cover – White & Color (see Table 1)

Contact

Material: Copper Alloy

Plating

Underplating: 1.27-2.54

μm

[50-100

μ”]

Nickel

Wire Accomodation:

Copper Alloy, 7-19 Bare and Tinned Strands, 0.14-0.50 mm

, 20-26 AWG

Wire Insulation:

Flexible Vinyl, Semi-Flexible Vinyl, Polyethylene, X-Linked Polyethylene, or PTFE

For approved cables contact your local sales representative

Marking: 3M Logo, Position Indicator, Wire gauge, Insulator Material

Wiping Area: 0.2

μm

μ”]

Minimum Gold with Lubricant

IDC:

2.0-7.62

μm

[80-300

μ”]

Matte Tin

Electrical

Current Rating:

Voltage Rating:

Insulation Resistance:

Withstanding Voltage:

3.0 Amps

32 Volts

>1x10

at 600 V

1000 V

RMS

at Sea Level

Environmental

Temperature Ratings:

-20

C to 85

UL File No: E68080

Interconnect Solutions

http://www.3M.com/interconnects/

3M and Scotchlok are trademarks of 3M Company.

For technical, sales or ordering information

call your local sales representative

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E3: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/717/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.product Warranty stated below.

RIA-2217A-D

37303-A124-0PE-MB Related Products

	37303-A124-0PE-MB	37303-A206-0PE-MB	37304-A124-0PE-MB	37304-A206-0PE-MB	37304-B122-0PE-MB	37303-A165-00E-MB	37303-A124-00E-MB
Description		Headers u0026 Wire Housings 3P SKT WREMNT W/LTCH 20-24 AWG GRAY	Headers u0026 Wire Housings 4P IDC WIREMNT SKT 24-26 AWG RED	Terminal Block Tools u0026 Accessories END BRACKET	Headers u0026 Wire Housings 4P SKT WREMNT W/LTCH 24-26 AWG YELLOW	Modular Connectors / Ethernet Connectors RJ45 C SZ PNL SCREW 5E F CONN F PIN	3 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT, GREEN COVER	ROHS COMPLIANT, GRAY COVER	ROHS COMPLIANT, GREEN COVER	ROHS COMPLIANT, GRAY COVER	ROHS COMPLIANT, YELLOW COVER	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.32 inch	0.32 inch
subject depth	0.921 inch	0.921 inch	0.921 inch	0.921 inch	0.921 inch	0.92 inch	0.92 inch
body length	0.543 inch	0.543 inch	0.622 inch	0.622 inch	0.622 inch	0.54 inch	0.54 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	GOLD (8) OVER NICKEL	GOLD (8) OVER NICKEL	GOLD (8) OVER NICKEL	GOLD (8) OVER NICKEL	GOLD (8) OVER NICKEL	GOLD (8) OVER NICKEL	NOT SPECIFIED
Contact completed and terminated	MATTE TIN (300) OVER NICKEL	MATTE TIN (300) OVER NICKEL	MATTE TIN (300) OVER NICKEL	MATTE TIN (300) OVER NICKEL	MATTE TIN (300) OVER NICKEL	MATTE TIN (300) OVER NICKEL	MATTE TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1000VAC V	1000VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
Minimum insulation diameter	0.039 inch	0.063 inch	0.039 inch	0.063 inch	0.039 inch	0.047 inch	0.039 inch
Insulation resistance	1000000 Ω	1000000 Ω	1000000 Ω	1000000 Ω	1000000 Ω	1000000 Ω	1000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLUE	GREEN
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYETHYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LATCH	LATCH
Installation option 2	LATCH	LATCH	LATCH	LATCH	LATCH	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	3	3	4	4	4	3	3
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	24 AWG	20 AWG	20 AWG
Minimum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG	26 AWG	24 AWG	24 AWG
Maker	3M	3M	3M	3M	3M	3M	-
Manufacturer's serial number	373	373	373	373	373	373	-
Plating thickness	8u inch	8u inch	8u inch	8u inch	8u inch	-	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Base Number Matches	1	1	1	1	1	1	-
